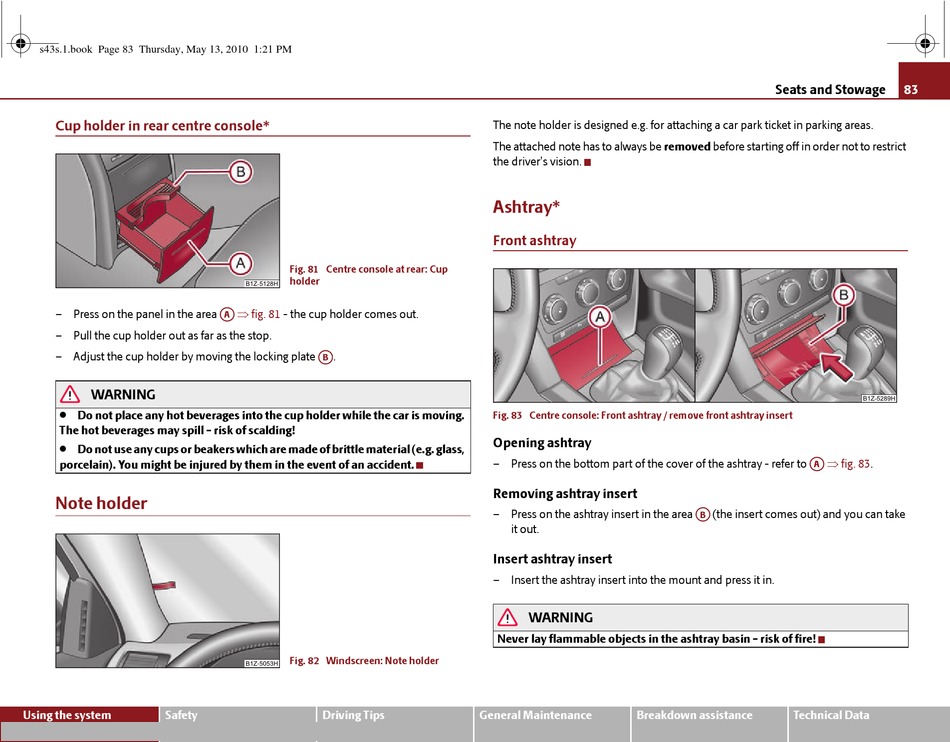

Note Holder; Ashtray - Skoda OCTAVIA - 05-2010 Owner's Manual

Cup holder in rear centre console*
– Press on the panel in the area
– Pull the cup holder out as far as the stop.
– Adjust the cup holder by moving the locking plate
WARNING

Do not place any hot beverages into the cup holder while the car is moving.
The hot beverages may spill - risk of scalding!

Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). You might be injured by them in the event of an accident.

Note holder

Using the system Safety
Fig. 81 Centre console at rear: Cup
holder
A  fig. 81
- the cup holder comes out.
A
A
.
B
Fig. 82 Windscreen: Note holder
Driving Tips
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict
the driver's vision.

Ashtray*

Front ashtray
Fig. 83 Centre console: Front ashtray / remove front ashtray insert
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to
Removing ashtray insert
– Press on the ashtray insert in the area
it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
General Maintenance Breakdown assistance
Seats and Stowage
 fig.
A
83.
A
A
(the insert comes out) and you can take
B
Technical Data
83
