and the low-beam headlight bulb
when installing the bulb sockets.
Note the colour-coding of the
wires for the low-beam headlight
(yellow) and the high-beam head-
light (white).
Turn bulb socket for low-beam
headlight 1 clockwise to install.
Make sure that the colour cod-
ing of the wire is correct: low-
beam headlight=yellow.
Turn bulb socket for high-
beam headlight 2 clockwise
to install. Make sure that
the colour coding of the
wire is correct: high-beam
headlight=white. If applicable,
install the parking-light bulb.
Install the headlight in housing
( 114).
Replacing parking-light
bulb
Remove the headlight from
housing ( 111).

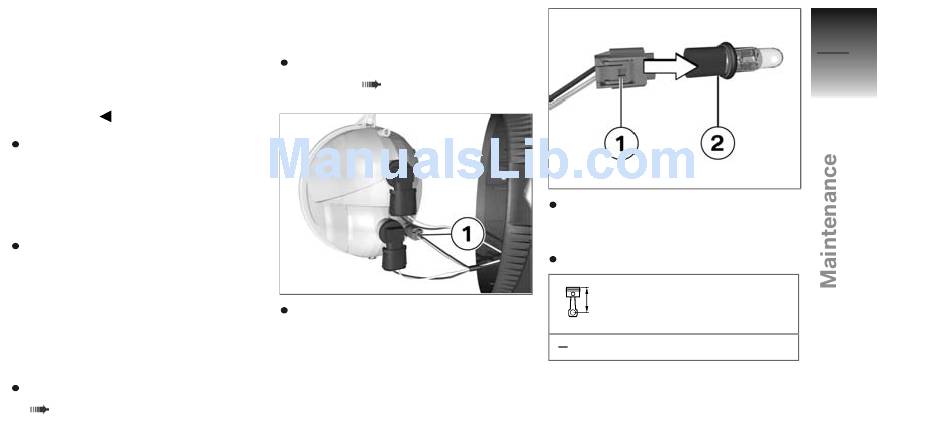

Remove bulb socket 1 from
the housing.
Remove bulb 2 from bulb
socket 1.
Replace the defective bulb.
Bulb for parking light
W5W / 12 V / 5 W
