Replacing The Front Drive Bezel; Removing An Insert On The Front Drive Bezel - Dell POWEREDGE SC440 Hardware Owner's Manual

3 Slide the lever on the sliding plate in the direction of the arrow until it releases the front drive bezel
from its side hinges. See Figure 3-3.
4 Carefully tilt the front drive bezel away from the chassis and lift it out as shown in Figure 3-3.
5 Close the system. See "Closing the System" on page 41.

Replacing the Front Drive Bezel

1 Slide the lever on the sliding plate in the direction of the arrow and fit the bezel into the chassis.
2 Snap the bezel into place and release the lever.

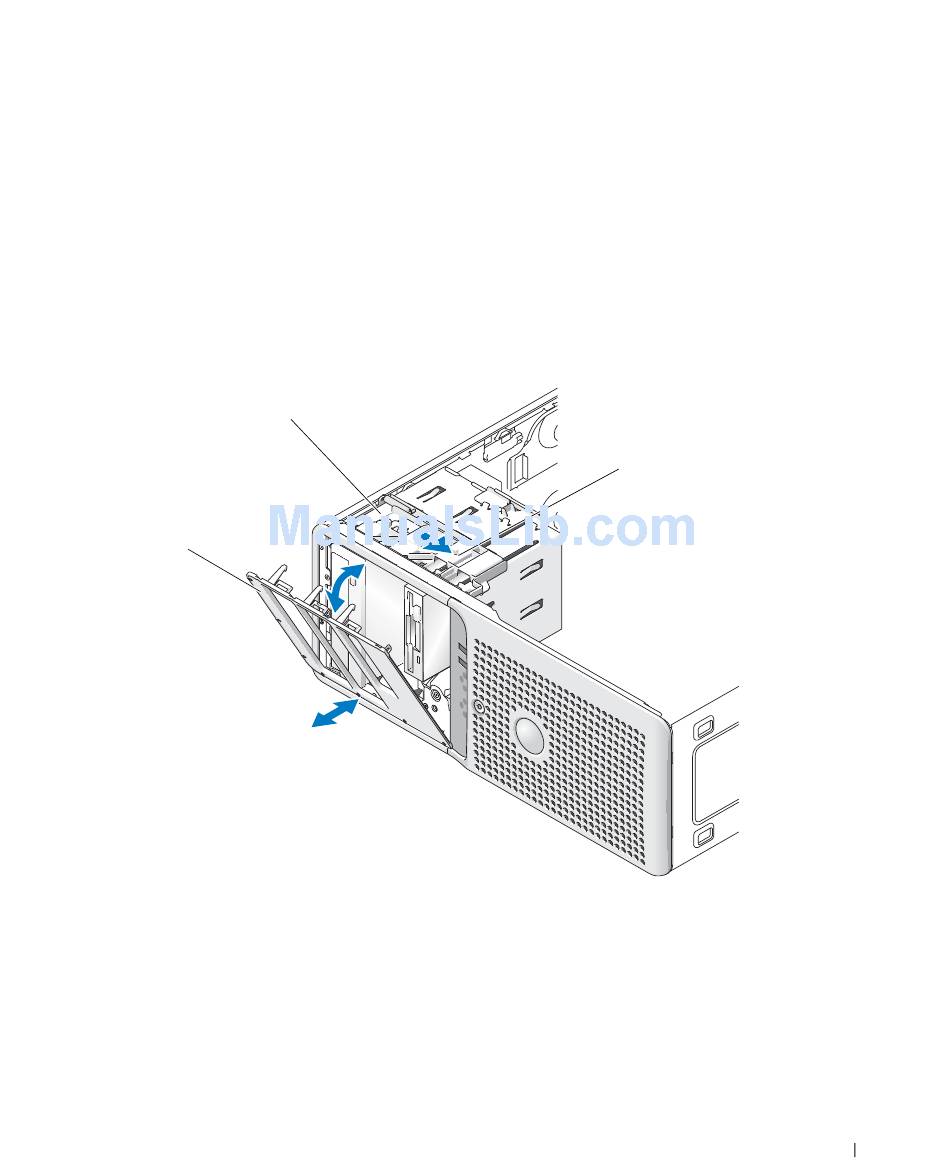

Figure 3-3. Removing and Replacing the Front Drive Bezel
1
1 front drive bezel

Removing an Insert on the Front Drive Bezel

If you install a drive in the 3.5-inch or 5.25-inch drive bays, first remove the corresponding insert on the
front drive bezel. From the back of the bezel, squeeze the tabs on the end of the insert and rotate the
insert away from the bezel. See Figure 3-4.
2
2 sliding plate
3
3 arrow on the sliding plate
