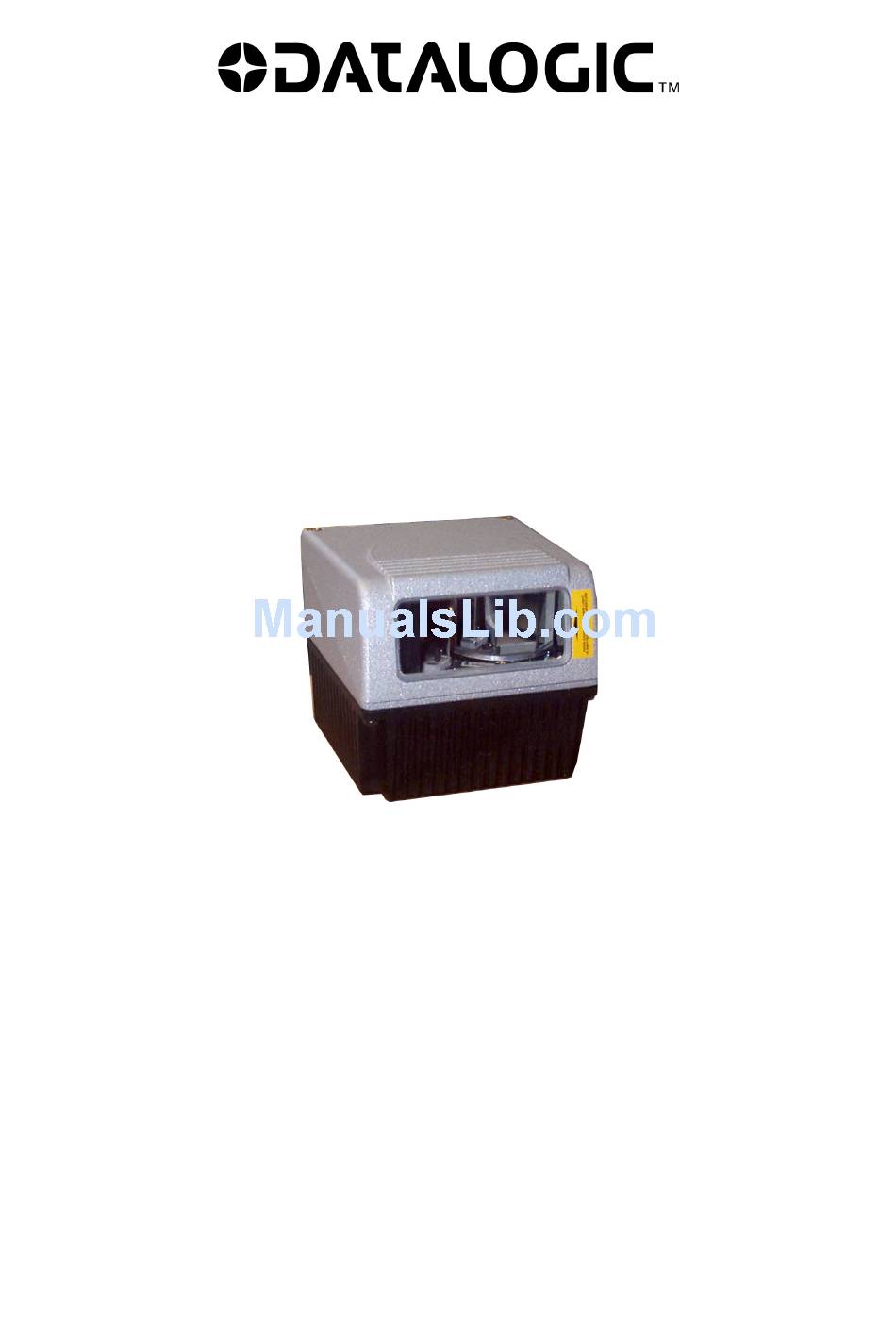

  • Page 1 DS6300 QUICK REFERENCE GUIDE...

  • Page 2: Table Of Contents

    CONTENTS DS6300-100-010 MASTER/SLAVE MODEL ...1 DS6300-100-011 PROFIBUS MODEL...8 DS6300-100-012 ETHERNET MODEL ...13 DS6300-100-015 DEVICENET MODEL...18 DS6300-105-0XX OSCILLATING MIRROR MODEL...23 COMMON FEATURES ...25 For further details on product installation, see the complete Reference Manual available on the configuration CD-ROM included with this product.

  • Page 3: Ds6300-100-010 Master/Slave Model

    Laser Beam Output Window Power On LED (Red) Main/Aux. Interface 25-pin D-sub Male Connector LCD Display Lonworks 9-pin Male Connector Lonworks 9-pin Female Connector DS6300 - 10X - 0YY OPTICAL FEATURES Light Receiver Wavelength Safety Class Baud Rate Laser Control...

  • Page 4: Electrical Connections

    Optical encoder kit + 10 m cable Electrical Connections: The DS6300 reader provides a 25-pin male D-sub connector for connection to power supply, Host interface (Main and Aux), and input/output signals. Two 9-pin connectors provide access to the scanner’s local Lonworks network used for both input and output connections to build a multi-sided or omni-station system.

  • Page 5: Network Termination

    Lonworks line (polarity insensitive) Network Termination: When building a local Lonworks system the network must be properly terminated by positioning a BTK-6000 terminator on the DS6300 master reader (BTK-6000 female side) and on the last slave reader (BTK-6000 male side). to Master...
  • Page 6 C-BOX 100 MAIN *P.S. PWR-120 Main Serial Interface P.S. (Presence Sensor) connected to External Trigger/PS input. Point-to-Point Layout Pass Through Layout *P.S. *P.S. DS4600A C-BOX 100 Local Host Auxiliary Serial Interface DS6300 MASTER/SLAVE MODEL Local Host Gryphon DS4600A C-BOX 100...
  • Page 7 1 Main Serial Interface P.S. (Presence Sensor) connected to External Trigger/PS input. Multiplexer Layout *P.S. DS4600A C-BOX 100 RS232 Master/Slave Layout CAB-600X C-BOX 100 *P.S. PWR-120 C-BOX 100 2 Auxiliary Serial Interface DS6300 MASTER/SLAVE MODEL DS4600A PWR-120 MX4000 Local Host Local Host...
  • Page 8 Local Lonworks Network CAB-60XX C-BOX 100** *P.S. Small Synchronized Network with 2 Readers Local Lonworks Network Master Slave 1 BTK-6000 CAB-610X CAB-600X CAB-610X Slave 3 Slave 4 CAB-63XX DS6300 MASTER/SLAVE MODEL Encoder*** Local Host C-BOX 100** *P.S. Encoder*** Host CAB-63XX PWR-240...
  • Page 9 P.S. (Presence Sensor) connected to External Trigger/PS input. Encoder connected to ENC input. Large Synchronized Network with DX6X00 and DS6XXX Scanners DS6300 MASTER/SLAVE MODEL Large Synchronized Network...

  • Page 10: Ds6300-100-011 Profibus Model

    Laser Beam Output Window Profibus 9-pin Female Connector (white) Power On LED (Red) LCD Display Lonworks 9-pin Female Connector Main/Aux. Interface 26-pin D-Sub Male Connector DS6300 - 10X - 0YY OPTICAL FEATURES Light Receiver Wavelength Safety Class Baud Rate Laser Control...
  • Page 11 Optical encoder kit + 10 m cable Electrical Connections: The DS6300 Profibus reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. An 9-pin Profibus connector is used for connection to the remote Host, while a local Lonworks 9-pin female connector connects the Profibus master to the first slave reader of the system.
  • Page 12 RTX485- * RX485- GND_ISO GND_ISO 9-pin Lonworks Connector Pinout 9-pin female Local Lonworks Connector 9-pin Profibus Connector DS6300 PROFIBUS MODEL 26-pin male D-sub Connector 20 mA C.L. (INT-30 with C-BOX 100 only) see INT-30 instructions 9-pin female Profibus Connector (white)

  • Page 13: Fieldbus Network

    Main Serial Interface P.S. (Presence Sensor) connected to External Trigger/PS input. Point-to-Point Layout Fieldbus Network C-BOX 100 CAB-601X *P.S Pass Through Layout *P.S. DS4600A C-BOX 100 C-BOX 100 Auxiliary Serial Interface DS6300 PROFIBUS MODEL Remote Host PG6000 *P.S. DS4600A C-BOX 100 Gryphon...
  • Page 14 The Slave scanners are Master/Slave models, which allow Lonworks network propagation. **** Encoder connected to IN2/ENC input. Local Lonworks Network Fieldbus Network Master C-BOX 100** CAB-610X CAB-60XX CAB-610X CAB-63XX Slave 3*** Fieldbus Small Synchronized Network DS6300 PROFIBUS MODEL Remote Host P.S.* Encoder**** PWR-240...

  • Page 15: Ds6300-100-012 Ethernet Model

    DS6300-100-012 ETHERNET MODEL Figure B Programming Keypad TX Data LED (Green) Phase On LED (Yellow) Available Models: Optical Model 0 = Standard 5 = Oscillating Mirror Technical Features: ELECTRICAL FEATURES Supply Voltage 15 - 30 Vdc Power 15 W typical Consumption 20 W Max.
  • Page 16 Optical encoder kit + 10 m cable Electrical Connections: The DS6300 Ethernet reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. An Ethernet connector is used for connection to the remote Host (for ex. Remote PC connected via Internet), while a local Lonworks 9-pin female connector connects the Ethernet master to the first slave reader of the system.
  • Page 17 * RX485+ TX485- RTX485- * RX485- GND_ISO GND_ISO 9-pin Lonworks Connector Pinout 9-pin female Local Lonworks Connector RJ45 Modular Connector RJ45 Modular Connector DS6300 ETHERNET MODEL 26-pin male D-sub Connector 20 mA C.L. (INT-30 with C-BOX 100 only) see INT-30 instructions...
  • Page 18 Main Serial Interface P.S. (Presence Sensor) connected to External Trigger/PS input. Point-to-Point Layout Fieldbus Network C-BOX 100 CAB-601X *P.S Pass Through Layout *P.S. DS4600A C-BOX 100 C-BOX 100 Auxiliary Serial Interface DS6300 ETHERNET MODEL Remote Host PG6000 *P.S. DS4600A C-BOX 100 Gryphon...
  • Page 19 The Slave scanners are Master/Slave models, which allow Lonworks network propagation. **** Encoder connected to IN2/ENC input. Local Lonworks Network Fieldbus Network Master C-BOX 100** CAB-610X CAB-60XX CAB-610X CAB-63XX Slave 3*** Fieldbus Small Synchronized Network DS6300 ETHERNET MODEL Remote Host P.S.* Encoder**** PWR-240...

  • Page 20: Ds6300-100-015 Devicenet Model

    Laser Beam Output Window Main/Aux. Interface 26-pin D-sub Male Connector Power On LED (Red) Lonworks 9-pin Female Connector LCD Display DeviceNet 5-pin Male Connector DS6300 - 10X - 0YY OPTICAL FEATURES Light Receiver Wavelength Safety Class Laser Control Baud Rate...
  • Page 21 Optical encoder kit + 10 m cable Electrical Connections: The DS6300 DeviceNet reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. A DeviceNet connector is used for connection to the remote Host, while a local Lonworks 9-pin female connector connects the DeviceNet master to the first slave reader of the system.
  • Page 22 The power supplied on pin V+ and V- is used only to propagate power to the section of the DeviceNet board directly connected to the Bus. It is completely isolated from the DS6300 power which must be supplied on pin 9, 13 and pin 23, 25 of the 26-pin Main/Aux connector.
  • Page 23 Main Serial Interface P.S. (Presence Sensor) connected to External Trigger/PS input. Point-to-Point Layout Fieldbus Network C-BOX 100 CAB-601X *P.S Pass Through Layout *P.S. DS4600A C-BOX 100 C-BOX 100 Auxiliary Serial Interface DS6300 DEVICENET MODEL Remote Host PG6000 *P.S. DS4600A C-BOX 100 Gryphon...
  • Page 24 The Slave scanners are Master/Slave models, which allow Lonworks network propagation. **** Encoder connected to IN2/ENC input. Local Lonworks Network Fieldbus Network Master C-BOX 100** CAB-610X CAB-60XX CAB-610X CAB-63XX Slave 3*** Fieldbus Small Synchronized Network DS6300 DEVICENET MODEL Remote Host P.S.* Encoder**** PWR-240...

  • Page 25: Ds6300-105-0Xx Oscillating Mirror Model

    When the oscillating mirror is programmed to read barcode labels at very small angles, position the reader to assure at least 10° for the Skew angle (see DS6300 Reference Manual). This angle refers to the most inclined or external laser line, so that all other laser lines assure more than 10° Skew. This avoids the direct reflection of the laser light emitted by the reader.
  • Page 26 –2.5° and +37.5°. The scanner can be tilted in order for the 17.5° software setting to correspond with the 0° horizontal plane. These models provide higher scanning speed (1200 scans/sec) compared to standard models and the reading performance is not adversely effected by the oscillating mirror.

  • Page 27: Common Features

    COMMON FEATURES C-BOX 100 Pinout for DS6300: The table below gives the pinout of the C-BOX 100 terminal block connectors. Use this pinout when the DS6300 reader is connected in a network by means of the C-BOX 100: 1, 3, 5...

  • Page 28: Mechanical Installation

    Mechanical Installation: The DS6300 reader can be positioned and installed in the best way possible as a result of the Step-A-Head feature. Thanks to the separation between Head and Base, you can modify the orientation of the decoder base, and therefore display-keypad and connector panels, while keeping the optic head in the correct reading position.

  • Page 29: Typical Installations

    Typical Installations: Standard Installation The DS6300 scanner is mounted on the ST-237 106° mounting bracket which guarantees a built-in Skew angle (S in the figure below) of 16° with respect to the frame plane (typically the Skew angle should be between 10°...
  • Page 30 Focus Adjustment: The DS6300 provides a manual adjustment of the optics to optimize the reading performance by choosing the best focus between two extreme positions. The focus adjustment is continuous and not by step; thus, allowing an optimum adjustment around the selected position. The relative focus positions range from 0 to 100.

  • Page 31: Reading Conditions

    Use the ▲ (up arrow) and ▼ (down arrow) key to select the “Exit” item, then press the ENT (enter) key to confirm. The scanner exits the Main Menu and returns to its current operating mode. The reader display shows the focus position only when the laser beam is activated.
  • Page 32 Conveyor Speed (m/s) 0.25 0.30 0.33 Code 128 – Ean 128 0.38 Code Resolution (mm) 0.50 0.72 1.00 Conveyor Speed (m/s) 0.25 0.30 0.33 Codabar 0.38 Code Resolution (mm) 0.50 0.72 1.00 Ratio 3:1; Interdigit = Module Size Conveyor Speed (m/s) 0.25 0.30 0.33...

  • Page 33: Reading Diagrams

    Reading Diagrams: In the following reading diagrams (0,0) is the center of the laser beam output window. DS6300-100-0XX – Resolution: 0.20 mm/8 mils CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20°...
  • Page 34 Reading Diagrams: DS6300-100-0XX – Resolution: 0.38 mm/15 mils CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0° (in) (cm) DS6300-100-0XX – Resolution: 0.50 mm/20 mils...
  • Page 35 Reading Diagrams: DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.20 mm/8 mils CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0° DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.30 mm/12 mils...
  • Page 36 Reading Diagrams: DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.38 mm/15 mils CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0° (in) (cm) DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.50 mm/20 mils...

  • Page 37: User Interface

    9-pin male connector How To Build A Simple Interface Test Cable: The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC RS232 COM port connections. 25-pin D-sub female DS6300 Trigger Compliance: Laser Safety Figure A...
  • Page 38 The scanner is classified as a Class 2 laser product according to EN 60825-1 regulations and as a Class II laser product according to CDRH regulations. Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light.

  • Page 39: Declaration Of Conformity

    Gerät declare que el DS6300-XXX-XXX, Laser Scanner; sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats:...
