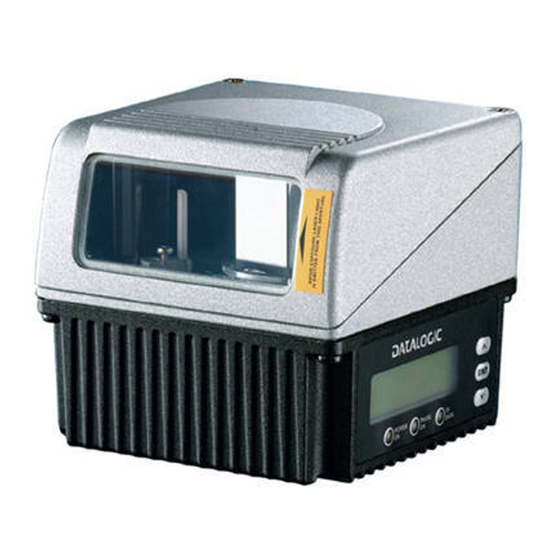

DS6300
INSTALLATION QUICK REFERENCE

Advertisement

loading

Related Manuals for Datalogic DS6300

Summary of Contents for Datalogic DS6300

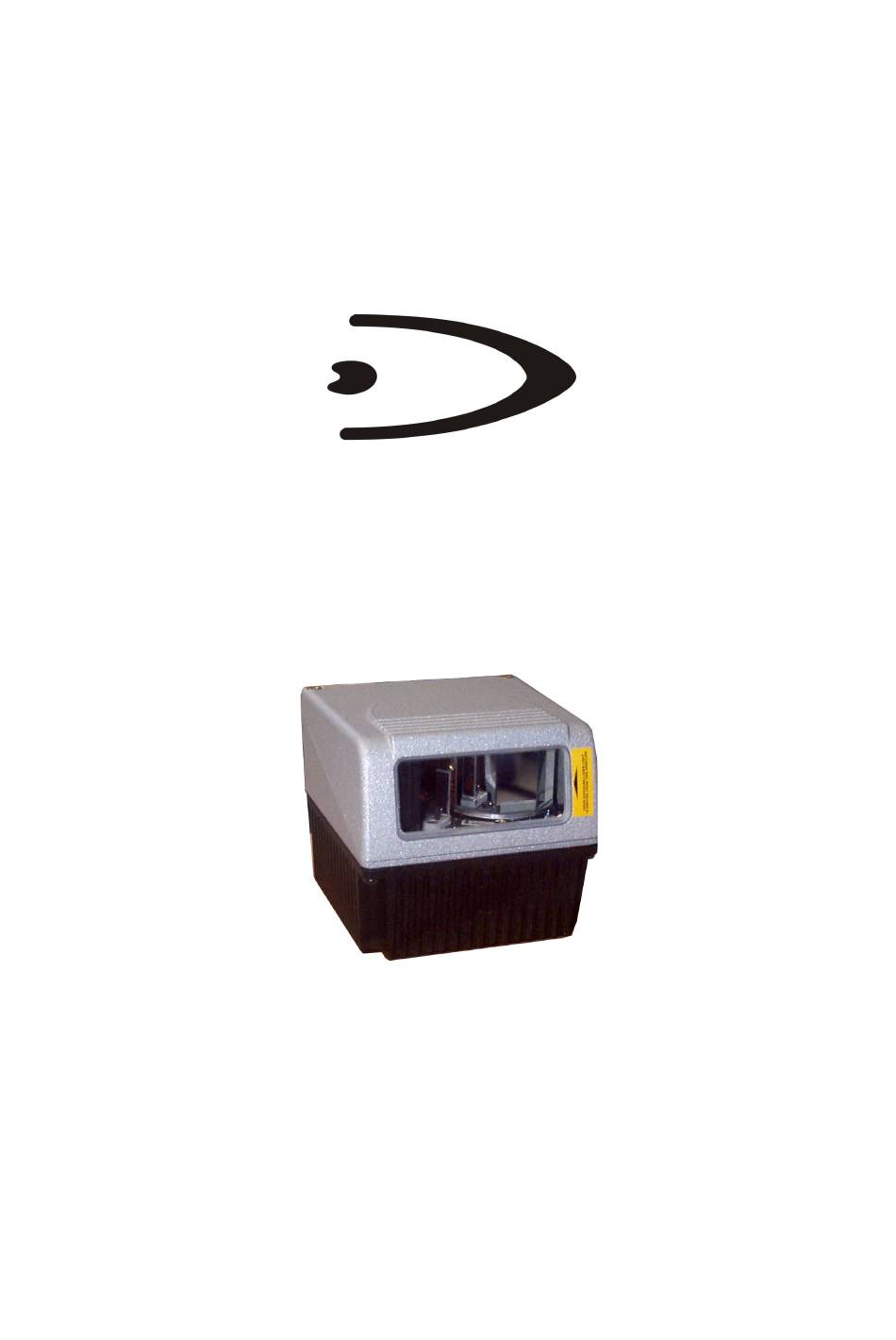

  • Page 1 DS6300 INSTALLATION QUICK REFERENCE...
  • Page 2 DS6300-100-010 MASTER/SLAVE MODELS ......................1 DS6300-100-011 PROFIBUS MODELS ........................7 DS6300-100-012 ETHERNET MODELS........................12 DS6300-100-015 DEVICENET MODELS ......................17 DS6300-105-0XX OSCILLATING MIRROR MODELS ..................22 COMMON FEATURES ............................24 For further details on product installation, see the complete Reference Manual available on the configuration CD-ROM included with this product.

  • Page 3: Electrical Features

    TX Data LED (Green) LCD Display Lonworks 9-pin Male Connector Phase On LED (Yellow) Lonworks 9-pin Female Connector Available Models: DS6300 - 10X - 0YY Decoder Model Optical Model 10 = Master/Slave 0 = Standard 11 = Profibus 5 = Oscillating Mirror...

  • Page 4: Software Features

    93ACC1728 Electrical Connections: The DS6300 reader provides a 25-pin male D-sub connector for connection to power supply, Host interface (Main and Aux), and input/output signals. Two 9-pin connectors provide access to the scanner’s local Lonworks network used for both input and output...
  • Page 5 Lonworks line (polarity insensitive) Network Termination: When building a local Lonworks system the network must be properly terminated by positioning a BTK-6000 terminator on the DS6300 master reader (BTK-6000 female side) and on the last slave reader (BTK-6000 male side). to Master...
  • Page 6 * C-BOX 100 Local Host **P.S. PG6000 C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. P.S. (Presence Sensor) connected to External Trigger input. Pass Through Layout *P.S.
  • Page 7 DS6300 MASTER/SLAVE Multiplexer Layout *P.S. *P.S. *P.S. DS4600A DS4600A DS6300 PWR-120 CAB-600X C-BOX 100 C-BOX 100 C-BOX 100 MX4000 Local Host 1 RS485 HD Main Interface Local Lonworks Network (Single P.S.) Master C-BOX 100 CAB-600X CAB-610X BTK-6000 *P.S. Slave 1...
  • Page 8 DS6300 MASTER/SLAVE Local Lonworks Network (Single P.S.) Master C-BOX 100 CAB-600X CAB-610X BTK-6000 **P.S. Slave 1 Local Host CAB-611X PG6000 BTK-6000 CAB-600X CAB-610X C-BOX 100 Slave 2 Slave 3 PG6000 Single P.S. with more than 2 Readers and Multiple Power Units Local Lonworks Network (Single P.S.)
  • Page 9 TX Data LED (Green) LCD Display Lonworks 9-pin Female Connector Phase On LED (Yellow) Main/Aux. Interface 26-pin D-Sub Male Connector Available Models: DS6300 - 10X - 0YY Decoder Model Optical Model 10 = Master/Slave 0 = Standard 11 = Profibus...
  • Page 10 Photocell kit – NPN 93ACC1728 Electrical Connections: The DS6300 Ethernet reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. An Ethernet connector is used for connection to the remote Host (for ex. Remote PC connected via Internet), while a local Lonworks 9-pin female connector connects the Ethernet master to the first slave reader of the system.
  • Page 11 DS6300 PROFIBUS 26-pin D-Sub Connector Pinout Name Function Shield Internally connected by capacitor to chassis RXAUX Receive data of auxiliary RS232 (referred to GND) TXAUX Transmit data of auxiliary RS232 (referred to GND) OUT 1+ Configurable digital output 1 – positive pin OUT 1- Configurable digital output 1 –...
  • Page 12 * C-BOX 100 **P.S. PWR-120 Auxiliary Serial Interface Main Serial Interface C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. P.S. (Presence Sensor) connected to External Trigger input.
  • Page 13 BTK-6000 CAB-610X ***Slave 2 C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. ** P.S. (Presence Sensor) connected to External Trigger input. *** The Slave scanners are Master/Slave models which allow Lonworks network propagation.
  • Page 14 DS6300 ETHERNET Figure A Laser Beam Output Window Figure B Figure C RJ45 Modular Connector for Ethernet Interface Programming Keypad Power On LED (Red) TX Data LED (Green) LCD Display Lonworks 9-pin Female Connector Phase On LED (Yellow) Main/Aux. Interface 26-pin D-Sub Male Connector...
  • Page 15 Photocell kit – NPN 93ACC1728 Electrical Connections: The DS6300 Ethernet reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. An Ethernet connector is used for connection to the remote Host (for ex. Remote PC connected via Internet), while a local Lonworks 9-pin female connector connects the Ethernet master to the first slave reader of the system.
  • Page 16 DS6300 ETHERNET 26-pin D-Sub Connector Pinout Name Function Shield Internally connected by capacitor to chassis RXAUX Receive data of auxiliary RS232 (referred to GND) TXAUX Transmit data of auxiliary RS232 (referred to GND) OUT 1+ Configurable digital output 1 – positive pin OUT 1- Configurable digital output 1 –...
  • Page 17 * C-BOX 100 **P.S. PWR-120 Auxiliary Serial Interface Main Serial Interface C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. P.S. (Presence Sensor) connected to External Trigger input.
  • Page 18 BTK-6000 CAB-610X ***Slave 2 C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. ** P.S. (Presence Sensor) connected to External Trigger input. *** The Slave scanners are Master/Slave models which allow Lonworks network propagation.
  • Page 19 Lonworks 9-pin Female Connector TX Data LED (Green) LCD Display DeviceNet 5-pin Male Connector Phase On LED (Yellow) Available Models: DS6300 - 10X - 0YY Decoder Model Optical Model 10 = Master/Slave 0 = Standard 11 = Profibus 5 = Oscillating Mirror...
  • Page 20 Photocell kit – NPN 93ACC1728 Electrical Connections: The DS6300 DeviceNet reader provides a 26-pin male D-sub connector for connection to power supply and input/output signals. A DeviceNet connector is used for connection to the remote Host, while a local Lonworks 9-pin female connector connects the DeviceNet master to the first slave reader of the system.
  • Page 21 The power supplied on pin V+ and V- is used only to propagate power to the section of the DeviceNet board directly connected to the Bus. It is completely isolated from the DS6300 power which must be supplied on pin 9, 13 and pin 23, 25 of the 26-pin Main/Aux connector.
  • Page 22 * C-BOX 100 **P.S. PWR-120 Main Serial Interface Auxiliary Serial Interface C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. ** P.S. (Presence Sensor) connected to External Trigger input.
  • Page 23 BTK-6000 CAB-610X ***Slave 2 C-BOX 100 can support up to 2 DS6300 readers. Please contact Datalogic USS Technical Support, if your application requires a multi-slave network. ** P.S. (Presence Sensor) connected to External Trigger input. *** The Slave scanners are Master/Slave models which allow Lonworks network propagation.
  • Page 24 When the oscillating mirror is programmed to read barcode labels at very small angles, position the reader to assure at least 10° for the Skew angle (see DS6300 Reference Manual). This angle refers to the most inclined or external laser line, so that all other laser lines assure more than 10° Skew. This avoids the direct reflection of the laser light emitted by the reader.
  • Page 25 DS6300 OSCILLATING MIRROR The mirror can be deflected up to 40°. Oscillation with respect to the output window median axis is asymmetrical (see figure below). 40° 0° Oscillating Mirror Maximum Aperture and Asymmetry By configuring the oscillating speed up to the maximum value of 19 Hz, raster emulation can be performed for reading fast moving objects.

  • Page 26: Earth Ground

    DS6300 COMMON FEATURES C-BOX 100 Pinout for DS6300: The table below gives the pinout of the C-BOX 100 terminal block connectors. Use this pinout when the DS6300 reader is connected in a network by means of the C-BOX 100: C-BOX 100 Terminal Block Connectors...
  • Page 27 DS6300 COMMON FEATURES Mechanical Installation: The DS6300 reader can be positioned and installed in the best way possible as a result of the Step-A-Head feature. Thanks to the separation between Head and Base, you can modify the orientation of the decoder base, and therefore display-keypad and connector panels, while keeping the optic head in the correct reading position.
  • Page 28 Typical Installations: Standard Installation The DS6300 scanner is mounted on the ST-237 106° mounting bracket which guarantees a built-in Skew angle (S in the figure below) of 16° with respect to the frame plane (typically the Skew angle should be between 10°...
  • Page 29 DS6300 COMMON FEATURES Focus Adjustment: The DS6300 provides a manual adjustment of the optics to optimize the reading performance by choosing the best focus between two extreme positions. The focus adjustment is continuous and not by step; thus, allowing an optimum adjustment around the selected position.
  • Page 30 It is possible to visualize the focus position and the reading percentage on the terminal tool provided by the Genius™ configuration program (see Genius™ Help On-Line for details). Reading Diagrams: In the following reading diagrams (0,0) is the center of the laser beam output window. DS6300-100-0XX – Resolution: 0.20 mm/8 mils (in) (cm) Focus...
  • Page 31 DS6300 COMMON FEATURES Reading Diagrams: DS6300-100-0XX – Resolution: 0.30 mm/12 mils (in) 32 34 (cm) 20 25 Focus Position = 0 CONDITIONS Code = Interleaved 2/5 or Focus Code 39 Position = 40 PCS = 0.90 Pitch angle = 0°...
  • Page 32 DS6300 COMMON FEATURES Reading Diagrams: DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.20 mm/8 mils (in) (cm) Focus Focus Position = 0 Position = 40 CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20°...
  • Page 33 DS6300 COMMON FEATURES Reading Diagrams: DS6300-105-0XX (Oscillating Mirror) – Resolution: 0.50 mm/20 mils (in) 48 52 56 (cm) 20 30 110 120 130 140 Focus Position = 100 Focus Position = 60 CONDITIONS Code = Interleaved 2/5 or Code 39 PCS = 0.90...
  • Page 34 DS6300 COMMON FEATURES How To Build A Simple Interface Test Cable: The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC RS232 COM port connections. 25-pin D-sub female 9-pin D-sub female TXAUX RXAUX DS6300...
  • Page 35 IS EMITTED FROM THIS APERTURE Laser Safety Label for Oscillating Mirror and Standard Models CAUTION-CLASS 3B LASER LIGHT WHEN OPEN DATALOGIC S.p.A. Via Candini, 2 AVOID EXPOSURE TO BEAM 40012 LIPPO DI CALDERARA DI RENO (BO) ITALY MANUFACTURED VOLT Amp.
  • Page 36 Gerät declare que el e tutti i suoi modelli DS6300-XXX-XXX, Laser Scanner and all its models et tous ses modèles und seine modelle y todos sus modelos sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:...
