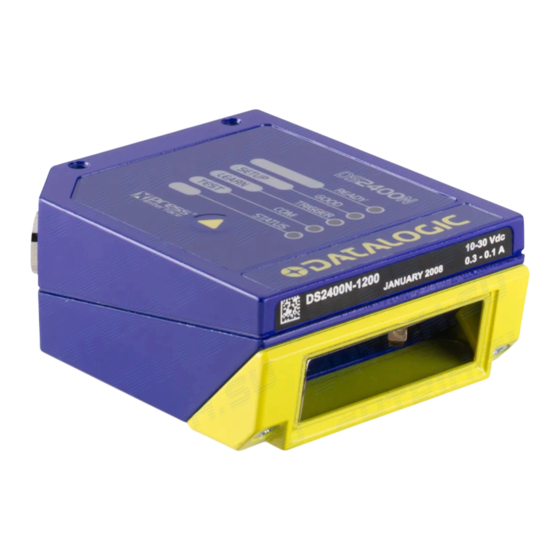

Datalogic DS2400N Quick Reference Manual

Datalogic laser scanner quick reference guide
Hide thumbs Also See for DS2400N:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
QUICK REFERENCE GUIDE
2
1
Warning and Device Class Labels
1
2
"POWER ON" LED
3
Mounting Holes
"READY" LED
4
"GOOD" LED
5
"TRIGGER" LED
6
This manual illustrates a Stand Alone application. For other types of installations, such as
ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete scanner configuration using
Genius™ configuration program, refer to the DS2400N Reference Manual available on the CD.
This manual is also downloadable from the Web at www.automation.datalogic.com/ds2400n.
NOTE
DS2400N
3
11
Figure A
Laser Beam Output Window
7
"COM" LED
8
"STATUS" LED
9
Push Button
10
Accessory Mounting Holes
11
4
5
6
10
9
8
7

Advertisement

Table of Contents
loading

Related Manuals for Datalogic DS2400N

Summary of Contents for Datalogic DS2400N

  • Page 1 This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete scanner configuration using Genius™ configuration program, refer to the DS2400N Reference Manual available on the CD. This manual is also downloadable from the Web at www.automation.datalogic.com/ds2400n.

  • Page 2: Updates And Language Availability

    UPDATES AND LANGUAGE AVAILABILITY The latest drivers and documentation updates for this product are available on Internet. Su Internet sono disponibili le versioni aggiornate di driver e documentazione di questo prodotto. Questo manuale Les versions mises à jour de drivers et documentation de ce produit sont disponibles sur Internet. Ce manuel est Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation von diesem Produkt.

  • Page 3: Step 1 - Connect The System

    Host on the main serial interface. In Local Echo communication mode, the RS232 auxiliary interface can be used to transmit data independently from the main interface selection. When On-Line Operating mode is used, the scanner is activated by an External Trigger (photoelectric sensor) when the object enters its reading zone.
  • Page 4 25-pin Connector Pinout for DS2400N The table below gives the pinout of the 25-pin male D-sub connector for connection to the power supply and input/output signals. Use this pinout when the DS2400N reader is connected by means of the 25-pin connector: Name...

  • Page 5: Step 2 - Mount And Position The Scanner

    STEP 2 – MOUNT AND POSITION THE SCANNER To mount the DS2400N, use the mounting bracket to obtain the most suitable position for the reader as shown in the figures below. Tilt Skew When mounting the DS2400N take into consideration these three ideal label position angles:, Skew 10° to 30°, Tilt 0°...

  • Page 6: Step 3 - X-Press™ Configuration

    This LED indicates a NO READ result. During the reader startup (reset or restart phase), all the LEDs blink for one second. On the back of the reader near the cable, the “POWER ON” LED indicates the laser scanner is correctly powered. AUTO LEARN If you are configuring your scanner using X-PRESS™, you must start with the Auto Learn procedure.

  • Page 7: Auto Setup (Optional)

    This procedure ends either when the barcode is successfully decoded or after a timeout of about 7 (seven) seconds. The scanner will restart at the end of the process, and then the optimized reading parameters for that barcode are automatically configured in scanner memory.

  • Page 8: Step 4 - Install Genius™ Configuration Program

    After installing the Genius™ software program the following window appears asking the user to choose the desired configuration level. The Wizard option is advised for rapid configuration or for new users, since it shows a step-by-step scanner configuration. Select the Create a new configuration button.
  • Page 9 Barcode selection and definition Digital Outputs configuration The On Line operating Mode requires the reader to be connected to an External Trigger/Presence Sensor using I1A and I1B inputs. The Automatic operating mode does not require connection to an external Presence Sensor. When working in this mode the reader is continuously scanning, while the reading phase is activated each time a barcode enters the reader reading zone.
  • Page 10 Switching to Advanced mode; Sending the configuration to the scanner. • After sending the configuration to the scanner you have completed the configuration process. By clicking Finish, the System Information window will be displayed with specific information concerning the scanner.

  • Page 11: Step 5 - Test Mode

    Release the button to enter the Test mode function. Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts reading barcodes the Bar-Graph shows the Good Read Rate. In case of no read condition, only the STATUS LED is on and blinks.

  • Page 12: Advanced Scanner Configuration

    If you need to install a Pass-Through network refer to the DS2400N Reference Manual. • If you need to install a Multiplexer network refer to the DS2400N Reference Manual. • If you need to install an RS232 Master/Slave (for backward compatibility) refer to the DS2400N Reference Manual.

  • Page 13: Reading Diagrams

    * Reading Conditions = Standard * Scan Speed = 800 scans/s Parameters selectable in Genius™ (0,0) corresponds to the scanner output window DS2400N-0200 (Short Reading Range) DS2400N-1200 (Medium Reading Range) 0.35 mm (14 mils) 14 in 35 cm ≥...
  • Page 14 * Reading Conditions = Standard * Scan Speed = 800 scans/s • Parameters selectable in Genius™ (0,0) corresponds to the scanner output window DS2400N-2200 (Long Reading Range) 70 cm 0.35 mm ≥ 0.50 mm (14 mils) (20 mils) 28 in...

  • Page 15: Reading Performance

    READING PERFORMANCE Version 0XX0 75 mm (3 in) - 340 mm (13.4 in) on 0.35 mm (14 mils) codes 1XX0 100 mm (3.9 in) - 440 mm (17.3 in) on 0.50 mm (20 mils) codes 2XX0 190 mm (7.5 in) - 600 mm (23.6 in) on 0.50 mm (20 mils) codes TECHNICAL FEATURES ELECTRICAL FEATURES Power Supply...

  • Page 16: Mechanical Dimensions

    The quote refers to the scan line 20° Figure 11 – Mounting Bracket Overall Dimensions 3.31 0.16 DS2400N READY GOOD SETUP TRIGGER LEARN TEST STATUS PRESS INTERFACE Figure 10 – DS2400N Overall Dimensions 14.7 0.58 M 4 n° 4 90°...

  • Page 17: Laser Safety

    This product conforms to the applicable requirements of IEC 60825-1 and complies with 21 CFR 1040.10 except for deviations pursuant to Laser Notice N° 50, date June 24, 2007. The scanner is classified as a Class 2 laser product according to IEC 60825-1 regulations.
  • Page 18 DS2400N QUICK GUIDE PATENTS This product is covered by one or more of the following patents: U.S. patent: 5,992,740 European patent: 789,315 B1...

  • Page 19: Declaration Of Conformity

    Gerät declare que el DS2400N Laser Scanner; sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats:...
