Datalogic DS2400A Quick Manual

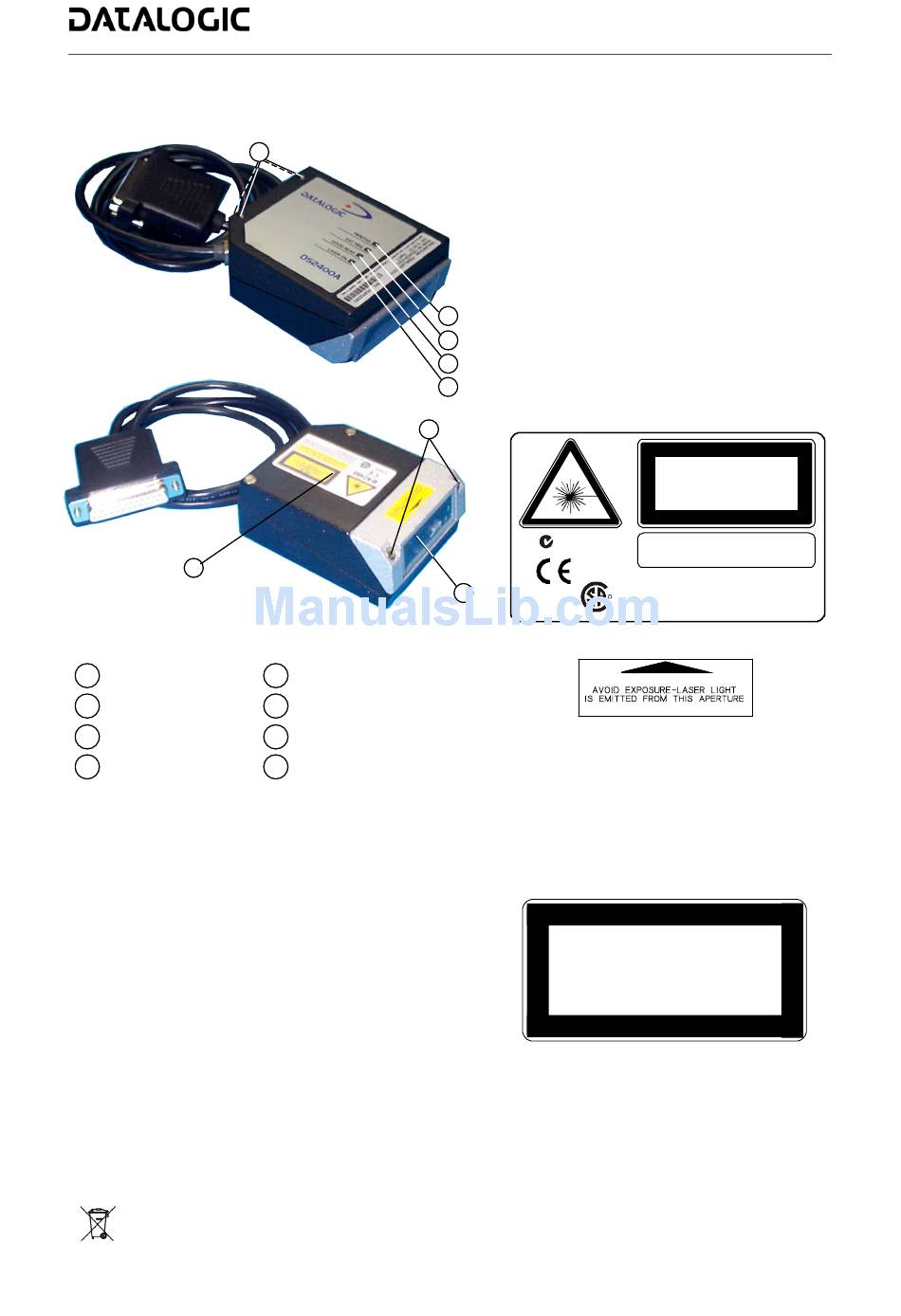

General View:

5
Power On / Data TX LED
1
2 External Trigger LED
Good Read LED
3
4 Laser On LED
For further details on product installation, see the
complete Reference Manual on the installation CD-ROM.
DS2400A can be configured through the WinHost
Windows-based software program available on the
installation CD-ROM.
For configuration it is necessary to create a cable
connecting the scanner to the PC as indicated in the
"How To Build A Simple Interface Test Cable" section of
this guide, otherwise you can use the C-Box 100.

Power Supply:

- This product is intended to be installed by Qualified
Personnel only.
- All Models:
This accessory device is intended to be supplied by a UL
Listed or CSA Certified Power Unit with «Class 2» or LPS
power source which supplies power directly to the
scanner via the 25-pin connector.

WEEE Compliance:

DS2400A
8
Figure A
Warning and Device Class Label
5
Laser Beam Output Window
6
Accessory Mounting Holes
7
Mounting Holes
8

Laser Safety:

The scanner is classified as a Class 2 laser
product according to EN 60825-1 regulations
and as a Class II laser product according to
CDRH regulations.
Disconnect the power supply when opening the
device during maintenance or installation to
avoid exposure to hazardous laser light.
There is a safety device which allows the laser to
1
be switched on only if the motor is rotating above
the threshold for its correct scanning speed.
2
3
The motor and laser beam can be switched off
4
through a software command (see also the
WinHost Help On Line).
7
N2468
6
218441
C
Warning and Device Class Labels
The laser diode used in this device is classified
as a class 3B laser product according to EN
60825-1 regulations and as a Class IIIb laser
product according to CDRH regulations. As it is
not possible to apply a classification label on
the laser diode used in this device, the following
label is reproduced below.
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
EMITTED WAVE LENGTH 630~680 nm
Laser Diode Class Label
Any violation of the optic parts in particular can
cause radiation up to the maximum level of the
laser diode (7 mW at 630 to 680 nm).
DS2400A QUICK GUIDE
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
MAX. OUTPUT RADIATION 1 mW
EMITTED WAVE LENGTH 630~680 nm
TO EN 60825-1:2001
CAUTION-CLASS 3B LASER LIGHT
WHEN OPEN AVOID EXPOSURE TO BEAM
This product conforms to the applicable
requirements of 21CFR1040 at the date
R
of manufacture.
US
LASER LIGHT
MAX. OUTPUT RADIATION 7 mW
TO EN 60825-1 (2001)
