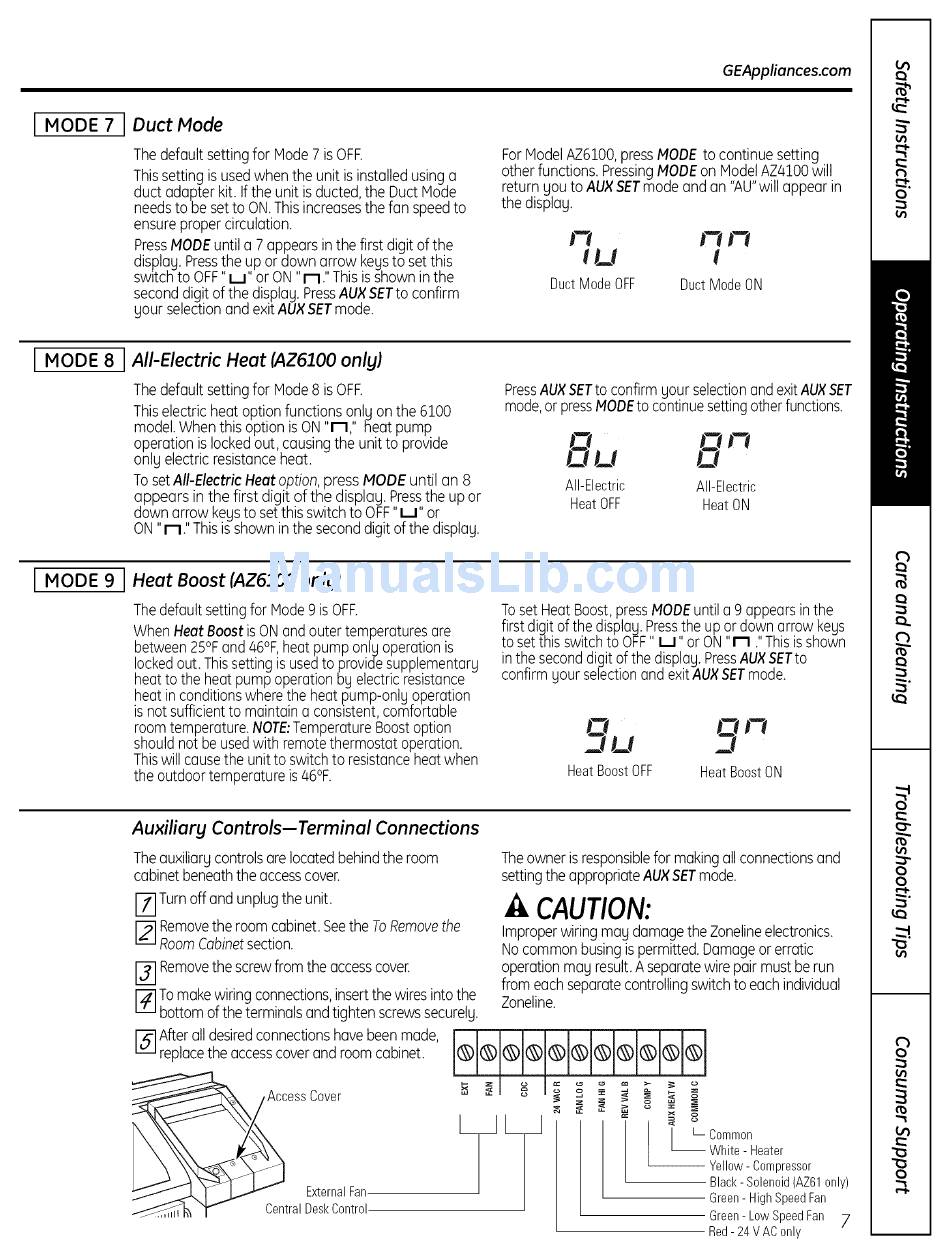

GE AZ61H12DAB Owner's Manual And Installation Instructions page 7

GEAppliances.com
[ MODE 7
I
Duct Mode
Thedefault settingfor Mode7 is OFF.
Thissetting isusedwhenthe unit is installedusinga
duct adapter kit. If the unit isducted,the DuctNode
needsto be set to ON.Thisincreases the fan speedto
ensurepropercirculation.
PressMODE until a 7 appearsin the first digit of the
display.Press the up or down arrow keysto set this
switchto OFF"u" or ON"n ."This isshown in the
seconddigit of the display.Press AUXSETtoconfirm
your selectionand exit AUXSETmode.
ForModelAZ6100, p ressMODEto continuesetting
other functions.Pressing MODE on ModelAZ4100will
returnyou to AUXSETmodeand an "AU" will appearin
the display.
t7 F'IF
lU I
DuctModeOFF DuctModeON
[ MODE 8
All-Electric Heat (AZ6100 only)
Thedefault settingfor Mode8 is OFF.
Thiselectricheat optionfunctionsonly on the 6100
model.Whenthis optionis ON"n," heat pump
operationislockedout, causingthe unitto provide
only electricresistance heat.
Toset All-ElectricHeat option,press MODE until an 8
appears in the first digit of the display. Press the up or
downarrow keysto set this switchto OFF "u" or
ON"n." Thisisshownin theseconddigit ofthe display.
Press AUXSETtoconfirmgour selectionandexitAUXSET
mode, o r press MODEtocontinue settingotherfunctions.
on
EtU
AII-Ele_'trk" AII-Ele_'trk"
HeatOFF Heat O N
[
MODE 9
Heat Boost (AZ6100 only)
Thedefaultsettingfor Hode9 isOFF.
WhenHeat Boost isONand outertemperatures are
between25°Fand/46%heatpumponlg operationis
lockedout. Thissettingis usedto providesupplementarg
heatto the heatpumpoperationbg electricresistance
heatin conditionswherethe heat pump-onlgoperation
is notsufficientto maintaina consistent, c omfortable
roomtemperature. N OTE: Temperature Boostoption
shouldnot be usedwith remotethermostatoperation.
Thiswill causethe unitto switchto resistance heatwhen
the outdoortemperatureis/46%.
Toset Heat Boost,pressMODE until a 9 appearsin the
first digitof the displag.Press the up or down arrowkegs
to set this switchto OFF"u" or ON"l-I ."Thisisshown
in theseconddigitof the display.Press AUXSETto
confirmgour selectionand exitAUXSETmode.
Heat B oost O FF HeatBoost O N
Auxiliary Controls--Terminal Connections
Theauxiliarycontrolsare locatedbehindthe room
cabinetbeneaththe accesscover.
E_] Turnoff and unplugthe unit.
[]
Remove the roomcabinet.Seethe ToRemove the
RoomCobinet s ection.
[_] Remove the screwfrom the access cover.
[_]To makewiringconnections, i nsertthe wiresintothe
bottomof the terminalsand tighten screwssecurely.
r_ Afterall desiredconnections havebeenmade,
replacethe accesscoverand roomcabinet.
ExternalFan
CentralDeskControl
Theowneris responsible for makingall connections and
settingthe appropriateAUXSETmode.
A CAUTION:
Improper wiring may damage the Zoneline electronics.
No common busing is permitted. Damage or erratic
operation may result. A separate wire pair must be run
from each separate controlling switch to each individual
Zoneline.
o ><
o
z
,,<
z
,,<
z
oo
o°
I LCommon
_ hite - Heater
Yellow- Compressor
Black- Solenoid(AZ61only)
Green- HighSpeed Fan
Green- Low SpeedFan 7
Red- 24 V AConly
