GE Zoneline AZ61H12EAC Dimension Manual

AZ61H12EAC
GE Zoneline Deluxe Series Heat Pump Unit
®
Dimensions and Installation Information (in inches)
Electrical Wiring
All wiring, including installation of receptacle, must be made in accordance with local
electrical codes and regulations.
Note: Aluminum wiring may pose special problems – consult a qualified electrician.
Grille Options
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 (Beige) RAG63 (Bittersweet)
RAG62 (Maple) RAG67 (Extruded Aluminum)
Retrofit Kits:
RAK901L – Wall Case Insulation for use with heat pumps.
RAK40 – Deflector Kit to adapt chassis for use with existing
exterior architectural louvered grilles.
Ducted Applications
4100 and 6100 series can be used with ductwork to heat or cool more than one room.
RAK6052 Duct Adaptor is applied to top of case over air discharge/RAK601 Duct
Extension is applied to right or left of adaptor. Locally fabricated ductwork may be
added to extend to maximum recommended distance of 15 feet.
Electrical Connection
230/208 volt units may be plugged into a receptacle. 265 volt units are provided with
a junction box and require direct
connection. (NEC Requires 265V Direct Connection) See Architects and Engineers
Design Data Manual for electrical
connection information including use of sub-base for direct connected units.
Installation must comply with local electrical codes and regulations.
Power Connection kits required on all Zoneline chassis.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
or
™
service,
Zoneline RAC Wall Installation

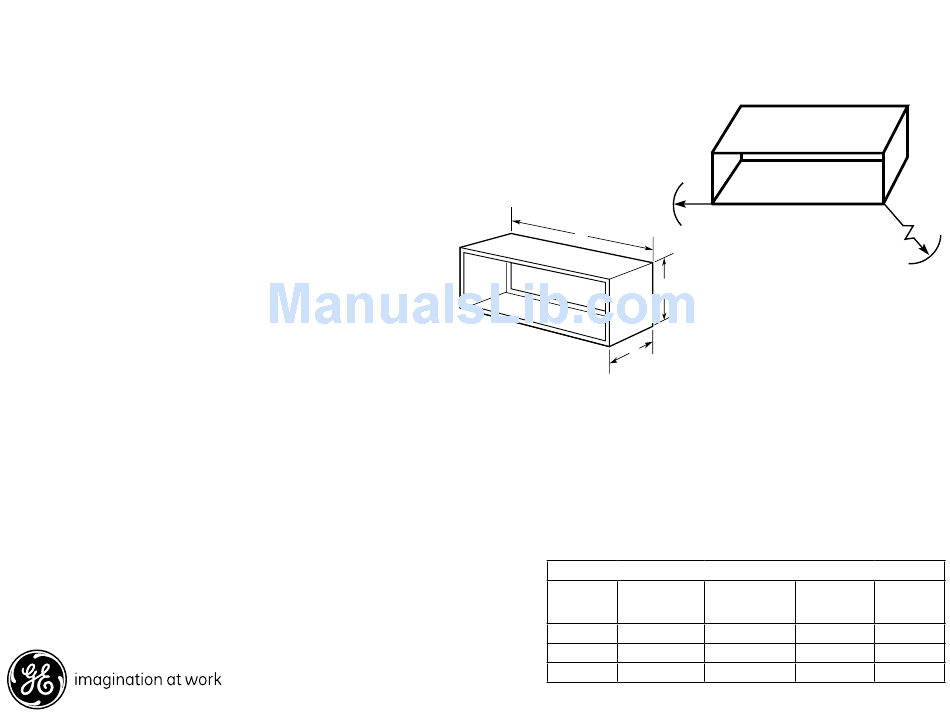

Wall Case Dimensions
A
B
265 Volt Sub-Base Connected Units
Sub-Base Connection Kit
RAK204E15
RAK204E20
RAK204E30
Inside
Room
Cabinet
Maximum Cord Extension
21
C
RAB71 Wall Sleeve
Heavy-gauge galvanized steel, with insulation.
A – 42" , B – 13-3/4" , C – 16"
RAB77 Wall Sleeve
Molded SMC fiberglass-reinforced polyester compound.
A – 42-1/8" , B– 13-7/8" , C – 16-1/4
Wall Opening Dimensions
Add 1/4" to A and C dimensions for all cut-out size.
RAB71 16-1/4" Min. H x 42-1/4" Min. W
RAB71 available in 16" , 24" , 28" and 31" depths
RAB77 16-1/2" Min. H x 42-3/8" Min. W
Power Electric Heater Electric Heat
Watts
RAK5172 2,550
RAK5202 3,450
RAK5302 5,000
