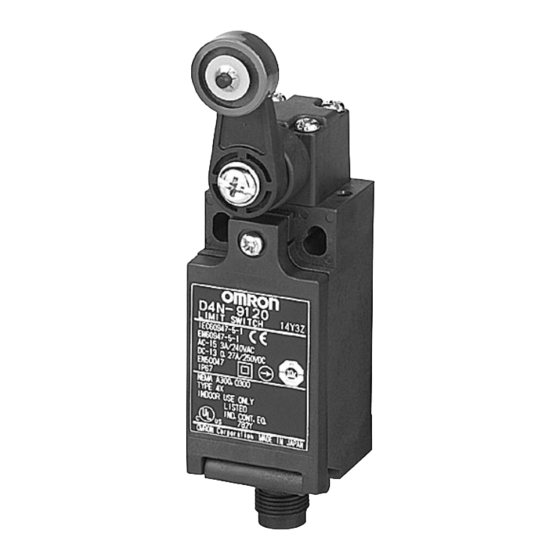

Miniature Safety Limit Switch
D4N
Safety Limit Switches
compatible to the Popular
D4D, Providing a Full
Lineup Conforming to In-
ternational Standards
• Lineup includes three contact models
with 2NC/1NO and 3NC in addition to
the 1NC/1NO, and 2NC contact mod-
els. Models with MBB contacts are
available too.
• M12-connector models are available,
saving on labor and simplifying mainte-
nance.
• Standardized gold-clad contacts pro-
vide high contact reliability.
Can be used with both standard loads
and microloads.
• Free of lead, cadmium, and hexavalent
chrome, reducing the burden on the
environment.
• Conforms to EN115 and EN81-1.
• Lineup includes both slow-action and
snap-action models with Zb contacts.
Be sure to read the Safety Precautions on
page G-237.
Model Number Structure
Model Number Legend
D4N-@@@@
1 2
3
1. Conduit/Connector size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
3: 1/2-14NPT (1-conduit)
4: M20 (1-conduit)
5: Pg13.5 (2-conduit)
6: G1/2 (2-conduit)
7: 1/2-14NPT (2-conduit)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
1: 1NC/1NO (snap-action)
2: 2NC (snap-action)
A: 1NC/1NO (slow-action)
B: 2NC (slow-action)
C: 2NC/1NO (slow-action)
D: 3NC (slow-action)
E: 1NC/1NO (MBB contact-/-slow-action)
F: 2NC/1NO (MBB contact-/-slow-action)
D4N
Note: Contact your sales representative for details on models with safety standard certification.
3. Head and Actuator
20:
22:
25:
26:
2G:
2H:
31:
32:
62:
72:
80:
87:
RE:
LE:
Roller lever (resin lever, resin roller)
Roller lever (metal lever, resin roller)
Roller lever (metal lever, metal roller)
Roller lever (metal lever, bearing roller)
Adjustable roller lever, form lock (metal lever, resin roller)
Adjustable roller lever, form lock (metal lever, rubber roller)
Top plunger
Top roller plunger
One-way roller arm lever (horizontal)
One-way roller arm lever (vertical)
Cat whisker
Plastic rod
Fork lever lock (right operation)
Fork lever lock (left operation)
G-219
Advertisement
Related Manuals for Omron D4N
Summary of Contents for Omron D4N
- Page 1 Can be used with both standard loads and microloads. Note: Contact your sales representative for details on models with safety standard certification. • Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment.
-
Page 2: Ordering Information
Ordering Information List of Models Switches with Two Contacts Actuator Conduit size Built-in switch mechanism 1NC/1NO (Snap- 1NC/1NO (Slow- action) (Snap-action) action) (Slow-action) Direct Model Direct Model Direct Model Direct Model opening opening opening opening Roller lever (resin 1-conduit Pg13.5... - Page 3 D4N-8A2H D4N-8B2H Prefered types Note: It is recommended that M20 be used for Switches to be exported to Europe and 1/2-14NPT be used for Switches to be exported to North American countries. Switches with Three Contacts and MBB Contacts Actuator...
- Page 4 D4N-6F2H D4N-8C2H D4N-8D2H D4N-8E2H D4N-8F2H Prefered types Note: It is recommended that M20 be used for Switches to be exported to Europe and 1/2-14NPT be used for Switches to be exported to North American countries. G-222 Safety Sensors / Components...
- Page 5 D4N-8B87 Prefered types Note: 1. It is recommended that M20 be used for Switches to be exported to Europe and 1/2-14NPT be used for Switches to be exported to North American countries. 2. Mechanically speaking, these models are basic limit switches.
-
Page 6: Specifications
G1/2 D4N-6D87 D4N-8D87 Note: 1. It is recommended that M20 be used for Switches to be exported to Europe and 1/2-14NPT be used for Switches to be exported to North American countries. WARNING 2. Mechanically speaking, these models are basic limit switches. - Page 7 Note: 1. The above values are initial values. 2. Once a contact has been used to switch a standard load, it cannot be used for a load of a smaller capacity. Doing so may result in rough- ening of the contact surface and contact reliability may be lost.
- Page 8 Head Grooves which engage the lever are cut in the lever and The direction of the switch head can be varied to any of rotary shaft to prevent the lever from slipping against the the four directions. (Roller plunger models can be rotary shaft.
- Page 9 Note: 1. Terminals are numbered according to EN50013 and the contact forms are according to IEC947-5-1. 2. MBB (Make Before Break) contacts have an overlapping structure, so that before the normally closed contact (NC) opens, the normally open contact (NO) closes.
- Page 10 31 max. Conduit cap Depth: 5 31 max. Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. Refer to page G-231 for details on M12 connectors. Snap-action (1NC/1NO) (2NC), Slow-action (2NC) (3NC) Slow-action (1NC/1NO) (2NC/1NO)
- Page 11 Depth: 5 ± 0.2 14.2 +0.15 Conduit cap Two, 4 dia. holes 31 max. Depth: 5 Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. Refer to page G-231 for details on M12 connectors. G-229...
- Page 12 (See note 4.) DOF min. 20 N 20 N 20 N 20 N (See note 4.) Slow-action (1NC/1NO) (2NC/1NO) Note: 1. These PT values are possible when the NC contacts are open (OFF). Model D4N-@A31 D4N-@A32 D4N-@A62 D4N-@A72 D4N-@C31 D4N-@C32...
- Page 13 Two, 4 dia. holes Depth: 5 Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. Refer to following diagrams for details on M12 connectors. Snap-action (1NC/1NO) (2NC), Slow-action (2NC) (3NC) Note: 1. Variation occurs in the simultaneity of contact opening/clos-...
- Page 14 Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. Use the dog within 35 mm of the tip of the actuator and keep the total travel to 70 mm or less. Slow-action (1NC/1NO) (2NC/1NO) (2NC) (3NC)
- Page 15 (See note 7.) that the minimum values or greater are provided. Note: 1. This PT value is possible when the NC contacts are open (OFF). 2. This PT value is possible when the NO contacts are closed (ON). 3. Only for MBB models.
- Page 16 56 max. Depth: 5 +0.15 Two, 4 dia. holes Depth: 5 Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. Snap-action (1NC/1NO) (2NC), Slow-action (2NC) (3NC) Slow-action (1NC/1NO) (2NC/1NO) Model D4N-@A62 D4N-@A72 D4N-@A2G D4N-@A2H...
- Page 17 Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. Use the dog within 35 mm of the tip of the actuator and keep the total travel to 70 mm or less. 3. The usable range of the moving part is 1/3 or less of the entire spring length from the end of the spring.
- Page 18 Levers Refer to the following for the angles and positions of the watchdogs (source: EN50047.) Roller Lever Adjustable Roller Lever, Form Lock Adjustable Roller Lever, Form Lock (D4N-@@20) (with Metal Lever, Resin Roller) (with Metal Lever, Rubber Roller) (D4N-@@2G) (Reference Values) (D4N-@@2H) (Reference Values) ±7...
-
Page 19: Safety Precautions
0.6 to 0.8 N·m Precautions for Safe Use Cover clamping screw 0.5 to 0.7 N·m • Do not drop the Switch. Doing so may result in the Switch not Head clamping screw 0.5 to 0.6 N·m performing to its full capacity. - Page 20 D4N-@F@@ (2NC/1NO (MBB)) crimp terminals, arrange the crimp terminals as shown below so that they do not rise up onto the case or the cover. Applicable lead wire size: AWG20 to AWG18 (0.5 to 0.75 mm Use lead wires of an appropriate length, as shown below. Not doing so may result in excess length causing the cover to rise and not fit properly.
- Page 21 GPM20, or GPM12), and tighten to the specified tightening torque. 1. Make the rear edge of the dog smooth with an angle of 15° to 30° Seal packing is sold separately. or make it in the shape of a quadratic curve.
- Page 22 5 List of Recommended Substitute Products : The actuator on the D4D-N is a non-safety type. The D4N is recommended for safety applications (form lock type). Be sure to mount it cor- rectly. : M screws are recommended to comply with European standards. Therefore, the M20 type is recommended as a substitute when the PG13.5 conduit-type is not available in a D4N model.
- Page 23 D4D-N product to be Recommended D4D-N product to be Recommended D4D-N product to be Recommended discontinued substitute product discontinued substitute product discontinued substitute product D4D-3132N D4N-3132 D4D-3532N D4N-3A32 D4D-3A32N D4N-3B32 D4D-5132N D4N-5132 D4D-5532N D4N-5A32 D4D-5A32N D4N-5B32 D4D-6132N D4N-6132 D4D-6532N D4N-6A32...
- Page 24 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. C130-E2-01-X In the interest of product improvement, specifications are subject to change without notice. G-242 Safety Sensors / Components...
