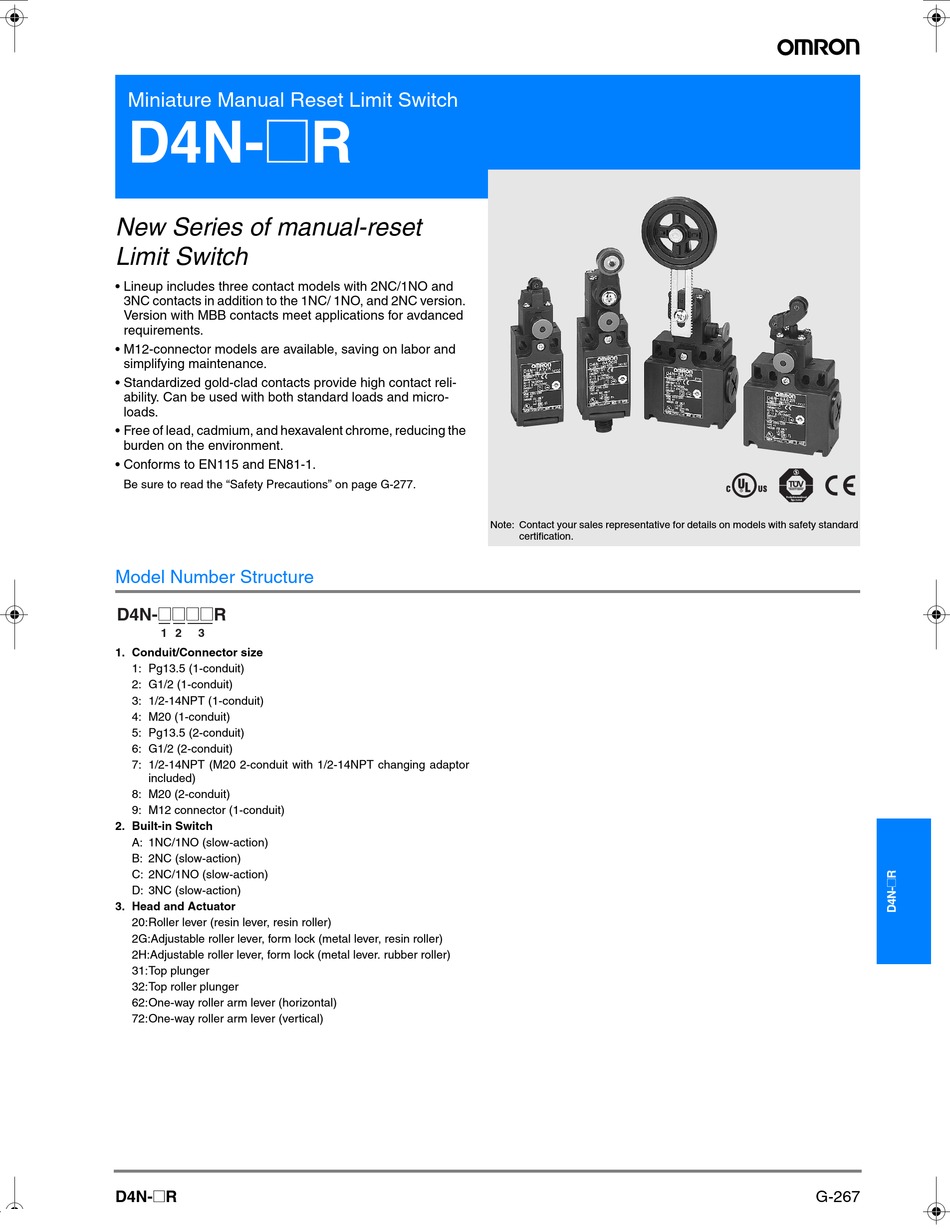

Miniature Manual Reset Limit Switch
D4N-@R
New Series of manual-reset
Limit Switch
• Lineup includes three contact models with 2NC/1NO and
3NC contacts in addition to the 1NC/ 1NO, and 2NC version.
Version with MBB contacts meet applications for avdanced
requirements.
• M12-connector models are available, saving on labor and
simplifying maintenance.
• Standardized gold-clad contacts provide high contact reli-
ability. Can be used with both standard loads and micro-
loads.
• Free of lead, cadmium, and hexavalent chrome, reducing the
burden on the environment.
• Conforms to EN115 and EN81-1.
Be sure to read the "Safety Precautions" on page G-277.
Model Number Structure
D4N-@@@@R
1 2
3
1. Conduit/Connector size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
3: 1/2-14NPT (1-conduit)
4: M20 (1-conduit)
5: Pg13.5 (2-conduit)
6: G1/2 (2-conduit)
7: 1/2-14NPT (M20 2-conduit with 1/2-14NPT changing adaptor
included)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
A: 1NC/1NO (slow-action)
B: 2NC (slow-action)
C: 2NC/1NO (slow-action)
D: 3NC (slow-action)
3. Head and Actuator
20:Roller lever (resin lever, resin roller)
2G:Adjustable roller lever, form lock (metal lever, resin roller)
2H:Adjustable roller lever, form lock (metal lever. rubber roller)
31:Top plunger
32:Top roller plunger
62:One-way roller arm lever (horizontal)
72:One-way roller arm lever (vertical)
D4N-@R
Note: Contact your sales representative for details on models with safety standard
certification.
G-267
Advertisement
Table of Contents
Related Manuals for Omron D4N-R
Summary of Contents for Omron D4N-R
- Page 1 • Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment. • Conforms to EN115 and EN81-1. Be sure to read the “Safety Precautions” on page G-277. Note: Contact your sales representative for details on models with safety standard certification. Model Number Structure D4N-@@@@R 1.
-
Page 2: Ordering Information
G1/2 D4N-6A20R D4N-6B20R D4N-6C20R D4N-6D20R 1/2-14NPT D4N-7A20R D4N-7B20R D4N-7C20R D4N-7D20R (See note 2.) D4N-8A20R D4N-8B20R D4N-8C20R D4N-8D20R Adjustable roller lever, form lock 1-conduit Pg13.5 D4N-1A2GR D4N-1B2GR D4N-1C2GR D4N-1D2GR (metal lever, resin roller) G1/2 D4N-2A2GR D4N-2B2GR D4N-2C2GR D4N-2D2GR 1/2-14NPT D4N-3A2GR D4N-3B2GR... -
Page 3: Specifications
D4N-8C72R D4N-8D72R Note: 1. It is recommended that M20 be used for Switches to be exported to Europe and 1/2-14NPT be used for Switches to be exported to North American countries. 2. The 1/2-14NPT 2-conduit models include an M20-to-1/2-14NPT changing adaptor. - Page 4 Note: 1. The above values are initial values. 2. Once a contact has been used to switch a standard load, it cannot be used for a load of a smaller capacity. Doing so may result in rough- ening of the contact surface and contact reliability may be lost.
- Page 5 Reset Head (Blue) The direction of the reset head can be adjusted to any of the four directions. Conduit A wide variety of conduits is available.
- Page 6 Contact spring Movable contacts Fixed contact (NO) Plunger Return spring Only the NC contact side has a direct opening mechanism. When metal deposition occurs, the contacts are separated from each other by the plunger being pushed in. (Conforms to EN60947-5-1 Direct Opening Operation.)
- Page 7 2NC, 2NC/1NO, and 3NC contacts. Check contact operation. 16.7 ± 0.2 3. There are a minimum of five turns of the screw thread for a 21.5 Pg13.5 conduit opening and four turns minimum for a G 1/2 2.15±0.05R ±...
- Page 8 2. Variation occurs in the simultaneity of contact opening/closing operations of 2NC and 3NC contacts. Check contact operation. 3. There are a minimum of five turns of the screw thread for a Pg13.5 conduit opening and four turns minimum for a G 1/2 conduit opening.
- Page 9 2. Variation occurs in the simultaneity of contact opening/closing operations of 2NC and 3NC contacts. Check contact operation. 3. There are a minimum of five turns of the screw thread for a Pg13.5 conduit opening and four turns minimum for a G 1/2 conduit opening.
- Page 10 2. Variation occurs in the simultaneity of contact opening/closing operations of 2NC and 3NC contacts. Check contact operation. 3. There are a minimum of five turns of the screw thread for a Pg13.5 conduit opening and four turns minimum for a G 1/2 conduit opening.
-
Page 11: Safety Precautions
Precautions for Safe Use shock. • Connect a fuse to the Switch in series to protect the Switch from • Do not drop the Switch. Doing so may result in the Switch not short-circuit damage. Use a fuse with a breaking current 1.5 to 2 performing to its full capacity. -
Page 12: Precautions For Correct Use
• If the Switch is to be used in an emergency stop circuit or in a Switch Mounting safety circuit for preventing accidents resulting in injuries or deaths, • Mount the Switch using M4 screws and washers and tighten the use a model that has an NC contact equipped with a direct opening screws to the specified torque. - Page 13 • Refer to the G010 Connector Catalog for details on socket pin num- bers and lead wire colors. 1. Make the rear edge of the dog smooth with an angle of 15° to 30° or make it in the shape of a quadratic curve.
- Page 14 Mounting method Completely compatible 2. Terminal Numbers Ratings/performance Very similar For the 2-contact model, the terminals 21, 22, 23, and 24 on the D4D-R are 31, 32, 33, and 34 on the D4N-R. Operating characteristics Very similar Operating method Completely compatible...
- Page 15 List of Recommended Substitute Products : The actuator on the D4D-R is a non-safety type. The D4N-R is recommended for safety applications (form lock type). Be sure to mount it correctly. Using M screws is recommended to comply with European standards. Therefore, the M20 conduit model is recommended for use in new designs.
