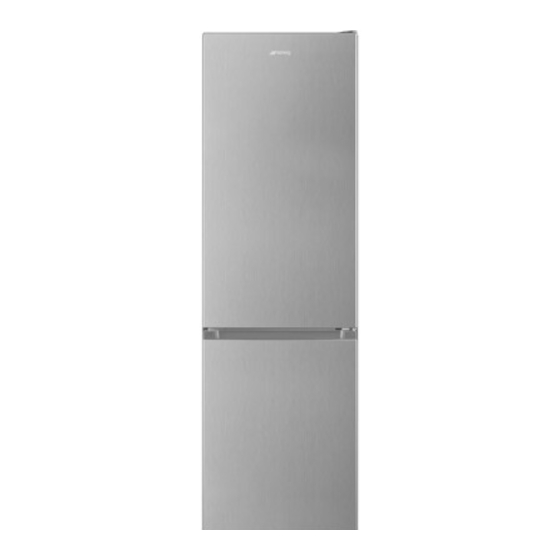

- Page 1 INSTRUCTIONS FOR USE OF AN UPRIGHT FRIDGE FREEZER...
- Page 2 We wish you find a lot of pleasure in its use. Visit our website to: Get usage advice, brochures, trouble shooter, service, and repair information: www.smeg.com/services/customer-service Subject to change without notice. Link to the EU EPREL database The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database.
-
Page 3: Table Of Contents
Contents Important notes and precautions ..................Before using the appliance for the first time ................Important safety instructions ....................Important information on the use of appliance ................. Environment protection ......................Advice for saving power with refrigeration appliances ............Installation and connection ....................Selecting the room ........................ -
Page 4: Important Notes And Precautions
Important notes and precautions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;... - Page 5 ELECTRIC SHOCK! WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ELECTRIC SHOCK! WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. ELECTRIC SHOCK! If LED lighting does not work, call a service technician.
- Page 6 Safety of children and vulnerable persons The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 7: Important Information On The Use Of Appliance
Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire. In case of a gas leak, ventilate the room thoroughly, disconnect the appliance from the power mains, and call a service technician. -
Page 8: Environment Protection
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If the appliance will be out of use for an extended period of time, switch it off using the relevant button, and unplug it from the power mains. - Page 9 The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. The product should be taken to an authorized collection centre for waste electric and electronic equipment processing. Correct disposal of the product will help prevent any negative effects on the environment and health of people which could occur in case of incorrect product removal.
-
Page 10: Advice For Saving Power With Refrigeration Appliances
Advice for saving power with refrigeration appliances • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced as soon as possible. -
Page 11: Installation And Connection
Installation and connection Selecting the room • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specified in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. Description Class Ambient temperature range °C... - Page 12 • The appliance must stand level or tilted slightly to the back. It should be stable and placed a solid base. At the front, the appliance is fi tted with two adjustable feet that can be used to level the appliance.
-
Page 13: Connecting The Appliance
• The appliance is intended for free-standing installation. To reach the rated/minimum power consumption, always provide 50 mm of clearance between the wall and the back of the appliance, and above the appliance. Also allow adequate air circulation on either side of the appliance and above it. -
Page 14: Reversing The Door Opening Direction
Reversing the door opening direction The direction in which the appliance door opens can be reversed. Note: Disconnect the appliance from the power mains before reversing the door opening direction. Tools required: Socket wrench No. 8, Cross-point screwdriver Flat screwdriver Spanner No. - Page 15 Take the (right) cap/cover (4) from the bag and place it on the spot from which the top hinge was removed. Remove and save the cap/cover from the other side (5) to which the hinge will be relocated. Remove the cap (6) from the left side of the top door. Then, remove the cap (7) from the right side of the top door.
- Page 16 Attach the hinge (14) onto the opposite side using the screws. The screws should be attached in the order shown in the figure below. First, tighten the screw 1, followed by screws 2. Then, screw on the adjustable feet (11). Place the bottom door onto the bottom hinge and hold them in place.
- Page 17 Note: If your model has a handle, then move it to the opposite side by following the instructions below. Remove the caps (1) and undo the two screws (2) as shown in the figure. Rotate the handle (3) by 180° and replace it on the opposite side. Then, fasten the screws (2) and replace the caps (1).
-
Page 18: Description Of The Appliance
Description of the appliance Appliance interior equipment may change according to the appliance model. This product contains a light source of energy efficiency class G. A Refrigerator 1. Control panel 2. LED lighting 3. Air distribution system (MultiFlow) 4. Glass shelves 5. -
Page 19: Operating The Appliance
Operating the appliance Refrigerator compartment temperature setting key Refrigerator compartment temperature display (indicator light above the currently set temperature is lit) Freezer compartment temperature setting key, and extra functions key Freezer compartment temperature display (indicator light above the currently set temperature is lit) Super freeze indicator (indicator light above the C symbol is lit when intensive freezing is activated) Switching the appliance on/off... -
Page 20: Intensive Freezing (Super Freeze) Function
Setting the freezer compartment temperature • Set the desired temperature using the B key. • Set the desired temperature by successively pressing the B key. • The indicator cycles through the settings in a circular manner, from right to left. The numbers -22, -18 and -16 indicate the temperature in degrees Celsius (°C) in the appliance freezer compartment. -
Page 21: Open Door Alarm
If the temperature is too high in the freezer compartment, then the indicator light above the set temperature B1 will flash. Switching off the alarm: • To acknowledge and switch off the acoustic alarm, press the A or B key. If the alarm is not switched off, it will be activated every hour for approximately 15 minutes. -
Page 22: Appliance Interior Equipment
Appliance interior equipment ( * Equipment depends on the model) Shelf You can lay out the empty shelves to your liking across the guides in the refrigerator interior without having to remove them from the refrigerator. To move the shelf or take it out from the refrigerator, slightly lift it at the back, pull it towards you, and then either move it or take it out of the appliance. -
Page 23: Door Racks
• Pulling out the bin: Pull out the bin as far as it will go. Then, lift the front part and pull it out completely. Door racks Interior side of the refrigerator door is fitted with shelves intended for storing cheese, butter, eggs, yoghurt, and other smaller packages, tubes, cans etc. -
Page 24: Recommended Distribution Of Food In The Appliance
Recommended distribution of food in the appliance Sections in the refrigerator compartment: • upper part: canned food, bread, wine, pastry ... • middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc. • Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables, potatoes, onions, garlic, tomatoes, sauerkraut, turnips, etc. -
Page 25: Storing Food In The Refrigerator
Storing food in the refrigerator Important warnings regarding food storage INFORMATION! Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards have a decisive impact on the quality of food storage. Observe the expiry dates for the food, indicated on the packaging. Food stored in the refrigerator should be kept in closed containers or in appropriate packaging to prevent it from emitting or receiving odours and humidity. -
Page 26: Freezing And Storing Frozen Food
Freezing and storing frozen food Freezing procedure INFORMATION! Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior;... -
Page 27: Frozen Food Storage Time
Frozen food storage time Recommended storage time in the freezer Type of food Storage life Fruit, beef from 10 to 12 months Vegetables, veal, poultry from 8 to 10 months Venison from 6 to 8 months Pork from 4 to 6 months Finely chopped or minced meat 4 months Bread, pastas, cooked dishes, whitefish... -
Page 28: Defrosting The Appliance
Defrosting the appliance Automatic refrigerator defrosting Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate. Make sure the opening in the back wall in the refrigerator interior is never blocked by food or any other object. -
Page 29: Cleaning The Appliance
Cleaning the appliance WARNING! Before cleaning, unplug the appliance from the power mains switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. -
Page 30: Troubleshooting
Troubleshooting Problem: Cause or remedy: Appliance is connected to the • Make sure there is voltage in the power outlet and that the power mains but it does not appliance is switched on. work. Cooling system operates • Too high environment temperature. continuously for a long period •... - Page 31 Table continued from last page Problem: Cause or remedy: Signal light above the 2°C • Sensor keys are not responding. Call a service centre for repair. indicator is flashing: • Until the appliance is repaired by a service technician, the appliance will operate in safe mode.
-
Page 32: Information About Appliance Noise
Information about appliance noise Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance. •... - Page 33 926687-a10DRAFT...
