- Page 1 ProCube II Portable Fume Extractor Owner’s Manual Installation, Operation & Maintenance Model Number: PFE (Portable Fume Extractor)-120 for Serial No. 30846 & higher ©️2023 RoboVent...
- Page 2 ProCube II Model Number: PFE (Portable Fume Extractor)-120 Owner’s Manual for Serial No. 30846 & higher Installation, Operation & Maintenance Manufactured by: RoboVent 37900 Mound Road Sterling Heights, MI 48310 USA (888) 762-6836 www.robovent.com ©2023 RoboVent Inc. All rights reserved.
- Page 3 Congratulations! Dear Customer, This manual will help you install, start up, commission, operate, maintain and troubleshoot your new portable hi-vac. Congratulations on your ProCube II Please take time to read this manual purchase! ProCube II is a powerful portable thoroughly before installing and/or high-vacuum extraction unit specifically operating your unit.
-
Page 4: Table Of Contents
Table of Contents Introduction ........Section 100 ......Page 6 Specifications . -
Page 5: Introduction

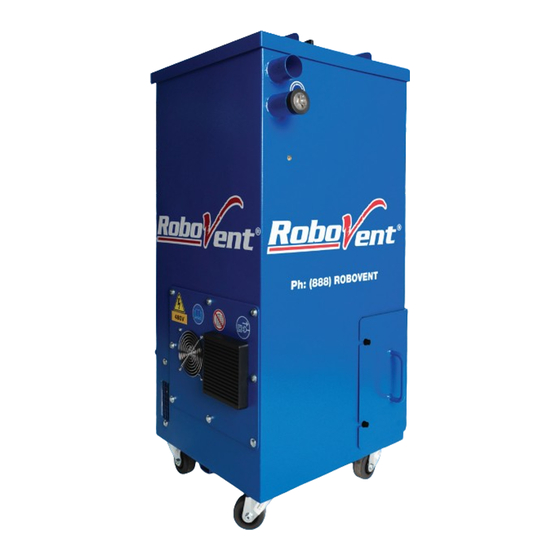

SECTION 100 Introduction ROBOVENT • ProCube II Owner's Manual... - Page 6 SECTION 100 Introduction Thank you for choosing the RoboVent ProCube II filtration machine. This high-vacuum unit is designed for industrial environments, collecting both fumes and dust at the source in welding and related processes. The energy-efficient motor is directly coupled to the regenerative blower and operated by onboard controls, combining what might otherwise be a very complex operation into a simple, user-friendly package.
- Page 7 SECTION 100 Introduction Receiving & Inspection The equipment will arrive on a pallet or in a crate. Perform a visual inspec-tion before removing from the truck. If there is any damage, it should be noted on the shipping documents and photographed.
- Page 8 SECTION 100 Introduction Purpose & Limitations The ProCube II filtration machine is designed for use with fume extraction welding guns in production applications. Its powerful suction, simple controls, and small footprint are suited for use in many facilities, including fabrication shops, production facilities, shipbuilding, and large structures.
- Page 9 SECTION 100 Introduction The blower motor is designed for continuous duty. Starting the motor more than six times per hour can decrease its life. Pay attention to a typical production cycle: if there are breaks in welding process that will force you to exceed six starts per hour it is recommended to leave the unit on throughout the day.
- Page 10 Prerequisites for use All users and maintenance personnel must read this manual before installing, operating, or servicing the RoboVent ProCube II. Maintenance personnel must thoroughly understand the troubleshooting and servicing sections of this manual. The machine requires compressed air and electrical connections: •...
-
Page 11: Specifications
SECTION 200 Specifications ROBOVENT • ProCube II Owner's Manual... - Page 12 SECTION 200 Specifications Specifications Chart Empty Weight 270 lbs (122.47 kg) Weight Full 285 lbs (129.27 kg) Filtration Efficiencies MERV16; 99.9% @ 0.3 micron Equivalent Filter Area 76 ft2 (7.06 m2) Filter Material B16 PTFE Laminated Polyester Media Maximum Airflow 156 SCFM @ 120 in.
- Page 13 SECTION 200 Specifications Dimensions 23.36 22.27 42.8 Dimensions: 23.36"D X 22.27"W X 42.8"H Weight: 270 lbs Max Airflow: 156 CFM Max Vacuum: 120 in WG Regenerative Blower: 4 HP (2.98 kW) Voltage and Current: 480V, 3-Phase, 6.2 FL Amps Compressed Air Connections: 3/4" NPT (19.05 mm) Intake: (2) 2- Inch (5.1 cm) Hose Ports Sound Level: 82 dBA Filter Cartridge: (1) EX3-11D18-B16...
- Page 14 SECTION 200 Specifications Airflow Schematic Contaminated air Clean air Particulate Air is cleaned as it passes through filter Contaminated air from process Spark Arrestor stops incoming sparks Particulate builds Cleaning air pulse up on filter knocks dust off filter Particulate drops out of airstream Clean air exhausts to workshop...
-
Page 15: Unpacking & Locating
SECTION 300 Unpacking & Locating ROBOVENT • ProCube II Owner's Manual... - Page 16 SECTION 300 Unpacking & Locating Follow workplace safety guidelines when handling and unpacking this machine. Gloves, safety glasses and safety footwear are recommended. Set aside a 3 m ( 9 ft) work area to allow adequate space for shipping material and lifting from pallet.
-
Page 17: Testing & Commissioning
SECTION 400 Testing & Commissioning ROBOVENT • ProCube II Owner's Manual... - Page 18 SECTION 400 Testing & Commissioning Once unit has been connected to power and compressed air, it is important to verify the machine is operating correctly and adjust airflow to ensure effective capture. Record details of setup and settings through pictures and notes. Keep these on file with a logbook for daily checks.
-
Page 19: Operating Instructions
SECTION 500 Operating Instructions ROBOVENT • ProCube II Owner's Manual... - Page 20 SECTION 500 Operating Instructions Refer to diagram below for callouts of the control interface located on top of the filter access. Below are descriptions of the simple control modes. More than six starts of the motor in one hour can be harmful. Refer to the “Purpose &...
-
Page 21: Preventative Maintenance
SECTION 600 Preventative Maintenance ROBOVENT • ProCube II Owner's Manual... - Page 22 SECTION 600 Preventative Maintenance Safety Emptying the dust containment bin, performing monthly service or changing filters requires PPE to minimize exposure to metal dust. It is recommended to wear disposable coveralls, non-porous gloves, dust mask and safety goggles when performing these procedures. Follow company MSDS and PPE guidelines.
-
Page 23: Wiring Diagrams
SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual... - Page 24 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 25 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 26 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 27 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 28 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 29 SECTION 700 Wiring Diagrams ROBOVENT • ProCube II Owner's Manual...
- Page 30 Notes ROBOVENT • ProCube II Owner's Manual...
- Page 31 Notes ROBOVENT • ProCube II Owner's Manual...
- Page 32 Making a Difference One Breath at a Time. 37900 Mound Road, Sterling Heights, MI 48310 USA ROBOVENT.COM • 888.ROBOVENT...
