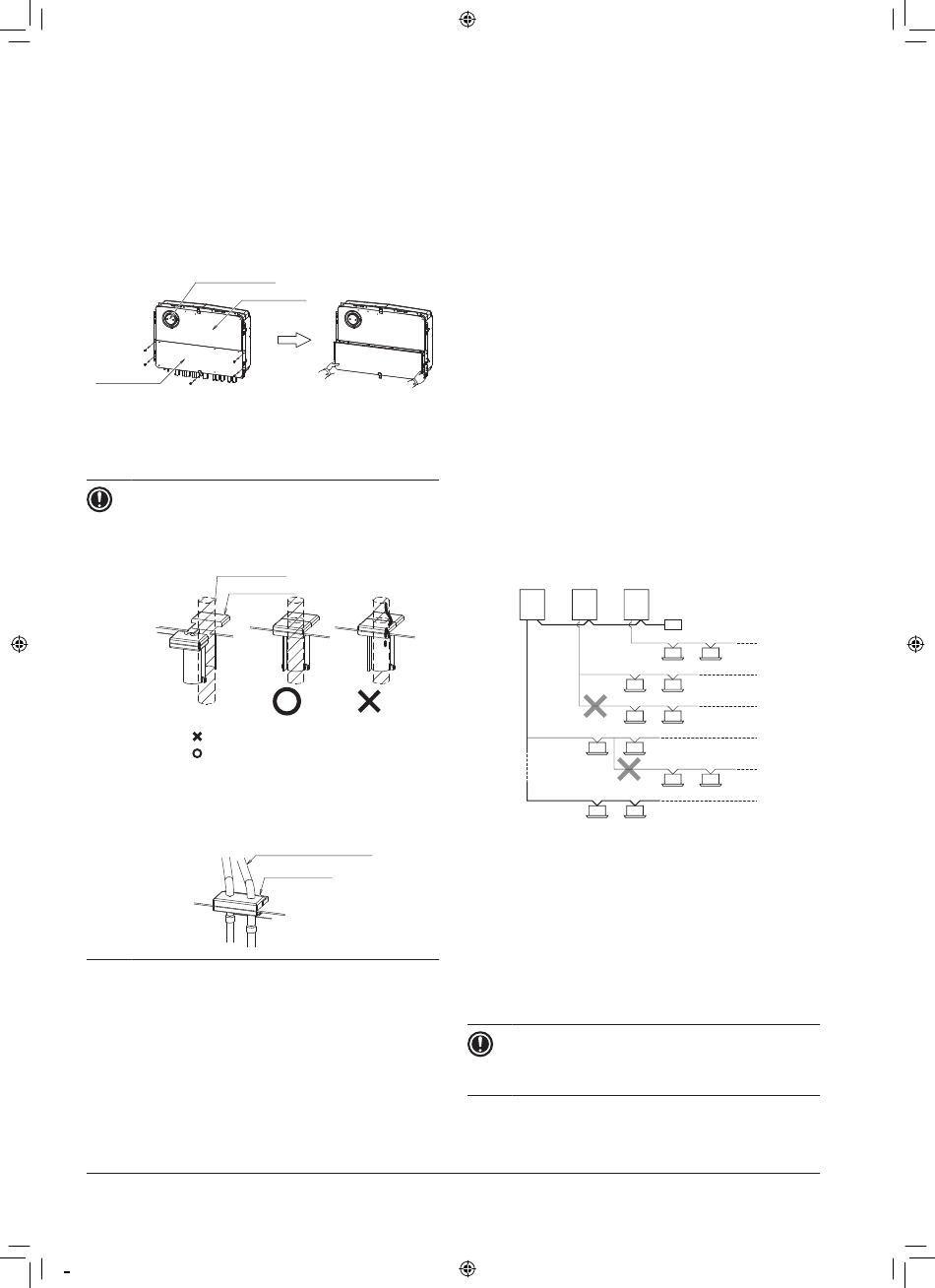

12.4 How to remove and install the
electrical component box cover
For the installation of wiring (transmission wires and
power supply wires) can be done by removing the lower
cover.
Removing method
1 Remove the 5 screws fixing the lower cover.
2 Remove the lower cover towards you.
Inspection door
Lower cover
Installation method
For installing the cover follow the procedures in the
reverse order.
NOTICE
Pinch the wire harness with a rubber bush.
•
Be careful not to chew the wire harness.
•
Wire harness
Rubber bush
Not allowed
Allowed
The rubber bush for the refrigerant jacket pipe
•
should be stay where it was after removing or
installing the lower cover.
01_EN_3P748230-1.indd 33
Upper cover
Refrigerant jacket pipe
Rubber bush

12.5 Routing

It is important to keep the power supply and the
transmission wiring separated from each other.
In order to avoid any electrical interference the distance
between both wiring should always be at least 50 mm.
12.5.1 Transmission wiring routing
The transmission wiring outside the unit should be
wrapped and routed together with the field piping.
Field piping can be routed from front or bottom of the
unit (going left or right). See "10.2 Connecting the
refrigerant piping".
Rules for transmission wiring routing
Be sure to follow the limits below. If the unit-to-unit
•
cables are beyond these limits, it may result in
malfunction of transmission:
- Maximum wiring length: 1000 m.
- Total wiring length: 2000 m.
- Maximum inter unit wiring length between outdoor
units: 30 m.
- Maximum number of branches: 16.
- Maximum number of outdoor units of other system
that can be connected: 7.
Up to 16 branches are possible for unit-to-unit
•
cabling. No branching is allowed after branching
(see figure below).
1 1 1
B
A
1 Outdoor unit
2 Indoor unit
3 Main line
4 Branch line 1
5 Branch line 2
6 Branch line 3
7 No branch is allowed after branch
8 Central user interface (etc...)
A Transmission wiring between outdoor unit and indoor
unit(s)
B Transmission wiring between outdoor units and
outdoor units
NOTICE
If the total transmission wiring exceeds these
limits, it may result in communication error.
8
4
2
5
2
7
2
6
2
7
2
3
2
