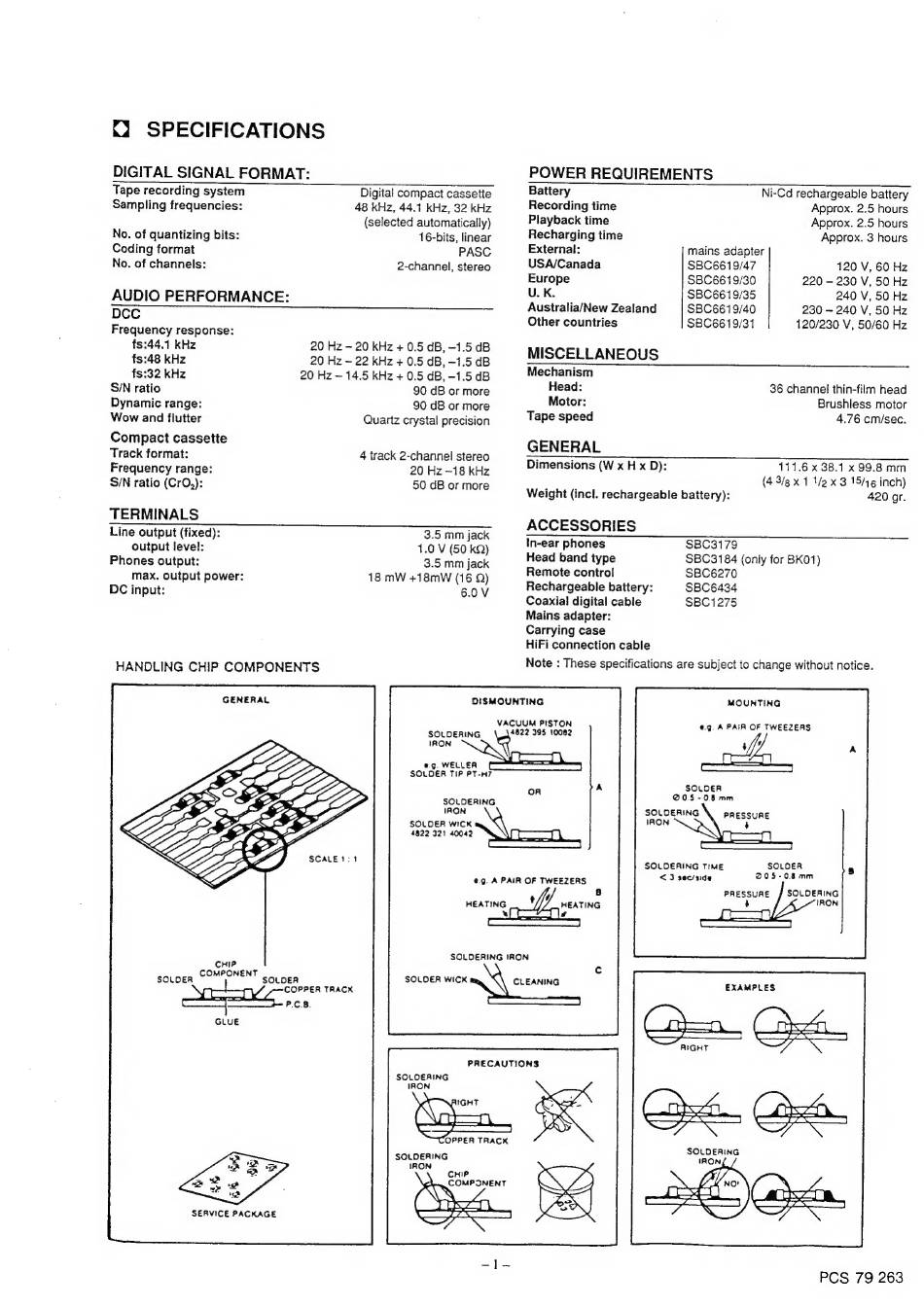

{} SPECIFICATIONS
DIGITAL SIGNAL FORMAT:
POWER REQUIREMENTS
Tape recording system
Sampling frequencies:
No. of quantizing bits:
Coding format
No. of channels:
AUDIO PERFORMANCE:
DCC
Frequency response:
fs:44.1 kHz
fs:48 kHz
fs:32 kHz
S/N ratio
Dynamic range:
Wow and flutter
Digital compact cassette
48 kHz, 44.1 kHz, 32 kHz
(selected automatically)
16-bits, linear
PASC
2-channel, stereo
20 Hz — 20 kHz + 0.5 dB, -1.5 dB
20 Hz ~ 22 kHz + 0.5 dB, -1.5 dB
20 Hz ~— 14.5 kHz + 0.5 dB, -1.5 dB
90 dB or more
90 dB or more
Battery
Recording time
Playback time
Recharging time
External:
USA/Canada
Europe
U. K.
Australia/New Zealand
Other countries
MISCELLANEOUS
Ni-Cd rechargeable battery
Approx. 2.5 hours
Approx. 2.5 hours
Approx. 3 hours
mains adapter
SBC6619/47
120 V, 60 Hz
SBC6619/30
220 — 230 V, 50 Hz
SBC6619/35
240 V, 50 Hz
SBC6619/40
230 — 240 V, 50 Hz
SBC6619/31
120/230 V, 50/60 Hz
Quartz crystal precision
Compact cassette
Track format:
Frequency range:
S/N ratio (CrO,):
4 track 2-channel stereo
20 Hz ~18 kHz
50 dB or more
TERMINALS
HANDLING CHIP COMPONENTS
GENERAL
SOLDERING
4822 395 10082
IRON
0.9. WELLEA
SOLDER
TIP PT-H7
SOLDERING
IRON
SOLDER
wiCK
4822 321 40042
@.9.
A PAIR OF TWEEZERS
HEATING
x
SOLDERING
IRON
CHIP
COMPONENT:
SOLDER WICK
SOLDER
SOLDER
COPPER
TRACK
PCB.
PRECAUTIONS
SOLOERING
RON
SOLDERING
IRON
CHIP
COMPONENT
SERVICE PACKAGE
OISMOUNTING
Mechanism
Head:
36 channel thin-film head
Motor:
Brushless motor
Tape speed
4.76 cm/sec.
GENERAL
111.6 x 38.1 x 99.8 mm
(4 3/g x 1 1/2 x 3 15/16 inch)
420 gr.
Dimensions (W x H x D):
Weight (incl. rechargeable battery):
ACCESSORIES
In-ear phones
$BC3179
Head band type
$BC3184 (only for BKO1)
Remote control
SBC6270
Rechargeable battery:
SBC6434
Coaxial digital cable
$BC1275
Mains adapter:
Carrying case
HiFi connection cable
Note : These specifications are subject to change without notice.
MOUNTING
$
y
SOLDER
@05-08mm
SOLDERING
OA
PRESSURE
4
SOLOEA
295-08
mm
SOLOERING
SOLDERING
TIME
<3 sec/sice
PRESSURE
HEATING
+
a
T/L,
SUEANING
EXAMPLES
Gs. Ga.
SOLDERING
PCS 79 263
Previous
Page
Next
Page
1
2
3
4
5
6
7
