AudioCodes Kramer KAC-BAR-81 Collaboration Bar
1. Introduction
Thank you for purchasing the AudioCodes Kramer KAC-BAR-81 Collaboration Bar!

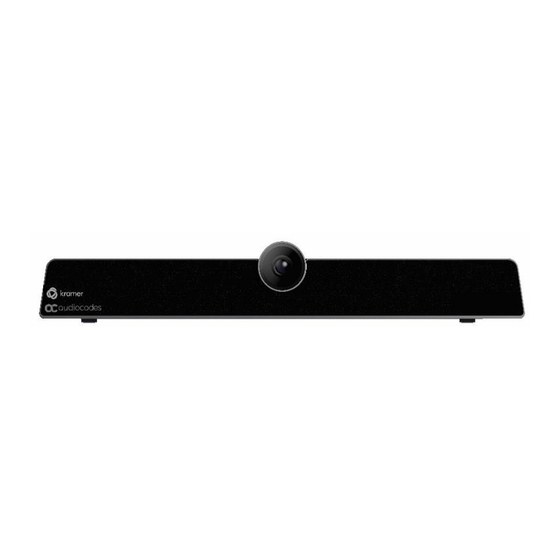

The KAC-BAR-81 offers an integrated camera with an adjustable lens angle for optimal viewing, six
beamforming microphone arrays that provide a pickup range of 14.7 feet (4.5 meters), and a robust 10W
speaker.
2. Package Contents
Make sure you've received the following items in the shipped box:
✓
KAC-BAR-81 Collaboration Bar
✓
Power Adapter
✓
USB Type-C cable
✓
Wall mount and screws
✓
HDMI Cable
✓
Controller. Depending on your purchase, your KAC-BAR-81 includes one of the following controllers:
o
KAC-BAR-81-RC Remote Control and batteries
o
KAC-TCH-10 Meeting Room Controller (when purchasing KAC-BAR-81-B10)
3. Positioning
You can wall mount the KAC-BAR-
81 or placed it on top of the
display (not supplied but can be
ordered separately). Designed for
small-to- mid-size rooms, it's
recommended to position the
KAC-BAR-81 below the display and
approximately 4 inches
(10 cm) above the table.
You can adjust the camera's wide-angle horizontal field of view, which spans 110 degrees,
allowing for precise fine-tuning of its vertical position as well.

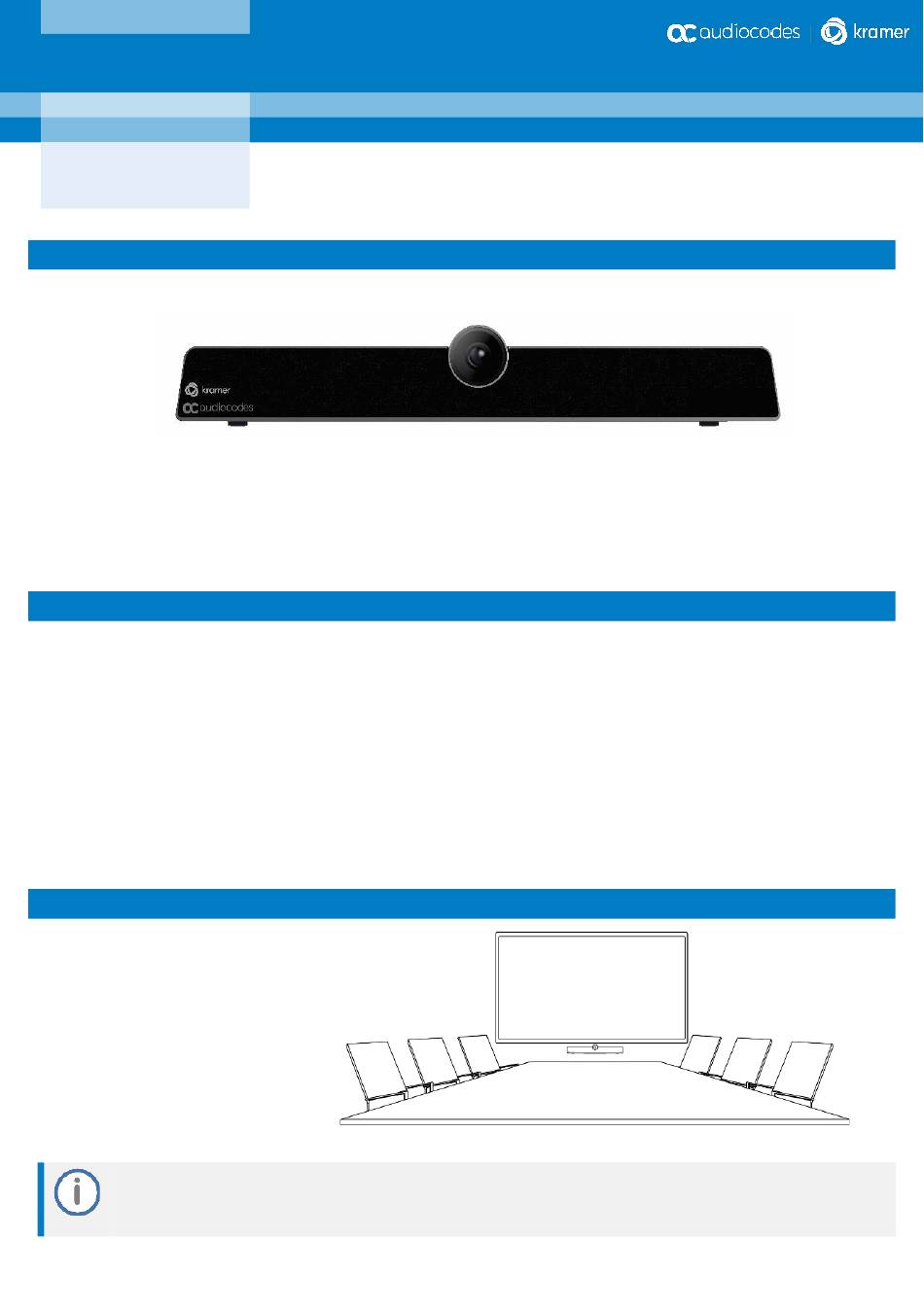

PN: 2900-301721QS REV 3
Quick Guide
Advertisement
Related Manuals for AudioCodes Kramer KAC-BAR-81
Summary of Contents for AudioCodes Kramer KAC-BAR-81
- Page 1 Quick Guide 1. Introduction Thank you for purchasing the AudioCodes Kramer KAC-BAR-81 Collaboration Bar! The KAC-BAR-81 offers an integrated camera with an adjustable lens angle for optimal viewing, six beamforming microphone arrays that provide a pickup range of 14.7 feet (4.5 meters), and a robust 10W speaker.
- Page 2 4. Mounting KAC-BAR-81 The following procedures describes how to mount KAC-BAR-81 on a wall or on top of the display. Wall-mounting KAC-BAR-81: For optimal placement, it's recommended to mount the KAC-BAR-81 on the wall. Attach wall-mounting bracket to the bottom of KAC-BAR-81, using the D-Ring Hinged screw (supplied).
- Page 3 Mounting KAC-BAR-81 on display: The KAC-BAR-81 can be mounted on top of the display using a camera clip bracket (purchased separately). Attach the camera clip bracket to the bottom of KAC-BAR-81, using the D-Ring Hinged screw (supplied). Open the camera clip bracket and place it on top of the display.
- Page 4 5. Cabling The KAC-BAR-81 connector ports are located on its rear panel, as shown below: Description Use the supplied HDMI Out cable to connect this port to a display (standalone mode). Applies to KAC-BAR-81 as a standalone device (default). Video and sharing are presented on display.
- Page 5 Press to put a call on hold. 8. Management KAC-BAR-81 (as a standalone or a USB audio/video peripheral device) is fully managed by AudioCodes Kramer Device Manager. Management includes (but is not limited to): ✓ Monitoring ✓...
- Page 6 9. Pairing KAC-BAR-81RC Remote Control with KAC-BAR-81 The following procedure describes how to pair the KAC-BAR-81RC remote control with your KAC-BAR-81. To pair KAC-TCH-10 with KAC-BAR-81, please see KAC-TCH-10 Product Page. To pair KAC-BAR-81RC remote control with KAC-BAR-81: Insert batteries (supplied) into KAC-BAR-81RC; the following message appears on the display: Remote is not connected.
-
Page 7: 11. Technical Specifications
10. Viewing Status on KAC-BAR-81 KAC-BAR-81 provides LEDs on its front panel, which indicate various operating status information. LED 1 Camera Status Camera is on. Camera is off. LED 2 General Status White on KAC-BAR-81 is powered on and signed into Teams. White flashing KAC-BAR-81 is booting up. -
Page 8: Notice Information
Websi https://www.kramerav.com/ ©2023 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights and AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
