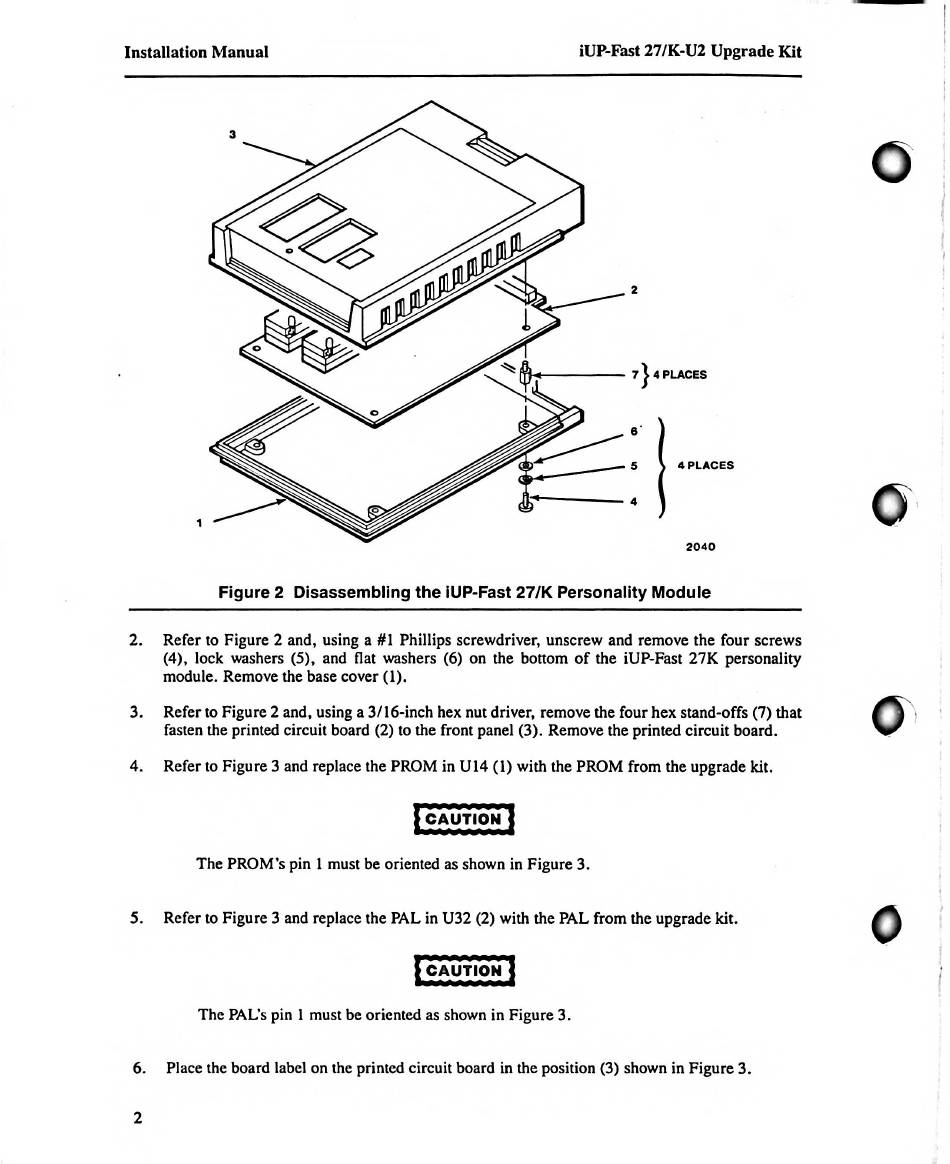

Figure 2 Disassembling the iUP-Fast 27/K Personality Module
2. Refer to Figure 2 and, using a #1 Phillips screwdriver, unscrew and remove the four screws
(4), lock washers (5), and flat washers (6) on the bottom of the iUP-Fast 27K personality
module. Remove the base cover (1).
3. Refer to Figure 2 and, using a 3/16-inch hex nut driver, remove the four hex stand-offs (7) that
fasten the printed circuit board (2) to the front panel (3). Remove the printed circuit board.
4. Refer to Figure 3 and replace the PROM in U14 (1) with the PROM from the upgrade kit.
[cAUTION^
he PROM ' s pin 1 must be oriented as shown in Figure 3.
5. Refer to Figure 3 and replace the PAL in U32 (2) with the PAL from the upgrade kit.
|
caution
I
he PAL ' s pin 1 must be oriented as shown in Figure 3.
6. Place the board label on the printed circuit board in the position (3) shown in Figure 3.
