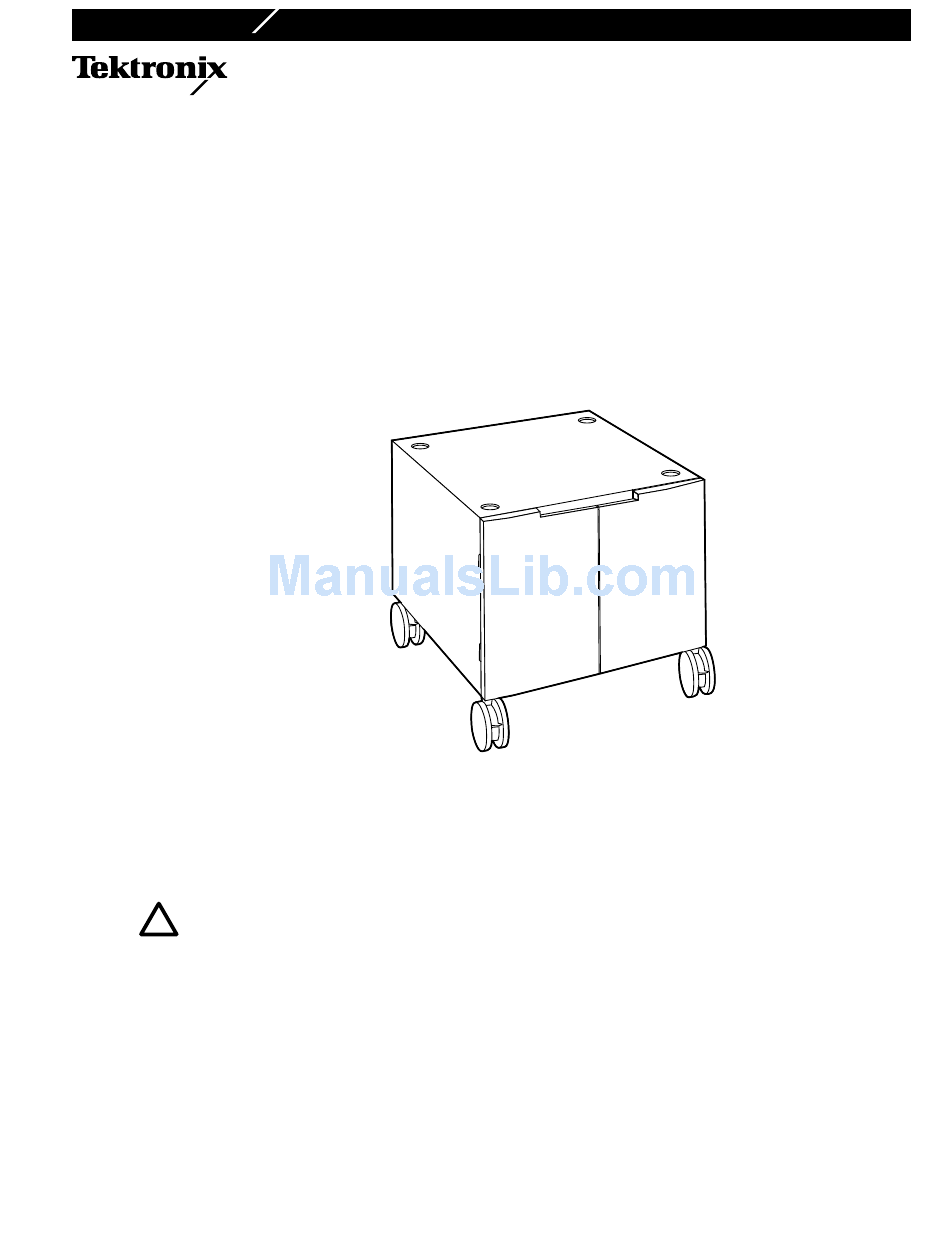

Installing the Printer Station

The Printer Station is designed to safely support the weight of the Phaser

Lower Paper Tray Assembly, and printer supplies. Adding a Printer Station to the printer raises it to a

comfortable operating height, while providing a convenient location to store supplies and consumable

components, such as ColorStix

The Printer Station features hinged doors, a sliding drawer and lockable casters. Mounting recesses in

the top of the cabinet help you to position the printer and the optional Lower Paper Tray Assembly

during installation.

Caution

It is important that you follow these unpacking and setup procedures to avoid risk of

personal injury, and damage to the printer, the Lower Paper Tray Assembly and the

Printer Station.

ink sticks, paper and transparency media, and a spare maintenance tray.

380 color printer, the printerÕs

2818-01

063-2818-01

Page 1 The Printer Station is designed to safely support the weight of the Phaser Lower Paper Tray Assembly, and printer supplies. Adding a Printer Station to the printer raises it to a comfortable operating height, while providing a convenient location to store supplies and consumable components, such as ColorStix ¨...
Page 2: Location Requirements
Before unpacking the Printer Station, prepare an area that allows appropriate clearances for proper ventilation of the printer. Install on a level ßoor surface, allowing for no more than 1.3 cm (0.5 in.) tilt from level across any side of the Printer Station.
Page 3 Printer Station. The printerÕs feet should sit inside the recesses on the top of the Printer Station cabinet. If you are installing the printer on top of the Lower Paper Tray Assembly, make sure that the alignment pins Þt in the holes in the base of the printer.
Page 4 Installing the Printer Station Organizing printer supplies The Printer StationÕs sliding drawer provides storage for up to 9 kg (20 lbs.) of printer supplies. A bottom shelf provides additional storage space for supplies such as paper and transparency media. Caution The combined weight of a Printer Station, the printer, a Lower Paper Tray Assembly and supplies can exceed 178 kg (390 lbs.).
