Dometic 9500E Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Dometic Manuals
  4. Lawn and Garden Equipment
  5. 9500E
  6. Operating instructions manual
Dometic 9500E Operating Instructions Manual

Dometic 9500E Operating Instructions Manual

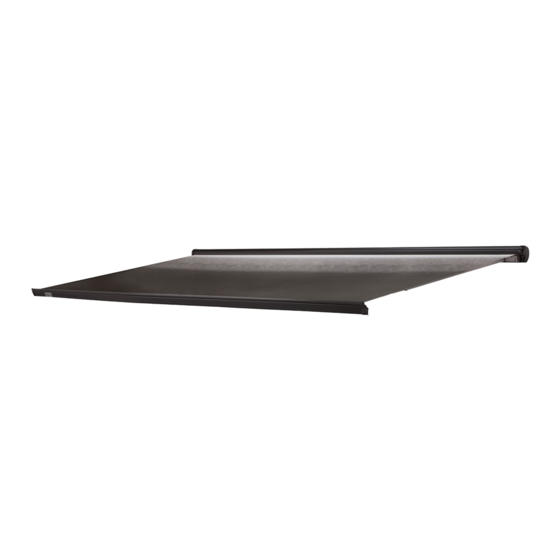

(120 vac, 60 hz) electric cassette awning
Hide thumbs Also See for 9500E:

Advertisement

Quick Links

Download this manual
USA
SERVICE OFFICE
Dometic, LLC
2320 Industrial Parkway
Elkhart, IN 46516
574-294-2511
CANADA
Dometic, LLC
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
519-720-9578
For Service Center
Assistance Call:
800-544-4881
OPERATING INSTRUCTIONS
3314425.000
Form No. 3314425.000 09/11
(French 3314426.000)
©2011 Dometic, LLC
LaGrange, IN 46761
This manual must be read and
understood before installation,
adjustment, service, or mainte-
nance is performed. This unit must
be installed by a qualified service
technician. Modification of this
product can be extremely hazard-
ous and could result in personal
injury or property damage.
Important:
stay with unit. Owner read carefully.
TYPE 9500E
(120 VAC, 60 HZ)
ELECTRIC
CASSETTE AWNING
Lire et comprendre ce manuel avant de
procéder à l'installation, à des réglages,
de l'entretien ou des réparations.
L'installation de ce produit doit être
effectuée par un réparateur qualifié.
Toute modification de ce produit peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
These Instructions must
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
Date Purchased
Retailer / Qualified Installer
AVERTISSEMENT
!
MODEL
202(XX)(XX).001(#)
202(XX)(XX).002(#)

Advertisement

loading

Related Manuals for Dometic 9500E

Summary of Contents for Dometic 9500E

  • Page 1 RECORD THIS INFORMATION FOR FUTURE REFERENCE: Model Number Serial Number Date Purchased Retailer / Qualified Installer TYPE 9500E (120 VAC, 60 HZ) ELECTRIC SERVICE OFFICE Dometic, LLC CASSETTE AWNING 2320 Industrial Parkway Elkhart, IN 46516 574-294-2511 CANADA Dometic, LLC 46 Zatonski, Unit 3...
  • Page 2 Kit, Remote (additional) This is the safety alert symbol. It is used to alert you to personal injury hazards. Obey all safety Dometic, LLC reserves the right to modify appearances messages that follow this symbol to avoid pos- and specifications without notice.
  • Page 3 PROCEDURE FIG. 3 A. Open Awning PINCH HAZARD. A horizontal distance of at least 16″ must be maintained between the fully open awning and any permanent object. Failure to obey this caution could result in injury. Fabric Edge 1. Press the open (down arrow) button briefly on awning remote.
  • Page 4 C. Close Awning PINCH HAZARD. Do not remove wind sensor from sensor base until ready to complete wind IMPACT OR CRUSH HAZARD. Always close sensor reset. Awning will close automatically awning when snow, heavy rain, wind, and 1 hour after wind sensor removal. severe weather conditions are expected.
  • Page 5 7. With awning extended to its out limit, shake the steps (2) through (5) before contacting a qualified lead rail for approximately 8 seconds (to simulate Dometic service technician. wind vibration) with the intensity desired to close awning. Awning should retract until it’s closed.
  • Page 6 F. Personalized Wind Sensor Adjustment 12. Install sensor back onto sensor base securely. See FIG. 7. If the wind sensor is not responding as desired to windy Note: If sensor is removed from sensor base for more than conditions (using the predefined settings), it may be ad- 4 seconds, reinstall sensor onto sensor base and repeat justed to personalized preference.
  • Page 7 H. Reset Awning Out Limit 4. If jog cycle is not successful, restart from step (2). Note: If an earlier attempt to program the remote was The awning limits are factory preset for optimal operation. aborted, the awning motor may not respond to remote’s However, if the awning does not fully extend, or awning program button.
  • Page 8 4. Reinstall LH end cap onto cassette awning. See death or serious injury. FIG. 11. 5. Contact a qualified Dometic service technician for 2. Using a flat bladed screwdriver, disengage (2) repair. tabs (starting with bottom tab) on LH end cap.
  • Page 9 1. Remove sensor from sensor base, then sensor nections. If supply wiring is damaged, it must cover from sensor. See FIG. 7. be replaced by a Dometic, LLC Service Center 2. Remove old alkaline batteries and discard. See or a qualified service technician. Failure to FIG.
  • Page 10 Lateral Arm Assembly and blend with all colored vinyls. c. Wait until the VLP (Dometic P/N 3314216.000) fully cures before rolling up the awning. N. When To Get More Help Near Shoulder 1.

  • Page 11: Troubleshooting

    O. Troubleshooting AWNING MOTOR AND REMOTE PROBLEM CAUSE SOLUTION Press either the open or close button briefly to actuate awning Awning motor stops Awning remote will turn off (caus- during normal operation. while pressing open ing the motor to stop) if the open or (down) or close (up) close button is pressed and held for If programming motor and remote, release button and...
