Endress+Hauser iTEMP TMT80 Brief Operating Instructions

KA01678T/09/EN/01.23-00
71633982
2023-10-27
*71633982*
71633982
Basic safety instructions
Manufacturer: Endress+Hauser Wetzer GmbH + Co. KG, Obere Wank 1,
D-87484 Nesselwang or www.endress.com
Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣
Trained, qualified specialists must have a relevant qualification for this
specific function and task.
‣
Are authorized by the plant owner/operator.
‣
Are familiar with federal/national regulations.
‣
Before starting work, read and understand the instructions in the manual
and supplementary documentation as well as the certificates (depending on
the application).
‣
Follow instructions and comply with basic conditions.
Intended use
The device is a universal and user-configurable temperature transmitter with
one sensor input for a resistance thermometer (RTD) and thermocouples (TC).
The head transmitter version of the device is intended for mounting in a
terminal head form B as per DIN EN EN50446. It is also possible to mount the
device on a DIN rail using the optional DIN rail clip.
If the device is used in a manner not specified by the manufacturer, the
protection provided by the device may be impaired.
The manufacturer is not liable for damage caused by improper or unintended
use.
Mounting
5 (0.2)

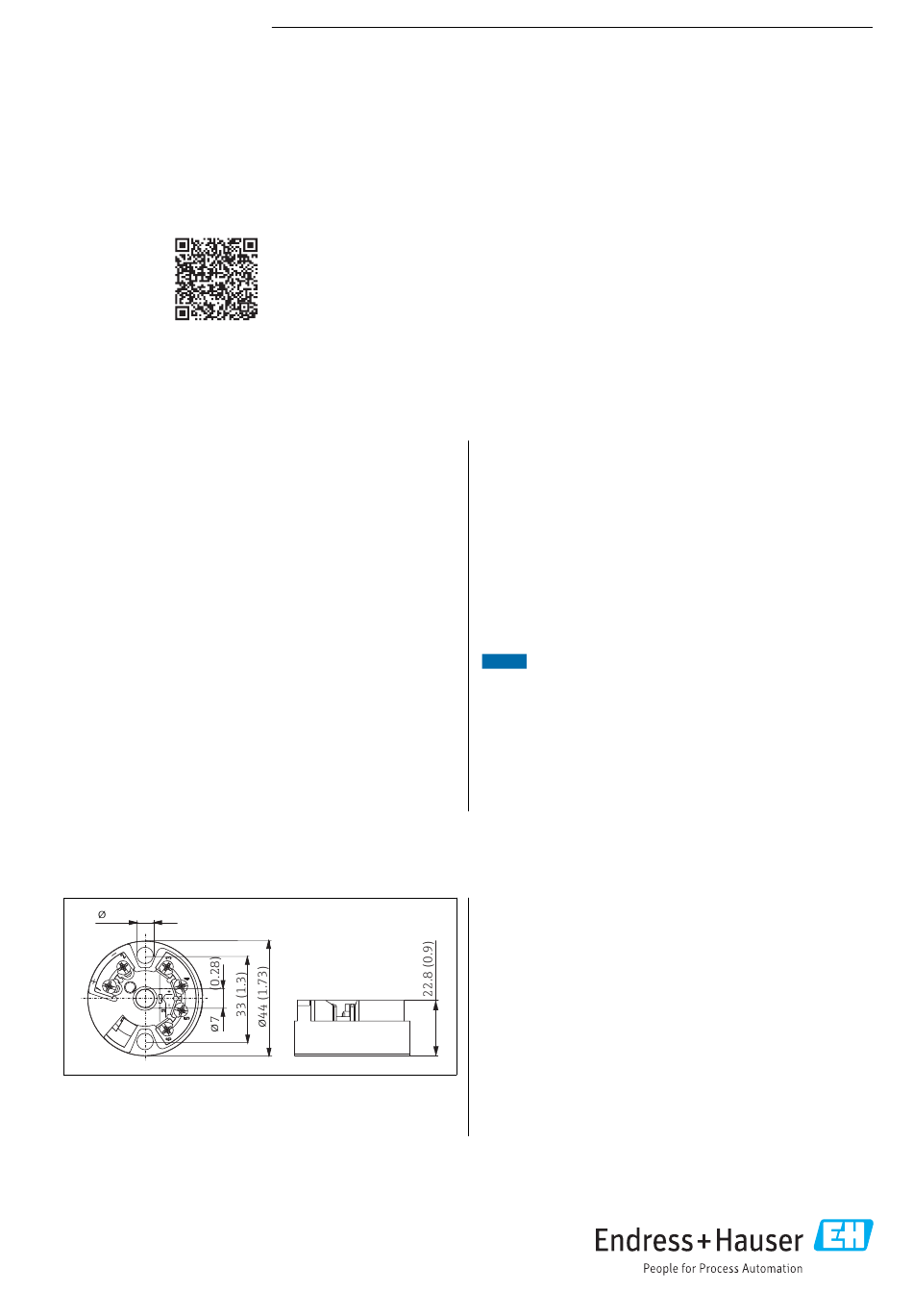

 1 Dimensions of the head transmitter in mm (in)
Mounting the device
Products
Brief Operating Instructions
iTEMP TMT80
Universal temperature head transmitter for resistance thermometers and thermocouples
PC-programmable
These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device.
Detailed information can be found in the Operating Instructions and the additional documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Workplace safety
When working on and with the device:
‣
Wear the required personal protective equipment as per national
regulations.
Operational safety
‣
Operate the device only if it is in proper technical condition, free from errors
and faults.
‣
The operator is responsible for the interference-free operation of the device.
Electromagnetic compatibility
The measuring system complies with the EMC requirements stipulated in the
IEC/EN 61326 series and NAMUR Recommendation NE21.
NOTICE
‣
The device must only be powered by a power unit that operates using an
energy-limited electric circuit according to UL/EN/IEC 61010-1, Section 9.4
and the requirements in Table 18.
Product safety
This product is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements and has been tested and left the factory in a
condition in which it is safe to operate.
A Phillips head screwdriver is required to mount the head transmitter:
Maximum torque for securing screws = 1 Nm (³⁄₄ lbf ft), screwdriver: Pozidriv
PZ2
