- Page 1 HD DIGITAL VIDEO CONTROLLER HKDV-503 OPERATION MANUAL [English] 1st Edition (Revised 1) Serial No. 10001 and Higher (UC)
- Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For the customers in the USA This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
CONTENTS Overview ..................... 2 Names and Functions of Parts ..............3 Output Selection Section ..............4 Memory Section ................... 4 Level Adjustment Section ..............5 Output Signal Adjustment ................ 8 Image Enhancer Adjustments ..............9 Displaying Setting Values (When DIP Switch 2 Is ON) ....... 11 Saving and Recalling Adjustments and Settings ........ -
Page 4: Overview

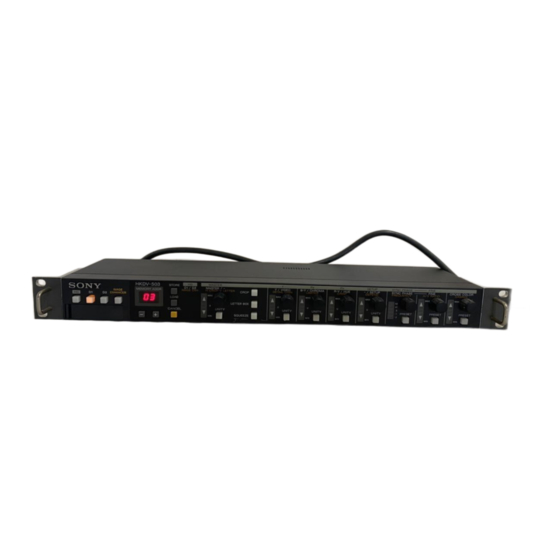

Overview The HKDV-503 connects to the HDW-500 HD (high DETAIL GAIN: sharpness of edge enhancement definition) Digital VTR and controls the HD/NTSC LIMITER: maximum limit to detail added to output video signals and the image enhancer of the enhance original signal down-converter built into the VTR. -
Page 5: Names And Functions Of Parts
Names and Functions of Parts Output selection section Memory section Level adjustment section 2 VIDEO gain switch 1 RESET button 3 TO VTR connector 1 RESET button 3 TO VTR connector (D-sub, 15-pin) This resets the internal CPU to the same initial state as Connect to the VIDEO CONTROL connector of the after powering on. -
Page 6: Output Selection Section
Names and Functions of Parts Output Selection Section Memory Section The output selection section selects the output signal to In the memory section you can save and recall up to 99 which the adjustments in the level adjustment section sets of settings in the internal memory. apply. -
Page 7: Level Adjustment Section
Level Adjustment Section In the level adjustment section you can adjust the output signal selected in the output selection section. When IMAGE ENHANCER is selected in the output selection section, you can make adjustments for the image enhancer. 1 MASTER/MASTER/–/H CROP•V LETTER adjustment knob and UNITY button 2 HD-NTSC•NTSC-HD conversion mode selection buttons 3 Y/Y/VIDEO/DETAIL GAIN adjustment knob and UNITY button /B–Y/CHROMA/LIMITER adjustment knob and UNITY button... - Page 8 Names and Functions of Parts 2 HD-NTSC•NTSC-HD conversion mode selection /B–Y/CHROMA/LIMITER adjustment knob and UNITY button buttons Carry out the following adjustment, according to the The following three modes can be selected for the HD- output selection. Pressing the UNITY button returns to NTSC down-conversion and NTSC-HD up-conversion the center value (the factory default setting), and the mode.
- Page 9 7 SYNC PHASE/SYNC PHASE/FREQUENCY adjustment knob and PRESET button Carry out the following adjustment, according to the output selection. Pressing the PRESET button returns to the center value (the factory default setting), and the “0” indicator lights. When HD is selected: Sync phase adjustment When D1/D2 is selected: Sync phase adjustment When IMAGE ENHANCER is selected: Adjustment of center frequency for edge...
-
Page 10: Output Signal Adjustment
Output Signal Adjustment To carry out an output signal adjustment with this unit, Adjustment ranges of settings first select the output signal to which the adjustment applies, then make the adjustment with the control When the HD button is lit knobs. -
Page 11: Image Enhancer Adjustments
Image Enhancer Adjustments Up-converter (NTSC-HD up-conversion) You can use this unit to control the image enhancer built into an HD Digital VTR HDW-500, HD-NTSC • Edge crop mode (CROP button) Down-Converter Board HKPF-525 or 525-HD Up- NTSC 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3... - Page 12 Image Enhancer Adjustments LIMITER adjustment knob Adjust the maximum limit to detail added to enhance the original signal. CRISP adjustment knob Adjust the amplitude setting for not enhancing small-amplitude signals, to be regarded as noise. DEPEND adjustment knob Adjust the luminance range for edge enhancement on the luminance level of the signal.
-
Page 13: Displaying Setting Values (When Dip Switch 2 Is On)
Displaying Setting Values (When DIP Switch 2 Is You can display the setting value for each adjustment of the output signals and image enhancer in the MEMORY ADDR. indicator in the memory section. To display the values Set DIP switch 2 on the internal board to the ON position. -
Page 14: Saving And Recalling Adjustments And Settings
Saving and Recalling Adjustments and Settings You can save up to 99 sets of settings in memory and recall them as needed. Each set consists of the settings for each output signal and the system settings. Saving Adjustments and Recalling Adjustments and Settings Settings Press the STORE button. -
Page 15: Specifications
Specifications General Power supply voltage 100 to 120 V AC ±10%, 50/60 Hz Power consumption 10 W max. Operating temperature 5 °C to 40 °C (41°F to 104°F) Operating humidity 20 to 80% (must be no condensation) Mass 2 kg (4 lb 6 oz) approx. External dimensions 424 (W) ×... - Page 17 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
