- Page 1 User Manual of Product 1: CatEye Velo Wireless-CC-VT230W Cycle Computers - Black User Manual of Product 2: CatEye EL135/TL155 (Omni 5) Set-HL-EL135N/TL-LD155 Lights and Reflectors, Cycling - Black, NO SIZE...

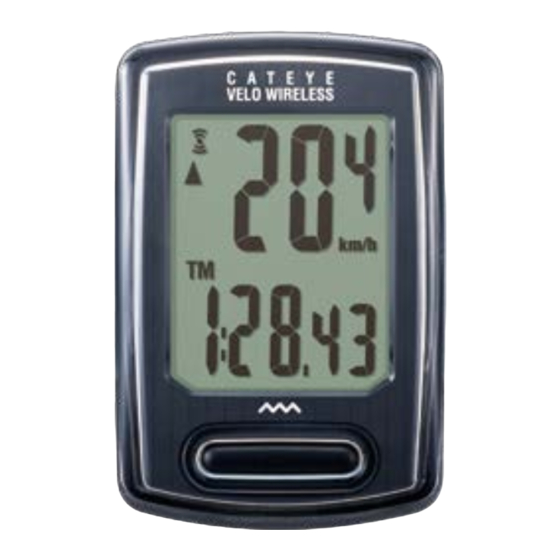

- Page 2 Mounting the computer CATEYE VELO WIRELESS CYCLOCOMPUTER Setting up the CC-VT230W computer Starting measurement Changing settings • This instruction manual is subject to change without notice. See our website for the latest instruction manual (PDF). • Please visit our website, where a detailed Quick Start manual containing videos can be downloaded.
-
Page 3: Mounting The Computer
Mounting the computer Magnet Bracket Doublesided tape Speed sensor Sensor rubber pad Nylon tie (x 4) Mount the bracket • When mounting on stem Stem Nylon tie Pull tight Bracket Doublesided tape • When mounting on handlebar Handlebar Nylon tie Pull tight Bracket Doublesided tape... -
Page 4: Mount The Speed Sensor
Mounting the computer Mount the speed sensor • Mount the speed sensor in a posi- Mounting on right front fork tion where the distance from the computer to the speed sensor is within the signal range. • Mounting on left front fork Nylon tie Speed sensor Pull tight... -
Page 5: Test Operation
Mounting the computer Adjust the speed sensor and the magnet The magnet passes through The clearance between the the speed sensor zone. speed sensor and the magnet is within 5 mm (3/16”). Magnet Speed Sensor zone sensor Magnet Speed sensor (3/16”) * The magnet may be mounted at any position on spoke as long as attachment conditions are satisfied. -
Page 6: Setting Up The Computer
Setting up the computer When using the computer for the first time or resetting it to its factory default settings, clear all computer data following the procedure below. Battery case Short press cover MODE MENU Long press (2 sec.) MODE MODE Clear all data. -
Page 7: Set The Clock
Setting up the computer Set the clock. Time display mode (24h or 12h) Switch item Each time the MODE button is pressed and or increase held, settings switch from time display mode, numbers MODE to hours, to minutes. Switch screen * When 12h is selected, A (AM) or P (PM) is or move to next digit... -
Page 8: Tire Circumference
Setting up the computer Tire circumference Tire circumference can be determined by either of the following two methods: • Measure the actual tire circumference (L) After ensuring that the tire pressure is appropriate, sit on your bike, roll it forward so that the tire makes one full revolution (use the valve or other marking as a reference), and measure the dis- tance traveled on the road. -
Page 9: Starting Measurement
Starting measurement [Measurement screen] Sensor signal icon Flashes in sync with a sensor signal. Current speed Pace arrow 0.0 (4.0) – 105.9 km/h Indicates whether the current [0.0 (3.0) – 65.9 mph] speed is faster ( ) or slower ( ) Measurement unit than the average speed. -
Page 10: Starting/Stopping Measurement
Starting measurement [Measurement screen] Starting/stopping measurement Measurement starts automatically when the bicycle moves. Measurement Measurement During measurement the measurement unit starts stops (km/h or mph) flashes. Resetting data Pressing and holding the MODE button when on the measurement MODE screen resets all measurement data to 0 (excluding Odo). (Press and hold) Power-saving function If the computer does not receive... -
Page 11: Changing Settings
Changing settings [Menu screen] On the measurement screen, press MENU to go to the menu screen. Various settings can be changed on the menu screen. * After changing settings, always press MENU to confirm changes. * When the menu screen is left on for 1 minute, the computer returns to the measurement screen. Measurement Menu screen Description... -
Page 12: Manual Distance Input
Changing settings [Menu screen] Measurement Menu screen Description screen Clock Lets you set the clock. * When 12h is selected, A (AM) or P (PM) is MODE MENU displayed at the top of the screen. Change setting Select display 12h ↔ 24h MODE (Press and hold) MODE... -
Page 13: Select Measurement Unit
Changing settings [Menu screen] Measurement Menu screen Description screen MENU MODE MODE MENU MODE MODE Select measurement unit Lets you select the measurement unit (km/h or mph). Change setting km/h↔mph MODE (Press and hold) MODE Confirm MENU... -
Page 14: Warning / Caution
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by CatEye Co., Ltd. May void the user ’s authority to operate the equipment. Canada 310 This device complies with Industry Canada’s RSS-310. Operation is subject to the condition that this de- vice must not cause harmful interference and must accept any interference, including interference that may cause undesired operation of the device. -
Page 15: Maintenance
Appendix Maintenance If the computer or accessories become dirty, clean with a soft cloth which is moistened with mild soap. Replacing the battery • Computer When the display becomes dim, replace the battery. Close Insert a new lithium battery (CR2032) with the (+) side up. * After replacing the battery, always follow the procedure CR2032 Open... -
Page 16: Main Specifications
If the product fails to work due to normal use, CatEye will repair or replace the defect at no charge. Service must be performed by CatEye or an autho- 1602980 rized retailer. - Page 17 HL-EL135 Remove top body by pushing down while sliding it backward. • Carefully install batteries, ensuring proper polarity. • For best performance, do not mix new and old batteries. • Do not shine this light directly into eyes. Enlevez la partie supérieure du boîtier en appuyant dessus tout en faisant glisser vers l'arrière.
-
Page 18: Specifications
CatEye products are warranted to be free of defects from materials and workmanship for a period Operating time (When using alkaline batteries) of 2 years from original purchase. If the product fails to work during normal use, CatEye will repair TL-LD135-R Rapid : Approx.
