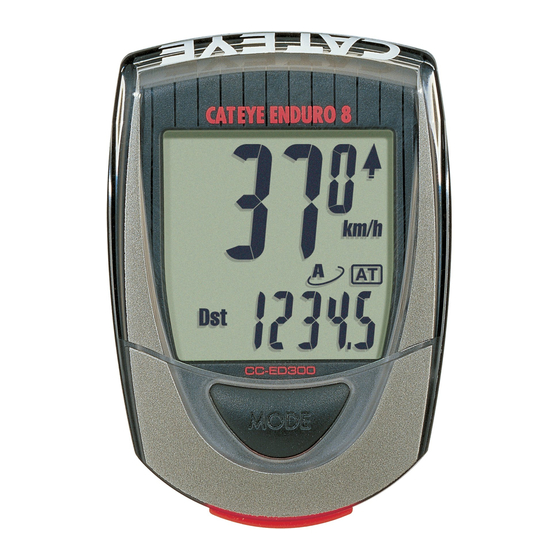

CAT EYE ENDURO 8
®
CYCLOCOMPUTER CC-ED300
E: Owner’s Manual
ENDURO8
U.S. Pat. Nos.4633216/4642606/5226340/5236759 Pat. and Design Pat. Pending
Copyright © 2002 CAT EYE Co. Ltd.
CCMED3-021210 066600240 1
Please read these instructions carefully before attempting to
install and use your CAT EYE ENDURO 8 computer so that you
understand the functions of this product.
Please don’t throw away this manual, Keep the manual at a place easily accessible.
Installation of the Computer on Your Bike
The computer is combined with the following parts.
3
3
2
1
4
8
7
5
6
7
8
2
1 Bracket
5 Magnet
1
2 Cord
6 Bracket Rubber Pad
3 Sensor
7 Five Nylon Ties
4 Sensor Rubber Pad
8 Spiral Tube
1
5
Mount the magnet
5 on a spoke of the front wheel so that the surface
Sensor Side
of the magnet will face the sensor.
Spoke
2
Front Fork
Mount sensor and adjust the gap between the
magnet and the sensor.
Secure the sensor 3 with the larger nylon ties 7 at
the appropriate place and in the right direction.
3
7
Front Fork
Important Note
Marked Line
Mount the sensor 3 at the appropri-
ate position so that the center of the
magnet 5 will align with the
5
marked line on the sensor when the
3
wheel is rotated.
3
Important Note
5
Rotate the sensor on the front fork to
adjust the gap between the sensor
and the magnet 5 within 5 mm, and
Within 5 mm
secure it with the nylon ties.
Center
3
Mount The Bracket
Secure the cord on the fork with the nylon ties 7 and lead to the handle bar along the outer
cable of the bicycle by means of the spiral tube 8.
Put the rubber pad 6 on the bracket 1 and secure the bracket on the handle bar with the
screw. Slide the computer into the bracket 1 until you hear the click sound.
The contact points are automatically closed. When you need to detach the computer, slide
forward the computer with the lever pushed simultaneously.
Allow enough wire clearance in the area marked with an
to insure that you can
Note
turn the handlebar from left to right without pulling the wire.
1
1
Lever
8
6
1
7
Rotate the front wheel.
4
Test The Basic Functions
Rotate the front wheel gently and see if the computer indicates the
running speed.
OK
When the computer does not indicate the speed, check
Note
the position of the magnet and the sensor.
• Pay attention to the road or trail! Do not be distracted by the
computer.
• Be sure to securely mount the magnet, the sensor, and the
Warning
bracket on your bicycle. Periodically check to insure they are
mounted securely and the screws are not loosen.
• Keep batteries out of reach of small children. Dispose of batter-
ies according to local regulations.
• Avoid unnecessary prolonged exposure to the sun. Never at-
tempt to disassemble the computer head.
• Don’t use thinner, benzene or alcohol to wipe the surface of the
Important
Note
computer. They may damage the surface of computer.
Computer Set-up
(For 1st use or after replacing the battery)
1
All Clear
Push three buttons (MODE, START/
STOP and SET) at the same time.
* Do this procedure without fail for
stable measurement when you use
this system for the first time and every
time the battery is replaced.
SET Button
SET Button
Contact Point
START/STOP Button
START/STOP
MODE Button
Button
MODE Button
You need to know the tire
!
2
Select The Measurement Unit
circumference (L cm) be-
Select the measurement unit, kilometer
forehand.
or mile, by pushing the MODE button.
Kilometer
Mile
MODE
Choose Either of The Followings.
L cm
• When you want to input the reading of the currently
used odometer, keep pressing the MODE button for
You can refer to the guide
two seconds and input the reading.
chart to roughly know the
• When you want to start the odometer from zero,
tire circumference.
push the START/STOP button.
Starting the odom-
Retaining the current odometer reading
Tire size
L(cm)
eter from zero.
(the odometer starts from the reading you
14 x 1.50
102
inputted)
14 x 1.75
106
16 x 1.50
119
16 x 1.75
120
18 x 1.50
134
18 x 1.75
135
For two seconds.
20 x 1.75
152
MODE
20 x 1-3/8
162
22 x 1-3/8
177
ST/STOP
Input the current reading of odometer.
22 x 1-1/2
179
24 x 1
175
24 x 3/4Tubular
178
Increase the
24 x 1-1/8
179
number.
24 x 1-1/4
191
24 x 1.75
189
24 x 2.00
192
MODE
24 x 2.125
196
Move the
26 x 7/8
192
26 x 1(59)
191
decimal point.
26 x 1(65)
195
26 x 1.25
195
ST/STOP
26 x 1-1/8
190
26 x 1-3/8
207
26 x 1-1/2
210
26 x 1.40
200
26 x 1.50
201
26 x 1.75
202
SET
26 x 1.95
205
26 x 2.00
206
26 x 2.10
207
26 x 2.125
207
3
26 x 2.35
208
Set The Tire Circumference
26 x 3.00
217
27 x 1
215
Set the tire circumference in cm.
27 x 1-1/8
216
You can easily set it by referring to the chart shown
Note
27 x 1-1/4
216
27 x 1-3/8
217
right.
650 x 35A
209
Setting is completed by pushing the SET button.
650 x 38A
212
650 x 38B
211
700 x 18C
207
Increase the
700 x 19C
208
number.
700 x 20C
209
Max. 300 cm
700 x 23C
210
MODE
700 x 25C
211
SET
700 x 28C
214
Decrease
700 x 30C
217
the number
700 x 32C
216
700C Tubular
213
Min. 100 cm
700 x 35C
217
ST/STOP
700 x 38C
218
700 x 40C
220
Preparation Complete.
Tire size is usually shown
(the screen will show the time measurement in this state)
on the sidewall of tires.
* The auto mode is ON in this state.
