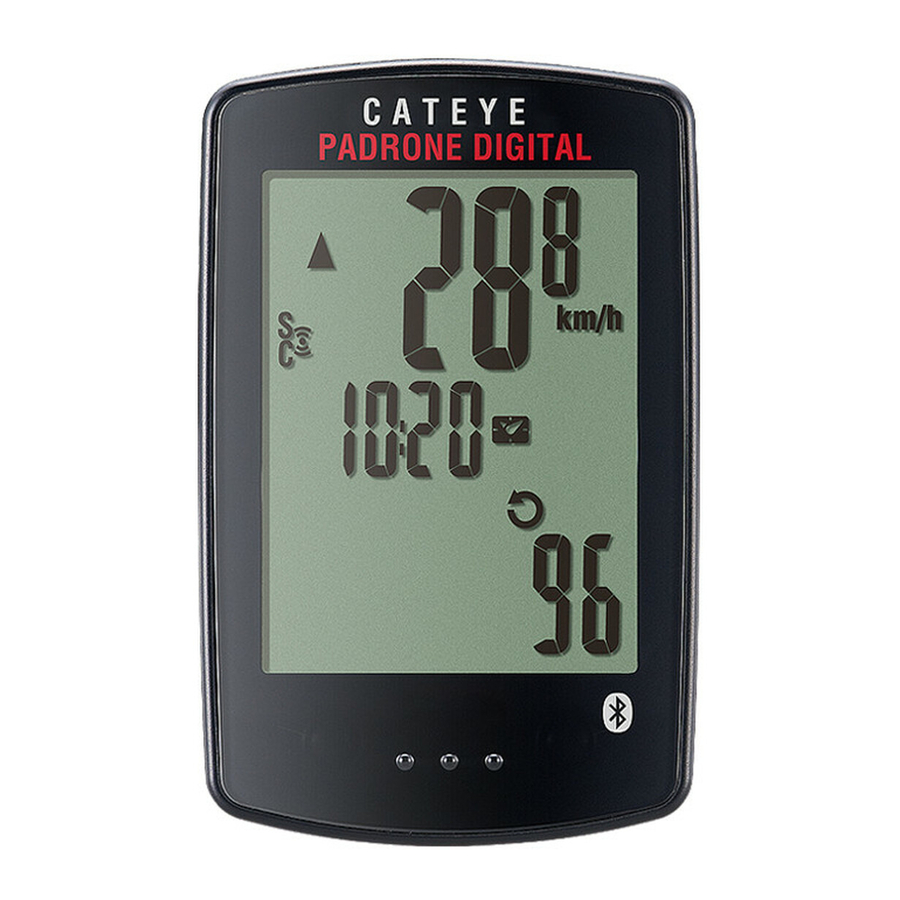

Cateye PADRONE DIGITAL CC-PA400B Instruction Manual

Cyclocomputer
Hide thumbs Also See for PADRONE DIGITAL CC-PA400B:
Table of Contents

Advertisement

Quick Links

C A T E Y E
PADRONE
D I G I TA L
CYCLOCOMPUTER
CC-PA400B
•
This instruction manual is subject to change
without notice. See our website for the latest
instruction manual (PDF).
•
Please visit our website, where a detailed
Quick Start manual containing videos can be
downloaded.
http://www.cateye.com/products/detail/CC-PA400B/manual/
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by CATEYE Co., Ltd. is under license. Other trademarks and trade names
are those of their respective owners.
the PADRONE DIGITAL
the heart rate sensor
Capabilities with a smart-
phone (Cateye Cycling™)
Warning / Caution
Product Warranty, etc.
1
Introduction
Mounting
Wearing
Setting up the
PADRONE DIGITAL
Smartphone
Cover,
Introduction
1
2
Using the unit
Using the app
3
4
SET
5
Appendix

Advertisement

Table of Contents
loading

Related Manuals for Cateye PADRONE DIGITAL CC-PA400B

Summary of Contents for Cateye PADRONE DIGITAL CC-PA400B

  • Page 1 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use Warning / Caution Appendix of such marks by CATEYE Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. Product Warranty, etc.
  • Page 2 Use the method corresponding to your device to set up the PADRONE DIGITAL. You can change the display of its measurement screen and its total distance value as necessary. * If you have a smartphone, you can use the “Cateye Cycling™” smartphone app (free of charge) to easily set up the PADRONE DIGITAL.
  • Page 3 Cover, Mounting the PADRONE DIGITAL Introduction Mount the bracket Bracket band Bracket Bracket rubber pad Dial The bracket can be mounted on either the stem or the handlebar. Mount the bracket • When mounting on stem Using the unit Bracket band Bracket Stem rubber pad...
  • Page 4 Cover, Mounting the PADRONE DIGITAL Introduction Mount the bracket Attach/detach PADRONE DIGITAL Hold PADRONE DIGITAL. Click Push out so that front lifts up. Using the unit Using the app Appendix...
  • Page 5 * If using pedals with steel axles, the cadence magnet can be attached magnetically to the pedal axle. * For detailed explanations on how to use CATEYE sensors such as mounting, or pair- ing, see the sensor’s Online Manual...
  • Page 6 Cover, Mounting the PADRONE DIGITAL Introduction Mounting the speed/cadence sensor (ISC-12) Temporarily attach the sensor to the left chain stay. (1) Loosen the sensor screw using a Phillips screwdriver and check that the sen- sor arm moves. Sensor screw Sensor arm (2) Attach the sensor rubber pad to the sensor.
  • Page 7 Cover, Mounting the PADRONE DIGITAL Introduction Mounting the speed/cadence sensor (ISC-12) Temporarily attach the magnet. Sensor zone (CADENCE) Wheel magnet Cadence magnet Spoke Sensor zone Sensor zone (SPEED) side (CADENCE) side Nylon tie Sensor zone (SPEED) (1) Using a nylon tie, temporarily attach the cadence magnet to the inside of the Using the unit left crank arm so that it faces the cadence sensor zone.
  • Page 8 Cover, Mounting the PADRONE DIGITAL Introduction Mounting the speed/cadence sensor (ISC-12) Adjust the gap between the sensor zone and the magnet. (1) Tilt the sensor so that the gap between the cadence magnet and the cadence sensor zone is approximately 3 mm, then fasten the sensor securely with nylon ties.
  • Page 9 Using the app thin shirt. • Chest hair may interfere with measurement in some cases. * For detailed explanations on how to use CATEYE sensors such as mounting, or pair- ing, see the sensor’s Online Manual (on our website) or the...
  • Page 10 Cover, Wearing the heart rate sensor (HR-12) Introduction Wear the HR strap by sliding the hook over the other end of the strap. Wind the HR strap around your body and adjust the length to suit your chest (un- derbust). Overtightening the strap may cause discomfort during measurement. Back side Hook Electrode pads...
  • Page 11 Cover, Setting up the PADRONE DIGITAL Introduction Setup with the PADRONE DIGITAL * Check the locations of the buttons on the PADRONE DIGITAL before starting setup. Battery case cover Short press MODE MENU Long press (2 sec.) MODE MODE Dot section Format (initialize) the unit.
  • Page 12 The unit switches to the pairing standby screen and Pr flashes on the screen. Use one of the methods in the following table to Unit activate the sensor. CATEYE sensors Activating the sensor Display Move the magnet through the sensor zone several times. Speed/Cadence sensor...
  • Page 13 Cover, Setting up the PADRONE DIGITAL Introduction Setup with the PADRONE DIGITAL Set tire circumference. Enter the tire circumference (the length of the Increase numbers outer circumference of the tire) in mm for the MODE tire on which the sensor is installed. (100 to 3999 mm) Move to next digit (Press and hold)
  • Page 14 Cover, Setting up the PADRONE DIGITAL Introduction Setup with the PADRONE DIGITAL Tire circumference table Tire circumference can be determined by either of the following two methods: • Measure the actual tire circumference (L) After ensuring that the tire pressure is appropriate, sit on your bike, roll it forward so that the tire makes one full revolution (use the valve or other marking as a reference), and measure the dis- tance traveled on the road.
  • Page 15 Cover, Setting up the PADRONE DIGITAL Introduction Setup with a smartphone (Cateye Cycling™) You can use the smartphone app “Cateye Cycling™” (free of charge) for setup. * See Cateye Cycling Recommended Devices for the latest information about smartphones recommended for use with Cateye Cycling™.
  • Page 16 Cover, Setting up the PADRONE DIGITAL Introduction Setup with a smartphone (Cateye Cycling™) PADRONE DIGITAL Format (initialize) the unit. While holding down MENU on the back of the PADRONE DIGITAL, press and re- lease the AC button. MENU MENU MENU...
  • Page 17 • Pairing of a commercial sensor and the PADRONE DIGITAL: If you are an iPhone user, complete the setup with Cateye Cycling™, and then separately pair the commercial sensor with the PADRONE DIGITAL. “Pairing” (Page 25) * When using an iPhone, you cannot sync settings of commercial sensors with the PADRONE DIGITAL.
  • Page 18 Tap [Pairing]. The paired sensor is displayed under [Device] and pairing is completed. * When pairing a sensor with Cateye Cycling™, an “A” is displayed after the sensor name. To pair multiple sensors, repeat the procedure from step 6.
  • Page 19 1:00 – 12:59 Current function (*1) Dot section *1: You can use the menu screen or the smartphone (Cateye Cycling™) to change the upper and middle displays and to change the selected function in the lower display. • Changing settings (Page 22) •...
  • Page 20 Cover, Starting measurement [Measurement screen] Introduction Switching current function Pressing MODE switches the current function displayed at the bottom of the screen. Heart rate (*2) 0 (30) – 299 bpm Cadence 0 (20) – 299 rpm Tm Moving Time 0:00’00” – 99:59’59” Press the dot section when Dst Trip Distance mounted on the bracket...
  • Page 21 (memory alarm) is displayed on the screen and the oldest data is overwritten to save new summary data. * Importing summary data from the PADRONE DIGITAL’s internal memory to a smartphone (Cateye Cycling™) clears the internal memory. • Resetting trip distance 2 (Dst2) Display Dst2 and press MODE for 2 second to reset only Dst2 to 0.
  • Page 22 Measurement Menu screen Description screen Smartphone search MENU Operate the smartphone (Cateye Cycling™) on this screen to connect the PADRONE DIGITAL to the smartphone. * For details on how to operate and use the MODE smartphone (Cateye Cycling™), see “Capabili- Clock ties with a smartphone”...
  • Page 23 Increase numbers MODE MODE Upper display * When you connect to a smartphone (Cateye Cycling™), the clock of the PADRONE DIGITAL is synchronized with the smartphone. This MODE eliminates the need to set the clock from the Middle PADRONE DIGITAL.
  • Page 24 Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen MENU Smartphone search MODE Tire circumference Clock You can select the sensor and set the tire cir- cumference. (0100 to 3999 mm) * Refer to “Tire circumference table” (Page 14). MODE Change setting Sensor selection...
  • Page 25 Upper sensor is shown in display the upper display. Confirm MENU MODE Activating the sensor Middle CATEYE sensors Activation method Display display Move the magnet Speed/ through the sensor zone Cadence sensor several times. (Within 3 mm) MODE...

  • Page 26: Upper Display

    Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen MENU Smartphone search MODE Clock MODE Tire circum- ference Using the unit Upper display The upper display can be changed to show heart Using the app MODE rate or cadence. Pairing * The heart rate will not be displayed (it can- not be selected) unless a heart rate sensor is...
  • Page 27 Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen MENU Smartphone search MODE Clock MODE Tire circum- ference Using the unit Using the app MODE Pairing Middle display The middle display can be changed to show trip distance or moving time. MENU MODE Upper...
  • Page 28 Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen Function MENU You can select certain functions to display or Smartphone hide. search MODE Trip Distance Clock ON (displayed)/ OFF (hidden) switching MODE MODE MODE Tire (Press and hold) circum- ference Using the unit...

  • Page 29: Total Distance

    Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen Total distance MENU Smartphone Set total distance traveled manually. search (0 – 999999 km [mile]) MODE * Decimal values cannot be entered. Clock * You can start from the value you entered for total distance.
  • Page 30 Cover, Changing settings [Menu screen] Introduction Measurement Menu screen Description screen MENU Smartphone search MODE Clock MODE Tire circum- ference Using the unit Using the app MODE Pairing MENU MODE Upper display MODE Middle display MODE Function Measurement unit Select the measurement unit (km/h or mph) MODE Change setting Total...
  • Page 31 To connect to a smartphone, install Cateye Cycling™ and perform pairing with PADRONE DIGITAL. For instructions on installing/pairing with Cateye Cycling™, refer to procedures 1 to 5 in “Setup with a smartphone (Cateye Cycling™)” (Page 15). The following can be performed on a smartphone (Cateye Cycling™).
  • Page 32 Using the app Smartphone Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure below. * If summary data (Measurement results) is not saved on the PADRONE DIGITAL, 2/10 button is not displayed.
  • Page 33 Check/upload the imported measurement results. * You can check the measurement results and upload to service sites only on a smart- phone. Smartphone Launch Cateye Cycling™ and tap [Activity List] in (Menu). Then tap the screen in the following order. Using the unit...
  • Page 34 * You can setup service site account only on a smartphone. Smartphone Launch Cateye Cycling™ and tap [Account] in (Menu). Then tap the screen in the following order. Using the unit Using the app * Activities can be posted to SNSs when uploading data to CATEYE Atlas™. 4/10 Appendix...
  • Page 35 Using the app Smartphone Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure below. * Settings other than for [Units] cannot be performed by the PADRONE DIGITAL.
  • Page 36 Using the app Smartphone Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure below. (Menu) at the top left of the screen, set [Connect] to OFF.
  • Page 37 Using the unit Smartphone Using the app Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure below. (Menu) at the top left of the screen, set [Connect] to OFF.
  • Page 38 Smartphone search screen screen Smartphone Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure on the next page. 8/10...
  • Page 39 When [Pairing] is tapped, the name of the synchronized sensor is displayed and pairing is completed. * When pairing a sensor with Cateye Cycling™, an “A” is displayed after the sensor name. 9/10 (Menu) at the top left of the screen, set [Connect] to OFF.
  • Page 40 Smartphone search screen screen Using the app Smartphone Launch Cateye Cycling™, tap (Menu) and set [Connect] to ON. [Reading data from computer...] will be displayed and the smartphone will connect with the PADRONE DIGITAL. Then follow the procedure below. 10/10 (Menu) at the top left of the screen, set [Connect] to OFF.
  • Page 41 Radiated Power: -0.09 dBm Hereby, CATEYE Co., Ltd. declares that the radio equipment type CC-PA400B / ISC-12 / HR-12 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: cateye.com/doc...
  • Page 42 Cover, Appendix Introduction Differences between formatting and restarting Action Description Formatting Perform this action when you use the unit for the first time and when you delete all the measured data and return the settings to their default values. Operation MENU MENU MENU...

  • Page 43: Replacing The Battery

    CR2032 Open * After replacing the battery, always press the RESET button. Press RESET. * For detailed explanations on how to use CATEYE sensors such as mounting, or pair- ing, see the sensor’s Online Manual (on our website) or the...

  • Page 44: Troubleshooting

    (Menu) of the smartphone (Cateye Cycling™) or close Cateye Cycling™. Why is the sensor signal not being received? • If using a smartphone (Cateye Cycling™), is [Connect] set to [ON] in the (Menu)? Using the unit Set [Connect] to [OFF] or close Cateye Cycling™.
  • Page 45 Why is the sensor signal not being received? (Continued) • Is the sensor paired with the unit? The sensor must be paired with the PADRONE DIGITAL. Perform the pairing with the PADRONE DIGITAL or with a smartphone (Cateye Cycling™). • PADRONE DIGITAL: “Pairing” (Page 25) • Smartphone: “Adding a new sensor”...
  • Page 46 Press only the AC button on the back of the PADRONE DIGITAL to restart it. The setting values will be maintained. Why are measurement values flashing? If using a Cateye sensor, measured values start flashing to indicate that there is little remaining battery life in the relevant sensor. Using the unit Refer to “Replacing the battery”...

  • Page 47: Optional Accessories

    Cover, Appendix Introduction Main specifications PADRONE DIGITAL Lithium battery (CR2032) x1 / Approx. 4 months Batteries used Speed/cadence sensor Lithium battery (CR2032) x1 / Approx. 5 months Battery life (ISC-12) Heart rate sensor (HR-12) Lithium battery (CR2032) x1 / Approx. 5 months * Life of pre-installed battery may be shorter than indicated above.

  • Page 48: Limited Warranty

    If the product fails to work due to normal use, CatEye will repair or replace the defect at no charge. Service must be per- formed by CatEye or an authorized retailer. To return the product, pack it carefully and en- close the warranty certificate (proof of purchase) with instruction for repair.
