Getting Started
3. Plug the serial connector into the serial port on your computer.
Tighten the two screws to secure the connector to the port.
4. If the terminal does not support Power Off the Terminal (P.O.T.)
connections plug the power supply into the host connector and the
AC outlet.
5. Once the imager has been fully connected, power up the com-
puter.
All communication parameters between the imager and terminal must
match for correct data transfer through the serial port using RS-232 pro-
tocol. Scanning the RS-232 interface bar code, programs the imager for
an RS-232 interface at 38,400 baud, parity–none, 8 data bits, 1 stop bit,
and adds a suffix of a CR LF.

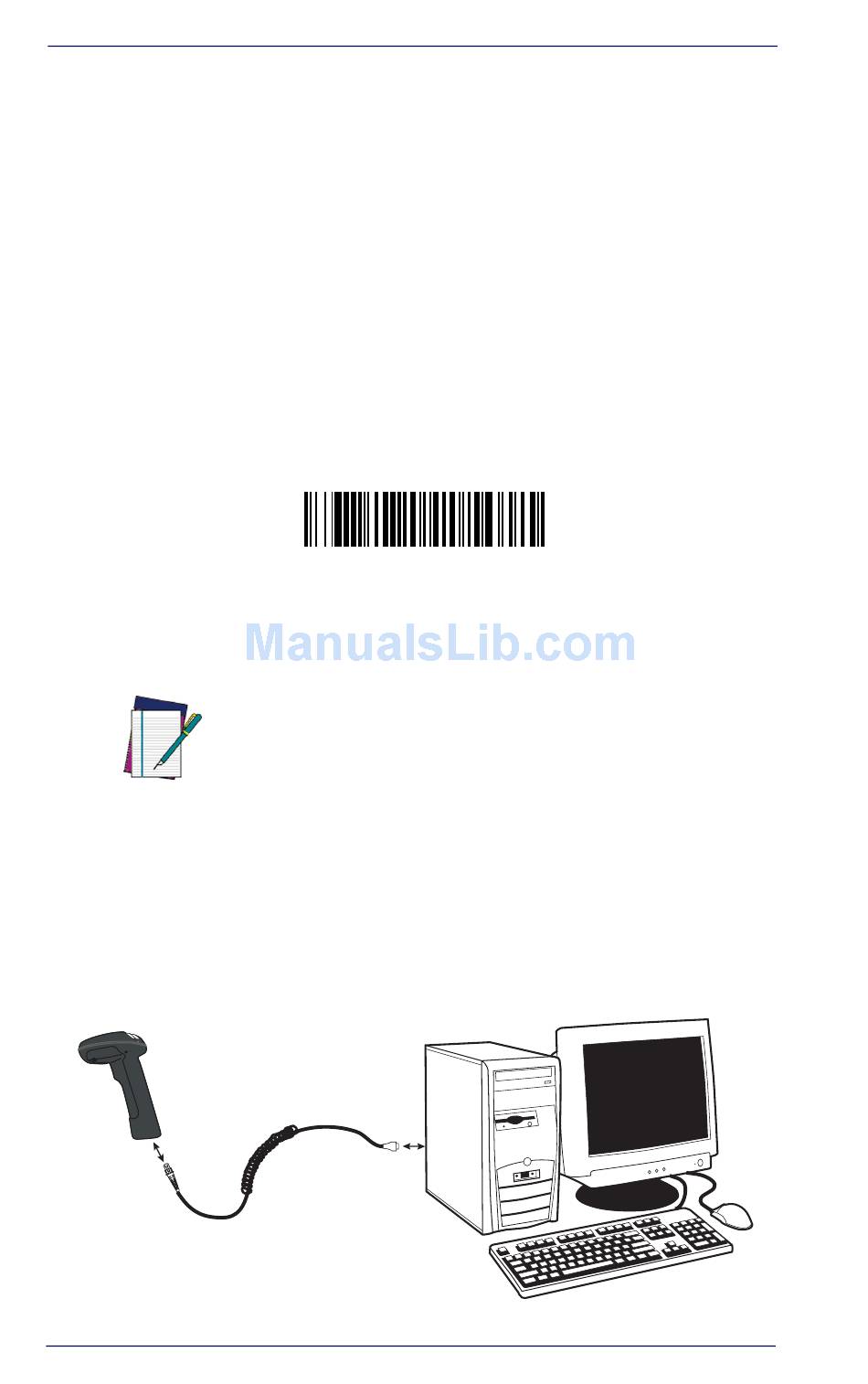

Connecting the Imager with USB

NOTE
An Imager can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the Imager and to the
computer.
1-4
RS-232 Interface
This interface applies to USB compatible mod-
els only.
DuraLine™ 2D Imagers
