Wasp WWS800 User Manual

Wasp wws800: user guide
Hide thumbs Also See for WWS800:

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
Enlarged version

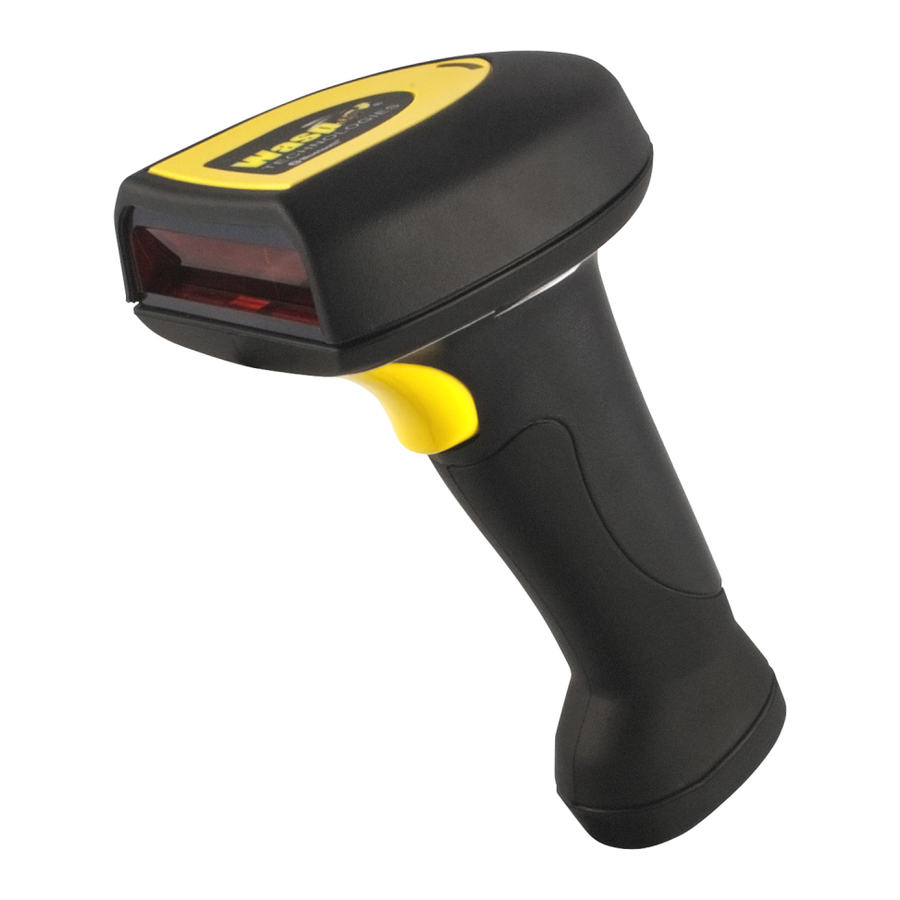

Wasp Technologies WWS800 Cordless Scanner
User's Manual
Document Number: W800-A1
Release Date: February 18, 2004
®
© 2004, Wasp
Technologies
All rights reserved.
WARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Advertisement

loading

Related Manuals for Wasp WWS800

Summary of Contents for Wasp WWS800

  • Page 1 Wasp Technologies WWS800 Cordless Scanner User’s Manual Document Number: W800-A1 Release Date: February 18, 2004 ® © 2004, Wasp Technologies All rights reserved. WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules.
  • Page 2 Table of Contents Introduction ...1 Installation ...2 Power Up the WWS800 Base Station ...2 Power Up the WWS800 Cordless Scanner...3 Setup RF Connection...3 Charging your WWS800 Cordless Scanner...4 Interface Setting...5 General Features...6 Buzzer...6 Indicator ...6 Scan Modes ...6 Auto-Sense ...7 Re-read Delay...7...
  • Page 3 50,000 scans. The WWS800 uses a CCD long-range linear imager. This manual contains all the information needed to operate and configure the WWS800. It is divided into two parts. The first part of this manual describes the installation, operation and programmable features of the scanner. The second part of this manual contains the setup barcodes used to configure the scanner.
  • Page 4 When you receive your WWS800 Cordless Scanner, it will be in an OFF mode. This is done to conserve power and for transportation purposes. At the base of the scanner you will find a small pin hole. Using a straightened paper clip insert the end of the paper clip into the pin hole and then remove.
  • Page 5 There is a dual color indicator on top of the scanner. Normally it is off, and will turn red when there is a good read. The indicator will be green when the scanner is in configuration mode.
  • Page 6 Auto-Sense is used in conjunction with the auto-sense stand. It will enable the scanner to start scanning once a barcode is brought within Range of the scanner. This will activate the LED’s and the scanner will start decoding the barcode. The auto-sense mode works only under Auto Off mode or Laser mode only.
  • Page 7 The WWS800 is a multi-interface scanner. It can be used as a keyboard wedge scanner or a USB scanner. The output interface can be programmed using the setup bar codes found in the Reference Guide. Please ensure that you have an RF connection between the scanner and the base prior to selecting the interface type.
  • Page 8 This will enable the user to set a delay between each data records in memory at time of transmission. The WWS800 can be configured to use a standard Bluetooth Serial Port as the data output interface. This allows the WWS800 to send the scanned bar code data to a...
  • Page 9 # # , - The scanner will stay active only for one minute waiting for connection. If there is no connection request during that period, the scanner will go to power down mode to conserve power with three descending tones as indication. To return the scanner to active mode, pull the trigger.
  • Page 10 Click “OK” to go back to “My Bluetooth Places” “Wake up” the WWS800 by pulling the trigger. Double click “Find Bluetooth Devices”. Now the WWS800 should be shown on the screen with the scanner’s serial number as the device name. For this example, the device name is “SW3000006”.
  • Page 11 There will be three serial descending tones from the scanner to indicate this condition. After the connection is closed, the WWS800 and the Bluetooth driver are properly configured and are ready to go. You can now run the host application or “Hyper...
  • Page 12 2 fixed lengths can be specified. And if max/min code length is selected, the max length and the min length must be specified, and the scanner will only accept those codes with lengths that fall between the max/min lengths specified.
  • Page 13 / min length specified. " • Convert to UK Plessey: If this parameter is enabled, the scanner will change each occurrence of the character ‘A’ into character ‘X’ in the code. • Checksum Transmission: If this parameter is enabled, the checksum characters (two characters) will be transmitted together with data.
  • Page 14 Data read by the scanner will be processed in the following sequence (Keyboard Wedge then USB interfaces). 1) The character substitution is performed on the bar code data. 2) The Code ID and the Length Code are inserted at the beginning of the data as shown below.
  • Page 15 The WWS800 scanner provides advanced data editing functions for data formatting. Data editing is performed according to user configured editing formats. Up to three editing formats can be configured. Data is divided into fields by user specified rules. These fields, together with user configurable additional fields, constitute the data actually sent to the host computer.
  • Page 16 The editing formats can be enabled or disabled individually. =< If this parameter is enabled, all data read by the scanner must be processed by the editing format. If the data is not eligible for all enabled editing formats, the scanner will not accept the reading and the data will not be transmitted.
  • Page 17 !" Configuring the WWS800 Scanner is done by reading the setup labels contained in the Reference Guide. This section describes the procedure of configuring the scanner. Some configuration examples are also given in this section for illustration. To start the configuration, the “Enter Setup” label must be read. This will put the scanner in the configuration mode.
  • Page 18 These two labels differ in whether to keep the new settings on the scanner or not, as their names suggest. The scanner will respond with 6 beeps and restart itself, if either label is read.
