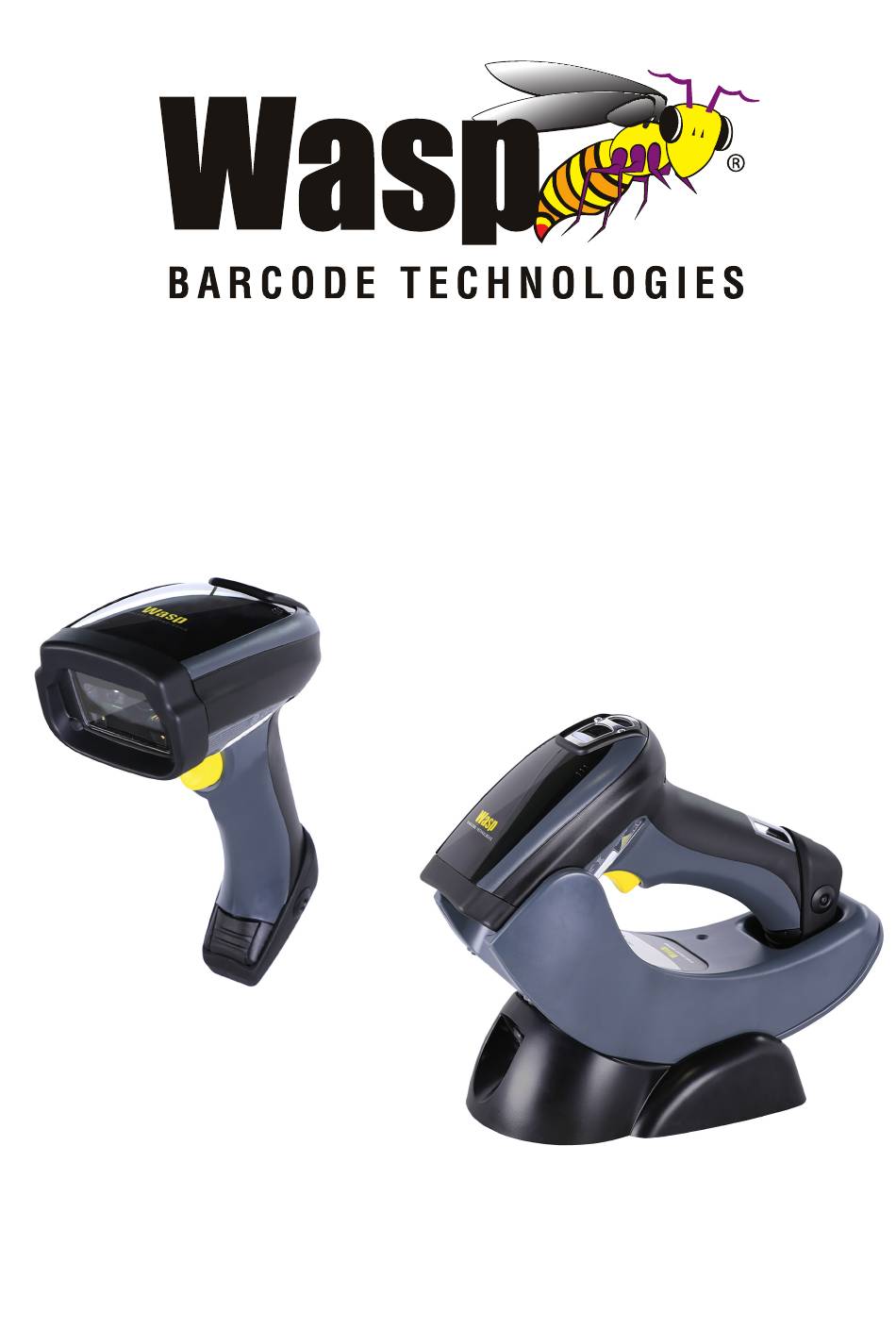

Page 1 Wasp WDI7500/Wasp WWS750 2D Duraline USB or Wireless Barcode Scanner Product Reference Guide...
Page 2 Wasp Technologies website (www.waspbarcode.com) or provided on appropriate media. If you visit our website and would like to make comments or sugges- tions about this or other Wasp Technologies publications, please let us know via the "Con- tact WaspTechnologies" page.
Page 3: Table Of Contents
Table of Contents INTRODUCTION......................................1 About this Manual ........................................1 Overview ........................................... 1 Manual Conventions ....................................... 2 References ..........................................2 Services and Support ...................................... 2 About the Reader ........................................3 The WWS750-BS Base Station/Charger ................................4 Battery Safety ........................................... 5 Programming the Reader ......................................
Page 4 DISABLE ALL SYMBOLOGIES ................................84 CODE EAN/UPC ....................................85 Coupon Control .................................... 85 UPC-A ........................................86 UPC-A Enable/Disable ................................86 UPC-A Check Character Transmission ............................86 Expand UPC-A to EAN-13 ................................87 UPC-A Number System Character Transmission ........................87 Wasp WDI7500/WWS750...
Page 5 UPC-A 2D Component ................................. 88 UPC-E ........................................88 UPC-E Enable/Disable ................................88 UPC-E Check Character Transmission ............................89 UPC-E 2D Component ................................. 89 Expand UPC-E to EAN-13 ................................90 Expand UPC-E to UPC-A ................................90 UPC-E Number System Character Transmission ........................91 GTIN FORMATTING ....................................
Page 6 GS1 DATABAR™ EXPANDED ................................146 GS1 DataBar™ Expanded Enable/Disable ..........................146 GS1 DataBar™ Expanded GS1-128 Emulation ........................147 GS1 DataBar™ Expanded 2D Component ..........................147 GS1 DataBar™ Expanded Length Control ..........................148 GS1 DataBar™ Expanded Set Length 1 ............................ 149 Wasp WDI7500/WWS750...
Page 7 GS1 DataBar™ Expanded Set Length 2 ............................ 150 GS1 DATABAR™ LIMITED ..................................151 GS1 DataBar™ Limited Enable/Disable ........................... 151 GS1 DataBar™ Limited GS1-128 Emulation ..........................151 GS1 DataBar™ Limited 2D Component ............................ 152 CODE 93 ....................................... 152 Code 93 Enable/Disable ................................152 Code 93 Check Character Calculation ............................
Page 8 Bluetooth HID Alt Mode ................................222 Bluetooth HID Send Unknown ASCII Char ..........................222 Bluetooth Max Client ................................223 Bluetooth Friendly Name ................................. 224 Bluetooth Reconnect Attempt Mode ............................224 Power Class ....................................225 HID Country Mode ..................................225 Wasp WDI7500/WWS750...
Page 9 REFERENCES ......................................228 RS-232 Parameters ......................................229 RS-232 Only .........................................229 RS-232/USB COM Parameters ..................................230 Keyboard Interface .......................................237 Wedge Quiet Interval ....................................237 Intercharacter Delay ....................................238 Intercode Delay ......................................239 Symbologies .........................................240 Datamatrix DPM Decoding Safety ................................240 Set Length ........................................240 Data Editing ..........................................242 Global Prefix/Suffix .....................................243 Global AIM ID ........................................243 Label ID .........................................245 Character Conversion ....................................250...
Page 10 NOTES Wasp WDI7500/WWS750 viii...
Page 11: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the web- site listed on the back cover of this manual.
Page 12: Manual Conventions
Guide (QRG), and any other manuals, instruction sheets or utilities for this product can be downloaded from the Wasp website. Services and Support Wasp provides several services as well as technical support through its web- site. Log on to www.waspbarcode.com and click on the links indicated for further information.
Page 13: About The Reader
About the Reader About the Reader The Wasp WDI7500/WWS750 Retail series is the first handheld scanner fam- ily on the market capable of reading digital watermarks, including Digimarc® Barcode. It is a family of feature-rich and rugged area imager reader. The Wasp WDI7500/WWS750 Retail are offered in several different models to better fit the different needs of each customer.
Page 14: The Wws750-Bs Base Station/Charger
Introduction The WWS750-BS Base Station/Charger The WWS750-BS Base Station, when paired with one or more Wasp™ Retail readers, builds a Cordless Reading System for the collection, decoding and transmission of barcode data. It can be connected to a Host PC via RS-232, USB, or KBD Wedge, and is suited for single-cradle layouts.
Page 15: Battery Safety
Always charge the battery at 32° – 104°F (0° - 40°C) temperature range. Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Wasp reseller. The use of any other power supplies can damage the device and void CAUTION your warranty.
Page 16: Programming The Reader
Programming Mode and return the reader to nor- mal operation. There are some exceptions to the typical programming sequence described above. Please read the description and setting instructions carefully when configuring each programmable feature. Wasp WDI7500/WWS750...
Page 17: Setup
21 (optional, depends on set- tings needed) Connect the Wasp scanner by plugging directly into the host device as shown. The power can also be supplied through an external power supply via the Interface Cable supplied with a power jack.
Page 18: Connecting The Cable (Corded Versions)
“tooth” on the back of the handle. 6. Insert the cable through the Connector Holder, and push it up into the Cover. 7. Insert and tighten the screw to affix the cable assembly to the reader handle. Wasp WDI7500/WWS750...
Page 19: Configuring The Horizontal Base Station
Configuring the Horizontal Base Station Configuring the Horizontal Base Station To set up your WWS750-BS Base Station you must: 1. Physically install the cradle. 2. Make all system connections. 3. Configure the WWS750-BS cradle. Mounting the WWS750-BS Cradle The cradle package contains the following items: WWS750-BS Base Station (with Desktop 1 Metal Mounting plate Mounting Bracket installed)
Page 20: Permanent Mounting
(not included). When mounting on drywall, the base should be screwed to a wall stud or supporting beam for additional support. Figure 3. Base Station Bottom Rubber Feet Rubber Feet Protective Adhesive Mounting Strips Holes Wasp WDI7500/WWS750...
Page 21: Mounting For Portable Use
Mounting the WWS750-BS Cradle Mounting for Portable Use If portability of the cradle is required, the metal plate must be used. There are two ways this can be done: (1) by first mounting the metal plate on a flat surface so the cradle can be slid off and on, or (2) mounting the metal plate onto the back of the base station and then screwing both to the desired sur- face.
Page 22: System Connections
Figure 5. Attaching Mounting Plate to Base Base with Mount attached System Connections Connections should always be made with power off! CAUTION The WWS750-BS cradle provides a multi-interface connector and a power supply connector as shown: Power Supply Multi-Interface Connector Wasp WDI7500/WWS750...
Page 23: Connecting And Disconnecting The Interface Cable
Mounting the WWS750-BS Cradle Connecting and Disconnecting the Interface Cable The WWS750-BS can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle. To disconnect the cable, insert a paper clip or other similar object into the hole corresponding to the Host connector on the body of the cradle.
Page 24: Configuring The Vertical Base Station
• Hex Key • WWS750-BS Quick Reference Guide • Rubber Spacers • Metal Mounting Plate Regulating the Cradle Position To regulate the position, use the hex key to unscrew the holder and slide it to the desired position. Wasp WDI7500/WWS750...
Page 25 Mounting the WWS750-BS Cradle The rubber spacers included in the box can be used to fix the position of the cradle: Product Reference Guide...
Page 26 3. After aligning the tabs, push up to lock into place. Figure 6. Mounting Plate on Wall System Connections Connections should always be made with power off! CAUTION The WWS750-BS Base Station provides a multi-interface connector and a power supply connector as shown: Power Supply Multi-Interface  Connector Wasp WDI7500/WWS750...
Page 27 Mounting the WWS750-BS Cradle Connecting and Disconnecting the Interface Cable The WWS750-BS can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle. To disconnect the cable, insert a paper clip or other similar object into the hole corresponding to the Host connector on the body of the cradle.
Page 28: Wws750-Bs Configuration
WWS750 Quick Reference. Once the pairing is complete, you can configure the WWS750-BS cradle by reading configuration barcodes in this manual. To configure the WWS750-BS using the Wasp reader (paired to the cradle with the Bind command), follow the procedure according to the interface selected.
Page 29 Interface Selection Table 2. Available Interfaces RS-232 FEATURES RS-232 standard interface Select RS232-STD Set RS-232 $P,HA12,P(CR) Interface Features starting RS-232 Wincor-Nixdorf on page Select RS232-WN $P,HA13,P(CR) RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS FEATURES $P,HA47,P(CR) USB Com to simulate RS-232 standard interface Select USB COM-STD $P,HA45,P(CR) USB-OEM...
Page 30 Select KBD-AT-NK $P,HA26,P(CR) AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Select KBD-AT-ALT $P,HA10,P(CR) Keyboard Wedge for IBM AT PS2 with alternate key encoding but without external keyboard Select KBD-AT-ALT-NK Wasp WDI7500/WWS750...
Page 31: Customizing Configuration Settings
Customizing Configuration Settings Customizing Configuration Settings Configure Interface Settings If after scanning the interface barcode from the previous table, your installa- tion requires you to select options to further customize your reader, turn to the appropriate section for your interface type in "Configuration Parameters"...
Page 32: Resetting The Product Configuration To Defaults
Year, Month and Day (YYMMDD) from Appendix D, Keypad. Set Date 3. Scan Set Time + six digits for Hours, Minutes and Seconds (HHMMSS) from Appendix D, Keypad. Set Time 4. Scan the Enter/Exit Programming barcode to complete. Wasp WDI7500/WWS750...
Page 33: Linking The Reader
3. Use the host computer’s Bluetooth manager to “Discover new devices” and select "Wasp Scanner." If you receive an error message, it may be necessary to disable security on the device. 4. Use an RS-232 terminal program to see incoming data on the port des- ignated by the computer's Bluetooth manager.
Page 34: Linking To A Bluetooth Adapter In Hid Mode
Bluetooth manager. Link to PC in HID The Wasp Retail WWS750 can be set up to require a PIN code when connect- ing. If you want to set up a PIN, or when adding new equipment to a system "Bluetooth PIN Code"...
Page 35: Configuration Using Barcodes
Chapter 3 Configuration Using Barcodes This and following sections provide programming barcodes to configure your reader by changing the default settings. You must first enable your scanner to read barcodes in order to use Setup, starting on this section. If you have not done this, go to page 7 and complete the appropriate procedure.
Page 36 You can then start again at the beginning. 4. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING barcode to exit Programming Mode. For more detailed descriptions, programming information and examples for setting selected configuration items, see References, starting on page 228. Wasp WDI7500/WWS750...
Page 37: Global Interface Features
Enter/Exit Programming Mode GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host com- mands. When set to ignore, the reader will ignore all host commands except those necessary for: •...
Page 38: Only Interface28
RS-232 interface settings are necessary to meet your system’s require- ments. Additional settings which apply to both the RS-232 and USB interfaces are available in the next section, "RS-232/USB-Com Interfaces" starting on page 33. Reference Appendix C, Standard Defaults for a listing of standard factory settings. Wasp WDI7500/WWS750...
Page 39: Baud Rate
Enter/Exit Programming Mode Baud Rate page 229 for information on this feature. $CR2BA00(CR) Baud Rate = 1200 $CR2BA01(CR) Baud Rate = 2400 $CR2BA02(CR) Baud Rate = 4800 $CR2BA03(CR) Baud Rate = 9600 $CR2BA04(CR) Baud Rate = 19,200 $CR2BA05(CR) Baud Rate = 38,400 $CR2BA06(CR) Baud Rate = 57,600 $CR2BA07(CR)
Page 40: Data Bits
7 Data Bits $CR2DA01(CR) DEFAULT 8 Data Bits Stop Bits Set the number of stop bits to match host device requirements. See page 229 for more information on this feature. $CR2ST00(CR) DEFAULT 1 Stop Bit $CR2ST01(CR) 2 Stop Bits Wasp WDI7500/WWS750...
Page 41: Parity
Enter/Exit Programming Mode Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements. See page 229 more information. $CR2PA00(CR) DEFAULT Parity = None $CR2PA01(CR) Parity = Even $CR2PA02(CR) Parity = Odd Product Reference Guide...
Page 42: Handshaking Control
Handshaking Control page 229 for more information about this feature. $CR2HC00(CR) DEFAULT Handshaking Control = RTS $CR2HC01(CR) Handshaking Control = RTS/CTS $CR2HC02(CR) Handshaking Control = RTS/XON/XOFF $CR2HC03(CR) Handshaking Control = RTS On/CTS $CR2HC04(CR) Handshaking Control = RTS/CTS Scan Control Wasp WDI7500/WWS750...
Page 43: Rs-232/Usb-Com Interfaces33
RS-232/USB-COM INTERFACES on page 34 NTERCHARACTER ELAY on page 34 ASCII BEL on page 35 OT ON on page 35 ACK NAK O PTIONS on page 36 ACK C HARACTER on page 36 NAK C HARACTER on page 37 ACK NAK T IMEOUT ALUE on page 37...
Page 44: Intercharacter Delay
RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. $CR2BB00(CR) DEFAULT Beep On ASCII BEL = Disable $CR2BB01(CR) Beep On ASCII BEL = Enable Wasp WDI7500/WWS750...
Page 45: Beep On Not On File
Enter/Exit Programming Mode Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. $CBPNF00(CR) Beep On Not On File = Disable $CBPNF01(CR) DEFAULT Beep On Not On File = Enable ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/ NAK protocol.
Page 46: Ack Character
Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters. 8-bit data is not recognized when the option has been set as 7 Data Bits. page 232 for more information. $CR2NA Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT Wasp WDI7500/WWS750...
Page 47: Ack Nak Timeout Value
Enter/Exit Programming Mode ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK char- acter from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 48: Ack Nak Error Handling
Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode $CR2TF00(CR) Indicate Transmission Failure = Disable Indication $CR2TF01(CR) DEFAULT Indicate Transmission Failure = Enable Indication Wasp WDI7500/WWS750...
Page 49: Disable Character
Enter/Exit Programming Mode Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 50: Keyboard Emulation Settings
Use the programming barcodes in this chapter to select options for USB Key- board and Wedge Interfaces. Reference Appendix C, Standard Defaults for a listing of standard factory settings. Information about control character emulation which applies to keyboard interfaces is listed in Appendix E, Scancode Tables. Wasp WDI7500/WWS750...
Page 51: Country Mode
Enter/Exit Programming Mode Country Mode This feature specifies the country/language supported by the keyboard. Several languages are supported: $CKBCO00(CR) DEFAULT Country Mode = U.S. $CKBCO01(CR) Country Mode = Belgium $CKBCO02(CR) Country Mode = Britain Supports only the interfaces listed in the Country Mode feature description.
Page 52 Supports only the interfaces listed in the Country Mode feature description. Country Mode = Japanese 106-key $CKBCO14(CR) Supports only the interfaces listed in the Coun- try Mode feature description. Country Mode = Lithuanian $CKBCO07(CR) Country Mode = Norway Wasp WDI7500/WWS750...
Page 53 Enter/Exit Programming Mode Country Mode (continued) $CKBCO12(CR) Supports only the interfaces listed in the Coun- try Mode feature description. Country Mode = Poland $CKBCO08(CR) Supports only the interfaces listed in the Country Mode feature description. Country Mode = Portugal $CKBCO10(CR) Supports only the interfaces listed in the Coun- try Mode feature description.
Page 54: Send Control Characters
0x80 to 0xFE are intended as an extended ASCII table (see "Microsoft Windows Codepage 1252" on page 298). $CKBSC00(CR) DEFAULT Wedge Send Control Characters = 00 $CKBSC01(CR) Wedge Send Control Characters = 01 $CKBSC02(CR) Wedge Send Control Characters = 02 Wasp WDI7500/WWS750...
Page 55: Wedge Quiet Interval
Enter/Exit Programming Mode Wedge Quiet Interval Specifies amount of time to look for keyboard activity before scanner breaks keyboard connection in order to transmit data to host. The selectable range for this setting is 00 to 990 milliseconds (00-0x63 by 01) in increments of ten milliseconds.
Page 56: Caps Lock State
Caps Lock State = Caps Lock ON $CKBCL02(CR) Caps Lock State = AUTO Caps Lock Enable Numlock This option specifies the setting of the NUMLOCK key in the Keyboard Wedge interface. $CKBNL00(CR) DEFAULT Numlock = NUMLOCK key unchanged $CKBNL01(CR) Numlock = Numlock key toggled Wasp WDI7500/WWS750...
Page 57: Usb Keyboard Speed
Enter/Exit Programming Mode USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. $CKBSP01(CR) DEFAULT USB Keyboard Speed = 1ms $CKBSP02(CR) USB Keyboard Speed = 2ms $CKBSP03(CR) USB Keyboard Speed = 3ms $CKBSP04(CR) USB Keyboard Speed = 4ms...
Page 58: Usb Keyboard Numeric Keypad
USB Keyboard Speed = 9ms $CKBSP0A(CR) USB Keyboard Speed = 10ms USB Keyboard Numeric Keypad This option Controls whether numeric characters will be sent using standard keys or the numeric keypad. $CKBKP00(CR) DEFAULT Standard Keys $CKBKP01(CR) Numeric Keypad Wasp WDI7500/WWS750...
Page 59: Usb-Oem Interface
USB-OEM INTERFACE on page 50 USB-OEM D EVICE SAGE on page 50 NTERFACE PTIONS Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter to specifically configure for the USB-OEM interface. Other USB interfaces are included in the appropriate chapter for their host type.
Page 60: Usb-Oem Device Usage
USB-OEM Device Usage = Table Top Scanner $CIBUT01(CR) DEFAULT USB-OEM Device Usage = Handheld Scanner Interface Options This feature provides for an interface-specific control mechanism. $CIFO101(CR) Obey Scanner Configuration Host Commands $CIFO102(CR) DEFAULT Ignore Scanner Configuration Host Commands Wasp WDI7500/WWS750...
Page 61: Data Format
DATA FORMAT LOBAL REFIX UFFIX EADER ERMINA on page 52 on page 53 AIM ID LOBAL starting on page 57 ABEL Label ID: Pre-Loaded Sets • Individually Set Label ID • Label ID Control • Label ID Symbology Selection − 1D Symbol- •...
Page 62: Global Prefix/Suffix (Header/Terminator)
Set Global Prefix $CLFSU Set Global Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL No Global Prefix DEFAULT Global Suffix = 0x0D (CR) Wasp WDI7500/WWS750...
Page 63: Global Aim Id
Global AIM ID Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all sym- bology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. See Table 3 on page 3-53 for a listing of AIM IDs.
Page 64 DATABAR LIMITED COMPOSITE DATA MATRIX EAN128 EAN128 COMPOSITE EAN13 EAN13 P2 EAN13 P5 EAN13 COMPOSITE EAN8 EAN8 P2 EAN8 P5 EAN8 COMPOSITE FOLLET 2OF5 I2OF5 IATA INDUSTRIAL 2OF5 INDUSTRIAL 2OF5 ISBN ISBT128 CONCAT ISSN AIM IDs (continued) MAXICODE MICRO QR Wasp WDI7500/WWS750...
Page 65 Global AIM ID MICRO PDF PDF417 PLESSEY POSTAL AUSTRALIAN POSTAL IMB POSTAL JAPANESE POSTAL KIX POSTAL PLANET POSTAL PORTUGAL POSTAL POSTNET BB POSTAL ROYAL MAIL POSTAL SWEDISH POSTNET QR CODE TRIOPTIC UPCA UPCA P2 UPCA P5 UPCA COMPOSITE UPCE UPCE P2 UPCE P5 UPCE COMPOSITE Product Reference Guide...
Page 66: Set Aim Id Individually For Gs1-128
Label ID. See Label ID: Set Individually Per Symbology, starting on page 248 for detailed instruc- tions on setting this feature. $CU8AI00(CR) Set AIM ID Individually for GS1-128 = Disable $CU8AI01(CR) DEFAULT Set AIM ID Individually for GS1-128 = Enable Wasp WDI7500/WWS750...
Page 67: Label Id
Label ID Enter/Exit Programming Mode Label ID A Label ID is a customizable code of up to three ASCII characters (convert to Hex using the ASCII Chart on the inside back cover of this manual), used to identify a barcode symbology type. It can be appended previous to or fol- lowing the transmitted barcode data depending upon how this option is enabled.
Page 68: Individually Set Label Id
This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. $CIDCO00(CR) DEFAULT Label ID Transmission = Disable $CIDCO01(CR) Label ID Transmission = Enable as Prefix $CIDCO02(CR) Label ID Transmission = Enable as Suffix Wasp WDI7500/WWS750...
Page 69: Label Id Symbology Selection − 1D Symbologies
Label ID Enter/Exit Programming Mode Label ID Symbology Selection 1D Symbologies − This option selects the symbology for which a Label ID is to be configured. "Label ID" on page 57 or page 248 in “References” for more detailed instructions. If less than the expected string of 3 characters are selected, scan the ENTER/EXIT barcode twice to accept the selection and exit Program- ming Mode.
Page 70 Set GTIN 5 Label ID Character(s) $CXBID $CGBID Set GS1 DataBar Expanded Label ID Character(s) Set GTIN 8 Label ID Character(s) $CLPID $CIAID Set IATA Industrial 2 of 5 Label ID Character(s) Set LaPoste Code 39 Label ID Character(s) Wasp WDI7500/WWS750...
Page 71 Label ID Enter/Exit Programming Mode Label ID Symbology Selection − 1D Symbologies (continued) $CPMID $CMSID Set IMB Postal Code Label ID Character(s) Set MSI Label ID Character(s) $CU2ID $CPPID Set Industrial 2 of 5 Label ID Character(s) Set Planet Postal Code Label ID Character(s) $CI2ID $CPLID Set Interleaved 2 of 5 Label ID Character(s)
Page 72 Set PDF 417 Label ID Character(s) $CMIID $CCFID Set Codablock F Label ID Character(s) Set Micro PDF 417 Label ID Character(s) $CDMID $CQRID Set Data Matrix Label ID Character(s) Set QR Code Label ID Character(s) $CMQID Set Micro QR Label ID Character(s) Wasp WDI7500/WWS750...
Page 73: Advanced Formatting: User Label Edit
Label ID Enter/Exit Programming Mode Advanced Formatting: User Label Edit Advanced formatting is available to create user label edit scripts.Contact Wasp Technical Support. Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case.
Page 74: Character Conversion
FF, then no conversion is done. If less than the expected string of 16 characters are selected, scan the ENTER/EXIT barcode twice to accept the selections and exit Programming Mode. $CLFCH Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) Wasp WDI7500/WWS750...
Page 75: Reading Parameters
READING PARAMETERS on page 66 on page 76 OUBLE IMEOUT CANNING CTIVE on page on page EEPER NDICATORS TAND LLUMINATION ONTROL on page 68 on page 77 OWER LERT LASH on page HEN TO NDICATE on page 77 LASH on page 69 on page 78 IMING OINTER...
Page 76: Double Read Timeout
Double Read Timeout = 0.2 Second $CSNDR1E(CR) Double Read Timeout = 0.3 Second $CSNDR28(CR) Double Read Timeout = 0.4 Second $CSNDR32(CR) Double Read Timeout = 0.5 Second $CSNDR3C(CR) DEFAULT Double Read Timeout = 0.6 Second $CSNDR46(CR) Double Read Timeout = 0.7 Second Wasp WDI7500/WWS750...
Page 77 Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR50(CR) Double Read Timeout = 0.8 Second $CSNDR5A(CR) Double Read Timeout = 0.9 Second $CSNDR64(CR) Double Read Timeout = 1 Second Product Reference Guide...
Page 78: Led And Beeper Indicators
Specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. $CBPIN00(CR) DEFAULT Indicate Good Read = After Decode $CBPIN01(CR) Indicate Good Read = After Transmit $CBPIN02(CR) Indicate Good Read = After CTS goes inactive then active Wasp WDI7500/WWS750...
Page 79: Good Read Beep Type
Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00(CR) DEFAULT Good Read Beep Type = Mono $CBPTY01(CR) Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.
Page 80: Good Read Beep Length
Good Read Beep Length = 120 msec $CBPLE0E(CR) Good Read Beep Length = 140 msec $CBPLE10(CR) Good Read Beep Length = 160 msec $CBPLE12(CR) Good Read Beep Length = 180 msec $CBPLE14(CR) Good Read Beep Length = 200 msec Wasp WDI7500/WWS750...
Page 81: Good Read Beep Volume
Enter/Exit Programming Mode Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. $CBPVO00CR) Good Read Beep Volume = Beeper Off $CBPVO01CR) Good Read Beep Volume = Low $CBPVO02CR) Good Read Beep Volume = Medium $CBPVO03CR) DEFAULT Good Read Beep Volume = High...
Page 82: Good Read Led Duration
Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = Good Read LED DEFAULT stays on for 300 ms. Indicators are dimmed during sleep. Wasp WDI7500/WWS750...
Page 83: Scanning Features
Enter/Exit Programming Mode SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See page 252 in “References” for descriptions. $CSNRM00(CR) DEFAULT Scan Mode = Trigger Single $CSN- RM01(CR) Scan Mode = Trigger Hold Multiple $CSNRM02(CR) Scan Mode = Trigger Pulse Multiple $CSN- RM03(CR) Scan Mode = Flashing...
Page 84: Virtual Stand (Corded Models Only)
This allows the reader to accurately tar- get labels when they are placed close together, such as on a pick sheet. This feature is not compatible with Multiple Labels Reading in a Volume. $CSNPM00(CR) DEFAULT Pick Mode = Disable $CSNPM01(CR) Pick Mode = Enable Wasp WDI7500/WWS750...
Page 85: Stand Mode Sensitivity
Enter/Exit Programming Mode Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. $CSMSE00(CR) Stand Mode Sensitivity = Low $CSMSE01(CR) DEFAULT Stand Mode Sensitivity = Medium $CSMSE02(CR) Stand Mode Sensitivity = High Stand Mode Illumination Off Time Specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode.
Page 86: Scanning Active Time
Controls the illumination status while the reading mode is stand mode and the reader is attempting to detect objects. $CSMIL00(CR) DEFAULT Stand Illumination Control = OFF $CSMIL01(CR) Stand Illumination Control = ON $CSMIL02(CR) Stand Illumination Control = Dim Wasp WDI7500/WWS750...
Page 87: Flash On Time
Enter/Exit Programming Mode Flash On Time Specifies the ON time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 milli- second increments. See page 256 in “References” for detailed information on setting this feature.
Page 88: Aiming Pointer
Set Aiming Duration Timer desired character(s). End by scanning the ENTER/ EXIT barcode. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Wasp WDI7500/WWS750...
Page 89: Green Spot Duration
Enter/Exit Programming Mode Green Spot Duration Specifies the duration of the good read pointer beam after a good read. $CLSSP00(CR) Green Spot Duration = Disable (Green Spot is Off) $CLSSP01(CR) DEFAULT Green Spot Duration = Short (300 msec) $CLSSP02(CR) Green Spot Duration = Medium (500 msec) $CLSSP03(CR) Green Spot Duration = Long (800 msec) Partial Label Reading Control...
Page 90: Decode Negative Image
DEFAULT Decode Negative Image = Disable $P,CIPVR01,P(CR) Decode Negative Image = Enable Image Capture Image capture is supported by RS-232 and USB-COM interfaces only. For information and a list of options for Image Capture, contact Wasp Technical Support. Wasp WDI7500/WWS750...
Page 91: Multiple Label Reading
Enter/Exit Programming Mode MULTIPLE LABEL READING In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion or other method depending on the mode), it then acquires and processes each image in the area in front of it (the Volume). In this case, the scanner stops processing the image once it decodes a label.
Page 92: Multiple Labels Ordering By Code Symbology
DEFAULT Multiple Labels Ordering by Code Length Specifies the transmission ordering by code length, when Multiple Labels per Frame is enabled. $CSNMT00(CR) DEFAULT Multiple Labels Ordering = Disable $CSNMT01(CR) $CSNMT02(CR) Transmit Increasing Length Order Transmit Decreasing Length Order Wasp WDI7500/WWS750...
Page 93: 1D Symbologies
1D SYMBOLOGIES The reader supports the following 1D symbologies (barcode types). See "2D Symbologies" starting on page 166 for 2D barcodes. Symbology-dependent options are included in each chapter. Disable All Symbologies, page 84 GS1-128, page 117 Code EAN/UPC, page 85 Code ISBT 128, page 118 UPC-E, page 88 Interleaved 2 of 5 (I 2 of 5), page 120...
Page 94: Disable All Symbologies
1. Scan the ENTER/EXIT PROGRAMMING Mode barcode. 2. Scan the Disable All Symbologies barcode. 3. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING barcode. $AD(CR) Disable All Symbologies This does not disable the reading of programming labels. Wasp WDI7500/WWS750...
Page 95: Code Ean/Upc
Enter/Exit Programming Mode CODE EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. $CCPLC00(CR) Coupon Control = Allow all coupon barcodes to be decoded $CCPLC01(CR) DEFAULT Coupon Control = Enable only UPCA coupon decoding $CCPLC02(CR) Coupon Control = Enable only GS1 DataBar™...
Page 96: Upc-A
$CABEN01(CR) DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. $CABCT00(CR) UPC-A Check Character Transmission = Don’t Send $CABCT01(CR) DEFAULT UPC-A Check Character Transmission = Send Wasp WDI7500/WWS750...
Page 97: Expand Upc-A To Ean-13
Enter/Exit Programming Mode Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00(CR) DEFAULT UPC-A to EAN-13 = Don’t Expand $CAB3B01(CR) UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission Enables/disables transmission of the UPC-A number system character.
Page 98: Upc-A 2D Component
EAN-13 2D Component = 2D component must be decoded UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. $CEBEN00(CR) UPC-E = Disable $CEBEN01(CR) DEFAULT UPC-E = Enable Wasp WDI7500/WWS750...
Page 99: Upc-E Check Character Transmission
Enter/Exit Programming Mode UPC-E Check Character Transmission Transmits the check character along with UPC-E barcode data. $CEBCT00(CR) UPC-E Check Character Transmission = Don’t Send $CEBCT01(CR) DEFAULT UPC-E Check Character Transmission = Send UPC-E 2D Component Enables/disables a requirement that a 2D label component be decoded when a base label for this symbology is decoded.
Page 100: Expand Upc-E To Ean-13
UPC-E to EAN-13 = Don’t Expand $CEB3B01(CR) UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format. $CEBAB00(CR) DEFAULT UPC-E to UPC-A = Don’t Expand $CEBAB01(CR) UPC-E to UPC-A = Expand Wasp WDI7500/WWS750...
Page 101: Upc-E Number System Character Transmission
Enter/Exit Programming Mode UPC-E Number System Character Transmission Enables/disables transmission of the UPC-E system number character. $CEBNS00(CR) UPC-E Number System Character = Do not transmit $CEBNS01(CR) DEFAULT UPC-E Number System Character = Transmit GTIN FORMATTING Enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format.
Page 102: Ean 13 (Jan 13)
DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Transmits the check character along with EAN 13 barcode data. $C3BCT00(CR) EAN 13 Check Character Transmission = Don’t Send $C3BCT01(CR) DEFAULT EAN 13 Check Character Transmission = Send Wasp WDI7500/WWS750...
Page 103: Ean-13 Flag 1 Character
Enter/Exit Programming Mode EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. $C3BF100(CR) EAN-13 Flag 1 Char= Don’t transmit $C3BF101(CR) DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion Enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Page 104: Ean-13 2D Component
EAN-13 2D Component = 2D component must be decoded ISSN The following options apply to the ISSN symbology. ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. $C3BIN00(CR) DEFAULT ISSN = Disable $C3BIN01(CR) ISSN = Enable Wasp WDI7500/WWS750...
Page 105: Ean 8 (Jan 8)
Enter/Exit Programming Mode EAN 8 (JAN 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. $C8BEN00(CR) EAN 8 = Disable $C8BEN01(CR) DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Transmits the check character along with EAN 8 barcode data.
Page 106: Expand Ean 8 To Ean 13
Enables/disables a requirement that a 2D label component be decoded when a base label for this symbology is decoded. $C8B2D00(CR) DEFAULT EAN 8 2D Component = Disable (2D component not required) $C8B2D01(CR) EAN 8 2D Component = 2D component must be decoded Wasp WDI7500/WWS750...
Page 107: Upc/Ean Global Settings
Enter/Exit Programming Mode UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check Enables/disables calculation and verification of price/weight check digits. $CPWEN00(CR) DEFAULT Price Weight Check = Disabled...
Page 108: Add-Ons
DEFAULT Optional Add-Ons = Disable P2 $CADO201(CR) Optional Add-Ons = Enable P2 $CADO500(CR) DEFAULT Optional Add-Ons = Disable P5 $CADO501(CR) Optional Add-Ons = Enable P5 $CADO800(CR) DEFAULT Optional Add-Ons = Disable GS1-128 $CADO801(CR) Optional Add-Ons = Enable GS1-128 Wasp WDI7500/WWS750...
Page 109: Optional Add-On Timer
Enter/Exit Programming Mode Optional Add-On Timer Sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1- 128 Add-On Timer" on page 101.) $CADOT01(CR) Optional Add-on Timer = 10ms $CADOT02(CR) Optional Add-on Timer = 20ms $CADOT03(CR)
Page 110 Optional Add-on Timer = 180ms $CADOT14(CR) Optional Add-on Timer = 200ms $CADOT16(CR) Optional Add-on Timer = 220ms $CADOT18(CR) Optional Add-on Timer = 240ms $CADOT1A(CR) Optional Add-on Timer = 260ms $CADOT1C(CR) Optional Add-on Timer = 280ms $CADOT1E(CR) Optional Add-on Timer = 300ms Wasp WDI7500/WWS750...
Page 111: Optional Gs1-128 Add-On Timer
Enter/Exit Programming Mode Optional GS1-128 Add-On Timer Sets the timer expiration value to read the added part after reading the lin- ear EAN/UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer" on page 99. $CADUT00(CR) DEFAULT Optional GS1-128 Add-On Timer = Disable...
Page 112 Optional GS1-128 Add-On Timer = 200ms $CADUT16(CR) Optional GS1-128 Add-On Timer = 220ms $CADUT18(CR) Optional GS1-128 Add-On Timer = 240ms $CADUT1A(CR) Optional GS1-128 Add-On Timer = 260ms $CADUT1C(CR) Optional GS1-128 Add-On Timer = 280ms $CADUT1E(CR) Optional GS1-128 Add-On Timer = 300ms Wasp WDI7500/WWS750...
Page 113: Code 39
Enter/Exit Programming Mode CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable $CC3EN00(CR) Code 39 = Disable $CC3EN01(CR) DEFAULT Code 39 = Enable Code 39 Check Character Calculation Enables/disables calculation and verification of an optional Code 39 check character.
Page 114: Code 39 Check Character Transmission
Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. $CC3FA00(CR) DEFAULT Code 39 Full ASCII = Disable $CC3FA01(CR) Code 39 Full ASCII = Enable Wasp WDI7500/WWS750...
Page 115: Code 39 Quiet Zones
Enter/Exit Programming Mode Code 39 Quiet Zones Specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode, typically 10 times the width of the nar- rowest bar or space in the label. $CC3LO02(CR) Code 39 Quiet Zones = Quiet Zones on two sides $CC3LO03(CR)
Page 116: Code 39 Set Length 1
Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 = Length 1 is 2 Characters DEFAULT Wasp WDI7500/WWS750...
Page 117: Code 39 Set Length 2
Enter/Exit Programming Mode Code 39 Set Length 2 This feature specifies one of the barcode lengths for Code 39 Length Con- trol. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 118: Trioptic Code
Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 set- tings: "Code 39 Quiet Zones" on page 105 "Code 39 Length Control" on page 105 "Trioptic Code" on page 108 Wasp WDI7500/WWS750...
Page 119: Code 32 Check Character Transmission
Enter/Exit Programming Mode Code 32 Check Character Transmission Transmits the check character along with Code 32 barcode data. $CP3CT00(CR) DEFAULT Code 32 Check Character Transmission = Don’t Send $CP3CT01(CR) Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission Enables/disables transmission of Code 32 start and stop characters $CP3SS00(CR) DEFAULT...
Page 120: Code 39 Cip (French Pharmaceutical)
The following options apply to the Code 39 Danish PPT symbology. Code 39 Danish PPT Enable/Disable Enables/disables AIM ID for Code 39 Danish PPT Codes. $CDPEN00(CR) DEFAULT Code 39 Danish PPT = Disable $CDPEN01(CR) Code 39 Danish PPT = Enable Wasp WDI7500/WWS750...
Page 121: Code 39 Laposte
Enter/Exit Programming Mode CODE 39 LAPOSTE The following options apply to the Code 39 LaPoste symbology. Code 39 LaPoste Enable/Disable Enables/disables the ability of the scanner to decode Code39 La Poste labels. $CLPEN00(CR) DEFAULT Code 39 LaPoste = Disable $CLPEN01(CR) Code 39 LaPoste = Enable CODE 39 PZN The following options apply to the Code 39 PZN symbology.
Page 122: Code 128
Code 128 = Enable Expand Code 128 to Code 39 Enables/disables expansion of Code 128 labels to Code 39 labels. $CC8C300(CR) DEFAULT Code 128 to Code 39 = Don’t Expand $CC8C301(CR) Code 128 to Code 39 = Expand Wasp WDI7500/WWS750...
Page 123: Code 128 Check Character Transmission
Enter/Exit Programming Mode Code 128 Check Character Transmission Transmits the check character along with Code 128 barcode data. $CC8CT00(CR) DEFAULT Code 128 Check Character Transmission = Don’t Send $CC8CT01(CR) Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and $CC8TF00(CR) DEFAULT...
Page 124: Code 128 Quiet Zones
Code 128 Length Control Specifies either variable length decoding or fixed length decoding for the Code 128 symbology. See page 240 for more information. $CC8LC00(CR) DEFAULT Code 128 Length Control = Variable Length $CC8LC01(CR) Code 128 Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 125: Code 128 Set Length 1
Enter/Exit Programming Mode Code 128 Set Length 1 This feature specifies one of the barcode lengths for Code 128 Length Con- trol. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 126: Code 128 Set Length 2
Select Code 128 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 80 = Length 2 is 80 Characters DEFAULT Wasp WDI7500/WWS750...
Page 127: Gs1-128
Enter/Exit Programming Mode GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 128: Code Isbt 128
Specifies the concatenation mode between Static and Dynamic. ISBT 128 This option is only valid when ISBT 128 Concatenation is enabled (see " Concatenation" on page 118 $CI8CM00CR) DEFAULT ISBT 128 Concatenation Mode = Static $CI8CM01CR) ISBT 128 Concatenation Mode = Dynamic Wasp WDI7500/WWS750...
Page 129: Isbt 128 Dynamic Concatenation Timeout
ISBT 128 Dynamic Concatenation Timeout = 500 msec $CI8DT4B(CR) ISBT 128 Dynamic Concatenation Timeout = 750 msec $CI8DT64(CR) ISBT 128 Dynamic Concatenation Timeout = 1 second ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, contact Wasp Technical Support. Product Reference Guide...
Page 130: Interleaved 2 Of 5 (I 2 Of 5)
I 2 of 5 Check Character Calculation = Check Standard (Modulo 10) $CI2CC02(CR) I 2 of 5 Check Character Calculation = Check German Parcel $CI2CC04(CR) I 2 of 5 Check Character Calculation = Check DHL $CI2CC08(CR) I 2 of 5 Check Character Calculation = Check Daimler Chrysler Wasp WDI7500/WWS750...
Page 131: I 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode I 2 of 5 check Character Calculation (continued) $CI2CC10(CR) I 2 of 5 Check Character Calculation = Check Bosch $CI2CC20(CR) I 2 of 5 Check Character Calculation = Italian Post I 2 of 5 Check Character Transmission Transmits the check character along with I 2 of 5 barcode data.
Page 132: I 2 Of 5 Set Length 1
Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Length 1 is 6 Characters DEFAULT Wasp WDI7500/WWS750...
Page 133: I 2 Of 5 Set Length 2
Enter/Exit Programming Mode I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 134: Interleaved 2 Of 5 Cip Hr
The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/disables ability of reader to decode Plessey labels. $CF2EN00(CR) DEFAULT Follett 2 of 5 = Disable $CF2EN01(CR) Follett 2 of 5 = Enable Wasp WDI7500/WWS750...
Page 135: Standard 2 Of 5
Enter/Exit Programming Mode STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes. $C2SEN00(CR) DEFAULT Standard 2 of 5 = Disable $C2SEN01(CR) Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...
Page 136: Standard 2 Of 5 Check Character Transmission
Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CS2LC00(CR) DEFAULT Standard 2 of 5 Length Control = Variable Length $CS2LC01(CR) Standard 2 of 5 Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 137: Standard 2 Of 5 Set Length 1
Enter/Exit Programming Mode Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 138: Standard 2 Of 5 Set Length 2
Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Wasp WDI7500/WWS750...
Page 139: Industrial 2 Of 5
Enter/Exit Programming Mode INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/disables ability of reader to decode Industrial 2 of 5 labels. $CU2EN00(CR) DEFAULT Industrial 2 of 5 = Disable $CU2EN01(CR) Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation...
Page 140: Industrial 2 Of 5 Check Character Transmission
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CU2LC00(CR) DEFAULT Industrial 2 of 5 Length Control = Variable Length $CU2LC01(CR) Industrial 2 of 5 = Fixed Length Wasp WDI7500/WWS750...
Page 141: Industrial 2 Of 5 Set Length 1
Enter/Exit Programming Mode Industrial 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Industrial 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 142: Industrial 2 Of 5 Set Length 2
Select Industrial 2 of5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Wasp WDI7500/WWS750...
Page 143: Code Iata
Enter/Exit Programming Mode CODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/disables the ability of the reader to decode IATA labels. $CIAEN00(CR) DEFAULT IATA = Disable $CIAEN01(CR) IATA = Enable IATA Check Character Transmission Enables/disables calculation and verification of an optional Industrial 2 of 5 check character.
Page 144: Codabar
Codabar Check Character Calculation = Enable Modulo 10 check char. Codabar Check Character Transmission Transmits the check character along with Codabar barcode data. $CCBCT00(CR) Codabar Check Character Transmission = Don’t Send $CCBCT01(CR) DEFAULT Codabar Check Character Transmission = Send Wasp WDI7500/WWS750...
Page 145: Codabar Start/Stop Character Transmission
Enter/Exit Programming Mode Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters $CCBSS00(CR) Codabar Start/Stop Character Transmission = Don’t Transmit $CCBSS01(CR) DEFAULT Codabar Start/Stop Character Transmission = Transmit Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop charac- ters $CCBSC00(CR) Codabar Check Character Set = ABCD/TN*E...
Page 146: Codabar Quiet Zones
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CCBLC00(CR) DEFAULT Codabar Length Control = Variable Length $CCBLC01(CR) Codabar Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 147: Codabar Set Length 1
Enter/Exit Programming Mode Codabar Set Length 1 This feature specifies one of the barcode lengths for Codabar Length Con- trolCodabar Length Control. Length 1 is the minimum label length if in Vari- able Length Mode, or the first fixed length if in Fixed Length Mode.
Page 148: Codabar Set Length 2
$CCBL2 Select Codabar Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Wasp WDI7500/WWS750...
Page 149: Abc Codabar
Enter/Exit Programming Mode ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00(CR) DEFAULT ABC Codabar = Disable $CCBAB01(CR) ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 150: Abc Codabar Dynamic Concatenation Timeout
$CCBDT64(CR) ABC Codabar Dynamic Concatenation Timeout = 1 Second ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. $CCBFC00(CR) DEFAULT ABC Codabar Force Concatenation = Disable $CCBFC01(CR) ABC Codabar Force Concatenation = Enable Wasp WDI7500/WWS750...
Page 151: Code 11
Enter/Exit Programming Mode CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 barcodes. $CC1EN00(CR) DEFAULT Code 11 = Disable $CC1EN01(CR) Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 152: Code 11 Check Character Transmission
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CC1LC00(CR) DEFAULT Code 11 Length Control = Variable Length $CC1LC01(CR) Code 11 Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 153: Code 11 Set Length 1
Enter/Exit Programming Mode Code 11 Set Length 1 This feature specifies one of the barcode lengths for Code 11 Length Con- trol. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 154: Code 11 Set Length 2
Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Wasp WDI7500/WWS750...
Page 155: Gs1 Databar™ Omnidirectional
Enter/Exit Programming Mode GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional bar- codes. $C4BEN00(CR) DEFAULT GS1 DataBar™ Omnidirectional = Disable $C4BEN01(CR) GS1 DataBar™...
Page 156: Gs1 Databar™ Omnidirectional 2D Component
The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. $CXBEN00(CR) DEFAULT GS1 DataBar™ Expanded = Disable $CXBEN01(CR) GS1 DataBar™ Expanded = Enable Wasp WDI7500/WWS750...
Page 157: Gs1 Databar™ Expanded Gs1-128 Emulation
Enter/Exit Programming Mode GS1 DataBar™ Expanded GS1-128 Emulation When enabled, GS1 DataBar™ Expanded barcodes will be translated to the GS1-128 label data format. $CXBU800(CR) DEFAULT GS1 DataBar™ Expanded GS1-128 Emulation = Disable $CXBU801(CR) GS1 DataBar™ Expanded GS1-128 Emulation = Enable GS1 DataBar™...
Page 158: Gs1 Databar™ Expanded Length Control
For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00(CR) DEFAULT GS1 DataBar™ Expanded Length Control = Variable Length $CXBLC01(CR) GS1 DataBar™ Expanded Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 159: Gs1 Databar™ Expanded Set Length 1
Enter/Exit Programming Mode GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Vari- able Length Mode, or the first fixed length if in Fixed Length Mode.
Page 160: Gs1 Databar™ Expanded Set Length 2
Select GS1 DataBar™ Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 74 = Length 2 is 74 Characters DEFAULT Wasp WDI7500/WWS750...
Page 161: Gs1 Databar™ Limited
Enter/Exit Programming Mode GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Lim- ited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. $CLBEN00(CR) DEFAULT GS1 DataBar™ Limited = Disable $CLBEN01(CR) GS1 DataBar™...
Page 162: Gs1 Databar™ Limited 2D Component
2D component must be decoded CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00(CR) DEFAULT Code 93 = Disable $CC9EN01(CR) Code 93 = Enable Wasp WDI7500/WWS750...
Page 163: Code 93 Check Character Calculation
Enter/Exit Programming Mode Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character. $CC9CC00(CR) Code 93 Check Character Calculation = Disable $CC9CC01(CR) Code 93 Check Character Calculation = Enable Check C $CC9CC02(CR) Code 93 Check Character Calculation = Enable Check K $CC9CC03(CR) DEFAULT Code 93 Check Character Calculation =...
Page 164: Code 93 Length Control
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CC9LC00(CR) DEFAULT Code 93 Length Control = Variable Length $CC9LC01(CR) Code 93 = Fixed Length Wasp WDI7500/WWS750...
Page 165: Code 93 Set Length 1
Enter/Exit Programming Mode Code 93 Set Length 1 Specifies one of the barcode lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 166: Code 93 Set Length 2
Select Code 93 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT Wasp WDI7500/WWS750...
Page 167: Code 93 Quiet Zones
Enter/Exit Programming Mode Code 93 Quiet Zones Enables/disables quiet zones for Code 93. $CC9LO02(CR) Code 93 Quiet Zones = Quiet Zones on two sides $CC9LO03(CR) DEFAULT Code 93 Quiet Zones = Small Quiet Zones on two sides The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels.
Page 168: Msi Check Character Calculation
MSI Check Character Calculation = Enable Mod11/10 $CMSCC03(CR) MSI Check Character Calculation = Enable Mod10/10 MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00(CR) MSI Check Character Transmission = Disable $CMSCT01(CR) DEFAULT MSI Check Character Transmission = Enable Wasp WDI7500/WWS750...
Page 169: Msi Length Control
Enter/Exit Programming Mode MSI Length Control This feature specifies either variable length decoding or fixed length decod- ing for the MSI symbology. For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CMSLC00(CR) DEFAULT...
Page 170: Msi Set Length 1
Select MSI Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT Wasp WDI7500/WWS750...
Page 171: Msi Set Length 2
Enter/Exit Programming Mode MSI Set Length 2 This feature specifies one of the barcode lengths for MSI Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 172: Plessey
$CPLCC01(CR) DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification $CPLCC02(CR) Plessey Check Character Calculation = Enable Anker check char. verification $CPLCC03(CR) Plessey Check Character Calculation = Enable Plessey std. and Anker check char verification Wasp WDI7500/WWS750...
Page 173: Plessey Check Character Transmission
Enter/Exit Programming Mode Plessey Check Character Transmission Enables/disables transmission of an MSI check character. $CPLCT00(CR) Plessey Check Character Transmission = Disable $CPLCT01(CR) DEFAULT Plessey Check Character Transmission = Enable Plessey Length Control This feature specifies either variable length decoding or fixed length decod- ing for the Plessey symbology.
Page 174: Plessey Set Length 1
Select Plessey Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT Wasp WDI7500/WWS750...
Page 175: Plessey Set Length 2
Enter/Exit Programming Mode Plessey Set Length 2 This feature specifies one of the barcode lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 176: 2D Symbologies
If you make a mistake before the last character, scan the CANCEL bar- code to abort and not save the entry string. You can then start again at the beginning. Complete the programming sequence by scanning the ENTER/EXIT PRO- GRAMMING barcode to exit Programming Mode. Wasp WDI7500/WWS750...
Page 177: 2D Maximum Decoding Time
2D Global Features Enter/Exit Programming Mode 2D Maximum Decoding Time This feature specifies the maximum amount of time the software will spend attempting to decode a 2D label. The selectable range is 10 milliseconds to 2.55 milliseconds. $CDETM0A(CR) 2D Maximum Decoding Time = 100 msec $CDETM32(CR) 2D Maximum Decoding Time = 200 msec $CDETM23(CR)
Page 178: 2D Structured Append
To decode all symbologies, including linear symbologies, refer to "Decode Negative Image" on page 80 D Symbology Selection $CIPNR00(CR) Normal/Inverse Symbol Control = Normal $CIPNR01(CR) Normal/Inverse Symbol Control = Inverse $CIPNR02(CR) DEFAULT Normal/Inverse Symbol Control = Both Normal and Inverse Wasp WDI7500/WWS750...
Page 179: Aztec Code
2D Global Features Enter/Exit Programming Mode AZTEC CODE Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00(CR) DEFAULT Aztec Code = Disable $CAZEN01(CR) Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decod- ing for this symbology.
Page 180: Aztec Code Set Length 1
Select Aztec Code Length 1 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 0001 = Length 1 is 1 Character DEFAULT Wasp WDI7500/WWS750...
Page 181: Aztec Code Set Length 2
2D Global Features Enter/Exit Programming Mode Aztec Code Set Length 2 This feature specifies one of the barcode lengths for Aztec Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
Page 182: China Sensible Code
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CCSLC00(CR) DEFAULT China Sensible Code Length Control = Variable Length $CCSLC01(CR) China Sensible Code Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 183: China Sensible Code Set Length 1
2D Global Features Enter/Exit Programming Mode China Sensible Code Set Length 1 Specifies one of the barcode lengths for China Sensible Code Length Con- trol. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,827 characters in increments of 0001 (pad with zeroes).
Page 184: China Sensible Code Set Length 2
End by scan- ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Length 2 is 7,827 Characters DEFAULT Wasp WDI7500/WWS750...
Page 185: Data Matrix
2D Global Features Enter/Exit Programming Mode DATA MATRIX Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00(CR) Data Matrix = Disable $CDMEN01(CR) DEFAULT Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors.
Page 186: Data Matrix Dpm Decoding Safety
$CDMDA01(CR) DEFAULT Data Matrix Decoding Safety = 1 (Aggressive) $CDMDA02(CR) Data Matrix Decoding Safety = 2 $CDMDA03(CR) Data Matrix Decoding Safety = 3 $CDMDA04(CR) Data Matrix Decoding Safety = 4 $CDMDA05(CR) Data Matrix Decoding Safety = 5 (Conservative) Wasp WDI7500/WWS750...
Page 187: Data Matrix Length Control
2D Global Features Enter/Exit Programming Mode Data Matrix Length Control This feature specifies either variable length decoding or fixed length decod- ing for this symbology. For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CDMLC00(CR) DEFAULT...
Page 188: Data Matrix Set Length 2
Select Data Matrix Length 2 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Length 2 is 3,116 Characters DEFAULT Wasp WDI7500/WWS750...
Page 189: Maxicode
2D Global Features Enter/Exit Programming Mode MAXICODE Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels. $CMXEN00(CR) DEFAULT Maxicode = Disable $CMXEN01(CR) Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable.
Page 190: Maxicode Length Control
Select Maxicode Length 1 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 0001 = Length 1 is 1 Character DEFAULT Wasp WDI7500/WWS750...
Page 191: Maxicode Set Length 2
2D Global Features Enter/Exit Programming Mode Maxicode Set Length 2 This feature specifies one of the barcode lengths for Maxicode Length Con- trol. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0145 characters in increments of 0001 (pad with zeroes).
Page 192: Pdf417
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CP4LC00(CR) DEFAULT PDF417 Length Control = Variable Length $CP4LC01(CR) PDF417 Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 193: Pdf417 Set Length 1
2D Global Features Enter/Exit Programming Mode PDF417 Set Length 1 Specifies one of the barcode lengths for PDF417 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data charac- ters only.
Page 194: Pdf417 Set Length 2
Select PDF417 Length 2 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Length 2 is 2,710 Characters DEFAULT Wasp WDI7500/WWS750...
Page 195: Micro Pdf417
2D Global Features Enter/Exit Programming Mode MICRO PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels $CMIEN00(CR) DEFAULT Micro PDF417 = Disable $CMIEN01(CR) Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for MicroPDF labels when doing Code 128 or GS1-128 emulation.
Page 196: Micro Pdf417 Length Control
Select Micro PDF417 Length 1 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 0001 = Length 1 is 1 Character DEFAULT Wasp WDI7500/WWS750...
Page 197: Micro Pdf417 Set Length 2
2D Global Features Enter/Exit Programming Mode Micro PDF417 Set Length 2 This feature specifies one of the barcode lengths for Micro PDF417 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length includes the barcode’s data characters only.
Page 198: Qr Code
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CQRLC00(CR) DEFAULT QR Code Length Control = Variable Length $CQRLC01(CR) QR Code Length Control = Fixed Length Wasp WDI7500/WWS750...
Page 199: Qr Code Set Length 1
2D Global Features Enter/Exit Programming Mode QR Code Set Length 1 Specifies one of the barcode lengths for QR Code Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,089 characters in increments of 0001 (pad with zeroes).
Page 200: Qr Code Set Length 2
Length 2 is 7,089 Characters DEFAULT MICRO QR CODE Micro QR Code Enable/Disable Enables/disables the ability of the reader to decode Micro QR Code labels MQEN00 DEFAULT Micro QR Code = Disable MQEN01 Micro QR Code = Enable Wasp WDI7500/WWS750...
Page 201: Micro Qr Code Length Control
2D Global Features Enter/Exit Programming Mode Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decod- ing for this symbology. For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set.
Page 202: Micro Qr Code Set Length 2
Select QR Code Length 2 Setting ning the ENTER/EXIT barcode again. Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Length 2 is 0035 Characters DEFAULT Wasp WDI7500/WWS750...
Page 203: Ucc Composite
2D Global Features Enter/Exit Programming Mode UCC COMPOSITE UCC Composite Enable / Disable Enables/disables the ability of the reader to decode the stacked part of a UCC Composite label. This feature is not effective when Global AIM IDs are enabled (see Global AIM ID"...
Page 204: Ucc Optional Composite Timer
UCC Optional Composite Timer = Timer Disabled $CCMOT01(CR) UCC Optional Composite Timer = 100msec $CCMOT02(CR) UCC Optional Composite Timer = 200msec $CCMOT03(CR) UCC Optional Composite Timer = 300msec $CCMOT04(CR) UCC Optional Composite Timer = 400msec $CCMOT05(CR) UCC Optional Composite Timer = 500msec Wasp WDI7500/WWS750...
Page 205: Postal Code Selection
2D Global Features Enter/Exit Programming Mode POSTAL CODE SELECTION Enables/disables the ability of the scanner to decode labels of a specific postal symbology. $CPOEN00(CR) DEFAULT Postal Code Selection = Disable All Postal Codes $CPOEN01(CR) Postal Code Selection = Enable Postnet $CPOEN02(CR) Postal Code Selection = Enable Planet $CPOEN03(CR)
Page 206: Postnet Bb Control
Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the scanner to decode B and B' fields of Postnet labels. $CPOBB00(CR) DEFAULT Postnet BB Control = Disable $CPOBB01(CR) Postnet BB Control = Enable Wasp WDI7500/WWS750...
Page 207: Digital Watermark Reading
2D Global Features Enter/Exit Programming Mode DIGITAL WATERMARK READING Enables/disables the reading of digital watermarks, including Digimarc® Barcode. $P,CENDP00,P\r DEFAULT Disable $P,CENDP01,P\r Enable Digimarc Compatibility Mode The output code ID is controlled by the Digimarc Compatibility Mode. By default, the assigned code ID is driven by the Digimarc code content and follows the rules below.
Page 208: Motion Features
Motion Aiming Control Configures the ability of the scanner to Enable/Disable the Aiming system when motion is detected. $CMOMD00(CR) Motion Aiming Control = Disable $CMOMD01(CR) DEFAULT Motion Aiming Control = Enable Wasp WDI7500/WWS750...
Page 209: Motion Sensitivity
Enter/Exit Programming Mode Motion Sensitivity Defines discrete set of levels for scanner motion sensitivity when in hand- held use. $CMOSY00(CR) Motion Sensitivity = Low $CMOSY01(CR) DEFAULT Motion Sensitivity = Medium $CMOSY02(CR) Motion Sensitivity = High Motionless Timeout Specifies the waiting time in 100 millisecond ticks to assume that the reader is in a motionless condition.
Page 210: Wireless Features
Powerdown Timeout on page 216 • starting on page 217 LUETOOTH ECURITY EATURES Bluetooth Security Mode on page 218 • Bluetooth PIN Code on page 218 • Select PIN Code Length on page 218 • Set PIN Code on page 219 • Wasp WDI7500/WWS750...
Page 211 Enter/Exit Programming Mode starting on page 220 THER LUETOOTH EATURES Reconnect Attempt Interval on page 220 • Bluetooth HID Variable PIN Code on page 221 • Bluetooth HID Alt Mode on page 222 • Bluetooth HID Send Unknown ASCII Char on page 222 •...
Page 212: Wireless Beeper Features
Adjusts radio-specific beep indications to sound at a low, medium or high frequency, selectable from the list below (controls the beeper’s pitch/tone). $CBTBF00(CR) DEFAULT Beep Frequency = Low $CBTBF01(CR) Beep Frequency = Medium $CBTBF02(CR) Beep Frequency = High Wasp WDI7500/WWS750...
Page 213: Beep Duration
Enter/Exit Programming Mode Beep Duration This feature controls the duration of radio-specific beep indications. $CBTBD06(CR) Beep Duration = 60 msec $CBTBD08(CR) DEFAULT Beep Duration = 80 msec $CBTBD0A(CR) Beep Duration = 100 msec $CBTBD0C(CR) Beep Duration = 120 msec $CBTBD0E(CR) Beep Duration = 140 msec $CBTBD10(CR) Beep Duration = 160 msec...
Page 214: Beep Volume
Beep Volume = Medium $CBTBV02(CR) DEFAULT Beep Volume = High Disconnect Beep Enables/disables the beep indication that a handheld has become connected or disconnected from a Base Station. $CBTDB00(CR) Disconnect Beep = Disable $CBTDB01(CR) DEFAULT Disconnect Beep = Enable Wasp WDI7500/WWS750...
Page 215: Docking Beep
Enter/Exit Programming Mode Docking Beep Enables/disables a beep indication when the handheld is placed in the Base Station. $CBTCB00(CR) Docking Beep = Disable $CBTCB01(CR) DEFAULT Docking Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
Page 216 Leash Alarm (continued) $CBTLB03(CR) Leash Alarm = 3 Seconds $CBTLB04(CR) Leash Alarm = 4 Seconds $CBTLB05(CR) Leash Alarm = 5 Seconds $CBTLB0A(CR) Leash Alarm = 10 Seconds $CBTLB19(CR) Leash Alarm = 25 Seconds $CBTLB1E(CR) Leash Alarm = 30 Seconds Wasp WDI7500/WWS750...
Page 217: Configuration Updates
Enter/Exit Programming Mode CONFIGURATION UPDATES page 261 in “References” for detailed information and examples of these features. Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can auto- matically ensure they stay in sync with regard to application hardware and/ or configuration.
Page 218: Batch Features
When the scanner is configured in Manual Batch Mode, use the following barcode to initiate sending of labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this barcode. BatchSend Send Batch Wasp WDI7500/WWS750...
Page 219: Erase Batch Memory
Enter/Exit Programming Mode Erase Batch Memory When the scanner is configured in Manual Batch Mode, use the following barcode to erase any labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this barcode. BatchClear Erase Batch Memory RF Batch Mode Transmit Delay...
Page 220: Direct Radio Autolink
12 ascii characters, i.e., an address of 00 06 66 00 1A ED will be sent as (shown in hex): 30 30 30 36 36 36 30 30 31 41 45 44 $CBTAS00(CR) DEFAULT Source Radio Address Transmission = Do Not Include $CBTAS01(CR) Source Radio Address Transmission = Prefix Wasp WDI7500/WWS750...
Page 221: Source Radio Address Delimiter Character
Enter/Exit Programming Mode Source Radio Address Delimiter Character This option specifies the delimiter character to be placed between the label data and radio address when address stamping is enabled. "Source Radio Address Transmis- This feature only applies if sion" on page 210 is enabled. To configure this feature, scan the ENTER/EXIT PRO- $CBTAD GRAMMING MODE barcode above, then the barcode at...
Page 222: Real Time Clock (Rtc) Configuration
End by scanning the ENTER/EXIT HHMMSS barcode again. Set Current Time = Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Wasp WDI7500/WWS750...
Page 223: Date Tx Format
Enter/Exit Programming Mode Date Tx Format Sets the format of the date. $CDTXF00\r DEFAULT YYYY-MM-DD (ISO 8601) $CDTXF01\r YYYYMMDD (No ISO) $CDTXF02\r MMDDYYYY $CDTXF03\r DDMMYYYY Time Tx Format Sets the format of the time. $CTTXF00\r DEFAULT hh:mm:ss (ISO 8601) $CTTXF01\r hhmmss (No ISO) Product Reference Guide...
Page 224: Date-Time Separator
End by scanning the ENTER/EXIT barcode again. Set Character Separator = Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Wasp WDI7500/WWS750...
Page 225: Date-Time Transmission Order
Enter/Exit Programming Mode Date-Time Transmission Order Allows the selection of the order of date and time transmission. $CRFTS00\r DEFAULT Disabled $CRFTS01\r ISO 8601: Date' T ' T ime $CRFTS02\r DateTime $CRFTS03\r TimeDate $CRFTS04\r Date $CRFTS05\r Time Product Reference Guide...
Page 226: Power Off
Powerdown Timeout = Disable $CSLPS01(CR) Powerdown Timeout = 10 minutes $CSLPS02(CR) Powerdown Timeout = 20 minutes R)$CSLPS03(CR DEFAULT DEFAULT Powerdown Timeout = 30 minutes $CSLPS06(CR) Powerdown Timeout = 60 Minutes (1 Hour) $CSLPS0C(CR) Powerdown Timeout = 120 Minutes (2 Hours) Wasp WDI7500/WWS750...
Page 227: Bluetooth Features
BLUETOOTH FEATURES The features in this section are valid only for Wasp WWS750 models. Also reference the Setup section for instructions on "Linking the Reader," starting on page 23. BLUETOOTH SECURITY FEATURES On the Bluetooth system, it is possible to set a (configurable) PIN code to authenticate/connect Bluetooth devices, and encrypt the data.
Page 228: Bluetooth Security Mode
4-digit or a 16-digit PIN Code. page 262 for detailed information and examples for setting this feature. Select PIN Code Length $CBTPS00\r DEFAULT Select 4-character Bluetooth PIN Code ~$CBTPS01\r Select 16-character Bluetooth PIN Code Wasp WDI7500/WWS750...
Page 229: Set Pin Code
Enter/Exit Programming Mode Set PIN Code Determine the desired characters for the PIN code, then convert to hexadec- imal using the ASCII Chart on page 1 on the inside back cover of this man- ual. page 262 for detailed information and examples for setting this feature.
Page 230: Other Bluetooth Features
Enter/Exit Programming Mode OTHER BLUETOOTH FEATURES Reconnect Attempt Interval This feature specifies the interval time between reconnection attempts. $CBTRI01(CR) DEFAULT 1 minute $CBTRI02(CR) 5 minutes $CBTRI03(CR) 30 minutes $CBTRI00(CR) Indefinitely Wasp WDI7500/WWS750...
Page 231: Bluetooth Hid Variable Pin Code
Wasp WWS750. Scan the barcode "Variable PIN Code" below, then use the host computer’s Bluetooth manager to “Discover new devices” and select "Wasp Scanner." Use a text editor to see incoming data on the port desig- nated by the computer's Bluetooth manager.
Page 232: Bluetooth Hid Alt Mode
When Send Unknown ASCII character is enabled, an unknown character will be sent as a SPACE. $CBTHO00(CR DEFAULT HID Send Unknown ASCII character = Disable CBTHO01(CR HID Send Unknown ASCII character = Enable Wasp WDI7500/WWS750...
Page 233: Bluetooth Max Client
Enter/Exit Programming Mode Bluetooth Max Client Set the number of Readers that can connect to the Base in a Piconet net- work. $CBTMS01(CR) Bluetooth Max Client = 1 $CBTMS02(CR) DEFAULT Bluetooth Max Client = 2 $CBTMS03(CR) Bluetooth Max Client = 3 $CBTMS04(CR) Bluetooth Max Client = 4 $CBTMS05(CR)
Page 234: Bluetooth Friendly Name
Enter/Exit Programming Mode Bluetooth Friendly Name You can set a meaningful name for Wasp WWS750 that will appear in the application during device discovery. To set a new Bluetooth Friendly Name, scan the barcode below and follow the instructions. To configure this feature, scan the ENTER/EXIT PRO-...
Page 235: Power Class
Enter/Exit Programming Mode Power Class $CBTPP00(CR) DEFAULT Power Class 1 $CBTPP01(C Power Class 2 HID Country Mode When the Reader is connected with a Bluetooth Adapter in HID mode, you may want to set the country for which your PC is localized. In order to do that, read one of the configuration command labels below.
Page 236 Country Mode = Czech Republic Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Wasp WDI7500/WWS750...
Page 237 HID Country Mode (continued) Country Mode = Norway Country Mode = Poland Country Mode = Portugal Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland Product Reference Guide...
Page 238: References
Multiple Labels Ordering by Code Symbology on page • starting on page 261 IRELESS EATURES Automatic Configuration Update • RF Address Stamping • RF Address Stamping • Bluetooth Features • Bluetooth Features • on page 260 OTION EATURES Motionless Timeout on page 260 • Wasp WDI7500/WWS750...
Page 239: Rs-232 Parameters
RS-232 Parameters RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate setting, data may not reach the host correctly. Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next...
Page 240: Rs-232/Usb Com Parameters
Divide by 10 (pad with leading zeroes to yield two-digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘5’ and ‘0’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 241 RS-232 Parameters ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/ NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 242 Hex equivalent from ASCII 0x15 0x24 0x40 0x3E Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT NAK CHARACTER SETTING Scan Two Characters From ‘1’ and ‘5’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 243 RS-232 Parameters ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK charac- ter from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 244 Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ACK NAK RETRY COUNT SETTING Scan Three Characters From Appendix D, ‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘3’ ‘0’, ‘5’ and ‘4’ ‘2’, ‘5’ and ‘5’ Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 245 RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- Data Bits acters.
Page 246 0x65 0x7D 0x45 0xFF Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ENABLE CHARACTER VALUE SETTING Scan Two Characters From ‘6’ and ‘5’ ‘7’ and ‘D’ ‘4’ and ‘5’ ‘F’ AND ‘F’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 247: Keyboard Interface
Keyboard Interface Keyboard Interface Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 248: Intercharacter Delay
Divide by 10 (and pad with leading zeroes to yield two-digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 249: Intercode Delay
Keyboard Interface Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 250: Symbologies
You will hear a two-beep indication after the last charac- ter. If you make a mistake before the last character, scan the CANCEL barcode to abort and not save the entry string. You can then start again at the begin- ning. Wasp WDI7500/WWS750...
Page 251 Symbologies 5. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Prog Mode. Set Length 2 This feature allows you to set one of the barcode lengths for the specified symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 252: Data Editing
You can add any character from the ASCII Chart (from 00-FF) on the inside back cover of this manual as a prefix, suffix or Label ID. • Enter prefixes and suffixes in the order in which you want them to appear on the output. Wasp WDI7500/WWS750...
Page 253: Global Prefix/Suffix
Data Editing Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/or as a suffix (in a position following the barcode data) as indicated in Figure 8. Figure 8. Prefix and Suffix Positions OR...
Page 254 Code 11 a. UPC-A and UPC-E labels are converted to EAN 13 when adding AIM IDs. b. ISBN (X with a 0 modifier character) Figure 9. AIM ID Prefix Label ID AIM ID Bar Code Data Label ID Suffix Wasp WDI7500/WWS750...
Page 255: Label Id
Data Editing Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
Page 256 570000 ISBN 490000 400000 ISBT128 CONCAT 660000 660000 ISSN 6E0000 6E0000 MAXICODE 4D4300 780000 MICRO QR 245100 245100 MICRO PDF 6D5000 380000 400000 5A0000 PDF417 500000 720000 PLESSEY 610000 610000 POSTAL AUSTRALIAN 244B00 244B00 POSTAL IMB 245600 245600 Wasp WDI7500/WWS750...
Page 257 Data Editing USA Label ID set EU Label ID set Symbology Default Default Default Default Character ASCII Character ASCII POSTAL JAPANESE 245200 245200 POSTAL KIX 245500 245500 POSTAL PLANET 245700 245700 POSTAL PORTUGAL 245000 245000 POSTAL POSTNET BB 244C00 244C00 POSTAL ROYAL MAIL 244D00 244D00...
Page 258 7. Scan the ENTER/EXIT barcode once again to exit Programming Mode. This completes the steps to configure a Label ID for a given symbology. Figure 10. Label ID Position Options Prefix Label ID Aim ID Bar Code Data Label ID Suffix Wasp WDI7500/WWS750...
Page 259 Data Editing Table 37 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT (Scanner enters Programming Mode) barcode Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned data Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix using Label ID Control, starting on page...
Page 260: Character Conversion
5. Scan the ENTER/EXIT barcode to exit Programming Mode. If less than the expected string of 16 characters are selected, scan the ENTER/EXIT barcode twice to accept the selections and exit Program- ming Mode. Wasp WDI7500/WWS750...
Page 261: Reading Parameters
Reading Parameters Reading Parameters Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 262: Scanning Features
No trigger pull is required to read a barcode. Scanning is turned Stand Mode: on automatically when an item is placed in the reader’s field of view. Double Read Timeout prevents undesired multiple reads while in this mode. Wasp WDI7500/WWS750...
Page 263: Stand Mode Off Time
Scanning Features Stand Mode Off Time This feature specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds). Follow these instructions to set this feature: 1.
Page 264: Scanning Active Time
Pad leading zero(es) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT SCANNING ACTIVE TIME SETTING Scan Three Characters From Appendix D, ‘0’, ‘0’ and ‘1’ ‘0’, ‘9’ and ‘0’ ‘1’, ‘8’ and ‘0’ ‘2’, ‘5’ and ‘5’ Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 265: Aiming Duration Time
Scanning Features Aiming Duration Time Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 266: Flash On Time
Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT FLASH ON TIME SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘0’ ‘5’ and ‘2’ ‘9’ and ‘9’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 267: Flash Off Time
Scanning Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 268: Multiple Labels Ordering By Code Symbology
Scan Two Characters From ‘2’ and ‘4’ ‘0’ and ‘E’ ‘0’ and ‘C’ ‘4’ and ‘E’ Appendix D, Keypad RESULT 0x240E0C4E0000 Scan ENTER/EXIT PROGRAMMING MODE Table 45 on page 259 shows the hex value associated with each symbology. Wasp WDI7500/WWS750...
Page 269 Scanning Features Table 45 . Symbology Hex Values Hex Symbology ID Hex Symbology ID Value Value Don' t care GTIN5 UPC-A GTIN8 UPC-E S2OF5 EAN8 PDF417 EAN13 CODE11 UPC2 IATA UPC5 MICRO_PDF C128_ADDON GS1 DataBar_LIM_ID EAN128 GS1 DataBar_LIM_COMP C128_PROGRAMMING_LABEL GS1 DataBar_Omnidirectional_COMP CODE128 GS1 DataBar_EXP_COMP FNC3_C128_LABEL...
Page 270: Motion Features
Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT MOTIONLESS TIMEOUT SETTING Scan Two Characters From ‘0’, ‘0’ and ‘5’ ‘0’, ‘1’ and ‘0’ ‘1’, ‘0’, and ‘0’ ‘2’, ‘5’, and ‘0’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 271: Wireless Features
Wireless Features Wireless Features Automatic Configuration Update When this feature is enabled, the base station and reader will keep their configurations synchronized. If a reader's configuration is altered by reading programming labels, this change is automatically transferred and updated in a linked base station.
Page 272: Bluetooth Features
53 54 4F 52 31 32 33 34 35 36 37 38 31 33 35 4D to hexadecimal Scan ENTER/EXIT PROGRAMMING MODE Scan SET Bluetooth PIN CODE Scan 8 or 32 Alphanumeric 44323534 53544F5231323334353637383133354D Characters From Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE Wasp WDI7500/WWS750...
Page 273: Technical Specifications
Appendix A Technical Specifications The tables that follow contain Physical and Performance Characteristics, User Environment and Regulatory information. provides Standard Table 50 Cable Pinouts. Table 49. Technical Specifications Item Description Physical Characteristics Height: 212 mm Dimensions Length: 110 mm Width: 74 mm Weight (without cable) 330 gr (without cable) Electrical Characteristics...
Page 274 Element Width = 5 mil Data Matrix Minimum Resolution  = 7 mil 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade A, 300 lux ambient light, 20°C, label inclination 10° Wasp WDI7500/WWS750...
Page 275 Decode Capability Item Description GS1 Databar linear codes, UPC/EAN (A,E,13,8), UPC/EAN with P2/ P5 Addons, UPC/EAN Coupons, ISBN, Code128, EAN128, ISBT128, 1D barcodes Code39, Code39 Full ASCII, Code39 CIP, Code 32, Codabar, Inter- leaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5 DataMatrix, MaxiCode and QR Codes(QR, Micro QR and Multiple QR codes), Aztec...
Page 276 Complies with FDA performance standards for laser products except for deviations pur- suant to Laser Notice No. 50, dated June 24, 2007. Radio Features WWS750 Frequency working 2400 to 2483.5 MHz center Range (in open air) up to 100 m Max number of devices per base station Wasp WDI7500/WWS750...
Page 277: Imager Labeling
Imager Labeling Imager Labeling Sample labels are shown for illustrative purposes only. Please view the labels  on your product for actual details, as they may vary from those depicted. Scanner Regulatory Label Product Reference Guide...
Page 278: Standard Cable Pinouts
Table 50 are for reference only. Table 50. Standard Cable Pinouts Keyboard RS-232 Wedge RTS (out) CLKIN (KBD side) DATAIN (KBD side) CLKOUT (PC side) DATAOUT (PC side) CTS (in) Wasp WDI7500/WWS750...
Page 279: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various func- tions or errors on the reader. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programma- ble, and may or may not be turned on.
Page 280: Error Codes
Base Station Button Indicators BUTTON PUSH GREEN CORDLESS EVENT INDICATOR(**) INDICATOR(**) force device connection Slow blink Push at power-up (contact Tech Support) Fast blink < 5 sec Paging Fast blink 5 to 10 sec Unlink (Only Bluetooth) Slow blink Wasp WDI7500/WWS750...
Page 281: Sample Barcodes
Appendix B Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. 1D barcodes UPC-A EAN-13 978033029095 Code 39 Code 128 Code 128 Interleaved 2 of 5 Product Reference Guide...
Page 282 Sample Barcodes Sample Barcodes (continued) Code 32 Codabar 13579 Code 93 Code 11 123456789 Wasp WDI7500/WWS750...
Page 283 GS1 DataBar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see "GS1 DataBar™ Omnidirectional" on page 145). GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 DataBar™-14 GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
Page 284 Sample Barcodes 2D Barcodes Aztec Datamatrix China Sensible Code MaxiCode Test Message PDF 417 Micro PDF 417 ABCabc BV17453 QR Code Micro QR Code 123456 35900G9 UCC Composite Wasp WDI7500/WWS750...
Page 285: Standard Defaults
Appendix C Standard Defaults The most common configuration settings are listed in the “Default” col- umn of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 286 Power-up Beep Good Read: When to Indicate After Decode Good Read Beep Type Mono Good Read Beep Frequency High Good Read Beep Length 80 ms Good Read Beep Volume High Good Read LED Duration 300 ms Scanning Features Wasp WDI7500/WWS750...
Page 287 Page Parameter Default Your Setting Number Scan Mode Trigger Single Virtual stand (corded models only) Disable Pick Mode Disable Stand Mode Sensitivity Medium Stand Mode Illumination Off Time 2 Seconds Scanning Active Time 5 Seconds Stand Illumination Control 10 = Flash is ON for 1 Flash On Time Second 06 = Flash is OFF for...
Page 288 Two Modules Add-Ons Optional Add-ons Disable P2, P5 and P8 Optional Add-On Timer 70 ms Optional GS1-128 Add-On Timer Disable Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation Don’t Calculate Code 39 Check Character Transmission Send Wasp WDI7500/WWS750...
Page 289 Page Parameter Default Your Setting Number Code 39 Start/Stop Character Don’t Transmit Transmission Code 39 Full ASCII Disable Small Quiet Zones on two Code 39 Quiet Zones sides Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2 Trioptic Code Trioptic Code Enable/Disable Disable...
Page 290 Standard 2 of 5 Set Length 2 Industrial 2 of 5 Industrial 2 of 5 Enable/Disable Disable Industrial 2 of 5 Check Character Disable Calculation Industrial 2 of 5 Check Character Enable Transmission Industrial 2 of 5 Length Control Variable Wasp WDI7500/WWS750...
Page 291 Page Parameter Default Your Setting Number Industrial 2 of 5 Set Length 1 Industrial 2 of 5 Set Length 2 Code IATA IATA Enable/Disable Disable IATA Check Character Transmission Enable Codabar Codabar Enable/Disable Disable Codabar Check Character Calculation Don’t Calculate Codabar Check Character Transmission Send Codabar Start/Stop Character...
Page 292 Code 93 Set Length 2 Small Quiet Zones on two Code 93 Quiet Zones sides MSI Enable/Disable Disable MSI Check Character Calculation Enable Mod10 MSI Check Character Transmission Enable MSI Length Control Variable MSI Set Length 1 MSI Set Length 2 Wasp WDI7500/WWS750...
Page 293 Page Parameter Default Your Setting Number Plessey Plessey Enable/Disable Disable Enable Plessey std. check Plessey Check Character Calculation char. verification Plessey Check Character Transmission Enable Plessey Length Control Variable Plessey Set Length 1 Plessey Set Length 2 CODE SELECTION - 2D SYMBOLOGIES 2D Maximum Decoding Time 350msec 2D Structured Append...
Page 294 Digimarc Compatibility Mode Disable Motion Features Motion Aiming Control Enable Motion Sensitivity Medium Motionless Timeout 2 seconds Wireless Features Good Transmission Beep Enable Beep Frequency Beep Duration 80 msec Beep Volume High Disconnect Beep Enable Docking Beep Enable Wasp WDI7500/WWS750...
Page 295 Page Parameter Default Your Setting Number Leash Alarm Disable Automatic Configuration Update Enable Copy Configuration to Scanner Copy Configuration to Base Station Batch Mode Disable Send Batch Erase Batch Memory RF Batch Mode Transmit Delay No Delay Direct Radio Autolink Unlink Label Required Source Radio Address Transmission Do not include...
Page 296 The EU label restores Label IDs to those historically used in Europe. The Label ID sets for USA and EU are shown in Label ID: Pre-loaded Sets, starting of this manual. on page 245 $P,AE,P(CR) Restore USA Factory Configuration $P,Ae,P(CR) Restore EU Factory Configuration Wasp WDI7500/WWS750...
Page 297: Keypad
Appendix D Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 298 Keypad Keypad (continued) Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL Wasp WDI7500/WWS750...
Page 299: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms.
Page 300: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Extended characters (sky blue) are sent through dedicated keys (when available in the selected country mode) or by using an Alt Mode sequence. Wasp WDI7500/WWS750...
Page 301 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE (continued) Table 2. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 302: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
A+0218 A+0219 A+0220 A+0221 A+0222 A+0223 A+0224 A+0225 A+0226 A+0227 A+0228 A+0229 A+0230 A+0231 A+0232 A+0233 A+0234 A+0235 A+0236 A+0237 A+0238 A+0239 A+0240 A+0241 A+0242 A+0243 A+0244 A+0245 A+0246 A+0247 A+0248 A+0249 A+0250 A+0251 A+052 A+0253 A+0254 A+0255 Wasp WDI7500/WWS750...
Page 303 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 4. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 304: Digital Interface
Sh↑ (keyp)     Cl ↓ Cl ↑ Table 6. Scancode Set When Control Character is 02 Enter Cl ↓ Cl ↑ à S+ Tab Enter Keypd    Space “ & ‘ < > Wasp WDI7500/WWS750...
Page 305: Ibm31Xx 102-Key
IBM31xx 102-key Table 7. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 306: Ibm Xt
Table 10. Scancode Set when Control Character 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home    Space “ & ‘ < > ‘ Wasp WDI7500/WWS750...
Page 307: Microsoft Windows Codepage 1252
Microsoft Windows Codepage 1252 Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Product Reference Guide...
Page 308 Microsoft Windows Codepage 1252 NOTES Product Reference Guide...
Page 309 ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
Page 310 Wasp Barcode Technologies 1400 10 Street Plano, Texas USA 75074 ©2013-2018 Wasp Barcode Technologies 820076690 (Rev. A) Sept 2018...

This manual is also suitable for:

Wasp wws750

Wasp WDI7500 Product Reference Manual

Introduction

About this Manual

References

About the Reader

The WWS750-BS Base Station/Charger

Battery Safety

Programming the Reader

Setup

Unpacking

Setting up the Reader

Configuring the Horizontal Base Station

Mounting the WWS750-BS Cradle

Interface Selection

Customizing Configuration Settings

Linking the Reader

Configuration Using Barcodes

Only Interface28

RS-232/USB-Com Interfaces33

Keyboard EMULATION Settings

USB-OEM Interface

Data Format

Global Prefix/Suffix (Header/Terminator)

Global AIM ID

Label ID

Reading Parameters

1D Symbologies

2D Symbologies

Global Features

Motion Features

Wireless Features

Bluetooth Features

Quick Links

Related Manuals for Wasp Wasp WDI7500

Summary of Contents for Wasp Wasp WDI7500
