SENSOR RANGE SETUP
EN
The sensor range is factory set at the mouting surface of the faucet. Normally, this range setting does not need
to be adjusted. If necessary, you can change the range setting at any time following these steps:
(Please read all the steps before starting)

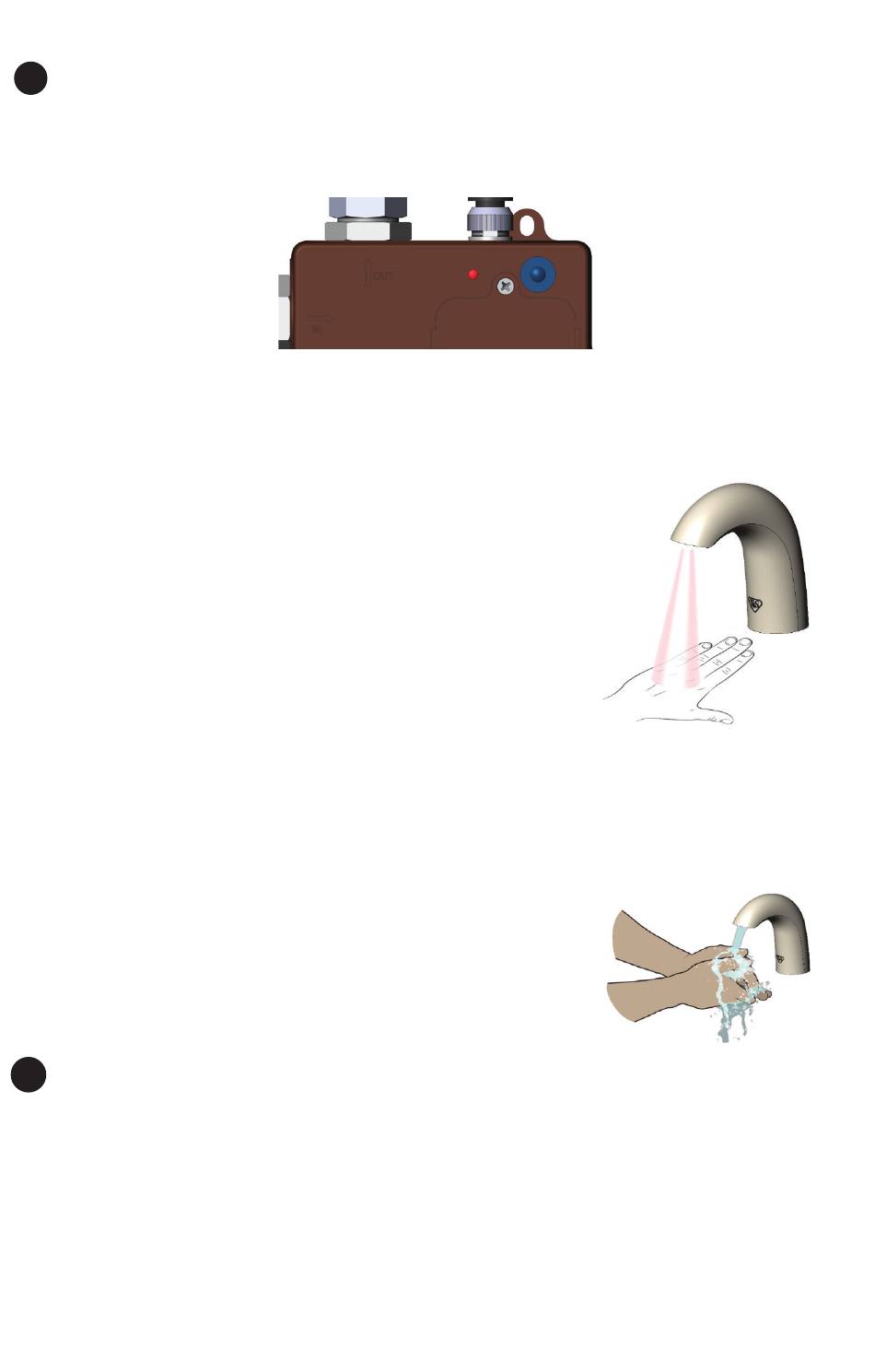

1. Push and hold the blue button located at the front of the control box. Water will start to fl ow.
2. After holding the button for 5 seconds, the water fl ow will stop and the red LED next to the blue button
will turn on.
3. Release the blue button. The red LED will turn off indicating that the sensor is ready to measure the new
distance for the next 15 seconds.
4. Within 5 seconds after releasing the blue button, hold any fl at object (or your hand) under the sensor at
the desired distance. Keep the object still with in ±½ inch of the desired
distance. Once the sensor detects a constant distance from the object, the
red LED will fl ash 5 times then remain on for 2 seconds indicating the new
range has been set and stored.
5. Confi rm the setting distance is correct placing a fl at object (or your hand)
at diff erent distances and checking it does not turn on when the object is
farther that the set distance.
If the distance can't be measure within 15 seconds, the red LED will blink
quickly then stop, indicating the range setting will remain unchanged.
Check that the sensor lens is clean and repeat the process from step 1.
Once the range is set, the value is stored in the controller memory. The range
will not be erased or changed by AC power loss or dead batteries.

OPERATION

Place hands under spout. Water will fl ow until a set time limit is reached or the user's hands are removed from
sensor range.
Note: The activation time is less than 0.2 seconds but can be up to 1.5 seconds after a long time of inactivity.
DIAGNOSTICS
The WaveCrest controller diagnostics can detect battery status, AC power loss,
performance degradation or any condition that prevents the faucet working
correctly. In these situations, the controller will use the red LED to communicate
that the faucet needs attention. For example, a single red LED fl ash every 2 seconds
indicates the batteries are low and will need to be replaced soon. A constant red
LED and no water fl ow indicates batteries are dead.
CONFIGURACIÓN DEL RANGO DE ALCANCE DEL SENSOR
ES
El rango de alcance del sensor está confi gurado de fábrica a la superfi cie de montaje del grifo. Por lo general,
esta confi guración del rango no se debe ajustar. Si fuera necesario, puede cambiar la confi guración del rango
en cualquier momento siguiendo estos pasos:
(Lea todos los pasos antes de comenzar)
1. Mantenga presionado el botón azul que se localiza en la parte delantera de la caja de control. Comenzará
a salir agua.
