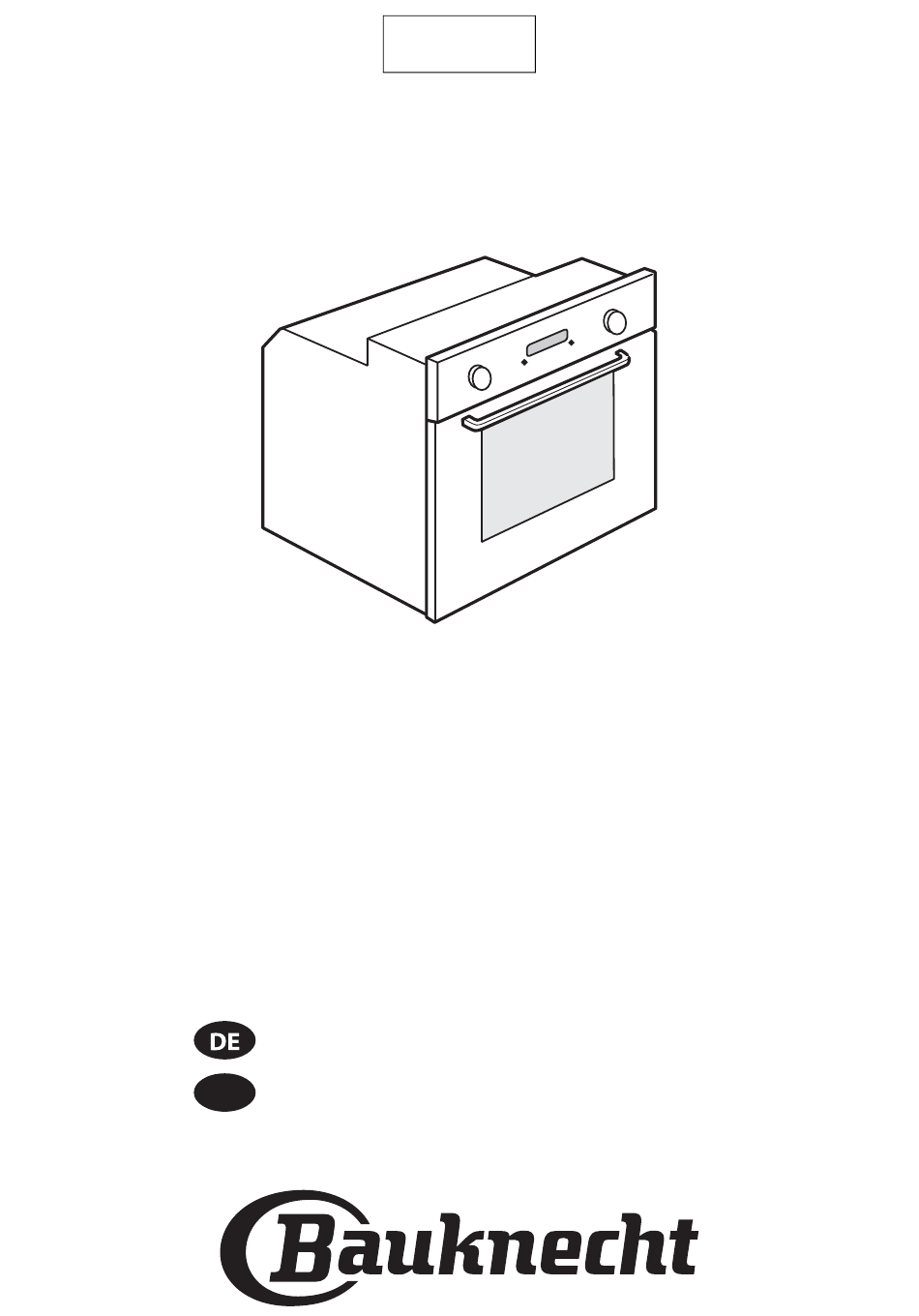

- Page 1 ELCE 7166 Benutzer- und Wartungshandbuch User and maintenance manual...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the danger symbol and the following terms: Indicates a hazardous situation which, if not avoided, will cause serious injury. - Page 4 - Do not touch the appliance with any wet part of the body and do not operate it when barefoot. - This appliance is designed solely for use as a domestic appliance for cooking food. No other type of use is permitted (e.g.: heating rooms).
- Page 5 - Never leave the appliance unattended during food drying. - If alcoholic beverages are used when cooking foods (e.g. rum, cognac, wine), remember that alcohol evaporates at high temperatures. As a result, there is a risk that vapours released by the alcohol may catch fire upon coming into contact with the electrical heating element.
-
Page 6: Installation
Scrapping of household appliances This appliance is manufactured with recyclable or reusable materials. Scrap the appliance in accordance with local regulations on waste disposal. Before scrapping, cut off the power cords so that the appliances cannot be connected to the mains. For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance. -
Page 7: Safeguarding The Environment
SAFEGUARDING THE ENVIRONMENT Disposal of packaging materials The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal. -
Page 8: Maintenance
CLEANING Do not use steam cleaners. WARNING Only clean the oven when it is cool to the touch. Disconnect the appliance from the power supply. Exterior of the oven IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp microfibre cloth. -
Page 9: Replacing The Oven Lamp
To refit the door: Insert the hinges in their seats. Open the door fully. Lower the two catches. Close the door. Fig. 1 Fig. 2 TO REMOVE THE SIDE GRILLES In some models, the side accessory holder grilles are equipped with fixing screws (Fig. 3) for optimum stability. Remove the screws and relative plates on the right and left with the aid of a coin or tool (Fig. -
Page 10: Instructions For Oven Use
INSTRUCTIONS FOR OVEN USE FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION Control panel Upper heating element/grill Cooling fan (not visible) Dataplate (not to be removed) Lamp Circular heating element (not visible) Turnspit (if present) Lower heating element (not visible) 10. -
Page 11: Control Panel Description
INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN Insert the wire shelf horizontally, with the raised part “A” upwards (Fig. 1). The other accessories, like the drip tray and baking tray, are inserted with the raised part on the flat section “B”... -
Page 12: Setting The Time
STARTING THE OVEN - SETTING LANGUAGE At the first switch on of the oven, display shows ENGLISH. Turn the “Browse” knob until the desired language is displayed then press the button to confirm. SETTING THE TIME After setting the language, the time must be set on the clock. The two hour digits flash on the display. Turn the “Browse”... -
Page 13: Setting Cooking Time
SETTING COOKING TIME This function can be used to cook food for a set length of time, from a minimum of 1 minute to the maximum time allowed by the selected function, after which the oven switches off automatically. Once the temperature is confirmed, the symbol flashes. - Page 14 BROWNING At the end of cooking, with certain functions, the display indicates the possibility of browning. This function can only be used when cooking time has been set. At the end of cooking time, the display shows: “PRESS TO BROWN”. Press button , and the oven starts a 5 minute browning cycle.
-
Page 15: Cooktop Operation
With the ECO mode selected (ON), the display reduces the brightness, showing the clock when the oven is on standby position from 3 minutes. Also, the oven light is switched off during cooking. To view information on the display and switch the light on again, just press the button or turn one of the knobs. -
Page 16: Multi Zone
COOKTOP FUNCTIONS TABLE (depending on model) COOKTOP CONTROL KNOBS To allow dough to rise, to soften butter taken from the fridge, to keep baby bottles or food warm, also for making yoghurt, melting chocolate, etc. This function is only available when the residual heat indicator is on. For this GENTLE HEAT function, make sure the residual heat indicator of the desired hotplate is on. - Page 17 OVEN FUNCTION DESCRIPTION TABLE FUNCTIONS KNOB To stop cooking and switch off the oven. LAMP To switch the oven interior light on/off. To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging in order to prevent it from drying out on the outside. DEFROST For keeping just-cooked food hot and crisp (e.g: meat, fried food or flans).
- Page 18 FUNCTIONS KNOB (Continued) To grill steak, kebabs and sausages; to cook vegetables au gratin and toast bread. Place food on the 4th shelf. When grilling meat, use the drip tray to GRILL collect the cooking juices. Position it on the 3rd shelf, adding approx. half a litre of water.
-
Page 19: Cooking Table
COOKING TABLE Recipe Function Preheating Shelf Temperature Time Accessories (from bottom) (°C) (min) 160-180 30-90 Cake tin on wire shelf Leavened cakes Shelf 3: cake tin on wire shelf 1 - 3 160-180 30-90 Shelf 1: cake tin on wire shelf Drip tray/ baking tray or cake tin 160-200 30-85... - Page 20 Recipe Function Preheating Shelf Temperature Time Accessories (from bottom) (°C) (min) Chicken / Rabbit / 200-230 50-100 Drip tray or oven tray on wire shelf Duck 1 Kg Turkey / Goose 3 Kg 190-200 80-130 Drip tray or oven tray on wire shelf Baked fish / en papillote 180-200 40-60...
- Page 21 TESTED RECIPES in compliance with IEC 60350-1:2011-12 and DIN 3360-12:07:07 Recipe Function Preheating Shelf Temp Time Accessories and notes (from bottom) (°C) (min) IEC 60350-1:2011-12 § 7.5.2 15-25 Drip-tray / baking tray Shortbread** Level 3: baking tray 1 - 3 30-45 Level 1: drip-tray/baking tray IEC 60350-1:2011-12 §...
-
