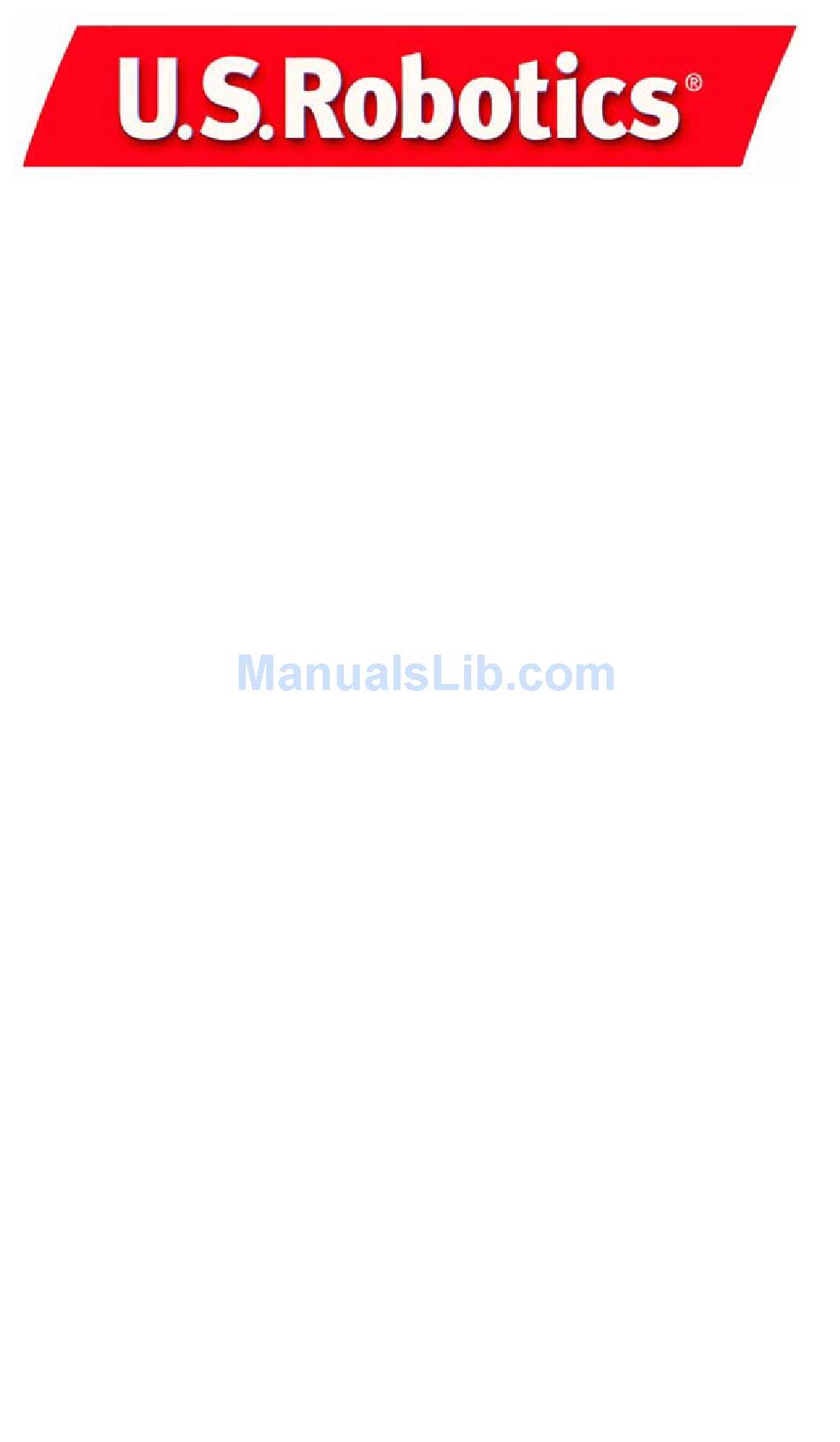

- Page 1 Courier 56K Corporate Modem Quick Installation Guide for Windows 95, 98, NT, 2000, Me, XP Operating Systems Model 3453 Part Number R24.0331.00...
- Page 3 U.S. Robotics Corporation 935 National Parkway Schaumburg, Illinois 60173-5157 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as a translation, transformation, or adaptation) without written permission from U.S.
-
Page 5: Related Documentation
Related Documentation You will find more detailed technical information on the Installation CD-ROM that came with your modem. Product Features V. Everything Technology The modem supports all key ITU analog communications protocols and many proprietary ones to provide you with ultimate compatibility. The modem also supports V.25bis synchronous mode using bisync and HDLC protocols and 2- wire leased line operations for compatibility with many legacy systems. -
Page 6: What You Need
the white bar code sticker on the modem and on the modem's box, in the space below. If you ever need to call our Technical Support department, you will need this number plus your model number, which is 3453, to receive assistance. If you need to get assistance or download drivers from the Web site, you will need your product ID number. - Page 7 Configure your Courier 56K Corporate Modem with DIP (dual in-line pack- age) switches Connect the cables Install the drivers Step One: Configuring with DIP Switches Depending on how you plan to use your modem, you may need to change your DIP switch settings.
- Page 8 DIP switches are located on the bottom of the modem.) Step Three: Installing the Drivers Windows 95 Turn on your computer. When the Update Driver Wizard appears, insert your Installation CD-ROM into your CD-ROM drive and click Next. When the driver is found, click Finish to complete your installation.
- Page 9 and click Cancel to close the Setup Language screen. Type D:\ and click OK. If your CD-ROM drive uses a different letter, type that letter in place of “D”. Select U.S. Robotics Courier V.Everything EXT and click OK. Click Next. Click Finish to complete the installation.
-
Page 10: Register Your Modem
Properties button. Click the Driver tab and click the Update Driver button. When the Hardware Update Wizard appears, select Install from a list or specific location (Advanced) and click Next. Select Don’t search. I will choose the driver to install. Click Next. Click Have Disk. Insert the Installation CD-ROM into your CD-ROM drive, type the letter of your CD-ROM drive, and click OK. -
Page 11: Special Notes
Italy, issue the AT command ATC10=03 and then press ENTER. 00:US/Canada 02:Germany 04:France 06:Japan 08:CTR21 10:China 12:Hong Kong 14:Indonesia 16:Malaysia 18:New Zealand 20:Romania 22:South Africa 24:Argentina 26:Bulgaria Special Notes • CTR21 country setting covers: Austria, Belgium, Cyprus, Denmark, Fin- land, Greece, Iceland, Ireland, Israel, Liechtenstein, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, Malta. -
Page 12: Viewing Leds
Product type US/Canada External 256k Supervisor date 10/10/02 DSP date 09/19/02 Supervisor rev 1.1.11 DSP rev 1.3.1 DAA rev 0012 Serial Number xxxxxxxxxxxx The “Product type” field shows the current country setting of the modem. Repeat the above steps to select a different country of operation. Viewing LEDs This LED Status... -
Page 13: Locating Dip Switches
This LED Status Flashing Blinking ARQ/FAX Flashing Blinking Configuring the Courier 56K Corporate Modem with DIP Switches Locating DIP Switches On the Courier 56K Corporate Modem, the DIP switches are on the bottom of the unit. The default setting is DIP switches 3, 5, and 8 are ON (in the down position). Means your Courier 56K Corporate Modem Is powered on Is retraining with a remote device or is in Test mode... - Page 14 Using DIP Switches to Configure your Courier V.Everything Modem To do this Set DTR to Normal Ignore DTR Set verbal result code display Set numeric result code display Disable result codes Enable result codes Enable the echo in offline commands Disable the echo in offline commands Enable auto answer Disable auto answer...
-
Page 15: Troubleshooting
Troubleshooting Having trouble with your modem? Try these basic troubleshoot- ing steps first! Is your modem turned on? When your modem is properly connected to an electrical outlet, a wall outlet, or a surge protector and is turned on, the CTS and MR lights on the front panel will be illuminated. - Page 16 a success. If you do not see commands and responses, shut down and restart your computer. To determine if your modem is functioning properly, repeat the steps above. If your modem is still not working, refer to the additional troubleshooting in this guide. Windows 2000 •...
- Page 17 NOTE: If your modem is not listed and/or you do not see a series of commands and responses, make sure that your cables are attached correctly to your computer. If your modem still does not work, refer to the additional troubleshooting section of this guide. Shut down and restart your computer.
- Page 18 port it is using. If a previous modem is already using the available COM port, you can either use another COM port or uninstall the previously installed modem. See your previous modem’s manual for uninstallation instructions. Next, make sure that your COM ports are configured correctly. Right-click the My Computer icon on your desktop.
- Page 19 also add, remove, or view the properties of modems from this window. The U.S. Robotics modem you have installed should be present in the list of installed modems. If none of the modem descriptions in the list matches your U.S. Robotics modem or no modems are listed, your modem is not properly installed.
- Page 20 My modem is responding but is reporting a No Dial Tone message. Possible Solution: Make sure that you are using the power supply that came with your modem. Other similar-looking power supplies may be of different voltages, and in addition to possibly causing damage to the modem, they may not allow the modem to dial out.
- Page 21 Possible Solution: You may have a bad phone cord connection to the modem. Try the modem with a different phone cord. We recommend that you use the phone cord included with the modem, if possible. How to Check for a Non-standard Dial Tone Open a terminal program, such as HyperTerminal, in Windows.
-
Page 22: Office Users
voltages and could damage your modem. Possible solution: You might have a bad phone cord connected to your modem, or your phone cord may be plugged into the wrong jack. The phone cord should be plugged into the jack labelled the telephone wall jack. -
Page 23: Support Resources
technology at this time. In order to achieve a V.90 connection: The server you are dialing into must support and provide a digital V.90 sig- nal. Your ISP can provide you with a list of dial-up connections and infor- mation on what those connections currently support. The telephone line between your ISP and your modem must be capable of supporting a 56K connection and contain only one analog-to-digital con- version. -
Page 24: Manufacturer's Declaration Of Conformity
For regions not listed or for the most current support contact information, visit http://www.usr.com/international.asp Manufacturer’s Declaration of Conformity U.S. Robotics Corporation 935 National Parkway Schaumburg, IL 60173-5157 U.S.A. declares that this product conforms to the FCC’s specifications: Part 15, Class B: Operation is subject to the following conditions: 1) this device may not cause harmful electromagnetic interference, and... - Page 25 apparatus set out in the interference-causing equipment standard entitled Digital Apparatus, ICES-003 of Industry Canada. NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all devices does not exceed 5.
- Page 26 and other relevant provisions of Directive 1999/5/EC. The conformity assessment procedure referred to in Article 10(3) and detailed in Annex II of Directive 1999/5/EC has been followed. Network Compatibility Declaration This equipment is designed to work satisfactorily on all European Union PSTN networks. This equipment is supplied with a suitable PSTN connector for the country in which it was supplied.
- Page 27 marked on the outside of the package, and sent prepaid and packaged appropriately for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. Responsibility for loss or damage does not transfer to U.S. Robotics until the returned item is received by U.S.
- Page 30 Printed in XXXXXXXXXXXXXXXXXXXX...
