MR76 Installation Guide

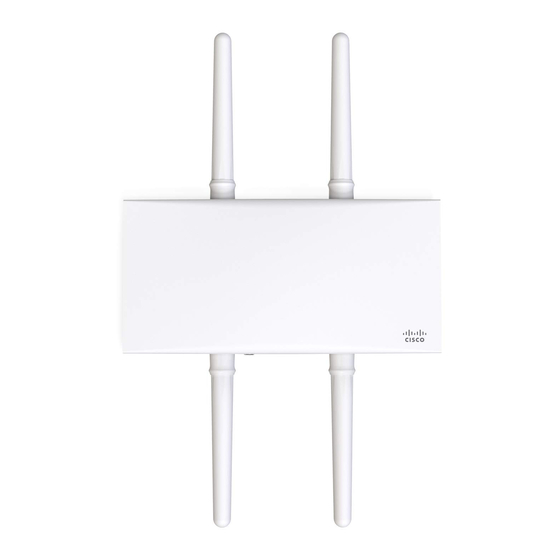

The Cisco Meraki MR76 are dual-band enterprise class 802.11ax cloud-managed access points. Designed for highest capacity and highest density, the
MR76 meets the needs of the most demanding environments. The access point also includes a third radio dedicated to optimizing the RF environment
and securing the airwaves.
About this Guide
This guide provides instruction on how to install and configure your MR76 access points. This guide also provides mounting instructions and limited
troubleshooting procedures. For more wireless installation guides, refer to the
Product Overview
Physical Specifications
Interfaces
•
1x 10/100/1000 BASE-T Ethernet (RJ45)
•
Four external N-type female antenna connectors
Power
•
Power over Ethernet: 37 - 57 V (802.3af compatible)
•
Power consumption: 15W max (802.3af)
•
Power over Ethernet injector sold separately
Note: Actual power consumption may vary depending on the AP usage.
Environment
•
Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C)
•
Humidity: 5 to 95% non-condensing
•
IP67 Environmental rating
Physical Security
MR76
wireless installation guides section
on our documentation website.
1

Advertisement

Table of Contents
loading

Related Manuals for Cisco Meraki MR76

Summary of Contents for Cisco Meraki MR76

  • Page 1 MR76 Installation Guide The Cisco Meraki MR76 are dual-band enterprise class 802.11ax cloud-managed access points. Designed for highest capacity and highest density, the MR76 meets the needs of the most demanding environments. The access point also includes a third radio dedicated to optimizing the RF environment and securing the airwaves.

  • Page 2: Package Contents

    The MR76 package contains the following: • MR76 Cloud-Managed Access Point • Mount cradle • Wall screws • Wall screw anchors • Grounding screws • Mounting straps Product View and Physical Features Your Meraki MR76 has the following physical features:...
  • Page 3 The mount cradle has the following physical features:...

  • Page 5: Led Indicator

    LED indicator Your MR76 is equipped with a multi-color LED light on the bottom edge of the unit to convey information about system functionality and performance: • Orange - AP is booting (permanent Orange suggests hardware issue) • Rainbow - AP is initializing/scanning •...
  • Page 6 Understanding the MR76 mount plate The mount plate is unique to the MR76. Previous outdoor AP mount plates are not compatible with the MR76. The mount cradle has the following features: Mounting posts (4x) The mounting slots located in the middle of the mounting plate marry the MR76 to the mounting plate. Mounting holes (4x) The mounting holes located on the 4 outermost corners of the mounting plate allow secure installation of the mounting plate to a surface such as a wall.

  • Page 7: Pre-Install Preparation

    device is rated not greater than: 15 A, 125 Vac, or 10A, 240 Vac. • Please only power the device with the provided power cables or standard PoE to ensure regulatory compliance. Pre-Install Preparation You should complete the following steps before going on-site to perform an installation. Configure Your Network in Dashboard The following is a brief overview only of the steps required to add an MR76 to your network.

  • Page 8: Collect Tools

    Static Assignment Static IPs are assigned using the local web server on each AP. The following procedure describes how to set the static IP: 1. Using a client machine (e.g., a laptop), connect to the AP wirelessly (by associating to any SSID broadcast by the AP) or over a wired connection.

  • Page 9: Collect Additional Hardware For Installation

    Collect Additional Hardware for Installation You will need the following tools to perform an installation: • Network cables with RJ45 connectors long enough for your particular mounting location • 802.3af PoE power source (either PoE switch or Meraki PoE Injector) •...

  • Page 10: Choose Your Mounting Location

    Choose Your Mounting Location A good mounting location is important to getting the best performance out of your MR76 access point. Keep the following in mind: 1. The device should have unobstructed line of sight to most coverage areas. 2. Power over Ethernet supports a maximum cable length of 300 ft (100 m). 3.
  • Page 11 It is recommended that the MR76 be mounted to a wall or solid ceiling using the mount plate for physical security reasons. Pole Mount Using Mount Plate Use the included mounting straps to mount the AP to a pole less than 3.9” in diameter. Thread the mounting straps through the mounting strap slots to secure the mount plate in a horizontal or vertical orientation.
  • Page 12 Attaching the antennas to the AP...
  • Page 13 Attaching the AP to the mounting bracket...

  • Page 14: Attach Grounding Strap

    Attach Grounding Strap Connect one end of grounding strap to grounding post with included screw and washer. Securely attach the other end nearby metal structure.
  • Page 15 Antennas Choose the antenna based on the install location and designed area of coverage. The datasheet includes a list of certified antennas. 3rd party antennas may be used but it is the responsibility of the end customer/partner to ensure operation is within regulatory compliance.

  • Page 16: Antenna Selection

    Meraki offers a number of antenna options for the MR76 access point. The MR76 features dual band antenna ports thus dual band antennas should be paired with the AP. Below is a highlight of the different antenna types and their applications. It is always best practice to consult with a Cisco SE or Partner in to select the best antenna for the unique design.

  • Page 18: Verify Device Functionality And Test Network Coverage

    3. Plug the Ethernet cable into the Ethernet port of the Meraki MR76. a. Connect the cable to the Ethernet port on the MR76. b. Screw the gland body into the threaded hole of the port. Use an adjustable wrench to make sure the gland body is fully seated in the hole.

  • Page 19: Regulatory Information

    • The equipment is subject to installation and maintenance by specialists with the appropriate qualifications, sufficient specialized knowledge, and skills. • Rules and conditions for the sale of equipment are determined by the terms of contracts concluded by Cisco or authorized Cisco partners with equipment buyers.

  • Page 20: Български (Bulgarian)

    Cisco Systems, Inc. tímto prohlašuje, že tento wireless device je ve shodě se základními požadavky a dalšími příslušným ustanoveními směrnice. Dansk (Danish): Undertegnede Cisco Systems, Inc. erklærer herved, at følgende udstyr wireless device overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/ Deutsch (German): Hiermit erklärt Cisco Systems, Inc.
  • Page 21 English: Hereby, Cisco Systems, Inc. declares that this wireless device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ Español (Spanish): Por medio de la presente Cisco Systems, Inc. declara que el wireless device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

  • Page 22: Polski (Polish)

    Cisco Systems, Inc. declara que este wireless device está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Română (Romanian): Prin prezenta, Cisco Systems, Inc. declară că acest dispozitiv fără fir este în conformitate cu cerin?ele esen?iale ?i alte prevederi relevante ale Directivei 1999/5/ Slovensko (Slovenian): Cisco Systems, Inc.

  • Page 23: U.s. Regulatory Wireless Notice

    • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by Cisco Systems, Inc. could void the user’s authority to operate this equipment. This Transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.

  • Page 24: Australia Radiation Exposure Statement

    Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à...

  • Page 25: Taiwan Wireless Statements

    Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Taiwan Wireless Statements 低功率射頻設備的管理辦法...

  • Page 26: Low-Power Radio-Frequency Devices Technical

    ??????????? 4.7 無線資訊傳輸設備 4.7.6 無線資訊傳輸設備須忍受合法通信之 干擾且不得干擾合法通信；如造成干 擾，應立即停用，俟無干擾之虞，始 得繼續使用。 4.7.7 無線資訊傳輸設備的製造廠商應確保頻 率穩定性，如依製造廠商使用手冊上所 述正常操作，發射的信號應維持於操 作頻帶中。 Low-Power Radio-Frequency Devices Technical Specifications 4.7: Unlicensed National Information Infrastructure 4.7.6: The U-NII devices shall accept any interference from legal communications and shall not interfere with the legal communications. If interference is caused, the user must stop operating the device immediately and must not re-operate it until the harmful interference is clear.
