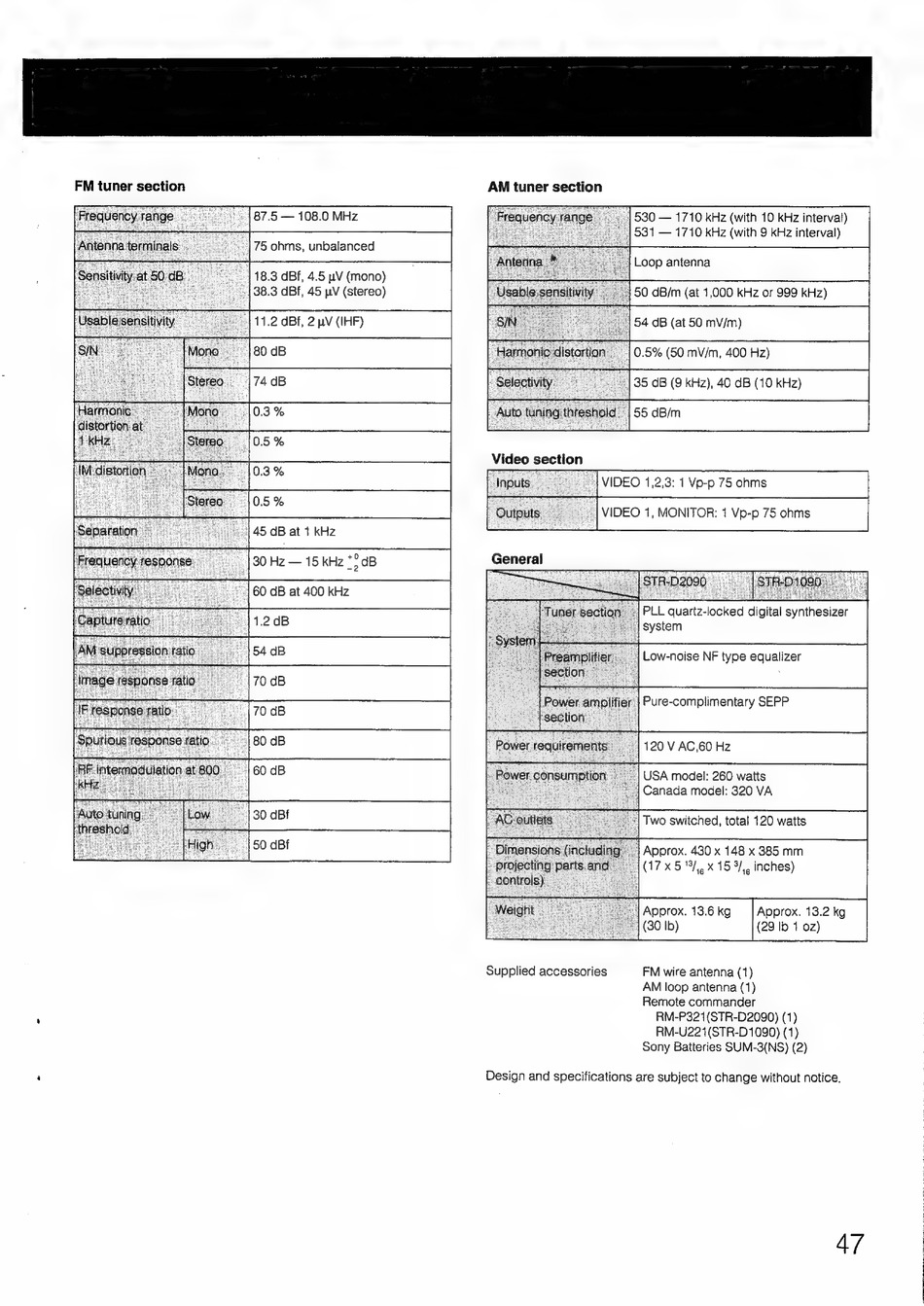

FM tuner section
87.5 — 108.0 MHz
75 ohms, unbalanced
18.3 dBf, 4.5 pV (mono)
38.3 dBf, 45 pV (stereo)
a
=
©
[30 Hz — 15 kHz *9dB
160 GB at 400 kHz
30 dBf
50 dBf
AM tuner section
| 530 — 1710 kHz (with 10 kHz interval)
531 — 1710 kHz (with 9 kHz interval)
50 dB/m (at 1,000 kHz or 999 kHz)
54 dB (at 50 mV/m)
0.5% (50 mV/m, 400 Hz)
(
35 dB (9 kHz), 40 dB (10 kHz)
| VIDEO 1,2,3: 1 Vp-p 75 ohms
~ | VIDEO 1, MONITOR: 1 Vp-p 75 ohms
PLL quartz-locked digital synthesizer
system
Low-noise NF type equalizer
Pure-complimentary SEPP
1120 V AC,60 Hz
| USA model: 260 watts
Canada model: 320 VA
| Two switched, total 120 watts
Approx. 430 x 148 x 385 mm
17x5 %/,,x 15 4/,, inches)
Approx. 13.6 kg
(30 Ib)
Approx. 13.2 kg
(29 Ib 1 oz)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Remote commander
RM-P321(STR-D2090) (1)
RM-U221(STR-D1090) (1)
Sony Batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
47
