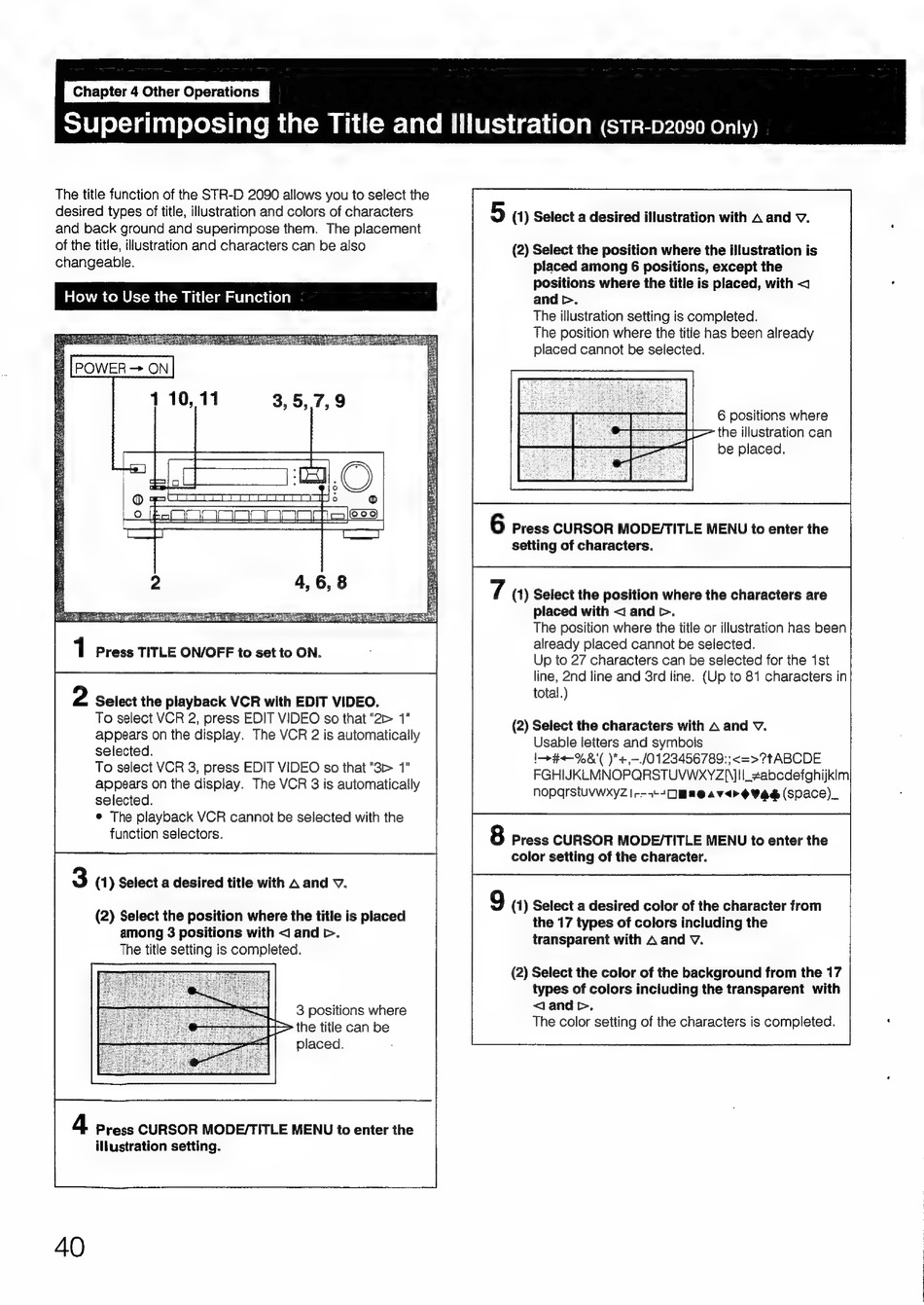

The title function of the STR-D 2090 allows you to select the
desired types of title, illustration and colors of characters
and back ground and superimpose them. The placement
of the title, illustration and characters can be also
changeable.
5 (1) Select a desired illustration with A and v.
(2) Select the position where the illustration is
placed among 6 positions, except the
positions where the title is placed, with <
,
How to Use the Titler Function
and >.
The illustration setting is completed.
The position where the title has been already
placed cannot be selected.
6 positions where
(= the illustration can
be placed.
fof mmm)
a
Pp —___]
6 Press CURSOR MODE/TITLE MENU to enter the
setting of characters.
7 (1) Select the position where the characters are
placed with <i and >.
The position where the title or illustration has been
already placed cannot be selected.
Up to 27 characters can be selected for the 1st
line, 2nd line and 3rd line. (Up to 81 characters in
total.)
1 Press TITLE ON/OFF to set to ON.
:
2 Select the playback VCR with EDIT VIDEO.
To select VCR 2, press EDIT VIDEO so that "2c 1"
appears on the display. The VCR 2 is automatically
selected.
To select VCR 3, press EDIT VIDEO so that "3 1"
appears on the display. The VCR 3 is automatically
selected.
¢ The playback VCR cannot be selected with the
function selectors.
(2) Select the characters with A and Vv.
Usable letters and symbols
l+>#+-%&'( )*+,-./0123456789:;<=>?tABCDE
FGHIJKLMNOPQRSTUVWXYZ{\]I_#abcdefghijklim
nopaqrstuvwXxyZ Ir--+- mae av<> oad (SPace)_
8 Press CURSOR MODE/TITLE MENU to enter the
color setting of the character.
3 (1) Select a desired title with A and v.
9 (1) Select a desired color of the character from
the 17 types of colors including the
transparent with A and V.
(2) Select the position where the title is placed
among 3 positions with <i and >.
The title setting is completed.
(2) Select the color of the background from the 17
types of colors including the transparent with
<land b>.
3
positions where
e
The color setting of the characters is completed.
'
-+> the title can be
placed.
4 Press CURSOR MODE/TITLE MENU to enter the
illustration setting.
40
