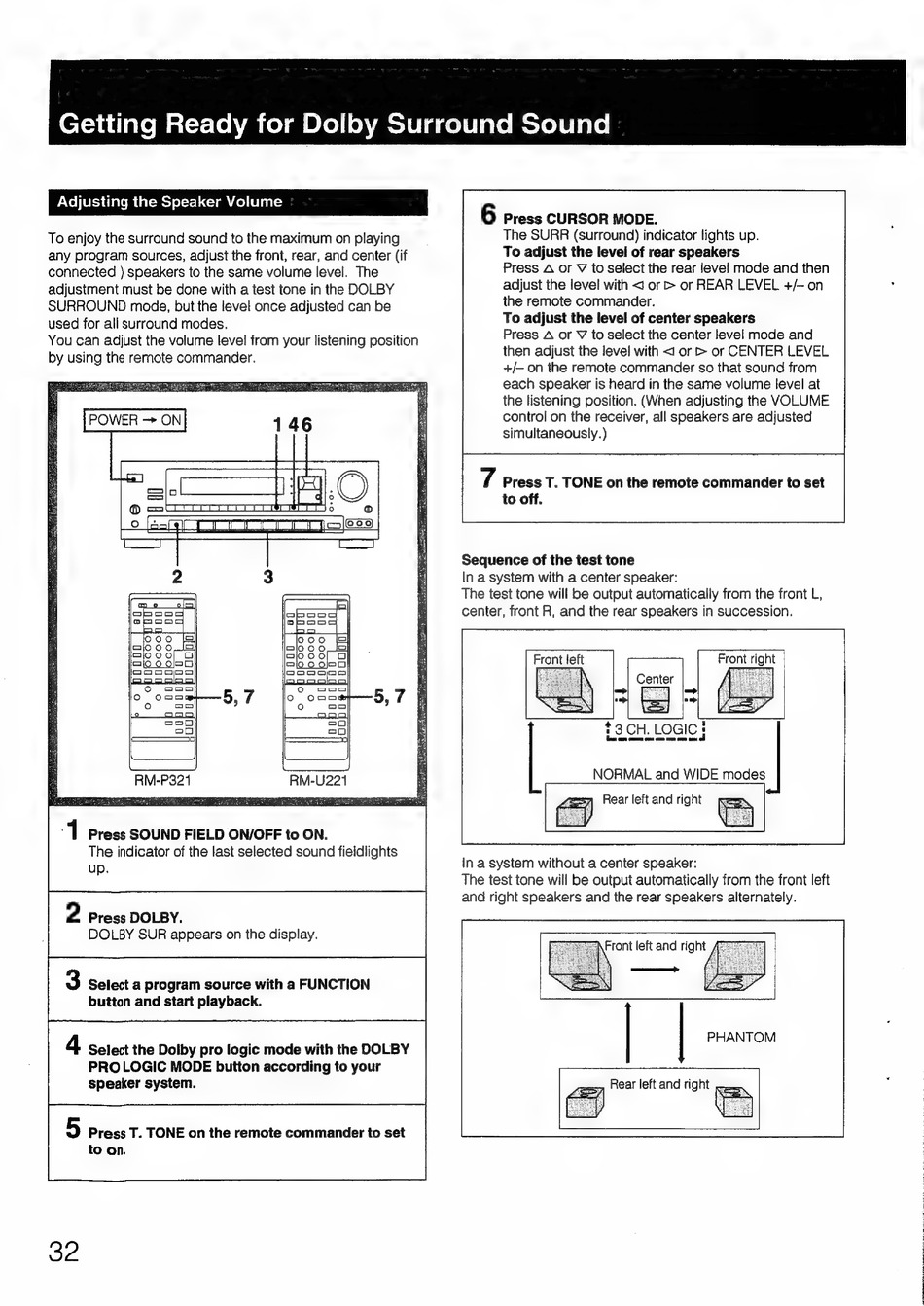

Adjusting the Speaker Volume
To enjoy the surround sound to the maximum on playing
any program sources, adjust the front, rear, and center (if
connected ) speakers to the same volume level. The
adjustment must be done with a test tone in the DOLBY
SURROUND mode, but the level once adjusted can be
used for all surround modes.
You can adjust the volume level from your listening position
by using the remote commander.
0
[oof9l TLL ro
FES
ee ee
(ay
RM-P321
ns
RM-U221
: 1 Press SOUND FIELD ON/OFF to ON.
The indicator of the last selected sound fieldlights
up.
2 Press DOLBY.
DOLBY SUR appears on the display.
3 Select a program source with a FUNCTION
button and start playback.
4 Select the Dolby pro logic mode with the DOLBY
PROLOGIC MODE button according to your
Speaker system.
5 Press T. TONE on the remote commander to set
to on.
32
Getting Ready for Dolby Surround Sound
6 Press CURSOR MODE.
The SURR (surround) indicator lights up.
To adjust the level of rear speakers
Press A or Y to select the rear level mode and then
adjust the level with <j or > or REAR LEVEL +/- on
the remote commander.
To adjust the level of center speakers
Press A or V to select the center level mode and
then adjust the level with <1 or &> or CENTER LEVEL
+/— on the remote commander so that sound from
each speaker is heard in the same volume level at
the listening position. (When adjusting the VOLUME
control on the receiver, all speakers are adjusted
simultaneously.)
7 Press T. TONE on the remote commander to set
to off.
Sequence of the test tone
In a system with a center speaker:
The test tone will be output automatically from the front L,
center, front R, and the rear speakers in succession.
Front left
Front right
#3CH. LOGIC?
be
J
NORMAL and WIDE modes
Rear left and right
In a system without a center speaker:
The test tone will be output automatically from the front left
and right speakers and the rear speakers alternately.
Front left and righ
—a>
