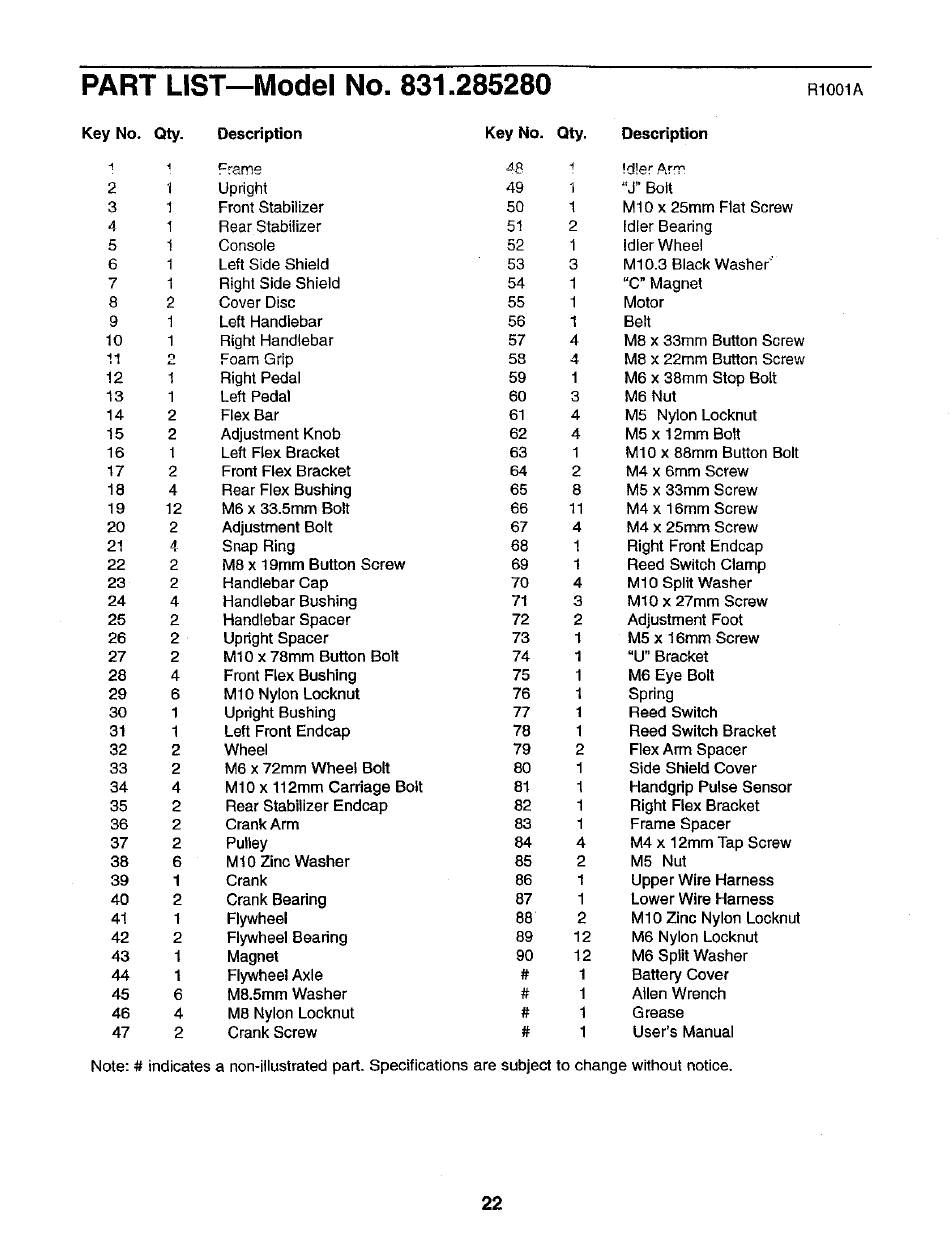

PART LIST--Model No. 831.285280 RloolA
Key No. Qty. Description
Key No.
I _ _rame _8
2 1 Upright 49
3 1 Front Stabilizer 50
4 1 Rear Stabilizer 5!
5 1 Console 52
6 1 Left Side Shield 53
7 1 Right Side Shield 54
8 2 Cover Disc 55
9 1 Left Handlebar 56
10 1 Right Handlebar 57
!1 2 Foam Grip 58
12 1 Right Pedal 59
13 1 Left Pedal 60
14 2 Flex Bar 61
15 2 Adjustment Knob 62
16 1 Left Flex Bracket 63
17 2 Front Flex Bracket 64
18 4 Rear Flex Bushing 65
19 12 M6 x 33.5mm Bolt 66
20 2 Adjustment Bolt 67
21 4 Snap Ring 68
22 2 M8 x 19ram Button Screw 69
23 2 Handlebar Cap 70
24 4 Handlebar Bushing 71
25 2 Handlebar Spacer 72
26 2 Upright Spacer 73
27 2 M10 x 78mm Button Bolt 74
28 4 Front Flex Bushing 75
29 6 M10 Nylon Locknut 76
30 1 Upright Bushing 77
31 1 Left Front Endcap 78
32 2 Wheel 79
33 2 M6 x 72mm Wheel Bolt 80
34 4 M10 x 112mm Carriage Bolt 81
35 2 Rear Stabilizer Endcap 82
36 2 Crank Arm 83
37 2 Pulley 84
38 6 M10 Zinc Washer 85
39 1 Crank 86
40 2 Crank Bearing 87
41 1 Flywheel 88
42 2 Flywheel Bearing 89
43 1 Magnet 90
44 1 Flywheel Axle #
45 6 M8.5mm Washer #
46 4 M8 Nylon Locknut #
47 2 Crank Screw #
Note: # indicates a non-illustrated part, Specifications are subject to
Qty. Description
!d!er Arm
1 "J" Bolt
1 M10 x 25ram Flat Screw
2 Idler Bearing
1 Idler Wheel
3 M10.3 Black Washer'
1 "C" Magnet
1 Motor
1 Belt
4 M8 x 33ram Button Screw
4 M8 x 22ram Button Screw
1 M6 x 38ram Stop Bolt
3 M6 Nut
4 M5 Nylon Locknut
4 M5 x 12ram Bolt
1 M10 x 88ram Button Bolt
2 M4 x 6ram Screw
8 M5 x 33mm Screw
11 M4 x 16mm Screw
4 M4 x 25mm Screw
1 Right Front Endcap
1 Reed Switch Clamp
4 M10 Split Washer
3 MIO x 27ram Screw
2 Adjustment Foot
1 M5 x 16mm Screw
1 "U" Bracket
1 M6 Eye Bolt
1 Spring
1 Reed Switch
1 Reed Switch Bracket
2 Flex Arm Spacer
1 Side Shield Cover
1 Handgrip Pulse Sensor
1 Right Flex Bracket
1 Frame Spacer
4 M4 x 12ram Tap Screw
2 M5 Nut
1 Upper Wire Harness
1 Lower Wire Harness
2 M10 Zinc Nylon Loeknut
12 M6 Nylon Locknut
12 M6 Split Washer
1 Battery Cover
1 Allen Wrench
1 Grease
1 User's Manual
change without notice.
22
