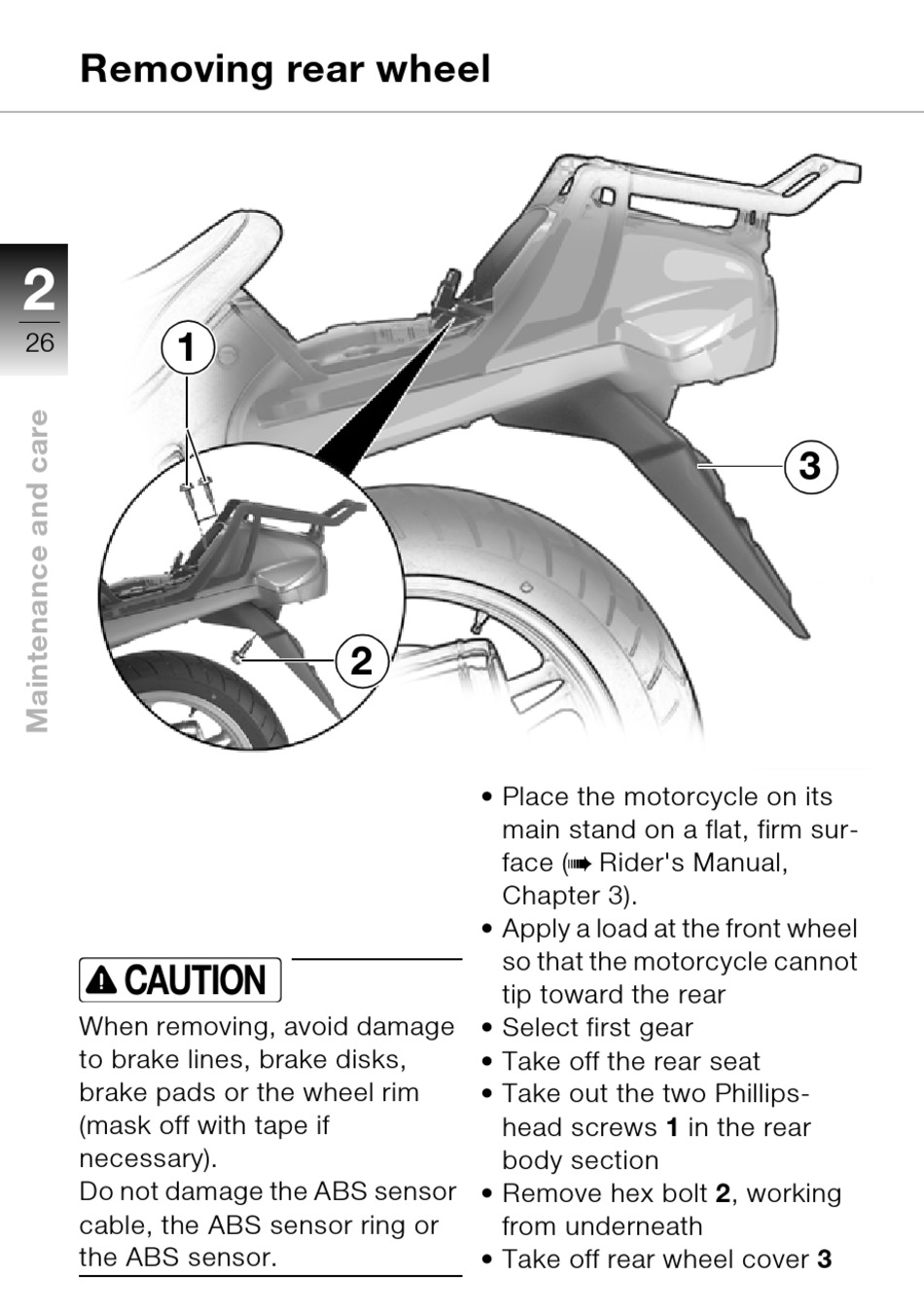

Removing rear wheel
2
1
26
When removing, avoid damage
to brake lines, brake disks,
brake pads or the wheel rim
(mask off with tape if
necessary).
Do not damage the ABS sensor
cable, the ABS sensor ring or
the ABS sensor.
2
• Place the motorcycle on its
main stand on a flat, firm sur-
face (
Chapter 3).
• Apply a load at the front wheel
so that the motorcycle cannot
tip toward the rear
• Select first gear
• Take off the rear seat
• Take out the two Phillips-
head screws 1 in the rear
body section
• Remove hex bolt 2, working
from underneath
• Take off rear wheel cover 3
