Aiphone IS-SS-RA Instructions

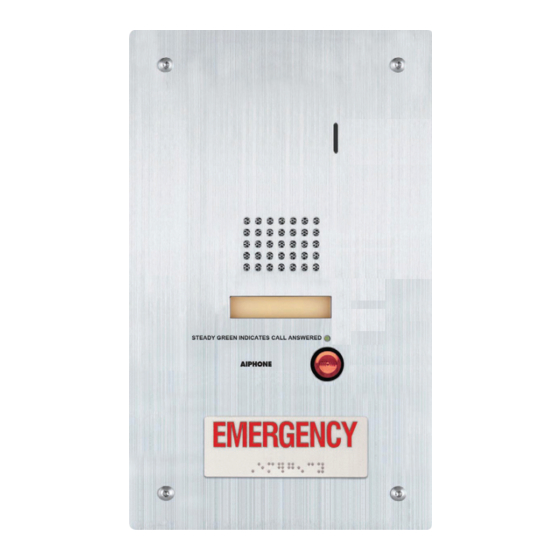

The IS-SS-RA is a stainless steel flush mount door station with an emergency call button. The
unit is equipped with ADA compliant lettering and Braille signage for the emergency button. A call
status indicator is included to meet ADA rescue assistance requirements. The IS-SS-RA must be
programmed as a video door station and must connect to the IS-CCU or IS-SCU control units.
IS-SS-RA
6
PACKAGE CONTENTS:
STEADY GREEN INDICATES CALL ANSWERED 4-pin connector
EMERGENCY
IS-SS-RA
Vandal-resistant Door Station
Blank name
placard
IS-SS-RA
Stainless Steel Flush Mount Door Station
with an Emergency Call Button
1
2
3
4
5
Security Driver
2-pin connector
for CCTV for external reset
Semi-flush backbox &
tamper-resistant screws
-INSTRUCTIONS-

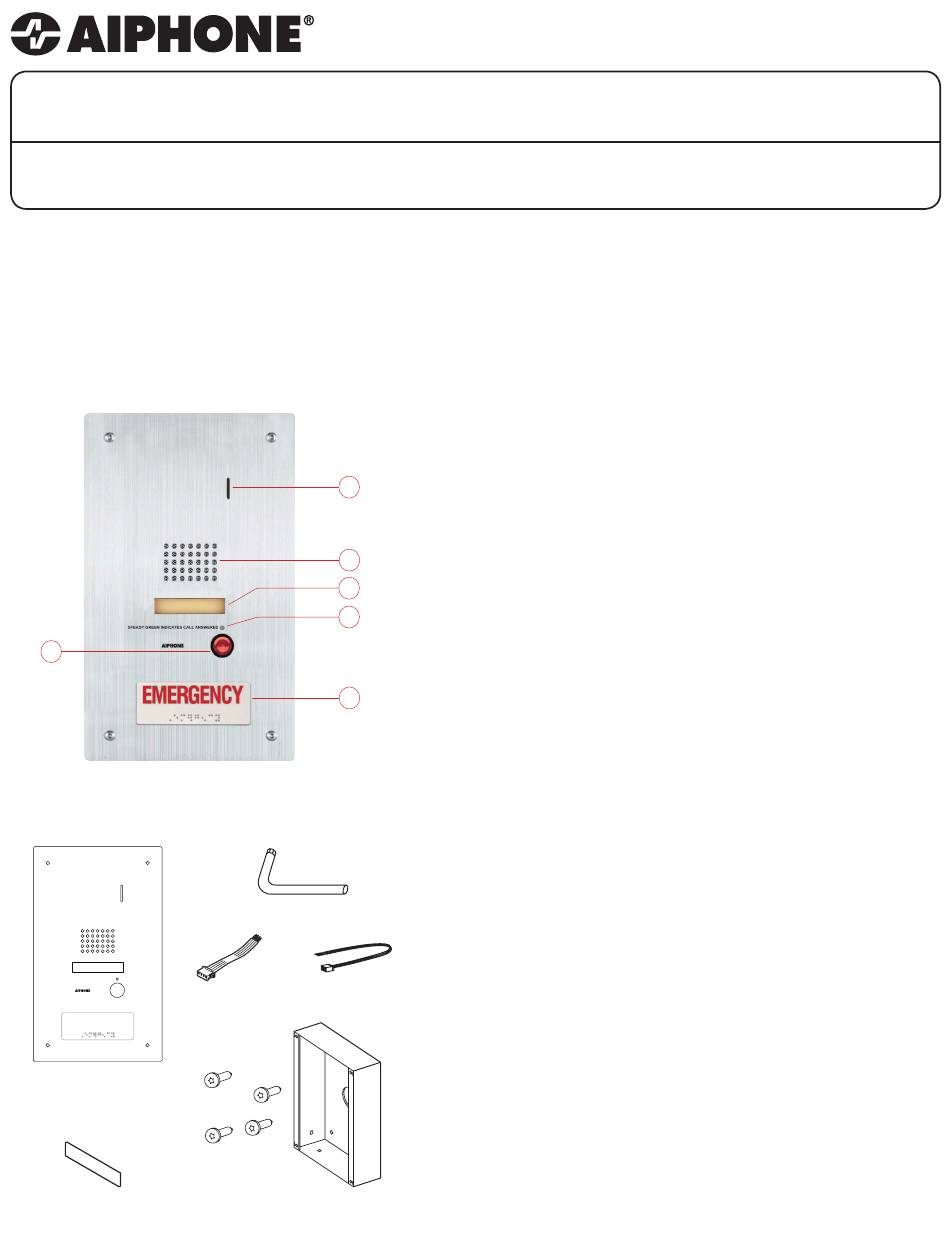

NAMES & FUNCTIONS:
1. Microphone
2. Speaker
3. Name Placard
FEATURES:
• Audio communication with calling area
• Emergency call button
• ADA compliant lettering and Braille signage
• LED call status indicator
• CCTV input (Analog NTSC 1Vpp)
• Two programmable relay outputs for
activation of external systems/devices
• Name placard
• Stainless steel faceplate with tamper
resistant screws
INSTALLATION:
• For flush mounting, cut a hole in the wall and
use supplied back box.
Box dimensions are:
11-1/16" H x 5-7/8" W x 1-3/4" D
• For surface mounting, use the SBX-ISDVFRA
surface mount box. This box can mount to a
standard 1-gang box or to any flat surface.
4. Call status indicator
5. Signage with Braille
6. Emergency button
Pg.1
