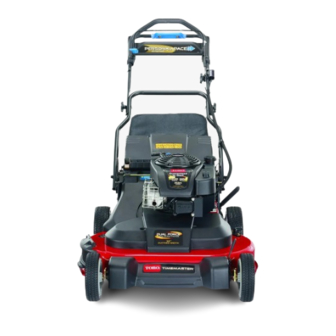

30in lawn mower, string trimmer and axial blower
Hide thumbs Also See for TimeMaster 21199:

Advertisement

Quick Links

TimeMaster
Model No. 21199—Serial No. 407700000 and Up
Model No. 21199HD—Serial No. 407000000 and Up
Model No. 21200—Serial No. 407800000 and Up

Introduction

This rotary-blade, walk-behind lawn mower is intended
to be used by residential homeowners. It is designed
primarily for cutting grass on well-maintained lawns on
residential properties. Using this product for purposes
other than its intended use could prove dangerous to
you and bystanders.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Visit www.Toro.com for more information, including
safety tips, training materials, accessory information,
help finding a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready.
identifies the location of the model and serial numbers
on the product. Write the product model and serial
numbers in the space provided.
Important:
With your mobile device, you can
scan the QR code on the serial number decal (if
equipped) to access warranty, parts, and other
product information.
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has
safety messages identified by the safety-alert symbol
(Figure
2), which signals a hazard that may cause
© 2020—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
30in Lawn Mower
Figure 1
Figure 1
Register at www.Toro.com.
serious injury or death if you do not follow the
recommended precautions.
This manual uses 2 words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
It is a violation of California Public Resource Code
Section 4442 or 4443 to use or operate the engine on
any forest-covered, brush-covered, or grass-covered
land unless the engine is equipped with a spark
arrester, as defined in Section 4442, maintained in
effective working order or the engine is constructed,
equipped, and maintained for the prevention of fire.
The enclosed engine owner's manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance,
and warranty. Replacements may be ordered through
the engine manufacturer.
Gross or Net Torque: The gross or net torque
of this engine was laboratory rated by the engine
manufacturer in accordance with the Society of
Automotive Engineers (SAE) J1940 or J2723. As
g310939
configured to meet safety, emission, and operating
requirements, the actual engine torque on this class
of mower will be significantly lower. Please refer to
the engine manufacturer's information included with
the machine.
Original Instructions (EN)
Form No. 3442-591 Rev A
Operator's Manual
Figure 2
Safety-alert symbol
*3442-591*
Printed in Mexico
All Rights Reserved
