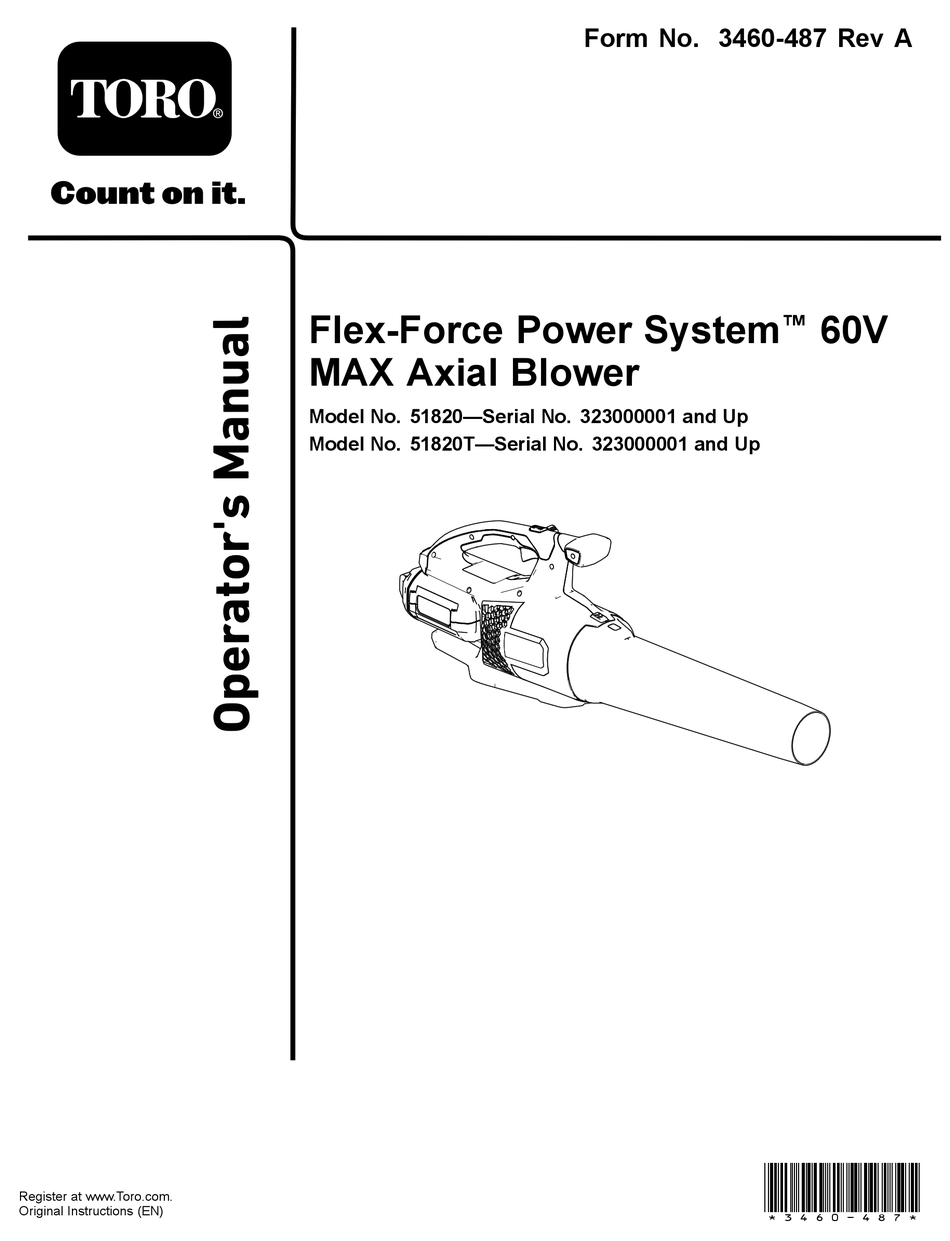

- Page 1 Form No. 3460-487 Rev A Flex-Force Power System ™ MAX Axial Blower Model No. 51820—Serial No. 323000001 and Up Model No. 51820T—Serial No. 323000001 and Up *3460-487* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Whenever you need service, genuine Toro parts, or For assistance, please see additional information, contact an Authorized Service www.Toro.com/support Dealer or Toro Customer Service and have the model for instructional videos and serial numbers of your product ready. Figure 1...
-
Page 3: Safety Alert Symbol
II. Preparation Keep bystanders and children away from the operating area. Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire. Plugging the battery charger into an outlet that is not 120 V can cause a fire or electric shock. - Page 4 Replace the battery pack with a genuine the tool for purposes other an its intended use Toro battery pack only; using another type of could prove dangerous to you and bystanders. battery pack may cause a fire or risk of injury.
- Page 5 IV. Maintenance and Storage Maintain the tool with care—Keep it clean and in good repair for best performance and to reduce the risk of injury. Follow the instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease. When the battery pack is not in use, keep it away from metal objects such as paper clips, coins, keys, nails, and screws that can make...
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal137-9461 137-9461 1. Battery charge status decal137-9454 137-9454 1. Read the Operator’s 3. - Page 7 decal140-8496 decal140-8497 140-8496 140-8497 1. Warning—read the 3. Thrown object 1. Warning—read the 3. Thrown object Operator’s Manual; stay hazard—keep bystanders Operator’s Manual; stay hazard—keep bystanders away from moving parts; away. away from moving parts; away. keep all guards and keep all guards and shields in place;...
-
Page 8: Assembling The Blower
Assembling the Blower Setup Slide the blower tube onto the blower housing. You Important: The battery pack is not fully charged may need to press down on the tube latch for the when you purchase it. Before using the tool for blower tube to lock into place (Figure the first time, refer to... -
Page 9: Product Overview
Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. -
Page 10: Operation
Operation WARNING The blower can throw debris, possibly causing serious personal injury to you or bystanders. • Do not blow hard objects, such as nails or bolts. • Do not operate the blower near bystanders or pets. • Be careful of blowing direction (i.e., blow away from bystanders, windows, automobiles, etc.). - Page 11 Adjusting the Air Speed of Removing the Battery from the Blower the Blower To achieve maximum performance (air speed), fully Press the battery latch to release the battery pack and depress the variable-speed trigger, then press and slide the battery pack out of the blower (Figure 10).
-
Page 12: Charging The Battery Pack
Charging the Battery Pack Green Battery pack is charged Battery pack and/or battery charger is over or under Important: The battery pack is not fully charged the appropriate temperature range when you purchase it. Before using the tool for Battery pack charging fault* the first time, place the battery pack in the charger blinking and charge it until the LED display indicates the... - Page 13 If you are located outside of the US • Do not store the tool with the battery pack installed. and Canada, please contact your authorized Toro distributor. • Clean all foreign material from the product. • When not in use, store the tool, battery pack, and battery charger out of the reach of children.
-
Page 14: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Always remove the battery from the tool when troubleshooting, inspecting, maintaining, or cleaning the tool. Problem Possible Cause Corrective Action... - Page 15 Problem Possible Cause Corrective Action The LED indicator light on the battery 1. There is an error in the communication 1. Remove the battery pack from the charger is blinking red. between the battery pack and the battery charger, unplug the battery charger.
- Page 16 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
