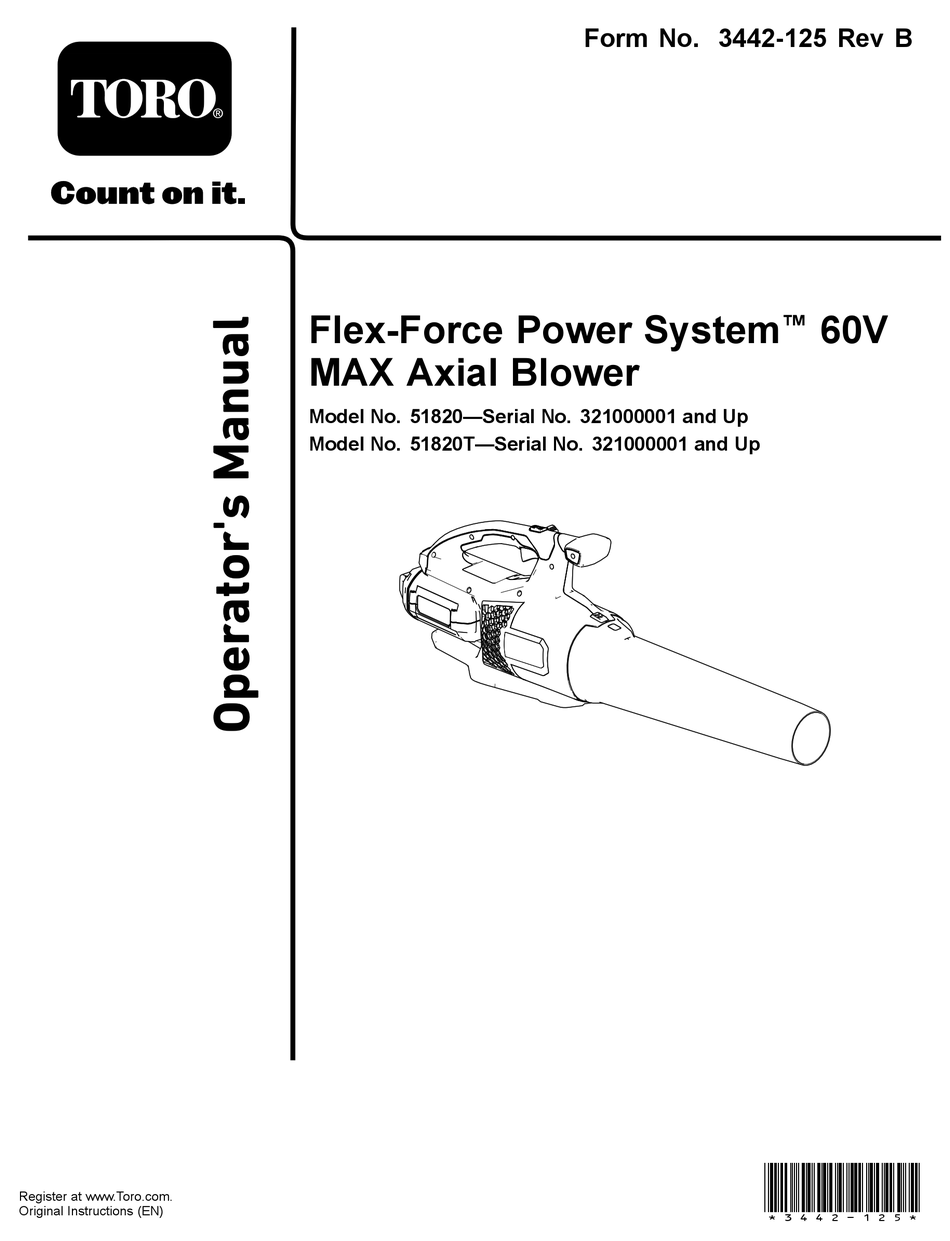

- Page 1 Form No. 3442-125 Rev B Flex-Force Power System ™ MAX Axial Blower Model No. 51820—Serial No. 321000001 and Up Model No. 51820T—Serial No. 321000001 and Up *3442-125* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Whenever you need service, genuine Toro parts, or For assistance, please see additional information, contact an Authorized Service www.Toro.com/support Dealer or Toro Customer Service and have the model for instructional videos and serial numbers of your product ready. Figure 1...
-
Page 3: Important Safety Instructions
O position. Use only the battery pack specified by Toro. Operate the appliance only in daylight or good Using other accessories and attachments may artificial light. increase the risk of injury and fire. - Page 4 Do not heat the battery pack above 68°C (154°F) or incinerate it. Replace the battery pack with a genuine Toro battery pack only; using another type of battery pack may cause a fire or explosion. Keep...
-
Page 5: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal137-9461 137-9461 1. Battery charge status decal137-9454 137-9454 1. Read the Operator’s 3. - Page 6 decal140-8496 decal140-8497 140-8496 140-8497 1. Warning—read the 3. Thrown object 1. Warning—read the 3. Thrown object Operator’s Manual; stay hazard—keep bystanders Operator’s Manual; stay hazard—keep bystanders away from moving parts; away. away from moving parts; away. keep all guards and keep all guards and shields in place;...
-
Page 7: Assembling The Blower
Assembling the Blower Setup Slide the blower tube onto the blower housing. You Important: The battery pack is not fully charged may need to press down on the tube latch for the when you purchase it. Before using the tool for blower tube to lock into place (Figure the first time, refer to... -
Page 8: Product Overview
Specifications Product Overview Model 51820, 51820T Rated Voltage 60V DC maximum, 54 VDC nominal usage Charger Type 88602 (included with Model 51820), 88605, 88610 Battery Type 88625 (included with Model 51820), 88620, 88640, 88660, or 88675 Appropriate Temperature Ranges Charge/ store the battery pack 5°C (41°F) to 40°C (104°F)* Use the battery pack at -30°C (-22°F) to 49°C (120°F) -
Page 9: Operation
Operation WARNING The blower can throw debris, possibly causing serious personal injury to you or bystanders. • Do not blow hard objects, such as nails or bolts. • Do not operate the blower near bystanders or pets. • Be careful of blowing direction (i.e., blow away from bystanders, windows, automobiles, etc.). - Page 10 Adjusting the Air Speed of Removing the Battery from the Blower the Blower To achieve maximum performance (air speed) , press Press down on the battery latch to separate the and hold the turbo boost button for the desired amount battery from the blower (Figure 10).
-
Page 11: Charging The Battery Pack
Charging the Battery Pack Green Battery pack is charged Battery pack and/or battery charger is over or under Important: The battery pack is not fully charged the appropriate temperature range when you purchase it. Before using the tool for Battery pack charging fault* the first time, place the battery pack in the charger blinking and charge it until the LED display indicates the... - Page 12 If you are located outside of the US • Do not store the tool with the battery pack installed. and Canada, please contact your authorized Toro distributor. • Clean all foreign material from the product. • When not in use, store the tool, battery pack, and battery charger out of the reach of children.
-
Page 13: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The tool does not start. - Page 14 Notes:...
- Page 15 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
