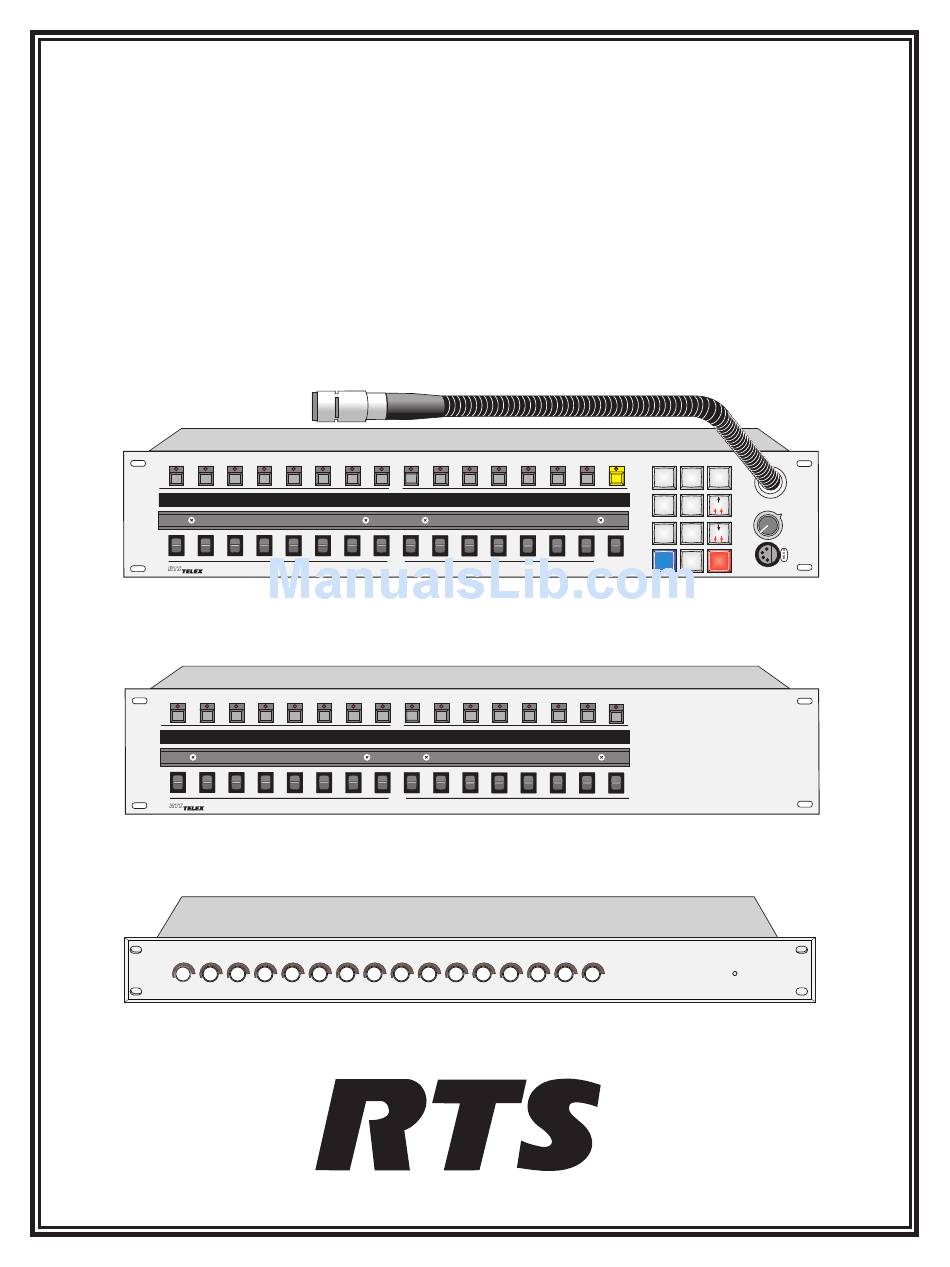

OPERATING INSTRUCTIONS KP96 / KP97 SERIES KEYPANELS WITH EKP96 / EKP97 EXPANSION PANELS AND LCP-100A LEVEL CONTROL PANEL ™ ADAM , ADAM DIR PROD RACK PL01 Talk (Talk) Matrix Intercom System PROD RACK PL01 Talk (Talk) Matrix Intercom System 9350-7101-000 V8.3G, Rev B, 8/00 VERSION 8.3G... - Page 2 The sole obligation of Telex during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Telex.
-
Page 3: Table Of Contents
INTRODUCTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · DESCRIPTION OF USER CONTROLS AND FEATURES ·... -
Page 4: List Of Figures
EKP96 / EKP97 Expansion Panels · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·... -
Page 5: Introduction
INTRODUCTION This manual describes the operating procedures for the KP96/KP97 keypanels when used in an ADAM, ADAM CS, or Zeus Intercom System. The operating procedures are divided into two parts: “Basic Keypanel Operation” (page 7) which describes how to talk and listen over the intercom system, and “Advanced Operations” (page 9) which describes how to program key assignments, change setup pages, and display information about the key- panel setup. -
Page 6: Description Of User Controls And Features
DESCRIPTION OF USER CONTROLS AND FEATURES (See Figure 1 for numbered callouts) 1. Designation Strip Holder: A strip can be inserted here to identify the talk key assignments if required. 2. Display Window: The display window contains a separate indicator for each talk key. The indicators can be either 4-character, alpha-numeric displays or LED’s, depending on the keypanel model. -
Page 7: Basic Keypanel Operation
BASIC KEYPANEL OPERATION 2.1.1 POWER SWITCH A power switch is located on the back of each keypanel, expansion panel, and level control panel next to the power cord. 2.1.2 POWER-UP INDICATIONS Keypanels with Alpha-Numeric Displays: When power is turned on, the talk key displays will first display aster- isks (****) then dashes (----). -
Page 8: Receiving Calls From Other Keypanels
2. In some cases you may not be able to hear the person, party line etc. to whom you are talking. In such cases, tap the listen key above the talk key. The listen key LED illuminates when the key is on. (See notes, below.) 3. -
Page 9: Advanced Operations
ADVANCED OPERATIONS GENERAL The intercom system’s configuration computer and software are the primary tools for creating and saving inter- com system configurations. If your keypanel is equipped with a programming keypad, you can also change set- tings for your keypanel from the keypad, provided restrictions have not been imposed using the intercom system configuration software. - Page 10 3.3.1.1 Keypanel Identification E-PNL DISPLAY 3.3.1.2 Level 2 Talk Key Assignments For Stacked Talk Keys A stacked talk key activates two types of communication at once. For example, a stacked talk key could simultaneously activate audio output to a transmitter and key the transmitter using a relay. The audio out- put is called the level l assignment and the relay is called the level 2 assignment.
-
Page 11: Display Requests Using Scrolling
additional expansion panels are connected, the setup pages for these will also be displayed using the same format. 3.3.1.5 Test Mode E-PNL DISPLAY Tap the CLR key to exit test mode. 3.3.2 DISPLAY REQUESTS USING SCROLLING The display requests described previously can also be accessed using scrolling. Scrolling also offers several addi- tional features. -
Page 12: Assigning Setup
Table 1: Display Requests Using Scrolling NAME DESCRIPTION Briefly displays the panel number of the keypanel (same as FUNC_DISPLAY_1). LEV2 Briefly displays the level 2 talk key assignments (same as FUNC_DISPLAY_2). LSTN Briefly displays listen key assignments (same as FUNC_DISPLAY_3). Gets a list of all crosspoints to this keypanel which are closed and displays the list in the incoming messages window. - Page 13 2. Select setup page 1-4 (4 in this example). PHONE RELAY 3. Tap the PGM key. 4. On the desired keypanel or expansion panel, press any talk or listen key. If the panel has alpha-numeric dis- plays, the new key assignments should appear in a few moments. Notes •...
-
Page 14: Programming Talk And Listen Keys
PROGRAMMING TALK AND LISTEN KEYS 3.5.1 GENERAL There are three methods to program talk and listen keys. These methods are summarized below and explained on the following pages. Key Assignment using Keypad Numeric Entry: Using this method, you enter the panel number, party line number etc. - Page 15 2. If the keypanel, belt pack etc. that you want to assign to a key is located in a remote intercom system, enter the intercom system number (7 for example). Otherwise, skip to step 3. COPYCW Intercom system numbers are the numbers that appear in the “Icm” column in CStrunk when you select “Names”...
- Page 16 3.5.2.2 Assigning a Party Line to a Key A party line is a group of intercom stations that can always talk and/or listen to each other. Party lines are set up using the intercom system configuration software. Once a party line has been set up, it can be assigned to a key as follows: 1.
- Page 17 Notes • If a key will not accept an assignment, the party line that you are trying to assign may have been restricted (not enabled) by the intercom system configuration software. The intercom system configuration software can also be used to restrict individual keypanel keys to prevent key assignments. •...
- Page 18 tap 1 for Auto Listen, or... tap 2 for Auto Follow, or... tap 3 for Auto Mute, or... AUTO tap 4 for Auto Reciprocal, or... PHONE RELAY tap 5 for All Call. 3. After selecting a special function, tap the PGM key. 4.
- Page 19 If a key will not accept an assignment, the special function that you are trying to assign may have been restricted (not enabled) by the intercom system configuration software. The intercom system configuration software can also be used to restrict individual keypanel keys to prevent key assignment. Special functions are always assigned in the local intercom system only.
- Page 20 4. Enter the special list number (4 in this example). PHONE RELAY 5. Tap the PGM key. 6. Press a talk (or listen) key. If a talk key is pressed, the name of the special list will appear in the alpha-numeric display above that talk key (on keypanels so equipped).
- Page 21 2. Tap the IFB key. 3. If the IFB is located in a remote intercom system, enter the intercom system number (5 in this example). Oth- erwise, skip to step 4. Intercom system numbers are the numbers that appear in the “Icm” column in CStrunk when you select “Names”...
- Page 22 3.5.2.6 Assigning an ISO to a Key ISO is a special type of communication used with party lines that have been setup using the intercom system’s party line feature. ISO is used when a keypanel operator wants to isolate a member of a party line to give instruc- tions without interference from other communications on the party line.
- Page 23 5. Tap the PGM key. 6. Press a talk key. The name of the ISO will appear in the alpha-numeric display above that talk key (on key- panels so equipped). If a key will not accept an assignment, the ISO that you are trying to assign may have been restricted (not enabled) by the intercom system configuration software.
- Page 24 Intercom system numbers are the numbers that appear in the “Icm” column in CStrunk when you select “Names” or “Setup” from the Intercoms menu. 4. Enter the relay number (2 in this example). 5. Tap the PGM key. 6. Press a talk (or listen) key. If a talk key is pressed, the name of the relay will appear in the alpha-numeric display above that talk key (on keypanels so equipped).
-
Page 25: Programming Key Assignments Using Copy
LEVEL 1: PANEL 45 PHONE RELAY LEVEL 2: RELAY 5 If a key will not accept an assignment, the destination (relay, intercom port etc.) that you are trying to assign may have been restricted (not enabled) by the intercom system configuration software. The intercom system configuration software can also be used to restrict individual keypanel keys to prevent key assignment. - Page 26 2. Press the talk or listen key to which the call is to be copied. If a talk key is pressed, the name of the key assignment that you are copying will appear in the alpha-numeric display above that talk key (on keypanels so equipped). If a listen key is pressed, the copied name will appear briefly in the alpha-numeric display below that key, and after a few seconds, the talk key assignment for that key will reappear.
-
Page 27: Programming Key Assignments Using Alpha Scrolling
5. Repeat the steps to assign additional keys. If a key will not accept an assignment, the destination (intercom port, party line etc.) that you are trying to assign may have been restricted (not enabled) by the intercom system configuration software. The intercom system configuration software can also be used to restrict individual keypanel keys to prevent key assignment. - Page 28 The following abbreviations are used for types of communication: Point-to-Point Party Line SPCL Special List Relay 4. When the desired type of communication has been selected, press PGM to retrieve the requested list. Pressing PGM also exits type scroll mode and places the keypanel in single-step scroll mode. In some cases, “WAIT”...
-
Page 29: Clearing Or Canceling A Key Assignment
a. Tap COPY CW COPYCW EX COPY b. Press the talk or listen key you want to copy to. If a talk key is pressed, the name of the key assignment that you are copying will appear in the alpha-numeric display above that talk key (on keypanels so equipped). If a listen key is pressed, the copied name will appear briefly in the alpha-numeric display below that key, and after a few seconds, the talk key assignment for that key will reappear. - Page 30 3. Tap the key to be cleared. This can be either a talk or listen key. If a key will not clear, restrictions may have been imposed using the intercom system configuration software. 3.5.5.2 Method 2: Copying a Blank Key Assignment to the Key that You want to Clear 1.
-
Page 31: Activating The Tone Generator
3.5.6 ACTIVATING THE TONE GENERATOR You can check a keypanel’s audio send and receive paths to and from the matrix using the built-in tone generator. To activate the tone generator, enter: E-PNL DISPLAY To check the audio path to and from the intercom matrix, assign a talk key on the keypanel to talk to itself. When you activate the talk key, you should be able to hear the tone from the keypanel speaker.
