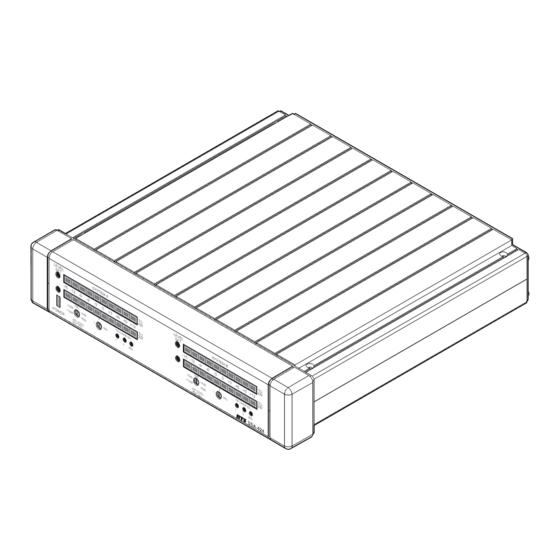

- Page 1 Dual Digital Hybrid ADAM™, ADAM CS™, Zeus™ Intercom Systems - 1 5 - 1 2 - 1 0 d B 0 d B 9350-7638-000 Rev C 10/04 SSA-424 - 1 5 - 1 2 - 1 0 d B 0 d B...
- Page 2 PROPRIETARY NOTICE The RTS production information and design dis- closed herein were originated by and are the prop- erty of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduc- tion, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.
-
Page 3: Table Of Contents
...9 ...10 ...10 ONNECTION ...11 ADAM, ADAM CS, THER OMMUNICATON ...13 NABLE NHIBIT ...13 , RTS TW UDIOCOM THER OMMUNICATION EUS INTERCOM SYSTEMS ...16 ...16 ...17 NSTALLATION ...7 YSTEMS ...11 ...13 YSTEMS ...14 LEAR ...14 YSTEM ...15 SSA-424 U ANUAL... - Page 4 4 SSA-424 U ANUAL...
-
Page 5: Description And Specifications
The result is easy and accurate setup. With the SSA-424, all need for test tones, nulling adjustments and ducking adjustments have been eliminated. -
Page 6: Front And Back Panel Descriptions
There is a power ON/OFF and call indicator at the left of the front panel. This indicator lights continuously when the SSA-424 is turned on and flashes when an incoming call signal is detected. The remainder of the front panel is divided into controls and indicators for the two separate hybrids, labeled SYSTEM A and SYSTEM B. -
Page 7: Installation
Warranty Card User Instruction Manual OUNTING Place the SSA-424 on a desktop, or install it in an equipment rack using an RTS MCP Rack Mount Kit. Several rack mount options are available (Figure2, page 8). There are no special ventilation require- ments for the SSA-424, but allow for ventilation around the power pack. - Page 8 Side-By-Side Rack Mount Configuration Using an MCP1 Rack Mount Kit Single-unit Rack Mount Configuration Using an MCP2 Rack Mount Kit Console Mount Configuration Using an MCP3 Console Mount Kit Tandem Configuration Using an MCP4 Tandem Mount Kit Figure 2. Rack mount configurations 8 SSA-424 U ANUAL...
-
Page 9: 2- Wire Audio Connections
2.4.2 1 You can directly connect standard Audiocom 1- channel cables. Connect one Audiocom channel to the J1A connector on the back of the SSA-424 (System A). Connect a second Audiocom channelto the J1B connector (System B). If your Audiocom system uses 2-channel cables, use a... -
Page 10: Clear -Com Audio Connection
You can therefore connect the SSA-424 to powered Clear-Com cables, and it will not draw any power from the Clear-Com system. 2 On the SSA-424 front panel, set the System A and System B 2W CHAN SEL switches to position 2. -
Page 11: 4- Wire Call Signal Connections
GPI input #1; however, you may use any other available GPI inputs and outputs. The Call Enable/Inhibit connection is optional. It gives you the ability to disable call signaling using a GPI output. However, when connecting to a Clear-Com intercom system, if an enable/ inhibit switch is not connected, a jumper must be installed as shown to enable call signaling. - Page 12 Table 2. UIO-256 GOI Inputs Connector (J7) Table 3. UIO-256 GPI Outputs Connector (J5) 12 SSA-424 U ANUAL c t i c t i...
-
Page 13: Call Signal Connections For Other 4-Wire Communicaton Systems
The SSA-424 accepts a switch-contact input from the 4-wire system and then generates a call signal output to the 2-wire system. The SSA-424 also accepts an optional switch contact input to enable or inhibit call signaling between the 4-wire and 2-wire systems. -
Page 14: 2-Wire Call Signal
Pin 3: Balanced 20 kHz - Input/Output SSA-424 Signal Specifications for balanced configu- ration: SSA-424 Receive: 20kHz ±100 Hz, 100mV p-p SSA-424 Send: 20 kHz ±800 Hz, 1V p-p Unbalanced Configuration 1 Pin 1: 20 kHz Common Pin 2: 20 kHz Input/Output... -
Page 15: Operation
Operation ENERAL NSTRUCTIONS 1 Attach the power pack to the SSA-424, and apply power to all components. Confirm that the power indicator is lit on the SSA-424 front panel. 2 The power indicator flashes when a call signal is received fron a 2-wire line. The SSA-424 level displays should help to confirm which line is calling. -
Page 16: Appendix
This provides access to all internal adjustments. 3 For option card installation, slide the circuit board out toward the back to remove it from the bottom cover. Telex Communications, Inc., Made in U.S.A. 2 WIRE SYSTEM 4 WIRE SYSTEM Figure 9. Location of screws for disassembly. -
Page 17: All Ignal Ption Ard Nstallation
