Page 1 Smart Sensor 2D CMOS Laser Type ZS-HL Series User's Manual Cat. No. Z236-E1-06...
Page 2 Introduction This manual provides information regarding functions, performance and operating methods that are required for using the ZS-HL Series. When using the ZS-HL Smart Sensor, be sure to observe the following: • The ZS-HL Smart Sensor must be operated by personnel knowledgeable in electrical •...
Page 3 SECTION 3 FUNCTIONS AND OPERATIONS USED DURING OPERATION SECTION 4 SETTINGS FOR FUNCTIONS SECTION 5 SECTION 6 USB/RS-232C COMMUNICATION SECTION 7 SPECIFICATIONS AND EXTERNAL DIMENSIONS SECTION 8 APPENDIX SECTION 9 User’s Manual Smart Sensor 2D CMOS Laser Type ZS-HL Series...
Page 4: Terms And Conditions Agreement
Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
Page 5 It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.
Page 6: Meanings Of Signal Words
Introduction Meanings of Signal Words Meanings of Signal Words The following signal words are used in this manual. Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death.
Page 7: Regulations And Standards
Introduction Precautions for Safe Use Precautions for Safe Use Please observe the following precautions for safe use of the products. (1) Installation Environment • Do not use the product in environments where it can be exposed to inflammable/ explosive gas. •...
Page 8: Precautions For Correct Use
Introduction Precautions for Correct Use Precautions for Correct Use Please observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects on product performance. (1) Installation Site Do not install the product in locations subjected to the following conditions: •...
Page 9 Introduction Precautions for Correct Use (3) Orientation when Installing the Sensor Controller To improve heat radiation, install the Sensor Controller only in the orientation shown below. Do not install the Sensor Controller in the following orientations. (4) Warming Up After turning ON the power supply, allow the product to stand for at least 30 minutes before use.
Page 10: Editor's Note
Introduction Precautions for Correct Use Editor's Note Page Format Title of each section Header Overview Section5 Setting the Filter Function Setting the Filter Function Set the conditions for filtering information obtained from the sensor. Displacement Waveform when filter Smooth function is not Spike-like changes are Cross-header SMOOTH...
Page 11 Introduction Precautions for Correct Use  Meaning of Symbols Menu items that are displayed on the Sensor Controller’s LCD screen, and windows, dialog boxes and other GUI elements displayed on the PC are indicated enclosed by brackets [aa].  Vidual Aids Indicates points that are important to ensure full product performance, such as operational precautions and application procedures.
Page 12 Introduction Precautions for Correct Use MEMO ZS-HL User’s Manual...
Page 13: Table Of Contents
Precautions for Safe Use Precautions for Correct Use Editor's Note Page Format CONTENTS Search from Menu Tree Section 1 FEATURES Introduction of the ZS-HL Series System Configuration Part Names and Functions Sensor Head Sensor Controller Operation Modes Setting Flow Section 2 INSTALLATION & CONNECTION...
Page 14 Introduction Operating Environment 2-14 Installation/Uninstallation Method 2-15 Starting and Exiting SmartMonitor ZS 2-19 Section 3 APPLICATION and SETTING EXAMPLES Measuring Height (basic) Measuring the Thickness of Transparent Objects Measuring the Vertex 2 (peak) in the Line Beam Measuring Multiple Items Simultaneously (Multi-Task) Section 4 FUNCTIONS AND OPERATIONS USED DURING OPERATION Switching the Display of the Measured Value List of Key Operations in RUN Mode...
Page 15 Introduction Setting the Scaling 5-14 Setting HOLD Functions 5-18 Setting the Zero Reset Function 5-22 Setting for Measurement of Characteristic Points 5-24 Setting Display Method 5-25 Setting the Digital Display 5-25 Displaying HELP 5-25 Setting the LCD Screen 5-26 Setting the System Environment 5-27 Checking Information 5-27...
Page 16 Introduction Setting Focus 6-13 Setting the Update Cycle 6-14 Settings for Processing when Measurement Cannot be Performed 6-15 When Connecting ZS-MDC and ZS-DSU 6-16 Settings for Input Signal 6-17 Settings for the Active Direction of an Input Signal 6-17 Changing the Assignment of Input Signals 6-17 Timing Charts 6-18...
Page 17 Introduction Panel Mount Adapter 8-43 Extension Cable 8-44 Extension Cable (Long-Distance, Flexible Type) 8-45 RS-232C Cable 8-47 Control Link Unit 8-48 Real-Time Parallel Output Unit 8-49 Section 9 APPENDIX Troubleshooting Error Messages and Countermeasures Safety Precautions for Using Laser Equipment Requirements from Regulations and Standards Summary of Requirements to Manufactures Summary of Requirements to User...
Page 18: Contents
Introduction CONTENTS Search from Menu Tree  FUN Mode  For the Single-Task mode *Default Value FUN Mode Settings Option/Range Pages SENSING MODE STAND, HI-RESO , HI-SPEED, HI- p.5-6 SENS CUSTOM (EXPOSE, SKIP, LINE) GAIN , 2, 3, 4, 5 p.5-7 SETTING DIFFUSE, REGULAR...
Page 19 Introduction CONTENTS Settings Option/Range Pages I/O SET NO MEAS KEEP, CLAMP p.6-15 0 to 999.999 (default value: 0.05 % p.6-7 JUDGE of Sensor Head measuring range) TIMER , OFF-DLY (1 to 5,000 ms), ON-DLY (1 to 5,000 ms), 1SHOT (1 to 5,000 ms) ANALOG FOCUS , ON...
Page 20 Introduction CONTENTS  For Multi-Task mode The menu configuration is changed to one in which multiple characteristic points can be measured and output simultaneously (up to four characteristic points). Single-Task mode Multi-Task mode SENSING TASK1 I/O SET SENSING TASK1 TASK2 TASK3 TASK4 I/O SET FILTER OUTPUT MEASURE...
Page 21 Introduction CONTENTS Option/Range Settings Pages (Difference with Single-Task mode) TASK1 I/O SET NON-MEAS (Same as Single-Task mode) – Select TASK you JUDGE (Same as Single-Task mode) – want to output. TIMER (Same as Single-Task mode) – TASK1 , TASK2, TASK3, TASK4 p.6-8 ANALOG FOCUS...
Page 22 Introduction CONTENTS  RUN mode In RUN mode, you can customize the details that are displayed in the digital displays. To call up the display customize menu, press the MENU key in RUN mode. Settings Option/Range Pages RUN Mode 0 to 5th p.5-25 (Item whose default value varies DIGITAL...
Page 23: Section 1 Features
Section 1 FEATURES Introduction of the ZS-HL Series System Configuration Part Names and Functions Sensor Head Sensor Controller Operation Modes Setting Flow ZS-HL User’s Manual...
Page 24: Introduction Of The Zs-Hl Series
Section 1 Introduction of the ZS-HL Series Introduction of the ZS-HL Series The ZS-HLDC Series is a 2D COMS laser type displacement sensor. In addition to ZS-L full-digital processing, it maximizes sensing performance using a multi-task function. Sensor Head LD ON ZERO ENABLE...
Page 25: System Configuration
Output unit to check the measured value in a time ZG-RPD_1 series graph. • Obtain measurement data quickly (exclusive to the ZS-HL Series) : Accessory for the Sensor Controller ZS-HLDC_1A Extension cable for Sensor Head Power supply DC24 V (±10 %)
Page 26: Part Names And Functions

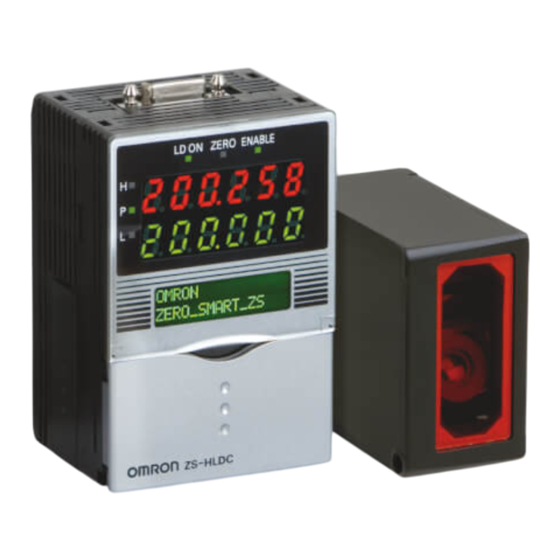

Section 1 Part Names and Functions Part Names and Functions The following describes the names and functions of parts of the Sensor Head and Sensor Controller. Sensor Head [ZS-HLDS2T] [ZS-HLDS5T/HLDS10] (3) Receiver (6) NEAR (6) NEAR indicator (2) Emitter section section indicator (5) FAR indicator...
Page 27: Sensor Controller
Section 1 Part Names and Functions Names Functions FAR Indicator These indicators light up as follows according to the distance between the front of the Sensor Head and the workpiece. NEAR Indicator Both NEAR/FAR indicators are lit up: Measuring center distance ± (measuring range ×...
Page 28 Section 1 Part Names and Functions Names Functions ENABLE indicator The ENABLE indicator lights when the Sensor is ready for measurement. It goes off when measurement is not possible (e.g. when the received light amount is excessive or insufficient, when the measuring range is exceeded, or when measure- ment is not being performed in FUN mode).
Page 29: Operation Modes
Section 1 Operation Modes Operation Modes The ZS-HL has the following 3 operating modes. Switch to the desired mode before you start operation. To switch the operating mode, use the mode switch. LD ON ZERO ENABLE TEACH Mode Description RUN Mode Normal operating mode TEACH Mode This mode is for setting the judgment threshold values.
Page 30: Setting Flow
Section 1 Setting Flow Setting Flow Installation & Connection Section2 Attach a Sensor Head according to the front side p.2-2 INSTALLATION & CONNECTION material of the workpiece and the features of the Sensor. Turn ON the power. Single-Task Multi-Task Switching to Multi-Task Mode p.5-4 Selecting Tasks p.5-5...
Page 31 Section 1 Setting Flow Executing Zero Reset p.4-6 Threshold Setting p.4-7 Bank Switching p.4-10 p.5-8 Adjusting and Setting Sensing Setting the Emitted Light Amount p.5-11 Conditions Setting Mutual Interference Prevention p.5-7 Setting GAIN p.5-12 Setting the Filter Function Setting SMOOTH p.5-13 Setting AVERAGE p.5-13...
Page 32 Section 1 Setting Flow MEMO ZS-HL 1-10 User’s Manual...
Page 33: Section 2 Installation & Connection
Section2 INSTALLATION & CONNECTION About Installation and Connection Sensor Head Measuring Range Basic Precautions for Installation Connecting the Sensor Head Sensor Controller Installation of Sensor Controller Wiring the I/O cable 2-10 I/O Circuit Diagrams 2-12 SmartMonitor ZS 2-14 Operating Environment 2-14 Installation/Uninstallation Method 2-15...
Page 34: About Installation And Connection
Section2 About Installation and Connection About Installation and Connection  Checking the installation environment Read “Important Points on Safety” at the beginning of this manual, and check the installation environment.  Checking the installation site Read “Notes on Use” at the beginning of this manual, and check the installation site. ...
Page 35: Measuring Range
Section2 Sensor Head Measuring Range The ZS-HL Series displays - (minus) for the NEAR side and + (plus) for the FAR side with the measuring center distance set to 0 (zero). Example: For the Sensor Head ZS-HLDS2T -1 mm NEAR side...
Page 36: Basic Precautions For Installation
Section2 Sensor Head Basic Precautions for Installation Color/shiny surface boundary Installing near walls Measurement errors can be reduced by Wrong Right installing the Sensor Head with the line formed by the emission and reception axes parallel to the wall, and painting the wall with Reception axis non-reflective black paint.
Page 37: Connecting The Sensor Head
Section2 Sensor Head Connecting the Sensor Head This connector connects the Sensor Head and controller. Before connecting/disconnecting the Sensor Head, make sure that the Smart Sensor is turned OFF. The Sensor Controller may break down if it is connected or disconnected while the power is ON. ...
Page 38 Section2 Sensor Head  Extension Cable There are three ways to extend a cable. • Entire length within 12 m Extension cable Cable for the Sensor Head ZS-XC_A_: 1 m, 4 m, 8 m : 0.5 m, 2 m ZS-XC_B(R): 5 m, 10 m •...
Page 39: Sensor Controller
Section2 Sensor Controller • Only the ZS-XC_B(R) cable allows this extended connected. Note, however, that the connection with the ZS-XC_A cannot be extended. • The cable may break at locations where it is made to bend. So, use a robot cable type extension cable (ZS-XC5BR, ZS-XC_ _CR).
Page 40 Section2 Sensor Controller  Installation procedure Hook the connector end of the Sensor Controller onto the DIN track. Hook on connector Hook on I/O cable Push the Sensor Controller down onto the DIN track until the hook on the I/O cable side is locked.
Page 41 Section2 Sensor Controller Install the small Mount Adapters on the Panel Mount four holes of the Sensor Controller. Adapter Panel Mount Adapter Install the long Mount Adapters on the Panel Mount Adapter two holes of the small Mount Adapter. Panel Mount Adapter Install the Sensor Controller with Panel Panel...
Page 42: Wiring The I/O Cable
Section2 Sensor Controller Wiring the I/O cable The following shows the leads that comprise the I/O cable. Brown (1) Power supply Blue (2) GND (3) OUT0 Green (4) OUT1 Black (5) OUT2 Pink (6) OUT3 Gray (7) OUT4 Co-axial (black) (8) Linear output Shielded (9) Linear GND...
Page 43 Section2 Sensor Controller (7) OUT4 (BUSY output) This turns ON during sampling with the hold function enabled. It allows you to check whether or not the self-trigger is functioning correctly. It also turns ON during bank switching. (8) Linear output The linear output outputs a current or voltage in accordance with the measured value.
Page 44: I/O Circuit Diagrams
Section2 Sensor Controller I/O Circuit Diagrams  NPN type (ZS-HLDC11) Brown DC24 V Load OUT0 Load Green OUT1 Load Black OUT2 Load Pink OUT3 Load Gray OUT4 DC24 V Blue GND (0 V) Yellow Light blue Purple White Orange Current output 4 to 20 mA Current voltage/ Co-axial (black)
Page 45 Section2 Sensor Controller  PNP type (ZS-HLDC41) Brown DC24 V OUT0 Green OUT1 Load Black OUT2 Load Pink OUT3 Load Gray OUT4 Load 24 V Load Blue GND (0 V) Yellow Light blue Purple White Orange Current output 4 to 20 mA Co-axial (black) Linear output Current voltage/...
Page 46: Smartmonitor Zs
Section2 SmartMonitor ZS SmartMonitor ZS ZS-HL is provided with the SmartMonitor ZS software utility. This utility allows you to set up sensing functions and monitor the waveforms of measurement results on a personal computer. SmartMonitor ZS (accessory for ZS-HLDC_1A) USB cable ...
Page 47: Installation/Uninstallation Method
Section2 SmartMonitor ZS • Other item names or system names are the trademarks or registered marks of other companies. Installation/Uninstallation Method The following describes the preparations for using SmartMonitor ZS.  Installing SmartMonitor ZS • Before you install SmartMonitor ZS, quit all other programs that are running. If virus detection soft- ware is enabled, installation may take time to complete.
Page 48 Section2 SmartMonitor ZS  Installing the USB driver The USB driver must be installed on the personal computer to establish a connection between the personal computer and the Sensor Controller by the USB interface. • The exclusive USB driver must be installed only when the Sensor Controller is connected to the personal computer for the first time.
Page 49 • When the Sensor Controller is not detected automatically Click the [Browse] button and select [USB] folder on the CD-ROM. • To install on a personal computer not equipped with a CD-ROM drive Select [Specify directory], and specify the [Program Files]-[OMRON]-[SmartMonitorZS]- [usb] folder. ZS-HL 2-17 User’s Manual...
Page 50 Section2 SmartMonitor ZS Make sure that the optimum driver has been detected, and click the [Next>] button. Installation begins. When installation ends, the completion message is displayed. Click the [Finish] button. The same screen in step 2 is displayed. Repeat the above procedure. This completes installation of the USB driver.
Page 51: Starting And Exiting Smartmonitor Zs
Sensor USB COM] is set to. Set this COM port No. to the [Communication Settings] screen on Smart- Monitor ZS. If “OMRON Smart Sensor USB COM” is not recognized in Device Manager, re-install the USB driver and reboot the personal computer.  Exiting SmartMonitor ZS Exit SmartMonitor ZS by the following procedure.
Page 52 Section2 SmartMonitor ZS MEMO ZS-HL 2-20 User’s Manual...
Page 53 Section3 APPLICATION and SETTING EXAM- PLES Measuring Height (basic) Measuring the Thickness of Transparent Objects Measuring the Vertex 2 (peak) in the Line Beam Measuring Multiple Items Simultaneously (Multi-Task) ZS-HL User’s Manual...
Page 54: Measuring Height (Basic)
Section3 Measuring Height (basic) Measuring Height (basic) This section describes the basic setting procedures for measuring height. Name of the Controller and Key Code Sensor head LD ON ZERO ENABLE Main display Sub-display MENU TEACH height Setting for sensing conditions Set the mode switch to FUN.
Page 55 Section3 Measuring Height (basic) Saving the Settings Set the mode switch to RUN. TEACH Select [Yes] and save the settings. Is change saved ? Measurement Check the measured value. Measurement center = 0 Measured value ZS-HL User’s Manual...
Page 56: Measuring The Thickness Of Transparent Objects
Section3 Measuring the Thickness of Transparent Objects Measuring the Thickness of Transparent Objects If you already know the glass thickness, you can adjust the scaling with reference to the thickness, and easily measure the thickness of a transparent object. [Points for installation] Sensor Head •...
Page 57 Section3 Measuring the Thickness of Transparent Objects Setting Scaling Set the actual workpiece within the measuring range. Measuring distance Measuring range Select [OUTPUT]-[SCALING]-[ON]- AUTO MANUAL [AUTO]. When you want to execute [SCALING FOR GLASS THICKNESS], set the workpiece within the measuring range. In the status in which a measurement cannot be performed, you cannot set the scaling (automatic).
Page 58: Measuring The Vertex 2 (Peak) In The Line Beam
Section3 Measuring the Vertex 2 (peak) in the Line Beam Measuring the Vertex 2 (peak) in the Line Beam The following describes the setting procedure for measuring a small vertex. Line beam Peak Set the mode switch to FUN. TEACH Select [ON] in [SYSTEM]-[MULTI- TASK].
Page 59 Section3 Measuring the Vertex 2 (peak) in the Line Beam Saving the Settings Set the mode switch to RUN. TEACH Select [Yes] and save the settings. Is change saved ? Measurement Check the measured value. Measured value You can measure the bottom or step using the same procedure. Select [BOTTOM] or [STEP] at step 5. Step Bottom ZS-HL...
Page 60: Measuring Multiple Items Simultaneously (Multi-Task)
Section3 Measuring Multiple Items Simultaneously (Multi-Task) Measuring Multiple Items Simultaneously (Multi-Task) If you use the multi-task function, you can measure the height and surface fluctuation simultaneously. The following describes the procedure for setting “height” for TASK1 and “surface fluctuation” for TASK2. Surface fluctuation (TASK2) Height (TASK1) Set the mode switch to FUN.
Page 61 Section3 Measuring Multiple Items Simultaneously (Multi-Task) Select [AVERAGE] in [OUTPUT]- P – P AVERAGE [HOLD]-[TYPE]. SAMPLE Set the mode switch to TEACH. TEACH Select [Yes] and save the settings. Is change saved ? Set the threshold value. Value Digit Setting surface fluctuation (TASK2) Set the mode switch to FUN.
Page 62 Section3 Measuring Multiple Items Simultaneously (Multi-Task) Set the threshold value using the same steps from 7 to 9. Measurement Set the mode switch to RUN. TEACH Select [Yes] and save the settings. Is change saved ? Measure workpiece while T r i g g e r ON pressing the UP key.
Page 63 Section4 FUNCTIONS OPERATIONS USED DURING OPERATION Switching the Display of the Measured Value List of Key Operations in RUN Mode Zero Reset Operation Threshold Setting Bank Switching (change of device setup) 4-10 ZS-HL User’s Manual...
Page 64: Switching The Display Of The Measured Value
Section4 Switching the Display of the Measured Value Switching the Display of the Measured Value In RUN mode, You can switch the display for main/sub-display during the operation. You can check the threshold value and resolution while displaying the measured value according to the application.
Page 65 Section4 Switching the Display of the Measured Value Details displayed on the sub-display Display Details Description THRESH Displays the HIGH/LOW threshold values according to the setting of the threshold switch. VOLTAGE (CURRENT) Displays the voltage (current) to be linearized. The display details change accord- ing to the setting of the current/voltage switch.
Page 66: List Of Key Operations In Run Mode
Section4 List of Key Operations in RUN Mode List of Key Operations in RUN Mode Role Function keys In Multi-Task mode, this key switches the task. The key numbers from 1 to 4 correspond to the task numbers. ← LEFT key Changes sub-display content.
Page 67: Zero Reset Operation
Section4 Zero Reset Operation Zero Reset Operation When the zero reset function is used, the reference value “0” is registered as the height and the measured value can be displayed and output as a positive or negative deviation (tolerance) from the reference value. In RUN mode, the measured value can be reset to 0 at any timing during measurement.
Page 68 Section4 Zero Reset Operation  Executing/Canceling Zero Reset When the zero reset function is used, the measured value can be reset to a reference value of 0 when the ENT key is pressed or an external signal is input. Executing Zero Reset Place the reference sensing object in posi- tion.
Page 69: Threshold Setting
Section4 Threshold Setting Threshold Setting Switch to the TEACH mode and set the range in order for the measured value to be judged as PASS. Both HIGH and LOW threshold values are set. There are three judgment outputs: HIGH, PASS and LOW. HIGH threshold value Measured value LOW threshold value...
Page 70 Section4 Threshold Setting  TEACHING Performs measurement and uses the measurement results to set threshold values. Teaching is useful when threshold samples, i.e., with the upper and lower limits, can be obtained beforehand. Sensor Head Sensor Head Teaching point = HIGH threshold value Teaching point = LOW threshold value Threshold sample (upper limit)
Page 71 Section4 Threshold Setting  DIRECT IN The threshold values can be set by directly inputting numerical values. Direct input is useful when you know the dimensions for an OK judgment or when you want to fine- tune threshold values after teaching. The following describes the operation method using, as an example, the procedure for setting the HIGH threshold value by directly entering it.
Page 72: Bank Switching (Change Of Device Setup)
Section4 Bank Switching (change of device setup) Bank Switching (change of device setup) ZS-HL can hold up to four sets of settings, which are called a bank. When the device setup is changed, you can switch the bank externally. • What is bank? The settings for measurement are held as one bank.
Page 73 Section4 Bank Switching (change of device setup)  Bank Switching by Key Operations  FUN Mode-[BANK]-[CHANGE] Select the bank number. The current bank number is displayed on the main display. BAN K1 BANK2 BANK3 BANK4  Bank Switching by External Signal Input You need to change the function assignment for input signals.
Page 74 Section4 Bank Switching (change of device setup) MEMO ZS-HL 4-12 User’s Manual...
Page 75: Section 5 Settings For Functions
Section5 SETTINGS FOR FUNCTIONS Basic Operations of Sensor Controller Using the Multi-Task Function Setting for Sensing Conditions Setting the Filter Function 5-12 Setting Output Processing of Sensing Information 5-14 Setting for Measurement of Characteristic Points 5-24 Setting Display Method 5-25 Setting the System Environment 5-27 Changing the Way of Obtaining Banks...
Page 76: Basic Operations Of Sensor Controller Displays And Key Operations
Section5 Basic Operations of Sensor Controller Basic Operations of Sensor Controller Displays and Key Operations The settings are mainly specified in FUN mode. The LCD screen displays the setup menus in FUN mode. The No. at the top of each menu corresponds to a function key. “←...
Page 77 Section5 Basic Operations of Sensor Controller The following example describes basic operations for changing the measurement mode to [HI-RESO]. Press function key 1 representing SENSING FILTER [SENSING]. OUTPUT Press function key 1 representing MODE SETTING [MODE]. GAIN The currently selected No. is displayed STAND HI-RESO flashing.
Page 78: Using The Multi-Task Function
Section5 Using the Multi-Task Function Using the Multi-Task Function In the ZS-HLDC Series, you can set multiple measurement processing for one sensing condition. This measurement processing is called a “task.” • Application example: Measure the height and surface fluctuation simultaneously. Surface fluctuation (TASK2) Height (TASK1) Measuring Multiple Items Simultaneously p.3-8...
Page 79: Switching To Multi-Task Mode
Section5 Using the Multi-Task Function Switching to Multi-Task Mode Select “Single-Task mode” when you perform one measurement processing for one sensing, and select “Multi-Task mode” when you measure and judge multiple characteristic points simultaneously.  FUN Mode-[SYSTEM]-[MULTI-TASK] Setting Description Single-Task mode is selected. (default value) Multi-Task mode is selected.
Page 80: Setting For Sensing Conditions
Section5 Setting for Sensing Conditions Setting for Sensing Conditions Set the conditions to be used for detecting workpieces by the sensor. Setting Measurement Mode  Setting the Measurement Mode Set the measurement mode according to the measurement details (such as moving speed and measurement point of workpiece).
Page 81: Setting Gain
Section5 Setting for Sensing Conditions  Setting Custom Mode If you cannot perform measurement in the provided measurement modes, use Custom mode. You can change additional lines and exposure time, so that a measurement can be per- formed under conditions suitable for the surface status of the workpiece. Set in the order of [LINE] →...
Page 82: Setting Head Installation
Section5 Setting for Sensing Conditions Setting Head Installation Set how the Sensor Head is installed. This setting is automatically specified according to the type of the connected Sensor Head. However, if the Head is installed at an angle and the default value and reflection angle are changed, change the settings according to the status of the head installation.
Page 83: Setting Measurement Object
Section5 Setting for Sensing Conditions Setting Measurement Object Set the type of workpiece to be measured. In Multi-Task mode, [THICK] is not displayed.  FUN Mode-[SENSING]-[OBJECT] Setting Description STAND Usually, select this setting. (default value) Select this setting for workpieces such as PCBs through which light penetrates. MIRROR Select this setting for workpieces having a mirror surface.
Page 84 Section5 Setting for Sensing Conditions Setting Description THICK Mode1 Select this mode to measure the thickness of glass at high speed. Measures the thickness between (This is not displayed in Multi-Task mode.) Front side Raw glass Measure the thickness. Backside Mode2 Select this mode when you want to measure the thickness of glass stably.
Page 85: Setting Mutual Interference Prevention
Section5 Setting for Sensing Conditions Setting Mutual Interference Prevention Mutual interference between two Sensor Heads can be prevented by shifting the laser beam emission timing. Use this function when Sensor Heads must be set up inside an area where mutual interference is likely to occur or when a transparent workpiece will be measured sandwiched between two Sensor Heads.
Page 86: Setting The Filter Function
Section5 Setting the Filter Function Setting the Filter Function Set the conditions for filtering information obtained from the sensor. Displacement Waveform when filter Smooth function is not set Spike-like changes are SMOOTH removed. Average Changes are smoothed out. value Displacement Changes are extracted to eliminate displacement value.
Page 87: Setting Average
Section5 Setting the Filter Function Setting AVERAGE The average of the measured values obtained based on the preset number of samples can be output. Select this setting when you want to ignore sudden changes in measured values.  FUN Mode-[FILTER]-[AVERAGE] Setting Description 1, 2, 4, 8, 16, 32, 64, 128, 256, 512,...
Page 88: Setting Output Processing Of Sensing Information
Section5 Setting Output Processing of Sensing Information Setting Output Processing of Sensing Information Set how sensing information is to be processed for outputting the required values. Setting the Scaling This setting is used when you want to correct any errors that are generated due to the installation status of the Sensor Head, and display the corrected value on the main display.
Page 89 Section5 Setting Output Processing of Sensing Information  FUN mode-[OUTPUT]-[SCALING]-[ON]-[AUTO] Set the sensing object in place, and enter the desired setting to be used as the offset. The current measured value is displayed on the main display, and the offset value is displayed on the sub-display.
Page 90 Section5 Setting Output Processing of Sensing Information  Setting Two-point Scaling Measurement is performed at two positions and offset values are set for those mea- sured values. Example: Correcting display values to match actual distances Sensor Head Display value (mm) Actual distance:-3.0 mm Sensing Display value:-2.8 mm...
Page 91 Section5 Setting Output Processing of Sensing Information  FUN Mode-[OUTPUT]-[SCALING]-[ON]-[AUTO] Set the first point by following steps 1 to 4 of the one-point scaling procedure. INPUT POINT 1 VAL SET:OK Place the sensing object at the position (sec- ond point) to perform scaling, and enter the desired offset value (second point).
Page 92: Setting Hold Functions
Section5 Setting Output Processing of Sensing Information Setting HOLD Functions Set the hold conditions for measured values. The hold functions hold any value from the measured values during the specific period (sampling period), such as the maximum or minimum value. ...
Page 93 Section5 Setting Output Processing of Sensing Information Setting Description SAMPLE Holds the measured value at the start of the sampling period. The output changes at the start of the sampling period and is held until the start of the next sampling period. Output Current measured value...
Page 94 Section5 Setting Output Processing of Sensing Information Setting Description SELF-DN The sampling period is the period at which the measured value is smaller than the specified self-trigger level. Hold measurement is possible without a sync input. Measured value Hysteresis width Self-trigger level (for self-trigger) Action point...
Page 95 Section5 Setting Output Processing of Sensing Information  DELAY A delay time is set to ignore measured values immediately after the timing input. This is useful for avoiding bounding during device startup and the influence of machine vibra- tion. The delay time (the delay between timing input and the start of sampling) and the sam- pling period can be set.
Page 96: Setting The Zero Reset Function
Section5 Setting Output Processing of Sensing Information Setting the Zero Reset Function  TYPE Set how zero reset is to be executed.  FUN Mode-[OUTPUT]-[0RESET]-[TYPE] Setting Description REAL Sets the measured value when a zero reset is executed to zero. (default value) Measurement of height from reference surface Zero reset...
Page 97 Section5 Setting Output Processing of Sensing Information  0RESET MEMORY You can select whether or not to hold the measured value zero reset level even if the power is turned OFF.  FUN Mode-[SYSTEM]-[0RESET] Setting Description Zero reset is canceled when the power is turned OFF. (default value) The zero reset level is saved to memory even if the power is turned OFF.
Page 98: Setting For Measurement Of Characteristic Points
Section5 Setting for Measurement of Characteristic Points Setting for Measurement of Characteristic Points You can measure any measurement points within the range of received light by using the line beam characteristics and multi-task function. Set this menu when you measure subtle concavity and convexity in the workpiece or thickness of a transparent object.
Page 99: Setting Display Method
Section5 Setting Display Method Setting Display Method Set what you want to display on the Sensor Controller during measurement in RUN mode. To set the display method, switch to RUN mode and display the top menu. Setting the Digital Display Set what is displayed on the display in RUN mode.
Page 100: Setting The Lcd Screen
Section5 Setting Display Method Setting the LCD Screen Set how the LCD screen is displayed in RUN mode.  Setting display ON/OFF Set whether or not to display the LCD screen.  RUN Mode-MENU key-[LCD]-[ON/OFF] Setting Description Displays the LCD screen at all times. (default value) AUTOOFF Turns the LCD screen display OFF when no operations are performed for one min- ute.
Page 101: Setting The System Environment
Section5 Setting the System Environment Setting the System Environment Set the system environment. Checking Information Displays the sampling cycle and version of Sensor Controller system.  FUN Mode-[SYSTEM]-[INFO] Setting Description CYCLE Displays the current sampling cycle. VERSION Displays the version of the Sensor Controller system. Setting the Key Lock The key lock function disables all Sensor Controller keys.
Page 102: Setting The Sensor Load Method
Section5 Setting the System Environment/Changing the Way of Obtaining Banks Setting the Sensor Load Method Set whether or not to load information from the currently connected Sensor Head when the Sensor Controller is started up.  FUN Mode-[SYSTEM]-[SenINFO] Setting Description LOAD Reads the data currently saved on the Sensor Head each time that the Sensor Controller is started up.
Page 103: Saving The Settings Data
Section5 Saving the settings data/Clearing the Settings Saving the Settings Data Bank settings and system settings are saved internally on the Sensor Controller. • The settings of all banks are saved regardless of the currently selected bank No. • After you have made or changed settings, be sure to save the setup data. All settings will be deleted if you turn the power OFF without saving the data.
Page 104 Section5 Clearing the Settings MEMO ZS-HL 5-30 User’s Manual...
Page 105: Section 6 I/O
Section6 Overview I/O Cable Terminal Block Output Settings for Linear Output Assignment of Linear Output Setting Focus Correcting Linear Output Values Settings for Judgment Output Operation Settings at Judgment Output Assignment of Judgment Output (For Multi-Task) Settings for Terminal Block Output Real-Time Parallel Output Unit Assignment of Terminal Block Output 6-10...
Page 106: Overview
Section6 Overview Overview By using the I/O cable and terminal block output of the Sensor Controller, you can output the measured value or judgment result to external devices, or input a control signal such as zero reset and LD-OFF from external devices. A predetermined I/O signal is assigned to each signal line for the I/O cable.
Page 107: Settings For Linear Output
Section6 Settings for Linear Output Settings for Linear Output This section describes the settings required for linear output of the current measurement result. Assignment of Linear Output Sets the output for the linear output line. Depending on the selected task mode, the setting value differs.
Page 108: Setting Focus
Section6 Settings for Linear Output Setting Focus For the linear output, because the measured value is converted to a current of 4 to 20 mA or a voltage of -10 to +10, and is then output, you can freely set the relationship between the displayed measured value and output value.
Page 109: Correcting Linear Output Values
Section6 Settings for Linear Output Set point 2 in the same way as point 1. INPUT POINT 2 VAL SET:OK If the points are not set correctly, check the following: • Is the measured value set on the sub-display within the measuring range (with scaling and calculation settings reflected if set)? •...
Page 110 Section6 Settings for Linear Output Set the correction value for point 1. The measured value is displayed on the sub- display. Adjust the correction value on the sub-display so that the measured value of the ammeter (or voltmeter) and the output value shown on the INPUT POINT 1 main display are the same.
Page 111: Settings For Judgment Output
Section6 Settings for Judgment Output Settings for Judgment Output This section describes the settings for outputting the judgment result using the output cable. Operation Settings at Judgment Output Sets the hysteresis width for the upper and lower limits of judgments and the judgment output timing.
Page 112: Assignment Of Judgment Output (For Multi-Task)
Section6 Settings for Judgment Output Setting Description ON-DLY After the measurement result has been applied, delays turning Measured value ON the PASS output for the time HIGH threshold value set to the timer. Also delays turning OFF the HIGH and LOW outputs for the LOW threshold value timer time.
Page 113: Settings For Terminal Block Output
Section6 Settings for Terminal Block Output Settings for Terminal Block Output The following describes the methods for connecting a real-time parallel output unit (ZG- RPD_1) and outputting the measured value or judgment result at high speed. The measured value is converted to 16-bit binary data in the maximum steps of 65536, and is output.
Page 114: Assignment Of Terminal Block Output
Section6 Settings for Terminal Block Output  Circuit Specification The following circuit configuration is employed for the total of 17 outputs including data output (D0 to D15) and GATE signal. • ENPN output type (ZG-RPD11) • EPNP output type (ZG-RPD41) ZG-RPD41 Load DC24 V...
Page 115: Output Format
Section6 Settings for Terminal Block Output Output Format  When the measured value is output The measured value is converted to 16-bit binary data in the maximum steps of 65536, and is output. The following table lists the correspondence between the measured value and 16-bit binary data.
Page 116 Section6 Settings for Terminal Block Output • When multiple tasks are output continuously The TASK number is assigned for the lower 2 bits. Thus, the result is output for the measured value as data in which 2 bits are rounded up. b15 b14 b13 b12 b11 b10 Binary data of the measured value TASK No.
Page 117: Setting Focus
Section6 Settings for Terminal Block Output Setting Focus Enter the measured values for any two binary output values to set the output range. (default value: OFF) Example: Set 0 mm to 0 and 5 mm to 50000. (when ZS-HLDS5 is connected) Output value Output value 65535...
Page 118: Setting The Update Cycle
Section6 Settings for Terminal Block Output Set point 2 in the same way as point 1. INPUT POINT 2 VAL SET:OK If the points are not set correctly, check the following: • Is the measured value set on the sub-display within the measuring range (with scaling and calculation settings reflected if set)? •...
Page 119: Settings For Processing When Measurement Cannot Be Performed
Section6 Settings for Processing when Measurement Cannot be Performed Settings for Processing when Measurement Cannot be Performed Set the output methods for linear, judge, and terminal block when a non-measurement state occurs temporarily due to insufficient received light amount or the reset input state, for example.
Page 120: When Connecting Zs-Mdc And Zs-Dsu
Section6 When Connecting ZS-MDC and ZS-DSU When Connecting ZS-MDC and ZS-DSU When you transfer information to ZS-MDC or ZS-DSU, the target to be transferred is only one task. Select the task information to be transferred.  FUN mode-[I/O SET]-[CONNECT] • For Single-Task mode Setting Description Transfers to the connection target.
Page 121: Settings For Input Signal
Section6 Settings for Input Signal Settings for Input Signal This section describes the settings for controlling by using external input signals. Settings for the Active Direction of an Input Signal Set ON or OFF for an external input signal to an active state for each of the input wires. ...
Page 122: Timing Charts
Section6 Timing Charts Timing Charts The following shows the timing charts when communication is performed with external devices. The parts in which specific values are stated in the timing chart are the times that do not depend on the sampling cycle. ...
Page 123 Section6 Timing Charts  NORMAL Trigger input Trigger rest input Internal processing Judgment output BUSY output Linear output Item Minimum Average Maximum Remarks Minimum time of trigger Sampling – – input cycle × 4 T11 Response time of linear – –...
Page 124 Section6 Timing Charts  Sample Hold This is the timing charts when the trigger mode is external trigger. Trigger input Trigger rest input Internal processing Judgment output BUSY output Linear output Aver- Item Minimum Maximum Remarks Minimum time of trigger Sampling cycle ×...
Page 125 Section6 Timing Charts  PEAK/BOTTOM/P-P/AVERAGE HOLD This is the timing charts when the trigger mode is external trigger. The result processed at the timing drawn in diagonal line is the target of hold. For the sampling period, see the settings for [HOLD]. Setting HOLD Functions p.5-18 Trigger input Trigger rest input...
Page 126 Section6 Timing Charts  Bank Switching BANK input Internal processing BUSY output Judgment output Item Minimum Average Maximum Remarks T14 Time of receiving bank Sampling – Sampling switching input cycle × 3 cycle × 4 T15 Bank switching time It changes according to the measurement conditions as follows: (*1) •...
Page 127 Section6 Timing Charts  Zero Reset Zero reset input Judgment output Zero reset input Judgment output Item Minimum Average Maximum Remarks Zero reset input time 50 ms 0.8s Cancel time of zero reset 1s + sam- 1s + sam- input pling cycle ×...
Page 128 Section6 Timing Charts  Terminal Block (ZG-RPD)  When Judgment and Measured Values of TASK1/2/3/4 are Output The result of terminal block output is obtained at the falling edge of GATE signal. Laser beam emission Internal processing GATE signal TASK * or Thresh TASK * or Thresh TASK * or Thresh Terminal block output...
Page 129 Section6 Timing Charts  When Measured Value of Tasks are Output Continuously Laser beam emission Internal processing GATE signal Terminal block output TASK2 TASK3 TASK4 TASK1 TASK2 TASK3 TASK4 TASK1 Item Minimum Average Maximum Remarks Time during which the mea- –...
Page 130 Section6 Timing Charts  Terminal Block (ZS-RPD)  When Judgment and Measured Values of TASK1/2/3/4 are Output The result of terminal block output is obtained at the falling edge of GATE signal. Laser beam emission Internal processing GATE signal TASK * or Thresh TASK * or Thresh TASK * or Thresh Terminal block output...
Page 131 Section7 USB/RS-232C COMMUNICATION Overview RS-232C Connecting Using a USB Cable Connection Method Setting the Communication Specifications Connecting Using a RS-232C Cable Connection Method Setting the Communication Specifications Settings for High-Speed Digital Output Timing Charts ZS-HL User’s Manual...
Page 132: Overview
Section7 Overview Overview Using the USB port or RS-232C connector of the Sensor Controller, you can communicate digitally with external devices such as a personal computer or programmable controller. Compared to linear output, you can obtain high resolution, highly stable measurement data.
Page 133: Usb Rs-232C
Section7 Overview RS-232C Connections to the programmable controller, programmable terminal, and personal computer can be made. Communication can be performed using non-procedural or CompoWay/F commands. The protocol is selected automatically, and then the Sensor Controller operates in accordance with a input command format. For details on formats for non-procedural and CompoWay/F commands, refer to the “Communication Command Reference”...
Page 134: Connecting Using A Usb Cable Connection Method
Section7 Connecting Using a USB Cable Connecting Using a USB Cable Connection Method Install the USB driver to a personal computer. Installation is required only when USB is connected for the first time. Installing the USB driver p.2-16 Insert one end of the USB cable into the USB connector of the controller.
Page 135: Connecting Using A Rs-232C Cable Connection Method
Section7 Connecting Using a RS-232C Cable Connecting Using a RS-232C Cable Connection Method Insert one end of the RS-232C cable into the RS-232C connector of the controller. Insert one end of the RS-232C cable into the RS-232C connector of the external device.
Page 136: Setting The Communication Specifications
PLC. The No. assigned to devices connected to a PLC such as this is referred to as a node No. For details on communication commands, refer to the “Communication Command Reference” (provided separately). For the Communication Command Reference, please contact your OMRON representative. ZS-HL User’s Manual...
Page 137: Settings For High-Speed Digital Output
Section7 Settings for High-Speed Digital Output Settings for High-Speed Digital Output Of CompoWay I/F or non-procedural communication commands, if you want to use the FlowDATA command to batch acquire data at high speed, set this setting to ON. Note, however, that in measurement modes ([High] or [Custom]) having a short sampling cycle, the sampling cycle changes according to the setting of this digital output.
Page 138: Timing Charts
Section7 Timing Charts Timing Charts  RS-232C Received Command to be received Received Command to be returned Item Average Remarks T19 Command Compoway/F 280/communication baud rate These times change according transmission communication to the specifications of the time Non-procedural (number of command charac- communication processing on communication ters + 1) ×...
Page 139 Section8 SPECIFICATIONS AND EXTERNAL DIMENSIONS Sensor Head Specifications External Dimensions Adjusting Mutual Interference 8-15 Spot Diameter 8-19 Usage Width of Line Beam 8-20 Linearity Characteristic by Materials 8-21 Sensor Controller 8-40 Specifications 8-40 External Dimensions 8-42 Accessory 8-43 Panel Mount Adapter 8-43 Extension Cable 8-44...
Page 140: Sensor Head
Section8 Sensor Head Sensor Head Specifications ZS-HLDS2T/HLDS2VT/HLDS5T/HLDS10/HLDS32/HLDS60/HLDS150 HLDS Item ZS-HLDS2T ZS-HLDS5T ZS-HLDS10 HLDS HLDS HLDS (*5) Optical system Regular Diffuse Regular Diffuse Regular Diffuse Regular Diffuse Diffuse Diffuse reflec- reflec- reflec- reflec- reflec- reflec- reflec- reflec- reflec- reflec- tion tion tion tion tion...
Page 141 Section8 Sensor Head HLDS Item ZS-HLDS2T ZS-HLDS5T ZS-HLDS10 HLDS HLDS HLDS (*5) Operating ambi- Illumination on received light surface 3,000 lx or less (incandescent light) Illumi- Illumina- ent illumination nation tion on received receive light sur- d light face sur- 500 lx or face less...
Page 142 Section8 Sensor Head Model Diffusive reflection Mirror reflection ZS-HLDS2VT Glass ZS-HLDS5T White alumina ceramic Glass ZS-HLDS10 White alumina ceramic ZS-HLDS32 White alumina ceramic ZS-HLDS60/HLDS150 White alumina ceramic (*4) Value obtained when the sensor part and object part are fixed with an aluminum jig. (typical example) (*5) Long distance extension of the ZS-HLDS2V Sensor Head (connection to the ZS-XC_ _CR, ZS-XC02D, ZS-XEQ) is not possible.
Page 143 Section8 Sensor Head (*1) Defined as 1/e (13.5 %) of the center optical intensity in the measurement center distance. The beam diameter is sometimes influenced by the ambient conditions of the workpiece such as leaked light from the main beam. (*2) This is the error on the measured value with respect to an ideal straight line.
Page 144 Section8 Sensor Head F.S.: Full scale of measurement (*1) Defined as 1/e (13.5 %) of the center optical intensity in the measurement center distance. The beam diameter is sometimes influenced by the ambient conditions of the workpiece such as leaked light from the main beam. (*2) This is the error on the measured value with respect to an ideal straight line.
Page 145: External Dimensions
Section8 Sensor Head Item ZS-LD200 ZS-LD350S Cable length 0.5 m, 2 m Weight Approx. 350 g F.S.: Full scale of measurement (*1) Defined as 1/e (13.5 %) of the center optical intensity in the measurement center distance. The beam diameter is sometimes influenced by the ambient conditions of the workpiece such as leaked light from the main beam.
Page 146 Section8 Sensor Head  ZS-HLDS2VT Measuring center 2- 4.5 mm mounting hole (Unit: mm) L (Note 1) 15.30 Reference 56 0.1 surface 27.1 56 0.1 Emitter Range section indicator Emitter axis Reception axis Mounting hole dimensions Receiver section A (Note 1) 30.1 Vinyl insulated round cable 6.2 mm Connector...
Page 147 Section8 Sensor Head • When used in regular reflection (ZS-HLDS5T) (Unit: mm) 44.1 98.5 10.3 67.6 3- 4.5 mm mounting hole Emission axis 67.6 0.1 27 0.1 3-M4 Measuring center Reception axis Mounting hole dimensions • When used in regular reflection (ZS-HLDS10) (Unit: mm) 94.1 95.9...
Page 148 Section8 Sensor Head  ZS-HLDS32/HLDS60/HLDS150 Optical axis (Unit: mm) Reference surface L (Note 1) Receiver section Operation indicator 22.7 Reception axis 65 0.1 3-M4 Measuring center Emission axis Reference surface A (Note 1) Mounting hole dimensions Emitter section Vinyl insulated round cable 6.8 mm Standard length: 0.5 m, 2 m (Note 1): In the case of ZS-HLDS60, L=600, A=7 In the case of ZS-HLDS150, L=1500, A=3...
Page 149 Section8 Sensor Head  ZS-LD15GT (Unit: mm) Connector Vinyl insulated round cable 6.2 mm Standard length: 0.5 m, 2 m Reference surface Emission 4- 4.5 mounting hole Reception axis axis 4- 8 (counter bored 4) 30 0.1 Measuring center 20 0.1 Mounting hole dimensions Emitter Receiver...
Page 150 Section8 Sensor Head  ZS-LD20T/LD20ST/LD40 2- 4.5 mm mounting hole (Unit: mm) L (Note 1) 15.30 Reference 56 0.1 surface Measuring center 27.1 56 0.1 Emitter section Range indicator Emission axis Reception axis Mounting hole dimensions Receiver section A (Note 1) 30.1 Vinyl insulated round cable 6.2 mm Connector...
Page 151 Section8 Sensor Head  ZS-LD50/LD50S/LD80/LD130/LD200/LD350S 15.3 2- 4.5 mm mounting hole (Unit: mm) L (Note 1) Reference surface 56 0.1 Measuring center 27.1 Emitter section 56 0.1 Emission axis Range indicator Reception axis Receiver section Mounting hole dimensions A (Note 1) 30.1 Connector Vinyl insulated round cable 6.2 mm...
Page 152 Section8 Sensor Head • When used in regular reflection (ZS-LD130) (Unit: mm) 58.4 10.4 128.5 49.8 49.8 Emission axis Reception Measuring axis center Mounting hole dimensions Reference surface • When used in regular reflection (ZS-LD200) (Unit: mm) 59.2 Emission axis Measuring Reception center...
Page 153: Adjusting Mutual Interference
Section8 Sensor Head Adjusting Mutual Interference When using two or more Sensor Heads next to each other, mutual interference will not occur if other beam spots are outside the shaded areas in the following diagrams. - ZS-HLDS2T - ZS-HLDS5T (Unit: mm) (Unit: mm) - ZS-HLDS2VT (Unit: mm)
Page 154 Section8 Sensor Head - ZS-HLDS60 - ZS-HLDS150 (Unit: mm) (Unit: mm) - ZS-LD20T/LD20ST - ZS-LD40T (Unit: mm) (Unit: mm) ZS-HL 8-16 User’s Manual...
Page 155 Section8 Sensor Head - ZS-LD50/LD50S - ZS-LD80 (Unit: mm) (Unit: mm) 11 9.5 - ZS-LD130 - ZS-LD200 (Unit: mm) (Unit: mm) 14.5 ZS-HL 8-17 User’s Manual...
Page 156 Section8 Sensor Head - ZS-LD350S (Unit: mm) ZS-HL 8-18 User’s Manual...
Page 157: Spot Diameter
Section8 Sensor Head Spot Diameter Measuring range Measuring center distance Measuring center Near Beam Line beams diameter Beam width Spot beams Beam diameter • ZS-HLDS Series Beam diameter × beam width (µm) HLDS2T HLDS2VT HLDS5T HLDS10 HLDS32 HLDS60 HLDS150 Near 90 ×...
Page 158: Usage Width Of Line Beam
Section8 Sensor Head Usage Width of Line Beam Depending on the measurement mode, the beam width used for the actual measurement differs. When you use the [CUSTOM] menu, you can specify the setting for performing sensing for the entire area of the line beam. Width of entire beam Width of beam in actual use...
Page 159: Linearity Characteristic By Materials
Section8 Sensor Head Linearity Characteristic by Materials  ZS-HLDS2T (mode: High-Resolution)  Regular reflection Inclination angle 0° Inclination angle 0° -0.2 Glass -0.4 Mirror -0.6 19.0 19.5 20.0 20.5 21.0 Distance (mm) Inclination angle Horizontal +0.5° Inclination angle Vertical +0.5° Inclination angle +0.5°...
Page 160 Section8 Sensor Head  Diffuse reflection Inclination angle 0° Inclination angle 0° White ceramic -0.1 Black rubber -0.2 SUS304 Aluminum -0.3 Distance (mm) Inclination angle Vertical +30° Inclination angle Horizontal +30° Inclination angle +30° Inclination angle +30° -0.3 White ceramic -0.1 White ceramic Black rubber...
Page 161 Section8 Sensor Head  ZS-HLDS2VT (mode: High-Resolution)  Regular reflection Inclination angle 0° Inclination angle Vertical +0.5° Inclination angle Vertical +1° 0.40 0.40 0.40 0.20 0.20 0.20 Inclination angle 0° Inclination angle +0.5° Inclination angle +1° 0.00 0.00 0.00 -0.20 -0.20 -0.20 Glass...
Page 162 Section8 Sensor Head  ZS-HLDS5T (mode: High-Resolution)  Diffuse reflection Inclination angle 0° Inclination angle 0° White ceramic Black rubber -0.2 SUS304 Aluminum -0.4 47.0 45.0 49.0 51.0 53.0 55.0 Distance (mm) Inclination angle Horizontal +45° Inclination angle Vertical +45° Inclination angle +45°...
Page 163 Section8 Sensor Head  Regular reflection Inclination angle 0° Inclination angle 0° -0.2 Glass Mirror -0.4 40.0 42.0 44.0 46.0 48.0 Distance (mm) Inclination angle Horizontal +0.5° Inclination angle Vertical +0.5° Inclination angle +0.5° Inclination angle +0.5° -0.2 -0.2 Glass Glass Mirror Mirror...
Page 164 Section8 Sensor Head  ZS-HLDS10 (mode: High-Resolution)  Diffuse reflection Inclination angle 0° Inclination angle 0° White ceramic -0.2 Black rubber SUS304 Aluminum -0.4 91.0 81.0 101.0 111.0 121.0 Distance (mm) Inclination angle Horizontal +45° Inclination angle Vertical +45° Inclination angle +45° White ceramic White ceramic Black rubber...
Page 165 Section8 Sensor Head  Regular reflection Inclination angle 0° Inclination angle 0° -0.2 Glass Mirror -0.4 83.0 78.0 88.0 93.0 98.0 103.0 Distance (mm) Inclination angle Vertical +0.5° Inclination angle Horizontal +0.5° Inclination angle +0.5° Inclination angle +0.5° -0.2 -0.2 Glass Glass Mirror...
Page 166 Section8 Sensor Head  ZS-HLDS32 (mode: High-Resolution)  Diffuse reflection Inclination angle 0° 0.10 0.08 0.06 0.04 Inclination angle 0° 0.02 0.00 -0.02 White ceramic -0.04 Black rubber -0.06 SUS304 -0.08 Aluminum -0.10 -175.0 -125.0 -75.0 -25.0 25.0 75.0 125.0 175.0 Distance (mm) Inclination angle Vertical +45°...
Page 167 Section8 Sensor Head  ZS-HLDS60 (mode: High-Resolution)  Diffuse reflection Inclination angle 0° Inclination angle 0° White ceramic -0.2 Black rubber SUS304 Aluminum -0.4 Distance (mm) Inclination angle Horizontal +45° Inclination angle Vertical +45° Inclination angle +45° Inclination angle +45° -0.2 -0.2 SUS304...
Page 168 Section8 Sensor Head  ZS-HLDS150 (mode: High-Resolution)  Diffuse reflection Inclination angle 0° Inclination angle 0° White ceramic Black rubber -0.6 SUS304 Aluminum -1.2 1000 1200 1400 1800 2000 1600 Distance (mm) Inclination angle Vertical +45° Inclination angle Horizontal +45° Inclination angle +45°...
Page 169 Section8 Sensor Head  ZS-LD20T (mode: Standard)  Regular reflection Inclination angle 0 Inclination angle Horizontal +0.5 Inclination angle horizontal +0.5 Inclination angle horizontal 0 -0.2 -0.2 Glass Glass Mirror Mirror -0.4 -0.4 19.0 19.5 20.0 20.5 21.0 19.0 19.5 20.0 20.5 21.0...
Page 170 Section8 Sensor Head  ZS-LD20ST (mode: Standard)  Regular reflection Inclination angle 0 Inclination angle Horizontal +0.5 Inclination angle horizontal +0.5 Inclination angle horizontal - 0.1 - 0.1 - 0.2 - 0.2 Glass Glass - 0.3 - 0.3 Mirror Mirror - 0.4 - 0.4 19.0...
Page 171 Section8 Sensor Head  ZS-LD40T (mode: Standard)  Regular reflection Inclination angle 0 Inclination angle Horizontal +0.5 Inclination angle horizontal 0 Inclination angle horizontal +0.5 -0.4 -0.4 Glass Glass Mirror Mirror -0.8 -0.8 37.5 38.5 39.5 40.5 41.5 42.5 37.5 38.5 39.5 40.5...
Page 172 Section8 Sensor Head  ZS-LD50 (mode: Standard)  Diffuse reflection Inclination angle 0 Inclination angle Horizontal +15 Inclination angle horizontal +15 Inclination angle horizontal 0 White ceramic White ceramic -0.2 Black rubber Black rubber -0.2 SUS304 SUS304 Aluminum Aluminum -0.4 -0.4 45.0 47.0...
Page 173 Section8 Sensor Head  ZS-LD50S (mode: Standard)  Diffuse reflection Inclination angle Horizontal +15 Inclination angle 0 Inclination angle horizontal +15 Inclination angle horizontal 0 - 0.1 - 0.1 - 0.2 - 0.2 White ceramic White ceramic Black rubber Black rubber - 0.3 - 0.3 SUS304...
Page 174 Section8 Sensor Head  ZS-LD80 (mode: Standard)  Diffuse reflection Inclination angle 0 Inclination angle Horizontal +15 Inclination angle 0 Inclination angle horizontal +15 White ceramic -0.2 -0.2 White ceramic Black rubber Black rubber -0.4 -0.4 SUS304 SUS304 Aluminum Aluminum -0.6 -0.6 Distance (mm)
Page 175 Section8 Sensor Head  ZS-LD130 (mode: Standard)  Diffuse reflection Inclination angle Horizontal +15 Inclination angle 0 Inclination angle horizontal 0 Inclination angle horizontal +15 - 0.1 - 0.1 - 0.2 - 0.2 White ceramic White ceramic Black rubber Black rubber - 0.3 - 0.3 SUS304...
Page 176 Section8 Sensor Head  ZS-LD200 (mode: Standard)  Diffuse reflection Inclination angle Horizontal +15 Inclination angle 0 Inclination angle horizontal +15 Inclination angle 0 White ceramic -0.2 -0.2 White ceramic Black rubber Black rubber -0.4 -0.4 SUS304 SUS304 Aluminum Aluminum -0.6 -0.6 Distance (mm)
Page 177 Section8 Sensor Head  ZS-LD350S (mode: Standard)  Diffuse reflection Inclination angle 0 Inclination angle Horizontal +15 Inclination angle horizontal +15 Inclination angle horizontal 0 - 0.1 - 0.1 - 0.2 - 0.2 White ceramic White ceramic Black rubber Black rubber - 0.3 - 0.3 SUS304...
Page 178: Sensor Controller
Section8 Sensor Controller Sensor Controller Specifications Item ZS-HLDC11 ZS-HLDC41 I/O type NPN type PNP type Average number of times 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, or 4096 Number of connected Sensor Heads 1 per Sensor Controller Exter- Connection method Serial I/O is connector type.
Page 179 Section8 Sensor Controller Item ZS-HLDC11 ZS-HLDC41 Ambient temperature Operating: 0 to +50 °C Storage : -15 to +60 °C (with no icing or condensation) Ambient humidity Operating and storage: 35 % to 85 % (with no condensation) Materials Case: Polycarbonate (PC), Cable sheath: PVC Cable length Weight Approx.
Page 180: External Dimensions
Section8 Sensor Controller External Dimensions ZS-HLDC11/HLDC41 (Unit: mm) 52.50 10.80 Heat-resistant PVC 5.2 Standard length 2 m 13 10 ZS-HL 8-42 User’s Manual...
Page 181: Accessory
Section8 Accessory Accessory Panel Mount Adapter ZS-XPM1/XPM2 When mounting on a panel (Unit: mm) n)+12 Panel DIN track Panel Panel Mount (2) (37.5) Adapter (Note 1) Note 1: Dimensions are shown for a panel Panel cutout dimensions thickness of 2.0 mm. Panel cutout dimensions When mounting on a panel, attach a DIN track on the rear of a Panel...
Page 182: Extension Cable
Section8 Accessory Extension Cable ZS-XC_A/XC_B/XC5BR (Unit: mm) L (Note 1) 45.9 20-pin Mounting hole 20-pin PVC insulated round cable 6.2 mm dia. core 2-M3 Note 1: ZS-XC_A: L=1 m, 4 m and 8 m ZS-XC_B: L=5 m and 10 m ZS-XC5BR: L=5 m Mounting hole dimensions Note 2: Color of seal...
Page 183: Extension Cable (Long-Distance, Flexible Type)
Weight (excluding packing materi- Approx. 1.4 kg Approx. 1.0 kg als and accessories) (*1) There are restrictions on the Sensor Head/controller you can connect. For details, contact your OMRON representative.  Cable for connecting a digital equalizer ZS-XC02D (Unit: mm) Heat-resistant PVC 6.1 20-core...
Page 184 Materials Case: Aluminum die-cast Degree of protection IEC60529 IP20 Weight (excluding packing materi- Approx. 120 g als and accessories) (*1) There are restrictions on the Sensor Head/controller you can connect. For details, contact your OMRON representative. ZS-HL 8-46 User’s Manual...
Page 185: Rs-232C Cable
Section8 Accessory RS-232C Cable ZS-XPT2 (for connecting to programmable controller/programmable terminal) 2000 150 (Unit: mm) 100 10 32.20 (20 5) 5.20 Note 1 10-pin square connector 9-pin square connector 8.70 Vinyl insulated round cable 3.89 core (Conductor cross-sectional area: 0.013 m / Insulator diameter: 0.38) Note 1: Plug-type connector.
Page 186: Control Link Unit
Section8 Accessory Control Link Unit ZS-XCN (Unit: mm) 39.50 4.60 Item ZS-XCN Applicable controller ZS Series Ambient temperature Operating: 0 to +50 °C, Storage: -15 to +60 °C (with no icing or condensation) Ambient humidity Operating and storage: 35 % to 85 % (with no condensation) Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude, 80 min each in X, Y, and Z directions (destructive)
Page 187: Real-Time Parallel Output Unit
Section8 Accessory Real-Time Parallel Output Unit ZG-RPD11/RPD41 (Unit: mm) 28.40 29.60 2 mm mounting hole 15.85 66.50 15.65 (14.15) (2.85) (150)* (*)also a type 2m 35.20 Item ZG-RPD11 ZG -RPD41 I/O type NPN Amplifier Unit PNP Amplifier Unit Data output system 16-bit parallel open collector output Data format Measurement value data is converted to 40,000 stages of 16-bit binary data before...
Page 188 Section8 Accessory Item ZG-RPD11 ZG -RPD41 Vibration resistance 10 to 150 Hz, 0.7-mm double amplitude, 80 min each in X, Y, and Z directions (destructive) Shock resistance 300 m/s 3 times each in six directions (up/down, left/right, forward/backward) (destructive) Ambient temperature Operating: 0 to +50 °C, Storage: -15 to +60 °C (with no icing or condensation) Ambient humidity Operating and storage: 35 % to 85 % (with no condensation)
Page 189 Section9 APPENDIX Troubleshooting Error Messages and Countermeasures Safety Precautions for Using Laser Equipment Requirements from Regulations and Standards Summary of Requirements to Manufactures Summary of Requirements to User 9-10 Definitions of Laser Classification 9-13 Updating Firmware 9-15 Flow of Updating Firmware 9-15 Index 9-21...
Page 190: Troubleshooting
Section9 Troubleshooting Troubleshooting This section describes countermeasures for temporary hardware problems. Check the malfunction in this section before sending the hardware for repair. Problem Probable cause and possible countermeasure Pages Device restarts during operation. • Is the power supply device connected correctly? p.1-3 •...
Page 191: Error Messages And Countermeasures
Section9 Error Messages and Countermeasures Error Messages and Countermeasures  When [Error] Is Displayed on the Main Display Display Details Cause Countermeasure Overcurrent Individual or groups of judgment Cancel the load short-circuit. screen outputs are short-circuited. (upper Dark Error Insufficient received light amount For a workpiece with regular reflection section) from workpiece.
Page 192: Safety Precautions For Using Laser Equipment
Section9 Safety Precautions for Using Laser Equipment Safety Precautions for Using Laser Equipment Regarding laser devices, classes that indicate dangerous levels and various safety standards for dangers are stipulated depending on the country of use. Follow respective standards and implement safety measures. Class classification Standards and Class Classification (*1) Maximum Output of Laser...
Page 193 Section9 Safety Precautions for Using Laser Equipment Compliance Guide for Laser Products Laser emitter Laser emitter section label section label Warning label Certification label Warning label Certification label  Exporting to a country other than the U.S. For countries other than Japan and the U.S., warning labels must be replaced by English ones (supplied with the product).
Page 194: Requirements From Regulations And Standards
Section9 Requirements from Regulations and Standards Requirements from Regulations and Standards Summary of Requirements to Manufactures  For Europe EN 60825-1 “Safety of Laser Products, Equipment Classification, Requirements and User's Guide” Summary of Manufacturer’s Requirements Classification Requirements subclause Class 1 Class 1M Class 2 Class 2M...
Page 195 Section9 Requirements from Regulations and Standards Classification Requirements subclause Class 1 Class 1M Class 2 Class 2M Class 3R Class 3B Class 4 Wavelength range Required for certain wavelength ranges label LED label Make required word substitutions for LED products User information Operation manuals must contain instructions for safe use.
Page 196 Section9 Requirements from Regulations and Standards  For U.S.A FDA (Compliance Guide for Laser Products, 1985, according to 21 CFR1040.10) Class (see note 1) Requirements IIIa IIIb Performance (all laser products) Protective R (see note 2) R (see note 2) R (see note 2) R (see note 2) R (see note 2) R (see note 2) housing Safety interlock (see notes 3,4)
Page 197 Section9 Requirements from Regulations and Standards Footnotes: Note 1: Based on highest level accessible during operation. Note 2: Required wherever & whenever human access to laser radiation above Class I limits is not needed for prod- uct to perform its function. Note 3: Required for protective housings opened during operation or maintenance, if human access thus gained is not always necessary when housing is open.
Page 198: Summary Of Requirements To User
Section9 Requirements from Regulations and Standards Summary of Requirements to User  For Europe EN 60825-1 Requirements Classification Class 1 Class 1M Class 2 Class 2M Class 3R Class 3B Class 4 subclause Not required for visible Laser safety offi- Not required but recommended for applications that emission Required...
Page 199 Section9 Requirements from Regulations and Standards  For U.S.A ANSI Z136.1:1993 “American National Standard for the Safe Use of Lasers” Control Measures for the Four Laser Classes Control measures Classification Engineering Controls Protective Housing (4.3.1) Without Protective Housing LSO (see note 2) shall establish Alternate Controls (4.3.1.1) Interlocks on Protective Housing ...
Page 200 Section9 Requirements from Regulations and Standards Control measures Classification Laser Optical Fiber Systems (4.5.2) Laser Robotic Installations (4.5.3) Eye Protection (4.6.2) • Protective Windows (4.6.3) Protective Barriers and Curtains • • (4.6.4) Skin Protection (4.6.5) Other Protective Equipment (4.6.5) Use may be required Warning Signs and Labels (4.7) •...
Page 201: Definitions Of Laser Classification
Section9 Requirements from Regulations and Standards Definitions of Laser Classification  For Europe Laser Product Classifications Class Description Class 1 Lasers which are safe under reasonably foreseeable conditions of operation. Class 2 Lasers emitting visible radiation in the wavelength range from 400 nm to 700 nm. Eye pro- tection is normally afforded by aversion responses including the blink reflex.
Page 202 Section9 Requirements from Regulations and Standards Class FDA definition ANSI description Class IIIa/3a Limits to products that have emissions in the Class 3 lasers are divided into two sub- visible spectrum and that have beams classes, 3a and 3b. A Class 3 laser may be where the total collectable radiant power hazardous under direct and specular reflec- does not exceed 5 milliwatts.
Page 203: Updating Firmware
HLDC/ZS-MDC). Use Warp Engine ZS to update the firmware. Warp Engine ZS is automatically installed when SmartMonitor ZS is installed. For the file for updating, please contact your OMRON representative. • While updating, do not turn off the power of the controller. The controller will not start normally.
Page 204 Section9 Updating Firmware Connecting the Controller to a Personal Computer Connect the controller to the personal computer by the USB cable. The USB driver must be installed when the controller is connected to the personal computer for the first time. Installing the USB driver p.2-16 Turn on the power of the controller.
Page 205 Section9 Updating Firmware Select [Programs]-[OMRON]-[SmartMon- itorZS]-[WarpEngineZS] from the Win- dows [Start] menu. The [WarpEngineZS] screen is displayed. When the startup of Warp Engine ZS fails, the following screen is displayed after a message appears. “Set connection port”. Setting the firmware information Click the [Controller information] button as required.
Page 206 • If the progress bar stops while update is being performed, or update does not finish normally even after 10 minutes, there is a possibility that update may have failed. In this case, contact an OMRON sales representative about the firmware version before update and the one in the write file.
Page 207 Click [Device Manager] on the [Hardware] tab. The [Device Manager] screen is displayed. Open [Port COM/LPT], and check the COM number in [OMRON Smart Sen- sor USB COM Drivers (WDM) (COMxx)]. The (COMxx) part indicates the connection port for the controller.
Page 208 Section9 Updating Firmware MEMO ZS-HL 9-20 User’s Manual...
Page 209: Index
Section9 Index Index Numerics 5-25 emitted light amount display 0RESET MEMORY 5-23 emitter section 1SHOT ENABLE indicator absolute distance display OUTPUT 2-10 ADJUST EXPOSE AUTO Extension Cable 8-43 8-44 AUTOOFF 5-26 EXTERNAL 5-19 AVERAGE 5-18 FILTER 5-13 FAR Indicator MEASURE 5-24 Ferrite core Sensor Controller...
Page 210 Section9 Index K+mX+nY 5-24 panel mount adapter 8-42 KEEP 6-15 PASS KEYLOCK 5-27 indicator OUTPUT 2-10 LANGUAG 5-28 PEAK LASER hold types 5-18 laser emitter/receiver section MEASURE 5-24 laser indicator 5-18 5-26 LCD screen CUSTOM 5-26 RANGE name received light amount display LD ON receiver section LINE...
Page 211 Section9 Index installing 2-15 Start-up and exiting 2-19 zero uninstalling 2-15 zero reset 5-22 SMOOTH 5-12 indicator SPAN 5-17 OFFSET 5-22 spot diameter 8-19 STATUS 5-22 STATUS 5-22 TYPE 5-22 STEP 5-24 sub-display system 5-27 system configuration task selecting switching TEACH Mode TEACHING terminal block...
Page 212 Section9 Index MEMO ZS-L 9-24 User’s Manual...
Page 213: Upgrade Information
Section9 Upgrade Information Upgrade Information This section explains the information of version upgrade. Ver. Revised contents Enable to connect with Real-time parallel Output unit ZG-RPD. Ver.1.100 ZG-RPD enables parallel output to a PLC. ZS-HL 9-25 User’s Manual...
Page 214: Revision History
Section9 Revision History Revision History A manual revision code appears as a suffix to the catalog number at the bottom of the front and back covers of this manual. Z236-E1-06 Cat. No. Revision code Revision code Date Revised contents 2005, Nov. Original production Page 1-3: Changed note 2.
Page 216 Hoffman Estates, IL 60169 U.S.A. Carl-Benz-Str. 4, D-71154 Nufringen, Germany Tel: (49) 7032-811-0/Fax: (49) 7032-811-199 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2005-2016 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.

This manual is also suitable for:

Z236-e1-06

Omron ZS-HL Series User Manual

Quick Links

Related Manuals for Omron ZS-HL Series

Summary of Contents for Omron ZS-HL Series

This manual is also suitable for:

Table of Contents
