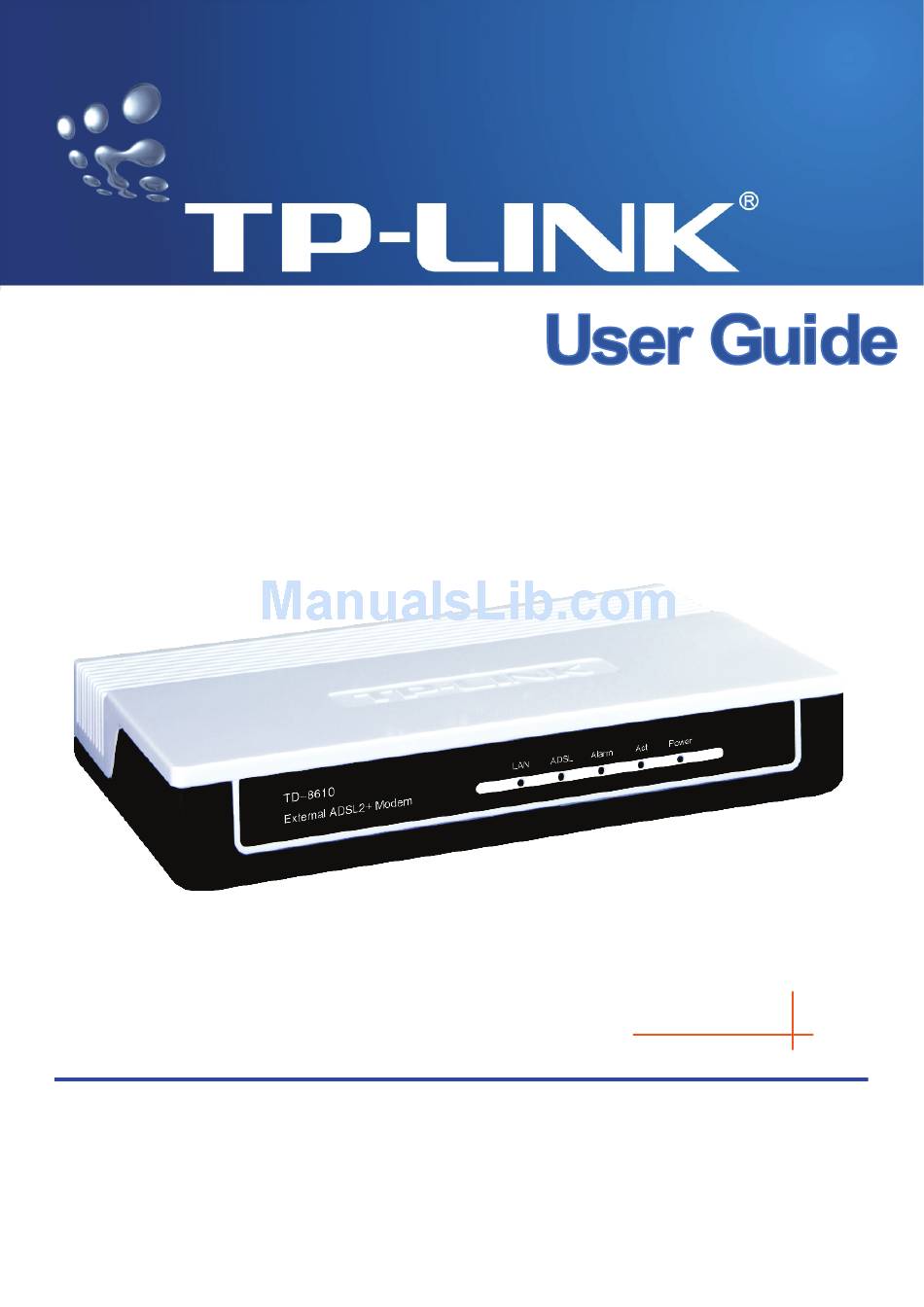

- Page 1 TD-8610/TD-8610B External ADSL2+ MODEM Rev: 1.0.2 1910010011...
- Page 2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
-
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Package Contents
Package Contents The following contents should be found in your package: One TD-8610/TD-8610B External ADSL2+ MODEM One AC power Adapter for TD-8610/TD-8610B External ADSL2+ MODEM One RJ45 cable Two RJ11 cable One ADSL splitter (only available for TD-8610) One Resource CD for TD-8610/TD-8610B External ADSL2+ MODEM, including: This User Guide •... -
Page 5: Table Of Contents
Chapter 1. Product Overview ...1 Product main specification ...1 Supporting protocol ...1 Transmit data-rate ...1 ATM property...2 System support ...2 Working environment ...2 Electric parameter ...2 Chapter 2. Hardware Installation Guide...3 System requirement ...3 LED explanation ...3 Rear-panel...4 Hardware installation procedures ...4 Chapter 3. -
Page 6: Chapter 1. Product Overview
TD-8610/TD-8610B is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX. TD-8610/TD-8610B not only use html (web mode through Ethernet port) to configure the MODEM but also use external utility software too. You can download it from our website (http://www.tp-link.com). -
Page 7: Atm Property
Max upload data-rate: 1Mbps Max line length: 6Km 1.4 ATM property AAL0, AAL5, OAM, RM, and raw cell types supported Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs supported in software Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI) 1.5 System support Support PVC Support IEEE 802.3、IEEE 802.3u... -
Page 8: Chapter 2. Hardware Installation Guide
Chapter 2. Hardware Installation Guide 2.1 System requirement Confirm your computer has been installed with networking interface card (NIC) before connecting ADSL MODEM to your computer, with operating system supporting the TCP/IP protocol. 2.2 LED explanation The panel of ADSL MODEM includes one power button, one power indicator (RED) and four function indicators (GREEN), and these five indicators are explained as chart 1-1: Name Status... -
Page 9: Rear-Panel
LINE (WAN): Connect to the MODEM of Splitter or connect to the telephone line. 2.4 Hardware installation procedures First Step: Connect the MODEM of Splitter with the LINE port of the TD-8610/TD-8610B ADSL2+ MODEM by telephone line. While you need to use a telephone, please attach telephone line into the phone of Splitter. - Page 10 TD-8610/8610B External ADSL MODEM Figure 2-1...
-
Page 11: Chapter 3. How To Use
Chapter 3. How to use 3.1 Computer Configuration Connect the cable according to Chapter 2, and then turn on the power. Change the IP address of your PC（Figure 3-1）: Open TCP/IP Properties of the LAN card in your PC, enter the IP address as 192.168.1.* (* is any value between 2 to 254, Subnet mask is 255.255.255.0, Gateway is 192.168.1.1, DNS address is the value provided by ISP). -
Page 12: Login
Choose Properties -> Right-click Local Connection -> Choose Properties -> Double-press Internet Protocol (TCP/IP). The words in fact maybe are different with this guide. You can check whether your configuration is successful through PING command. Enter Ping 192.168.1.1 If the screen likes the following, your configuration is successful. If the screen likes the following, your configuration is unsuccessful. -
Page 13: Setup
The default user name and its password is admin; if you want to change it, please go to "Management→Password". (Figure 3-5) 3.3 Setup Choose ATM PVCs Configuration (See Figure 3-6) Enter the VPI/VCI value which is provided by your ISP, click Save to finish the configuration. You can press Next to add VPI/VCI value. -
Page 14: Software Dial
Figure 3-6 3.4 Software Dial TD-8610/TD-8610B works in bridged (RFC 1483 Bridged) mode to connect to the Internet. You need to install dial software on your PC. There is some software working on WINDOWS in market, example for EnterNet3000, RASPPPoE and WinPeET. -
Page 15: Appendix A: Default Configuration
Appendix A: Default Configuration USER NAME PASSWORD IP ADDRESS VPI/VCI TD-8610/8610B admin admin 192.168.1.1 0/32,1/33,0/35,0/100,0/200,8/35,8/81 External ADSL MODEM...
