INSTRUCTIONS
™
ME14
- For metered dispense of oils and 50 / 50 water / antifreeze mix fluids -
Maximum Working Pressure: 1500 psi (10 MPa, 103 bar)
Maximum Flow Rate:14 gpm (53.0 lpm)
List of Models page 2
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
NOTICE
This dispense valve is designed to dispense
petroleum-based lubricants and antifreeze only.
Do not dispense windshield washer solvent with
this dispense valve.
and PE14
™
Meters

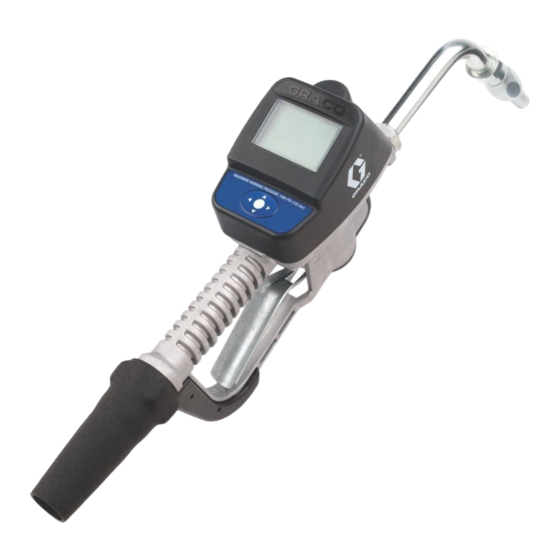

PE14 meter shown
ti11821
312865A

Advertisement

Table of Contents
loading

Related Manuals for Graco PE14

Summary of Contents for Graco PE14

  • Page 1 - For metered dispense of oils and 50 / 50 water / antifreeze mix fluids - Maximum Working Pressure: 1500 psi (10 MPa, 103 bar) Maximum Flow Rate:14 gpm (53.0 lpm) List of Models page 2 PE14 meter shown Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions.
  • Page 2 Automatic, non-drip, quick close 255802 1/2” npt(f) Rigid Extension Automatic, non-drip, quick close Anti-freeze 255803 1/2” npt(f) Flexible Extension Automatic, non-drip, quick close Anti-freeze PE14 Electronic Meters Model Type of Number Dispense Swivel Extension Description Nozzle Fluid Type Automatic, non-drip, 255200 Preset 1/2”...
  • Page 3 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
  • Page 4 Warnings WARNING FIRE AND EXPLOSION HAZARD When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be aware that flammable fumes can ignite or explode. To help prevent fire and explosion: • Use equipment only in well ventilated area. •...

  • Page 5: Installation

    The typical installation shown in F . 1 is only a guide. It Mounting Bracket Kit 249440 is available for resting the is not a complete system design. Contact your Graco dispense valve on a console. distributor for assistance in designing a system to suit your needs.
  • Page 6 Installation Pressure Relief Procedure Air compressor: Follow manufacturer’s recommendations. Fluid supply container: Follow local code. To maintain grounding continuity when flushing or This equipment will stay pressurized until the pressure relieving pressure: hold a metal part of the dispense has been manually relieved. To reduce the risk of valve firmly to the side of a grounded metal pail, then serious injury from pressurized fluid, accidental spray trigger the valve.
  • Page 7 Installation 3. Slowly open the main fluid valve. Installing Tube Extension (F . 5) a. Place the hose end (with no dispense valve connected) into a container for waste oil. b. Secure the hose in the container so it will not come out during flushing.
  • Page 8 Installation Installing Nozzle (F . 6) 2. Open automatic twist lock nozzle and all fluid shut-off valves. Start pump to pressurize system. See Operation Screens, Dispensing in either the Manual or Preset Mode instructions beginning on page 18 for complete meter operation information. 3.

  • Page 9: Meter Overview

    ARROW or the ENTER button or when you squeeze the trigger to dispense fluid. Locking and Unlocking Trigger The PE14 meter only, includes a locking trigger feature that allows the user to lock the trigger in the dispense 5-Way Menu position as shown in F .

  • Page 10: Setup Mode Screens

    Use the RIGHT ARROW to move the curser over the House icon (a). 10.56 b. Press center, ENTER button to display the Home Screen (F . 10). ti12179a PE14 Meter ME14 Meter MOBIL1 5W-20 MOBIL1 5W-20 MANUAL MANUAL PRESET...
  • Page 11 • BANNER • LANGUAGE • HOME ti11824a . 11 PE14 Meters include all the ME14 Setup Screens and also a PRESET screen. 1. Hold down the RIGHT ARROW (a) only, for a few • UNITS/LIMIT seconds (F . 11). •...
  • Page 12 . 13 Units/Limit Screen Features (F . 13) ME14 and PE14 include C - E PE14 also includes F - G C. Units Mode: Displays measurement unit that was F. Set Manual Dispense Limit field: Sets maximum selected using the Set Measurement Units quantity of fluid that can be dispensed in Manual Mode.
  • Page 13 Setup Mode Screens Calibrate Screen (F . 14) For ME14 and PE14 Meters ME14 and PE14 include D - M D. Wrench Icon: Returns user to Main Screen. Recalibrates the meter for different fluids. J. Calibration Factor: Displays amount operator Table 1.
  • Page 14 Setup Mode Screens Recalibrating the Meter (F . 14) 3. Dispense exactly 1 quart (or 1 liter) of fluid into a calibrated 1 quart (or 1 liter) container. The meter is shipped from the factory with the default calibration factor for 10W30 motor oil - at 70°F (21°C). The Calibration Factor will appear on the screen in This calibration factor is sufficiently accurate for most the Calibration Factor field (J).
  • Page 15 . 15 4. When you have finished making changes, use the PE14 Meters includes D, P and Q LEFT OR RIGHT ARROW button to move curser over Wrench icon. D. Wrench Icon: Returns user to Main Screen. 5. Press center, ENTER button, to return to Main P.
  • Page 16 . 17 . 16 Language Screen Features D, S, and T ME14 and PE14 Meters include D and R D. Wrench Icon: Returns user to Main Screen. D. Wrench Icon: Returns user to Main Screen. S. Language field: Identifies selected language.
  • Page 17 TOTALS TOTALS ti12184a ti12175a . 18 ME14 and PE14 Include A - D A. Screen Identifier Icon: House displays when user is 1. Use UP or DOWN ARROWS to scroll through on the Home Screen. options. 2. Press center, ENTER button to confirm selection B.

  • Page 18: Manual Dispense

    Dispensing Fluid and Operation Mode Screens Manual Dispense . 19) ME14 and PE14 Meters To dispense in Manual Mode: If display was asleep, press any button to wake it up. MOBIL1 5W-20 PE14 shown MOBIL1 5W-20 10.56 MANUAL PRESET ti12178a TOTALS .
  • Page 19 0.00. As fluid is dispensed, counts up from zero. At the same time the Progression Bar (J) displays a real-time, visual representation of the progress made toward PE14 Meters Only completing the dispense. J. Progression Bar: Displays a real-time, visual...
  • Page 20 Dispensing Fluid and Operation Mode Screens To modify the amount selected: For example, in F . 23 (below) the original, confirmed Preset Dispense amount (A) was 4.0 qts. The amount a. Use the UP or DOWN ARROW to scroll up or was increased to 8.0 quarts and because it has not been confirmed, is flashing on the screen (B).
  • Page 21 Dispensing Fluid and Operation Mode Screens To dispense in Preset Mode: 3. Squeeze trigger to begin dispensing fluid. The trig- ger may be locked during the dispense. If the display was asleep, press any button to wake up Fluid flows. The amount displayed counts up from the display.
  • Page 22 Dispensing Fluid and Operation Mode Screens Totals Screen (F . 26) To display Totals Screen: ME14 and PE14 Meters If the display was asleep, press any button to wake up the display. MOBIL1 5W-20 3485 14953 MANUAL PRESET TOTALS ti12190a .

  • Page 23: Troubleshooting

    Batteries are defective. Replace batteries, page 26. Electronic control is malfunctioning. Replace the electronic bezel assem- bly. Order ME14 and PE14 Meter Display does not activate. Electronic Repair Kit. (See ME Meter Parts page 26 or PE Meter Parts page 30 to identify which kit is required for your meter).
  • Page 24 Problem Cause Solution Meter leaks from cover/control. Poor seal at metering cover chamber. Contact your Graco distributor for repair or replacement. Meter leaks from twist lock nozzle. Twist lock nozzle has a damaged Replace nozzle. See Step 1 in Instal- seal.

  • Page 25: Error Codes

    Check for low battery symbol and have shut off. replace batteries if indicated, page 26. For further assistance, contact Err 4 your Graco distributor. Flow has occurred in lockout condi- Navigate to Home screen. Then tion. re-enter Dispense Screen. In Manual Mode only.

  • Page 26: Replacing The Battery

    Service Service See Parts List, page 35, for reference numbers included in the following Service instructions. Replacing the Battery • Only use the size and type of batteries specified in this manual. Batteries required to meet life expectancy: • Energizer E91 •...
  • Page 27 Notes Notes 312865A...
  • Page 28 ME Meter Parts ME Meter Parts Part Description Part Description 247345 SWIEL, straight, 3/4-14 NPT 108787 SCREW, cap, sch includes 31 (used with 255800, 115477 SCREW, mach, torx pan hd 120812 O-RING, seal 255801) 15K418 TRIGGER, meter 105765 O-RING 15K464 GUARD, bumper 15M014 BOOT, swivel, 1/2”...
  • Page 29 ME Meter Parts Torque to 25-35 IN. LBS Torque to 90-100 IN. LBS Torque to 20-30 FT. LBS ti11916a 312865A...
  • Page 30 PE Meter Parts PE Meter Parts Part Description Part Description 255885 KIT, filter, includes 34a-34c 108787 SCREW, cap, sch KIT, filter, wire, 40 mesh 115477 SCREW, mach, torx pan hd PACKING, o-ring 255889 KIt, repair, trip rod, includes 3a-3c SPACER, strainer and instruction manual 312944 120455 O-RING, 030 buna BALL,5 MM, carbide...
  • Page 31 PE Meter Parts Torque to 25-35 IN. LBS Torque to 90-100 IN. LBS Torque to 20-30 FT. LBS ti10617a 312865A...

  • Page 32: Nozzle (33) And Extension (20) Kits

    Nozzle (33) and Extension (20) Kits Nozzle (33) and Extension (20) Kits Part No. Description Fluid Type Automatic, non-drip quick close nozzle with 255852 rigid extension. ti11827 ti11826 Automatic, non-drip quick close nozzle with 255853 ti11827 flexible extension ti11825 Non-drip, quick close nozzle with rigid 255854 Gear Lube ti11830...
  • Page 33 Nozzle (33) and Extension (20) Kits Part No. Description Fluid Type Non-drip, quick close, high-flow nozzle with Oil and 255857 rigid extension Anti-freeze ti11829 ti11826 Non-drip, quick close, high flow nozzle with Oil and 255858 flexible extension Anti-freeze ti11829 ti11825 312865A...

  • Page 34: Nozzle (33) Kits

    Nozzle (33) and Extension (20) Kits Nozzle (33) Kits 255459 Automatic, non-drip, quick-close nozzle • BODY, nozzle • O-RING, packing • SPRING, compression • O-RING, packing • STEM, nozzle, valve • SEAT, valve 255460 Automatic, non-drip, quick-close nozzle Anti-freeze • BODY, nozzle •...

  • Page 35: Technical Data

    = 999.99 units maximum preset volume (PE14 only) = 999.9 units Inlet .........

  • Page 36: Graco Information

    Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. Graco will, for a period of five (5) years from the date of sale, repair or replace any non-electronic part of the equipment determined by Graco to be defective.
