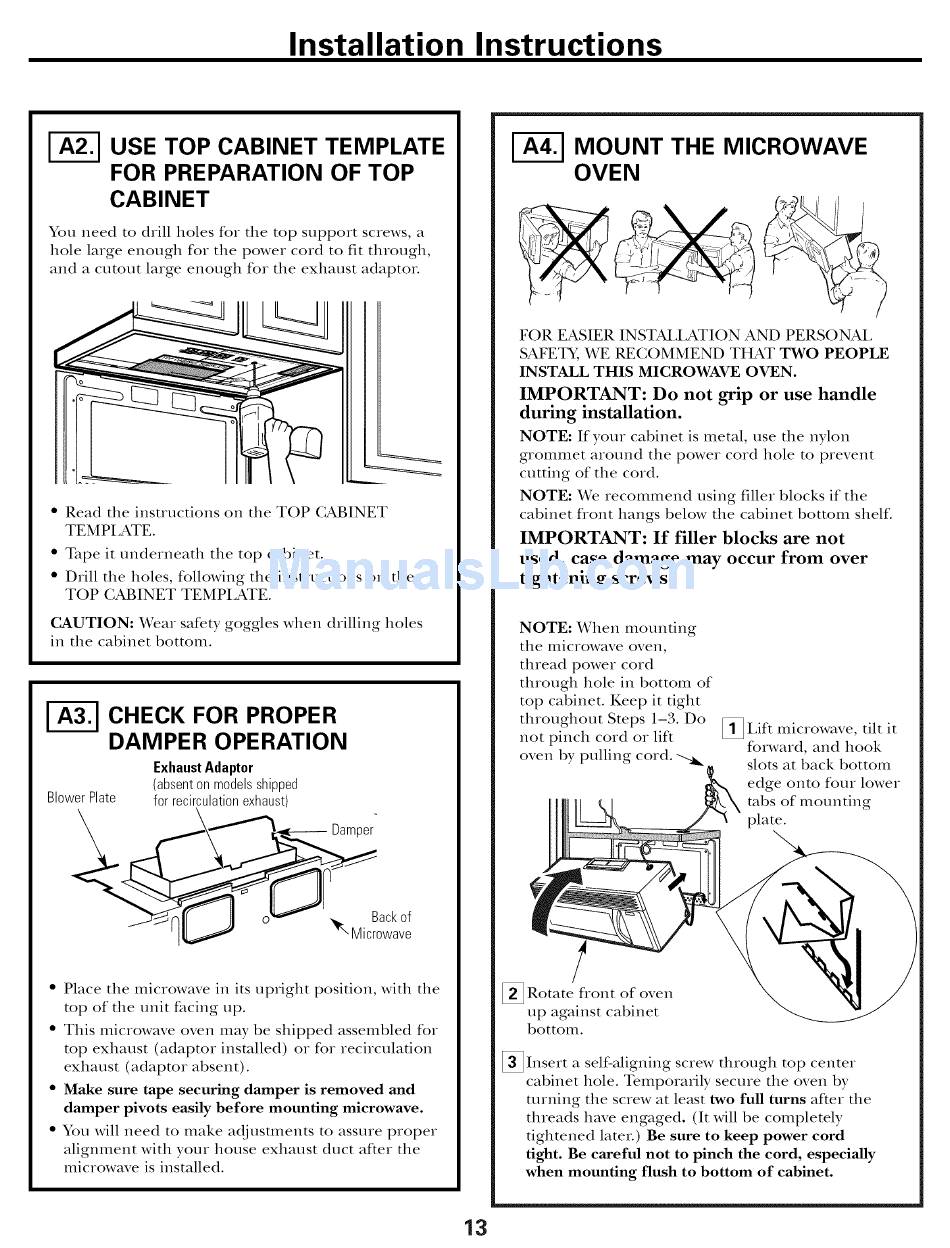

Installation Instructions
I-_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for tile top support screws, a
hole large enough for tile power cord to fit ttlrough,
and a cutout large enough for tile exllaust adaptoL
• Read the instructions on the TOP CABINET
TEMPI ,ATE.
• Tape it underneattl tile top cabinet.
• Drill tile holes, following tile instructions on tile
TOP CABINET TEMPI,ATE.
CAUTION: Wear safety goggles when drilling holes
in tile cabinet bottom.
I-_ CHECK FOR PROPER
DAMPER OPERATION
BlowerPlate
ExhaustAdaptor
(absenton modelsshipped
for recirculationexhaust)
Damper
Backof
Microwave
• Place tile microwave in its upright position, with the
top of tim unit facing up.
• This microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculadon
exhaust (adaptor absent).
• Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
• You will need to make adjusmlents to assure proper
alignment with your house exhaust duct after the
microwave is installed.
I-_ MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTAI,I,ATION AND PERSONAI,
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use tim nylon
grommet around tim power cord hole to prevent
cutting of tim cord.
NOTE: We recommend using filler blocks if the
cabinet flont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
NOTE: When mounting
tile microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling cord. "--.._{
_I,ifl tilt it
microwave,
forward, and hook
slots at back bottom
edge onto four lower
robs of mounting
plate.
13
_ Rotate flont of oven
up against cabinet
bottom.
_Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
