Stamina FREEFORM R2000 AIR ROWER Owner's Manual page 9

ASSEMBLY INSTRUCTIONS

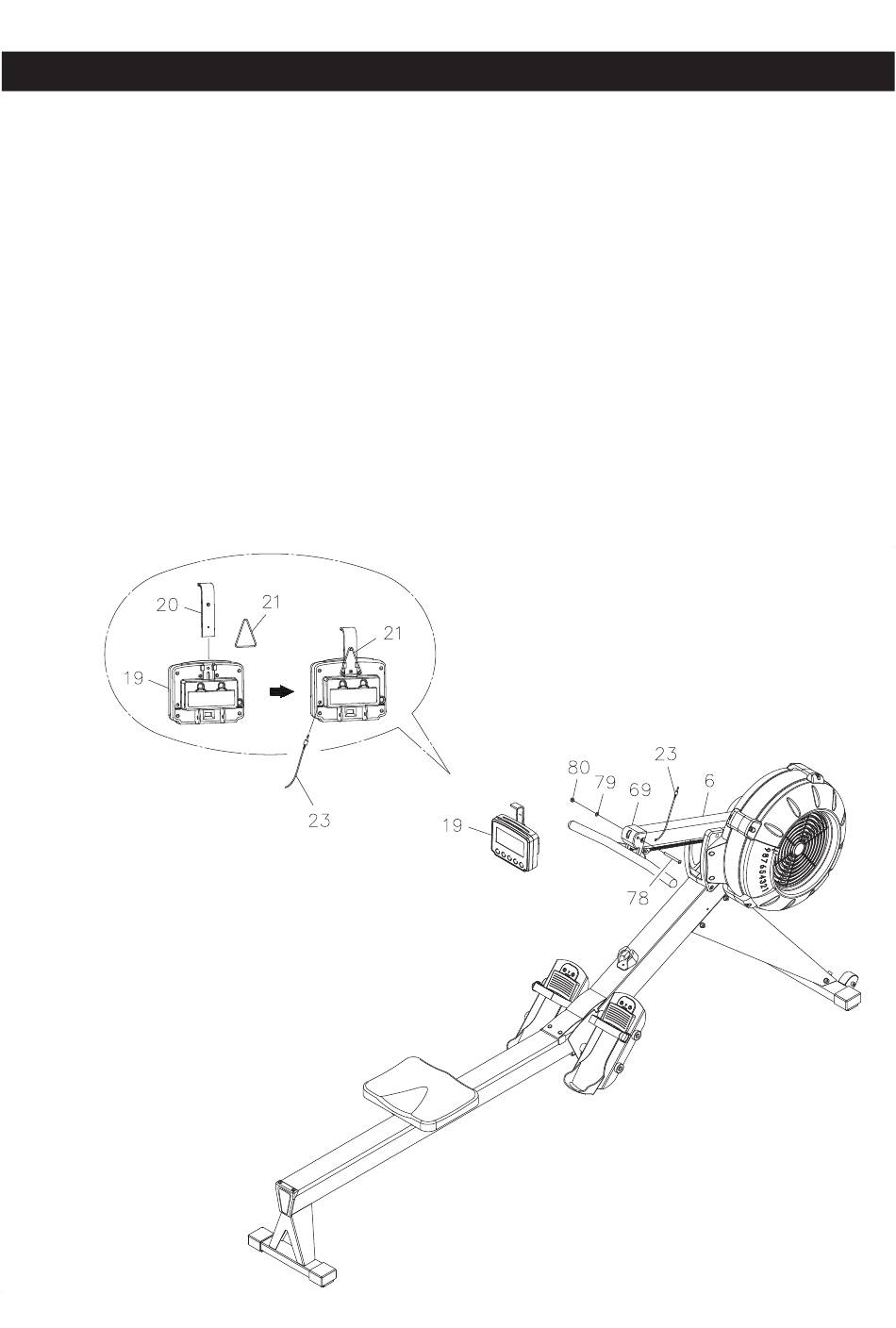

STEP 6
Refer to the detail view. Insert the CELL PHONE BRACKET(20) into the slot in the COMPUTER(19). Hang
the RUBBER BAND(21) onto the CELL PHONE BRACKET(20) and the COMPUTER(19) as shown.
STEP 7
Install two size C batteries into the COMPUTER(19), the batteries are not included. See page 18 for
detailed battery installation instructions. Attach the COMPUTER(19) to the COMPUTER POST(6) with
BUTTON HEAD BOLT(M8x1.25x75mm)(78), WASHER(M8)(79), and NYLOCK NUT(M8x1.25)(80). Plug
the SENSOR WIRE(23) into the back of the COMPUTER(19).
9
