Stamina FREEFORM R2000 AIR ROWER Owner's Manual page 6

ASSEMBLY INSTRUCTIONS
STEP 1

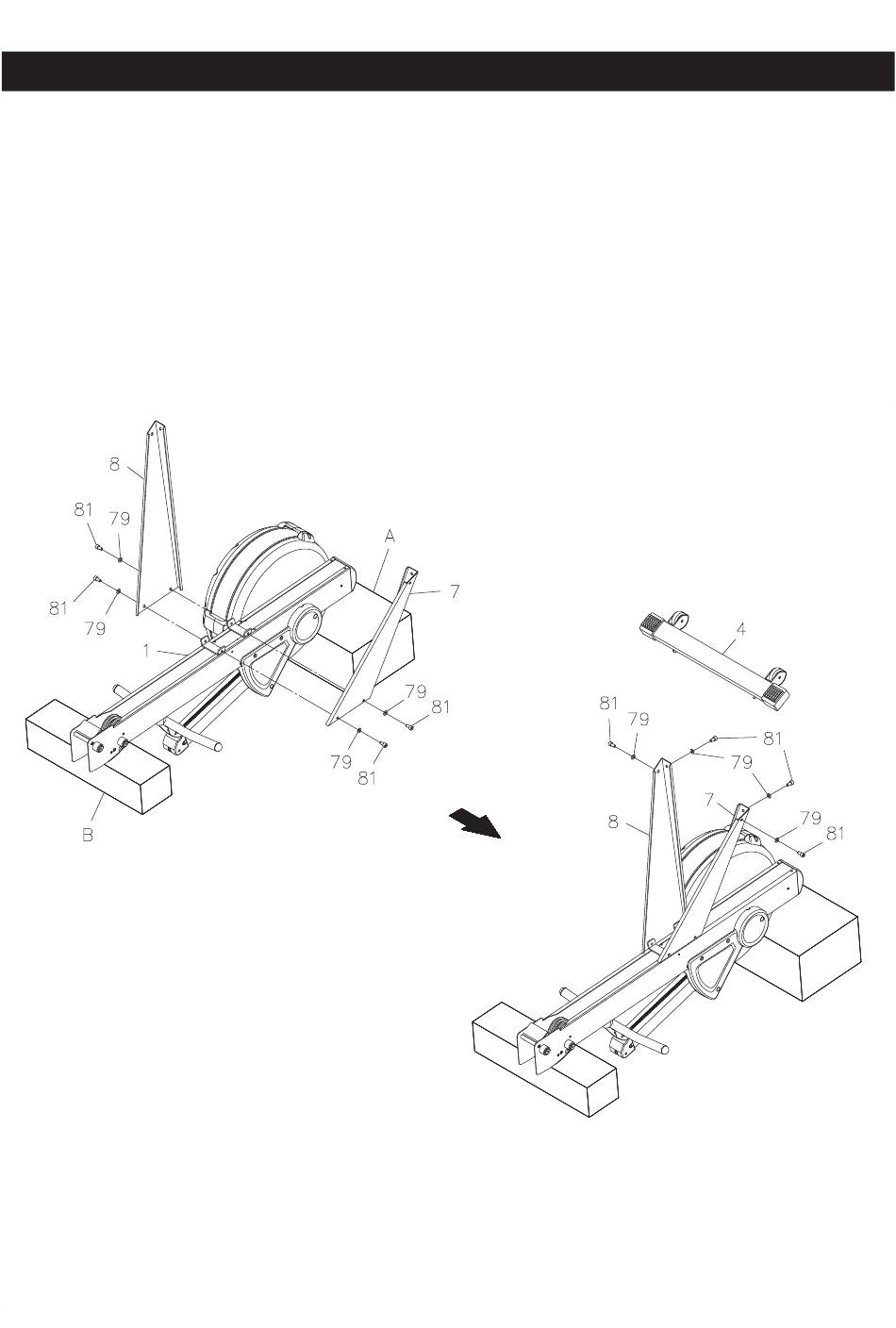

Refer to illustration 1. Turn the main assembly of the R2000 AIR ROWER upside down and place
it in the packing material styrofoam(A) and (B) to avoid breaking the chain covers. Attach the LEFT and
RIGHT SUPPORT LEGS(7, 8) to the MAIN FRAME(1) with SOCKET HEAD BOLTS(M8x1.25x12mm)
(81) and WASHERS(M8)(79). Do not tighten all bolts until Step 2.
STEP 2
Refer to illustration 2. Attach the FRONT STABILIZER(4) to the LEFT and
(7, 8) with SOCKET HEAD BOLTS(M8x1.25x12mm)(81) and WASHERS(M8)(79). Then tighten all bolts.
Turn the assembly over.
1.
6
I R G H T S U P P O R T L E G S
2.
