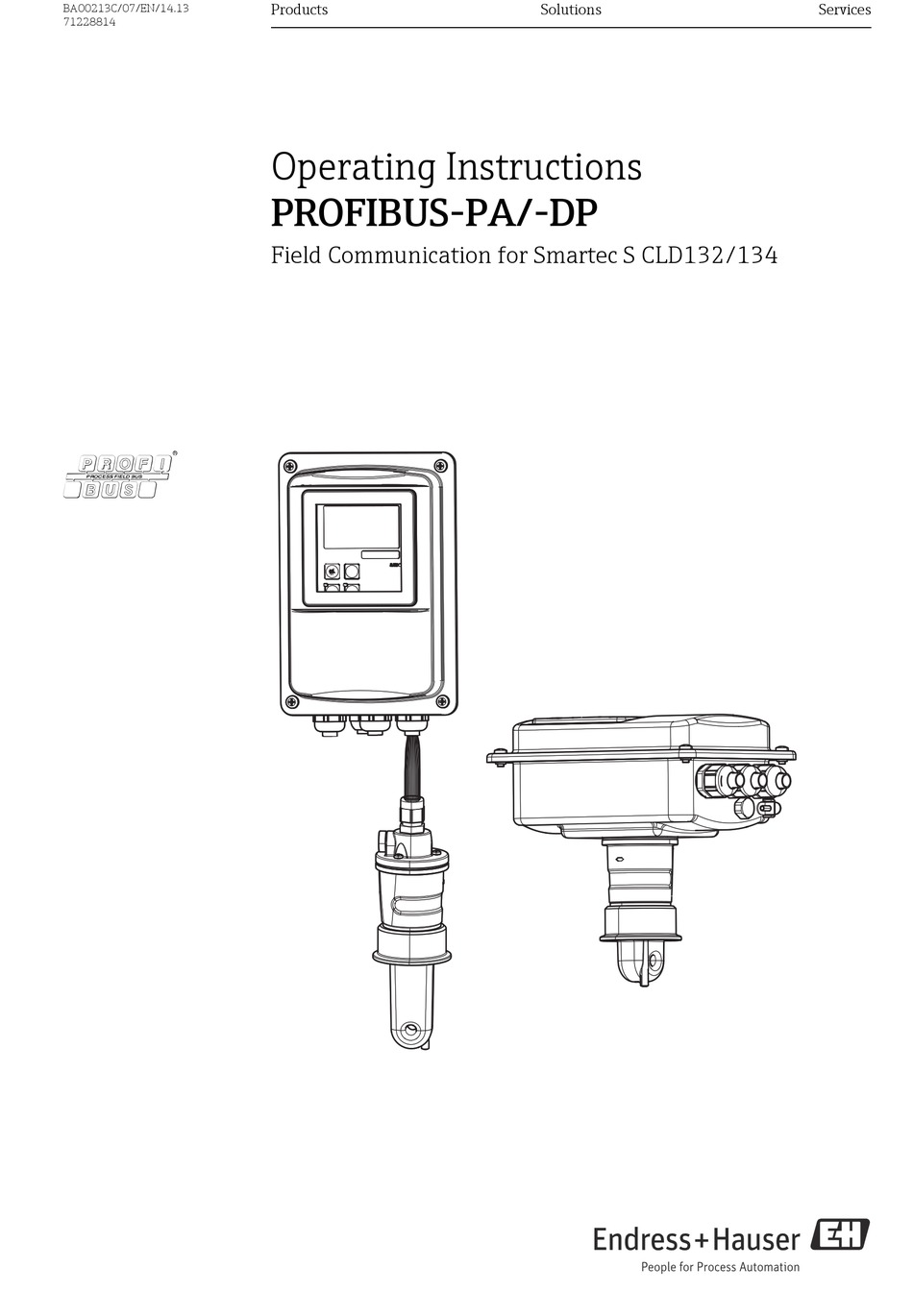

- Page 1 Products Solutions Services BA00213C/07/EN/14.13 71228814 Operating Instructions PROFIBUS-PA/-DP Field Communication for Smartec S CLD132/134...
- Page 2 Corrective action This symbol alerts you to situations that can result in NOTICE damage to property and equipment. Cause/situation Consequences if safety message is not heeded ‣ Action/note Symbols Additional information, tips Permitted or recommended Forbidden or not recommended Endress+Hauser...
-
Page 3: Table Of Contents
Standards and guidelines ....40 Index......42 Endress+Hauser... -
Page 4: Basic Safety Instructions
Do not operate damaged products, and safeguard them to ensure that they are not operated inadvertently. Mark the damaged product as defective. ‣ If faults cannot be rectified, the products must be taken out of service and secured against unintentional commissioning. Endress+Hauser... -
Page 5: Product Safety
Basic safety instructions Product safety The product is designed to meet state-of-the-art safety requirements, has been tested and left the factory in a condition in which it is safe to operate. Relevant regulations and European standards have been observed. Endress+Hauser... -
Page 6: Installation
• Segment coupler (PA only) • PROFIBUS termination • Cabling incl. bus distributor • either – PC with FieldCare or – Programmable logic controller (PLC) PROFIBUS DP PROFIBUS PA ENDRESS+HAUSER SMARTEC S ENDRESS+HAUSER SMARTEC S ALARM – a0005890 Fig. 1:... -
Page 7: Post-Installation Check
For detailed information on function and connection of a PROFIBUS system, please refer to Technical Information TI00260F/00/en Post-installation check • After installation, check the transmitter for damage. • Check whether the transmitter is protected against moisture and direct sunlight (e.g. by the weather protection cover). Endress+Hauser... -
Page 8: Wiring
å 7 to the terminal block. Tighten the cable gland. Close the housing cover. a0005891 Fig. 2: Bus cable connection Smartec S PROFIBUS Port for DIL switch Cover frame Fuse Removable electronics box Terminals Housing ground Endress+Hauser... - Page 9 Insert the cable until the limit Fig. 6: Remove the screwdriver the terminal) stop (closes the terminal) a0017420 Fig. 7: DP device electrical connection Power supply +5 V for bus termination B (RxD / TxD-P) A (RxD / TxD-N) Next PROFIBUS device Bus termination Endress+Hauser...
-
Page 10: Post-Connection Check
Electrical connection Notes Are the mounted cables strain relieved? Cable run without loops and cross-overs? Are the signal lines correctly connected in accordance with the wiring diagram? Are all screw terminals tightened? Are all cable entries installed, tightened and sealed? Endress+Hauser... -
Page 11: Operability
Operation via FieldCare FieldCare is Endress+Hauser' s FDT-based Plant Asset Management Tool. It can configure all intelligent field devices in your plant and supports you in managing them. By using status information, it also provides a simple but effective means of checking their health. -
Page 12: System Integration
Main Meas. Value Main Process Value Main Process Value Sensor Signal processing OUT VALUE Analyzer Transducer Block 2 Analog Input Block 2 Value/Status Temperature Value Temperature Value Temperature Temperature a0005920-en Fig. 9: Block model of Smartec S (grey = profile blocks) Endress+Hauser... - Page 13 • local operation in menu field I2 (INTERFACE function group) or via • PROFIBUS parameter TAG_DESC of the Physical Block. If you change the tag number via one of the two options, the change can also be seen immediately at the other position. Endress+Hauser...
- Page 14 The input values are permanently assigned to each Analog Input function block: • Main measured value (Main Process Value) – Analog Input function block 1 (AI 1) • Measured temperature value (temperature) – Analog Input function block 2 (AI 2) Endress+Hauser...
- Page 15 The OUT output value is compared to warning limits and alarm limits (e.g. HI_LIM, LO_LIM), which can be entered via diverse parameters. If one of these limit values is violated, a limit value process alarm (e.g. HI_ALM, LO_ALM) is triggered. Endress+Hauser...
- Page 16 The current value is used for further processing, despite the BAD status.The default is the setting (FSAFE_VALUE) with value “0”. Error response is also activated if the Analog Input function block is set to the “OUT OF SERVICE” operating mode. Endress+Hauser...
- Page 17 The result is that with an input value of 25 °C, for example, a value of 77 °F is output via the OUT parameter ( å 11). Transducer Analog Input Function Block Block °C PV_SCALE OUT_SCALE tempe- rature ENDRESS+HAUSER ENDRESS+HAUSER SMARTEC S SMARTEC S ALARM – 25 °C 77 °F °F –10 ... 150 °C a0005922-en Fig.
-
Page 18: Cyclical Data Exchange (Data_Exchange)
The output data of the PLC for device control have the following structure: Index Data Access Data format Configuration data Input Data write Byte 0x42, 0x84, 0x08, 0x05 or Status byte (0x80) = Ok 0x42, 0x84, 0x81, 0x81 or 0x94 Endress+Hauser... - Page 19 0x02 MRS 3 0x03 MRS 4 number of binary inputs = 1; E1 and E2 active 0x00 MRS 1 0x01 Hold on 0x02 MRS 2 number of binary inputs = 0; E1 active 0x00 Hold off 0x01 Hold on Endress+Hauser...
- Page 20 CONST 0x4F UNCERTAIN initial value CONST 0x50 UNCERTAIN sensor conversion not 0x51 accurate LOW_LIM 0x52 HIGH_LIM 0x53 CONST 0x5C UNCERTAIN configuration error 0x5D LOW_LIM 0x5E HIGH_LIM 0x5F CONST 0x60 UNCERTAIN simulated value 0x61 LOW_LIM 0x62 HIGH_LIM 0x63 CONST Endress+Hauser...
- Page 21 UNCERTAIN sensor calibration 0x65 LOW_LIM 0x66 HIGH_LIM 0x67 CONST 0x80 GOOD 0x83 CONST 0x84 GOOD update event 0x85 LOW_LIM 0x86 HIGH_LIM 0x87 CONST 0x89 GOOD active advisory alarm LOW_LIM 0x8A HIGH_LIM 0x8D GOOD active critical alarm LOW_LIM 0x8E HIGH_LIM Endress+Hauser...
-
Page 22: Acyclical Data Exchange
(byte). • When a Class 2 master writes parameters, it transmits the address of the transmitter, the slot and index, length information (byte) and the record. The transmitter acknowledges this write job after completion. Endress+Hauser... - Page 23 Octetstring DIAGNOSIS_MASK_EXTENSION Octetstring DEVICE_CERTIFICATION Visible string WRITE_LOCKING Unsigned16 r, w 0: acyclic refused 2457: writeable FACTORY_RESET Unsigned16 r, w 0x8000: reset calibration data 0x8001: reset set data 0x0001: PNO defaults all data 2506: warm start 2712: reset bus adr. Endress+Hauser...
- Page 24 2: run 5: maintenance GLOBAL_STATUS Unsigned16 200 - E+H-Parameter ACTUAL_ERROR VAH2 Unsigned16 LAST_ERROR VAH3 Unsigned16 UPDOWN_FEATURES_SUPP Octetstring DEVICE_BUS_ADDRESS VAH1 Signed8 SET_UNIT_TO_BUS VAH9 Unsigned8 r, w 0: off 1: confirm CLEAR_LAST_ERROR VAH4 Unsigned8 r, w 0: off 1: confirm Endress+Hauser...
- Page 25 1: Range 1 AUTORANGE_ON 1 - 2 Boolean r, w SAMPLING_RATE 1 - 2 Time_difference r, w Gap reserved PNO 1 - 2 115 - NUMBER_OF_RANGES 1 - 2 Unsigned8 RANGE_1 1 - 2 DS-61* r, w Endress+Hauser...
- Page 26 LO_LO_LIM 1 - 2 Float r, w HI_HI_ALM 1 - 2 DS-39* HI_ALM 1 - 2 DS-39* LO_ALM 1 - 2 DS-39* LO_LO_ALM 1 - 2 DS-39* SIMULATE 1 - 2 DS-50* r, w VIEW_1 1 - 2 Unsigned8 Endress+Hauser...
- Page 27 V4H2 Unsigned8 r, w Operating mode of processed V4H3 Unsigned8 r, w measuring range 0: Conductivity 1: Concentration Substance selection of processed V4H4 Unsigned8 r, w measuring range 0: NaOH 1: H2SO4 2: H3PO4 3: HNO3 4: User 1... Endress+Hauser...
- Page 28 Alpha value alpha table V6H5 Float r, w Status alpha table V6H6 Unsigned8 0: Ok 1: Service 2: Processing 3: Invalid PCS alarm V7H0 Unsigned8 r, w 0: no PCS 1: 1 hour 2: 2 hours 3: 4 hours Endress+Hauser...
- Page 29 PROFIBUS Specification Part 1, Version 3.0. They consist of several elements which are additionally addressed via a sub- index, as shown in the following example. Parameter type Sub-index Type Size (byte) DS-33 Float Unsigned8 Endress+Hauser...
-
Page 30: Commissioning
Position of the DIL switch (only accessible with open housing cover) You can only set the address via the software if DIL switch 8 is set to "ON". The factory setting of the DIL switch is "ON" ( å 13). a0005211 Fig. 13: Factory setting of the DIL switch Endress+Hauser... - Page 31 Set the device address (from 0 to 126) at switches 1 to 7. Example: 18 = 2 + 16 (switch 2 and switch 5 = ON) Set switch 8 to "OFF". Close the housing cover. a0005212 Fig. 14: Hardware setting of the device address (example address = 18) Endress+Hauser...
-
Page 32: Device Data And Type Files
Each device is assigned an ID number by the PROFIBUS use organization (PNO). The name of the device data base (GSD) is derived from this ID number. For Endress+Hauser devices the ID number always starts with "15XX". Types of Device Master Files Prior to configuration, decide which GSD you want to use to operate the system. - Page 33 Smartec S DP 151A Hex EH__151A.gsd EH151A_n.bmp EH151A_s.bmp The GSD files for all Endress+Hauser devices can be obtained from the following sources: • Via the Internet: – E+H: http://www.endress.com – PNO: http://www.profibus.com • On CD-ROM from E+H; order no. 56003894 Contents of the download file and of CD-ROM: •...
- Page 34 • The bitmap files also belong to the GSDs. These bitmap files are used to display the measuring points in image form. Load the bitmap files to the directory: ...\siemens\step7\s7data\nsbmp If you are using configuration software other than that referred to above, ask your PLC manufacturer which directory you should use. Endress+Hauser...
-
Page 35: Diagnostics And Troubleshooting
00 04 00 80 - DIA_CONF_INVAL 00 00 02 00 00 configuration concentration table error Failure E079 Conductivity outside of the 0 04 00 80 - DIA_CONF_INVAL 00 00 04 00 00 configuration concentration table error Funct. E101 Service function active – – check Endress+Hauser... - Page 36 error value table too low Failure E152 Live-Check alarm (PCS) 20 00 00 80 - DIA_MEASUREMENT 00 00 00 02 00 sensor failure * Depending on the limit bits you have to add from 00 up to 03 Endress+Hauser...
-
Page 37: Accessories
Smartec S CLD132/134 PROFIBUS-PA/-DP Accessories Accessories ENDRESS+HAUSER ENDRESS+HAUSER SMARTEC S SMARTEC S ALARM – PROFIBUS-DP ENDRESS+HAUSER ENDRESS+HAUSER SMARTEC S SMARTEC S ALARM – ENDRESS+HAUSER ENDRESS+HAUSER SMARTEC S SMARTEC S ALARM – PROFIBUS-PA a0005936 Fig. 15: Instrumentation overview Smartec S PROFIBUS... - Page 38 – Cable length 5 m (16.41 ft), order no. 52001041 – Cable length 10 m (32.81 ft), order no. 52001042 • FieldCare Tool for Plant Asset Management Supports Ethernet, HART, PROFIBUS, FOUNDATION Fieldbus FieldCare Standard, order no. SFE551-xxxx FieldCare Professional, order no. SFE552-xxxx Endress+Hauser...
-
Page 39: Technical Data
9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps Signal coding NRZ code Response time slave Approx. 20 ms Signal on alarm Status and alarm messages in accordance with PROFIBUS DP, profile version 3.0 Display: error code Physical layer RS 485 Endress+Hauser... -
Page 40: Display And User Interface
Set_Slave_Adr service Communication interface PROFIBUS PA/DP Standards and guidelines PROFIBUS EN 50170, vol. 2 PROFIBUS DP EN 50170, vol. 2 RS 485 PNO guidelines for PROFIBUS DP PROFIBUS PA EN 50170, vol. 2 RS 485 PNO guidelines for PROFIBUS PA Endress+Hauser... - Page 41 Smartec S CLD132/134 PROFIBUS-PA/-DP Technical data Endress+Hauser...
-
Page 42: Index
Product safety ........5 Requirements for the personnel ..... 4 Endress+Hauser... - Page 43 Smartec S CLD132/134 PROFIBUS-PA/-DP Endress+Hauser...
- Page 44 71228814 www.addresses.endress.com...
