Samsung MWR-SH00 Installation Manual

Wired remote control
Hide thumbs Also See for MWR-SH00:

Advertisement

Quick Links

Download this manual
Air conditioner
Installation manual

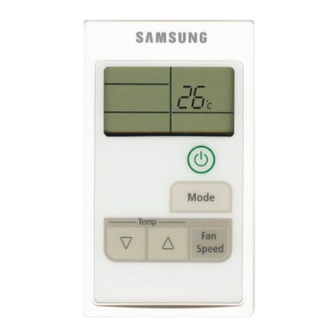

Wired Remote Control MWR-SH00
• Thank you for purchasing this Samsung Product.
• Before operating this unit, please read this installation manual carefully and retain it for future
reference.
DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 1
2020-09-28 오후 1:42:32

Advertisement

loading

Related Manuals for Samsung MWR-SH00

Summary of Contents for Samsung MWR-SH00

  • Page 1 Air conditioner Installation manual Wired Remote Control MWR-SH00 • Thank you for purchasing this Samsung Product. • Before operating this unit, please read this installation manual carefully and retain it for future reference. DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 1 2020-09-28 오후 1:42:32...
  • Page 2 Safety Precautions This installation manual describes how to install the wired remote control. For installation of other optional accessories, refer to the appropriate installation manual. Read carefully this installation manual before  WARNING installation and check if the wired remote control is installed correctly after installation.

  • Page 3: Table Of Contents

    Contents .........4  ired emote ontrol and CCessories Accessories ....................4  ..........5  nstalling the ired emote ontrol Installation ....................5  Setting the Wired Remote Control Options ......6  Wired Remote Control Error Codes ..........6  Connecting the Wired Remote Control ........7 ...

  • Page 4: Accessories

    Wired Remote Control and Accessories Accessories The following accessories are supplied with the air conditioner.  The number of each accessory is indicated in parentheses. Cable Tie (2) Cable Clamp(2) M4X16 Screw(2) User's manual(1) Installation manual(1) Caution The wired remote control should be installed by a ...

  • Page 5: Installing The Wired Remote Control

    Installing the Wired Remote Control Installation Connect the power cables and communication cables of the wired remote control to the terminal of indoor unit PCB. Open the wired remote control by using the groove on its top. Secure the rear cover of the wired remote control to the wall with 2 screws.

  • Page 6: Setting The Wired Remote Control Options

    Installing the Wired Remote Control (Continued) Setting the Wired Remote Control Options  Default setting Switch Switch OFF Switch ON SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW1 Cooling and Heating Cooling Only SW2 Temp. display : °C Temp. display : °F 2 3 4 5 6 7 8 Allow wireless remote Disable the wireless remote...

  • Page 7: Connecting The Wired Remote Control

    Connecting the Wired Remote Control Individual Control  Using one wired remote control for one indoor unit. Outdoor unit COM1 COM1 Indoor unit COM2 COM2 COM2 Wired remote control Note The wired remote control can be only installed on COM2. DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 7 2020-09-28 오후...
  • Page 8 Installing the Wired Remote Control (Continued) Connecting the Wired Remote Control Group Control  Using one wired remote control for a group of indoor units. Outdoor unit COM1 COM1 COM1 Indoor unit COM2 COM2 Wired remote control Outdoor unit Indoor unit Outdoor unit Wired remote control Indoor unit...
  • Page 9 Using 2 wired remote controls  2 wired remote controls can be used to control a single indoor unit or a group of indoor units. Outdoor unit COM1 Indoor unit COM2 Wired remote control Wired remote control (Main) (Sub) SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 2 3 4 5 6 7 8 2 3 4 5 6 7 8...
  • Page 10 MEMO DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 10 2020-09-28 오후 1:42:34...
  • Page 11 DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 11 2020-09-28 오후 1:42:34...
  • Page 12 DB98-28133A-05 DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 12 2020-09-28 오후 1:42:34...
